The TK419 is a high-performance 4G LTE FDD real-time GPS tracker designed for worldwide vehicle tracking. It features advanced capabilities like remote oil/engine cut-off and is optimized for M2M and IoT applications using a high-reliability LTE Category 1 module.
Supports GPS/LBS dual positioning with A-GPS for rapid signal acquisition. Utilizes UBLOX GPS and GNASS chips for high precision.
Complete 4G LTE support with automatic fallback to 3G/2G networks, ensuring seamless global connectivity.
IP65 waterproof and dustproof rating. Built-in 140mAh battery for emergency alarms when main power is disconnected.

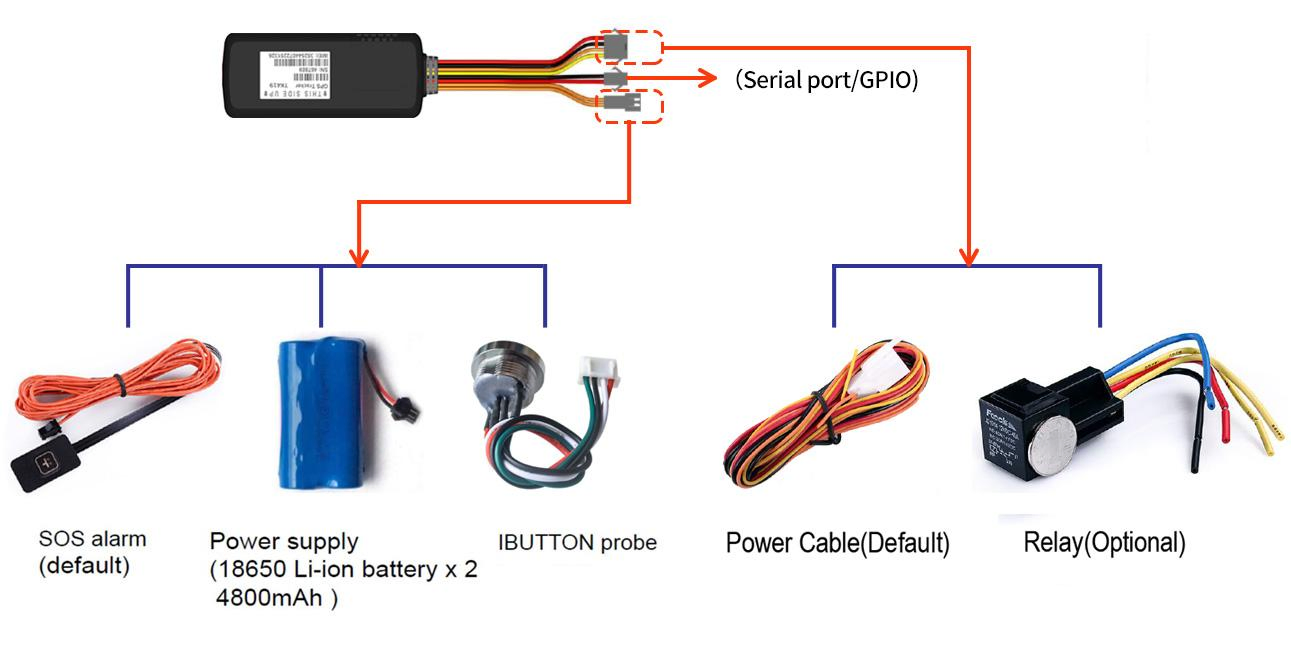

Features GPIO extension for Serial Port connection, IBUTTON probe support for ID confirmation, and OTA remote firmware upgrades.
| Parameter | Details |
|---|---|
| Material | UL Lanxess PA6 Durethan BKV15+ |
| Antenna | Internal LTE & GPS Antennas |
| Data Speed | Max 10Mbps (DL) / 5Mbps (UL) |
| Flash Memory | 4MB for application and offline data storage |
| Hot/Warm/Cold Start | <3s, <15s, <60s |
| I/O Interface | 3 Digital Inputs, 2 Digital Outputs, 1 Analog Input, Mic/Speaker Sockets |
| Motion Sensor | Embedded 3D motion sensor for power saving |
| Dimensions | 89mm x 37mm x 12mm |
| Temperature | -20 to 75° C (Operation) |
Yes, it supports 4G LTE full network (FDD/TDD) and is compatible with 3G WCDMA and 2G GSM frequencies for global operation.
Yes, the device supports remote fuel and ignition cut-off functions to enhance vehicle security in case of theft.
The TK419 has 4MB of internal flash memory to log GPS data when out of range. The data will be uploaded to the server once the signal is restored.
Yes, the device has an IP65 rating, making it protected against dust and low-pressure water jets from any direction.
The device supports a wide voltage range from 9V to 72V DC, making it suitable for cars, trucks, and electric motorcycles.
The GPS positioning accuracy is typically between 5m to 15m, depending on the satellite signal strength.
