Product Description

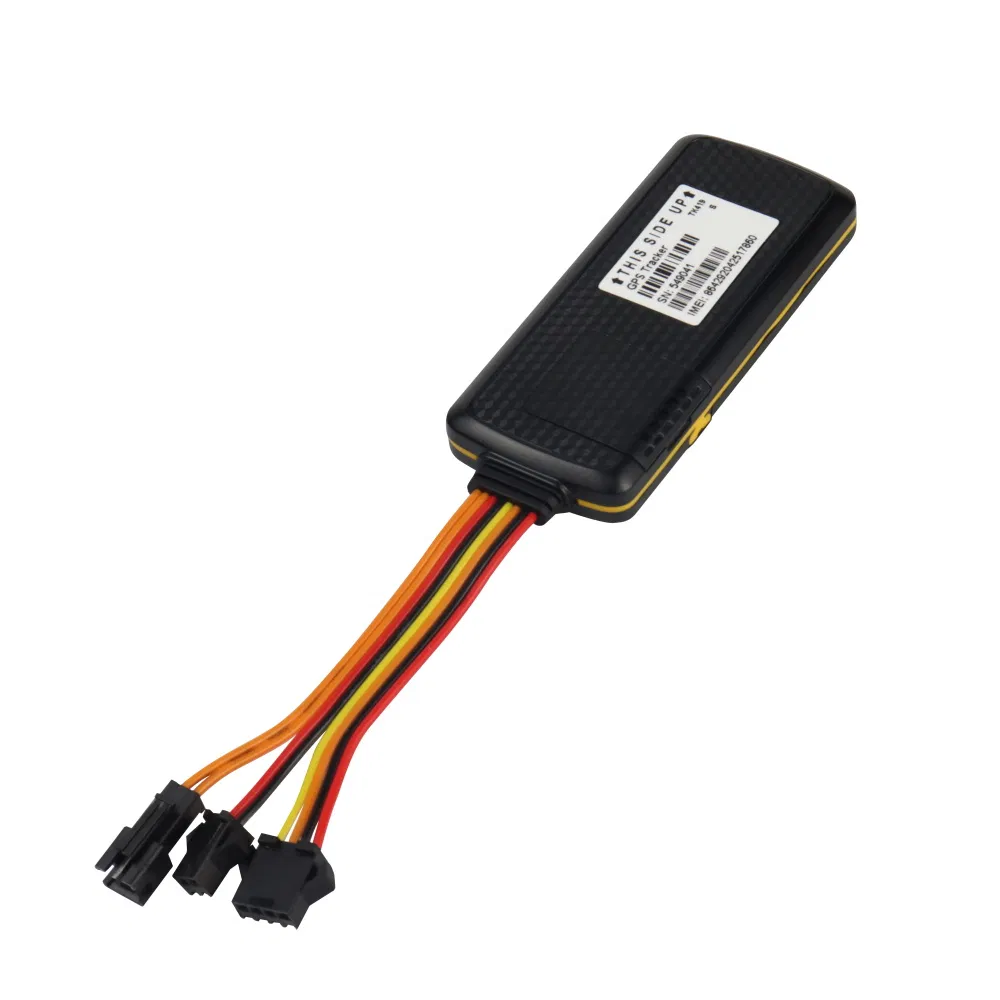

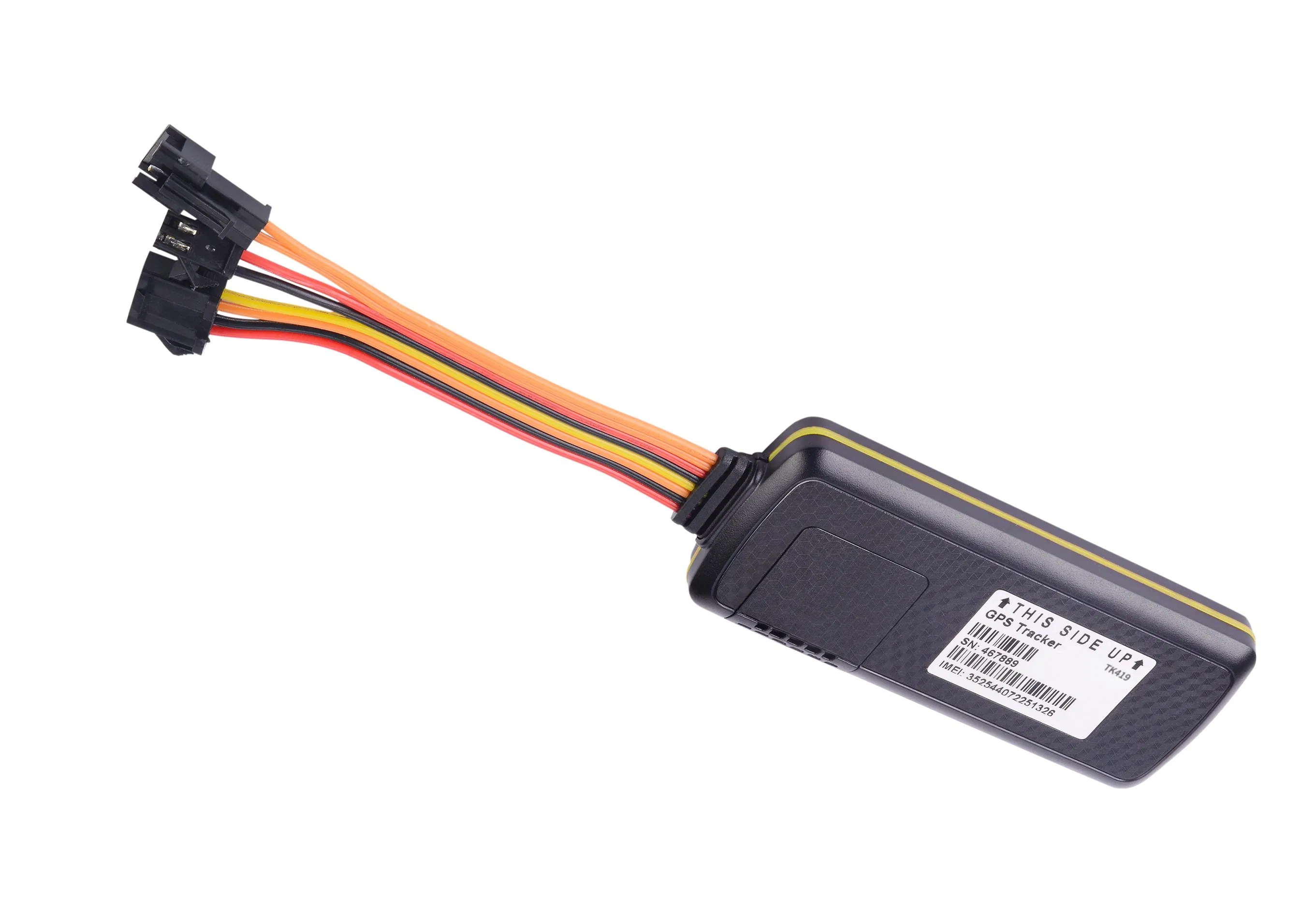

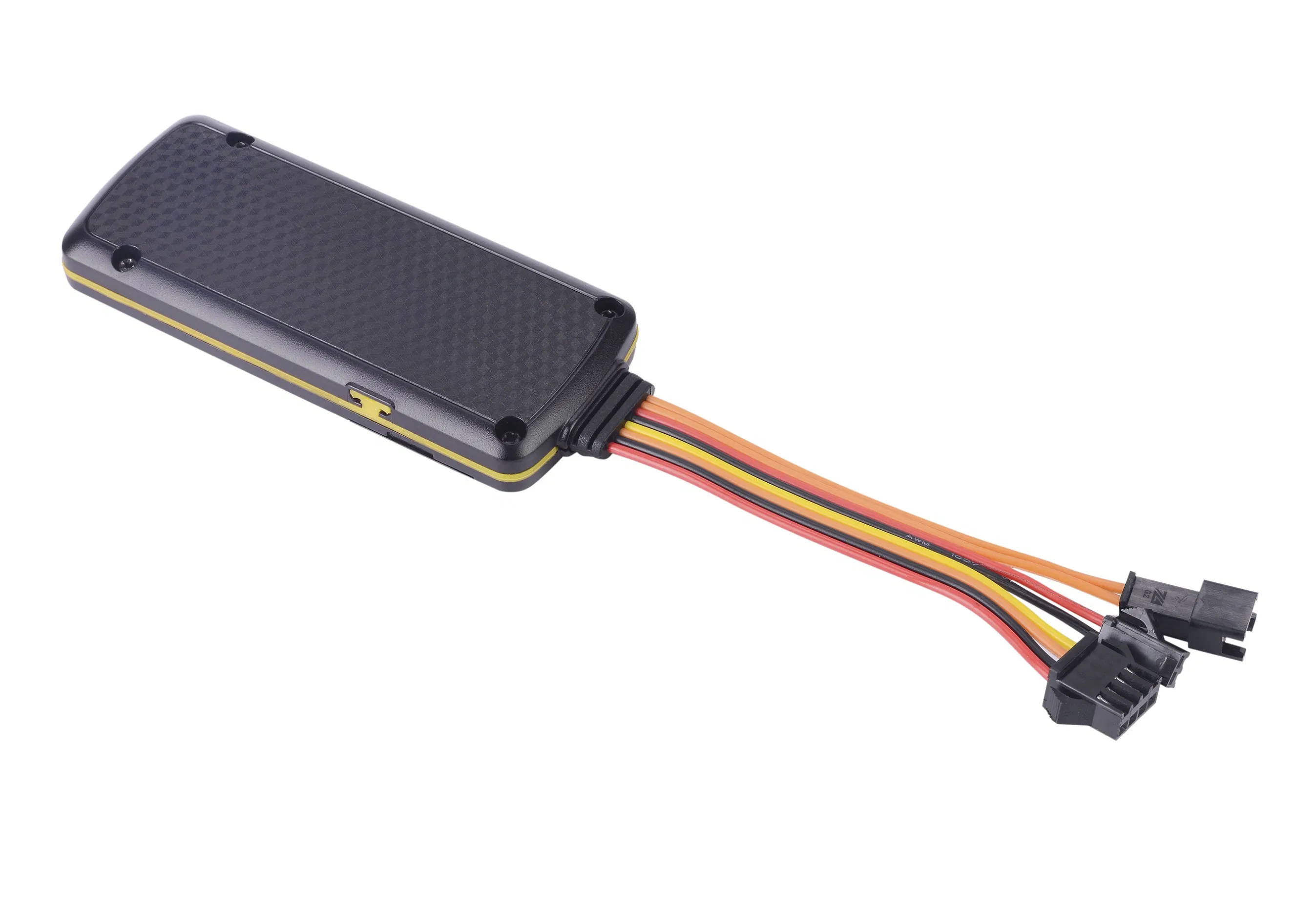

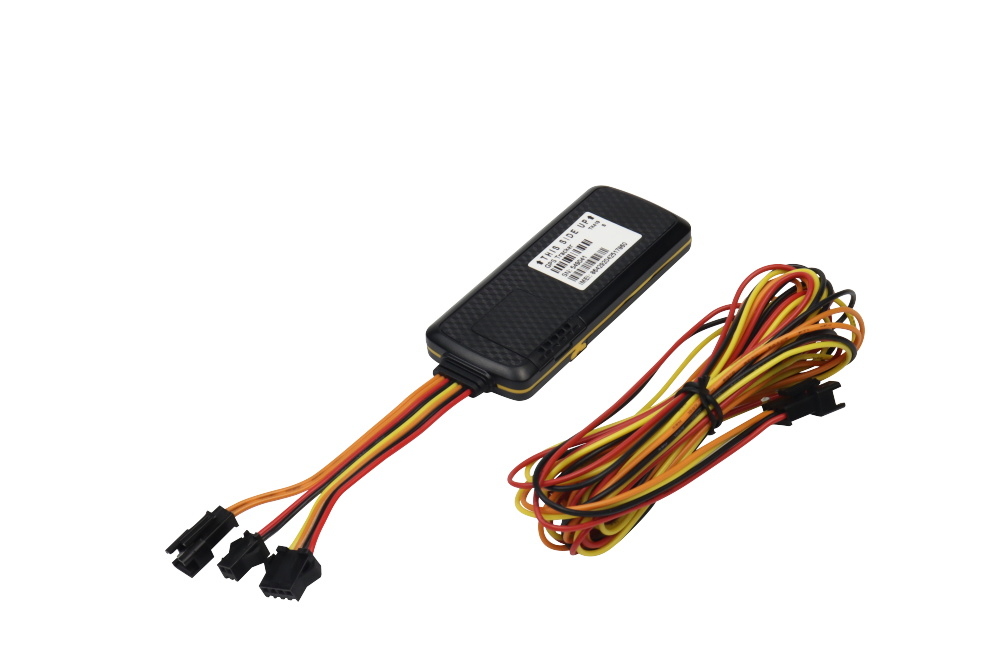

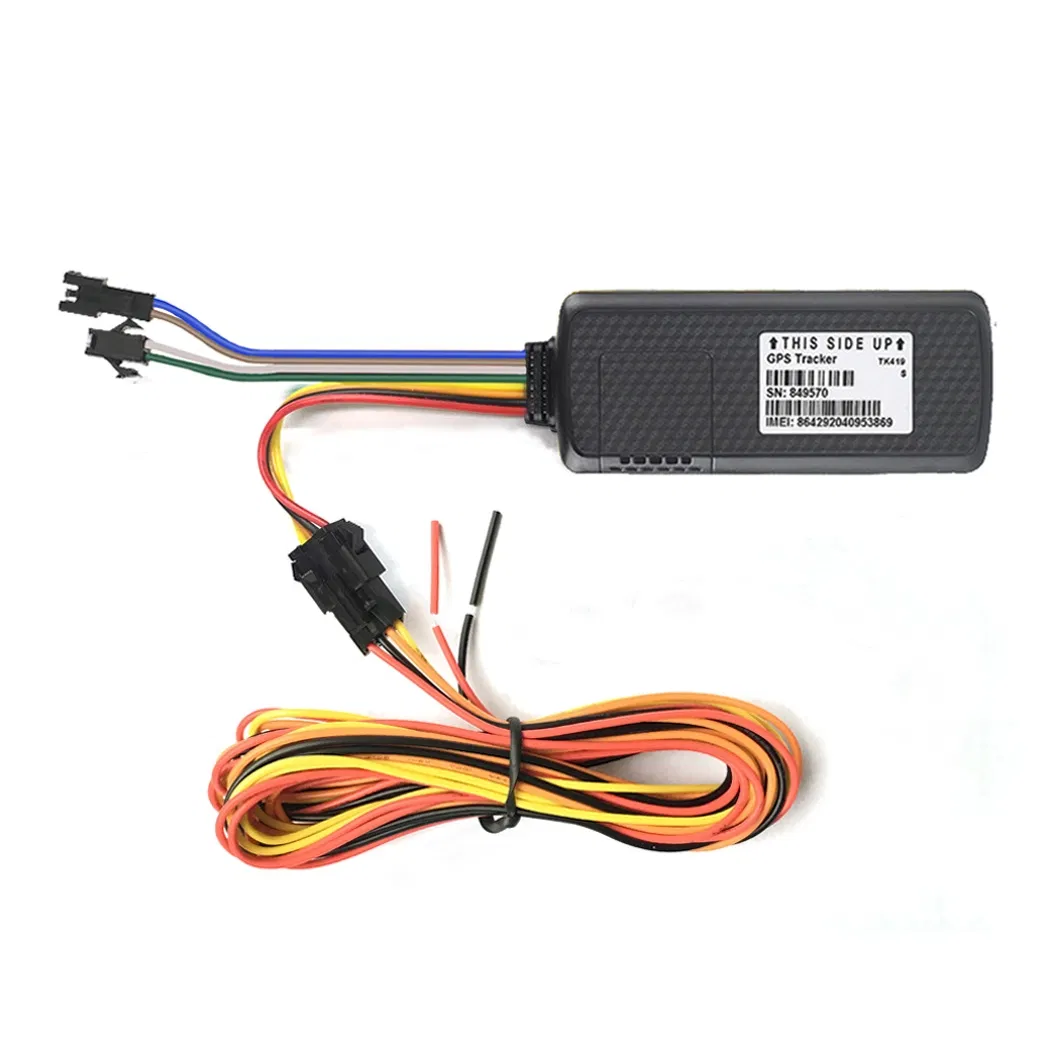

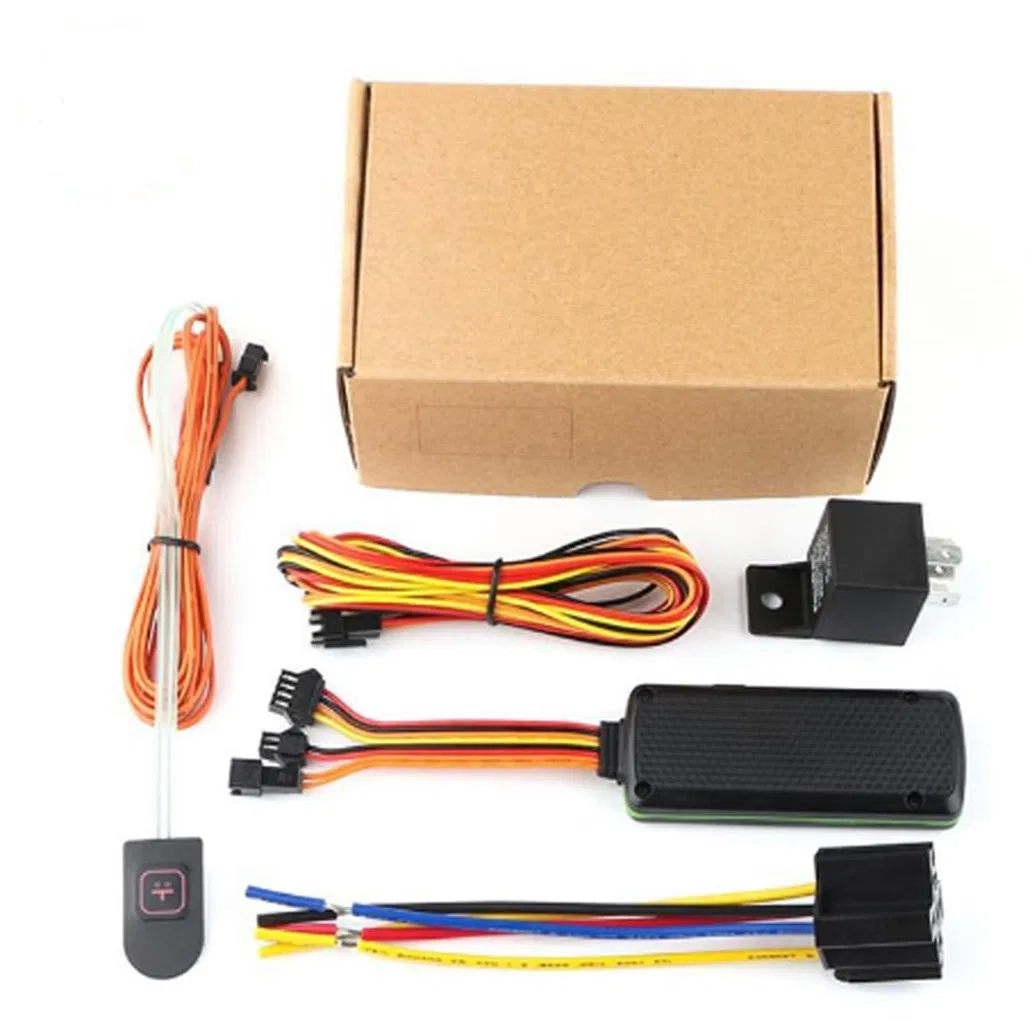

4G LTE CAT1 GPS Car Tracker TK419-3

Model NO.
TK419-3
Certification
FCC, CE
Warranty
1 Year
GSM Band
B2/B3/B5/B8
Weight
51g
Dimensions
89mm X 37mm X 12mm
Voltage
12/ 24/ 36 VDC
Battery Capacity
160mAh
Waterproof Level
IP65
HS Code
8526911000

Product Description

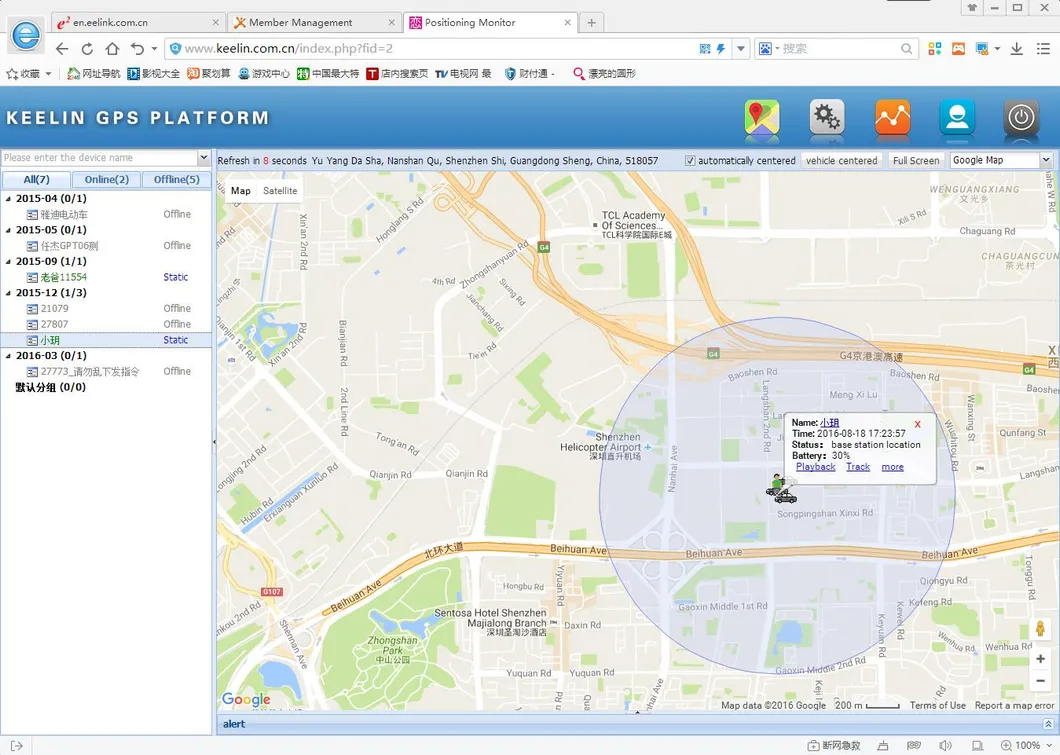

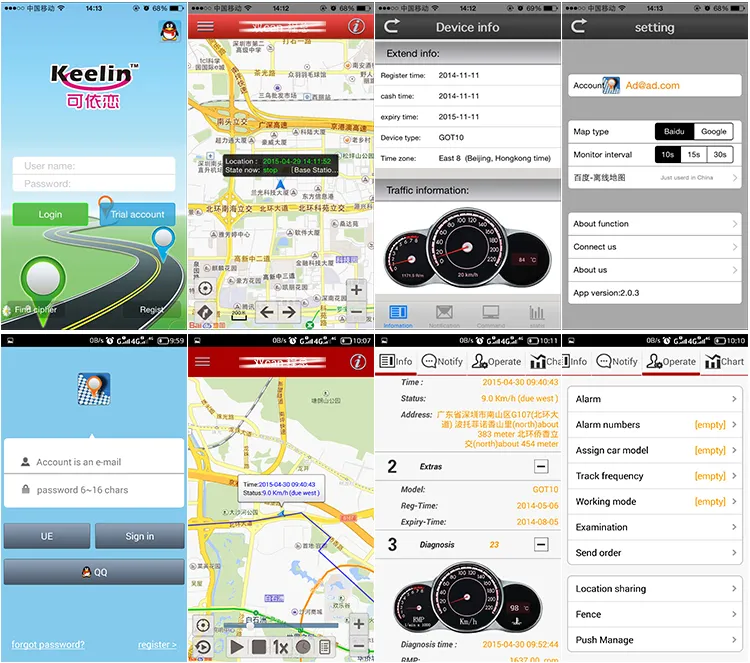

The TK419-3 GPS Tracker monitors your vehicle via GPS satellite positioning, GPRS, and LTE FDD network communication. It enables real-time remote location and control through a powerful service platform, playing a vital role in logistics and cold chain management by ensuring safety and improving efficiency.

Key Features

✔Support GSM/ LTE FDD Global Bands (fallback 2G)
✔Multi-GNSS: GPS, Beidou, Glonass, Galileo, Qzss, A-GPS
✔Super Wide Input Voltage: 9-36V DC
✔ACC status detection & SOS panic button support
✔Built-in 3D motion sensor for vibration & collision alarms
✔Remote fuel/ignition cut-off capability
✔Waterproof IP65 and dustproof performance
✔Firmware OTA (Over-the-Air) updates
4G Real Time Tracking Devices with CE and FCC Certificate
4G Real Time Tracking Devices with CE and FCC Certificate

Main Functions

ACC Detection: Status report and alarm
Geo-Fence: Boundary alerts and reporting
Alarms: Power-off, Towing, Over-speed, and Low battery

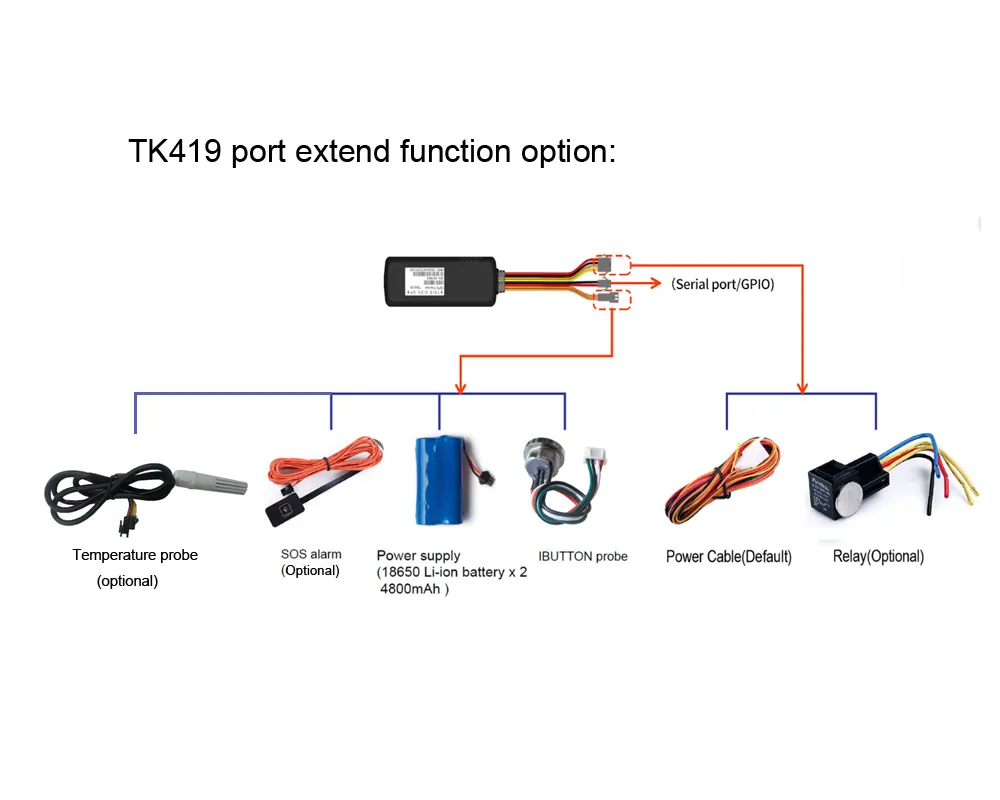

M2M Support: Temperature and iButton for driver ID
Power Saving: Advanced sleep modes for consumption control
Mileage: Detailed mileage reporting and playback
4G Real Time Tracking Devices with CE and FCC Certificate

Technical Specifications

Parameter Description
AntennaInternal LTE & GPS Antennas
Positioning Accuracy5m-15m (GPS); ~200m (LBS)
NetworkLTE/FDD, GSM, SMS
LTE BandsFDD(B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66)
TDD BandsB34/B38/B39/B40/41
Operating Voltage9-36V DC
Work Current<30 mA
Standby Current<15 uA
Operating Temp-20°C to 75°C
Net Weight51g

Market Applications

Fleet Management: School buses, Taxis, Logistics, Ambulances, and Rental fleets.

M2M Application: Cold chain, Food supply, and Enterprise equipment management.

Asset Security: Real-time tracking and usage optimization for valuable assets.

Insurance Telematics: Stolen vehicle recovery and accident assessment.

Marine Tracking: Yachts and boats tracking with speed and fence alerts.

4G Real Time Tracking Devices with CE and FCC Certificate
4G Real Time Tracking Devices with CE and FCC Certificate

Frequently Asked Questions (FAQ)

1. What cellular networks does the TK419-3 support?
The device supports global 4G LTE CAT1 bands with fallback to 2G GSM (B2/B3/B5/B8) to ensure continuous connectivity.
2. Is the device waterproof for outdoor installation?
Yes, the TK419-3 has an IP65 waterproof and dustproof rating, making it suitable for various vehicle environments.
3. What is the voltage range for vehicle installation?
It supports a wide input voltage range of 9V to 36V DC, making it compatible with cars, trucks, and heavy machinery.
4. Does it have an internal battery for emergency alerts?
Yes, it includes a built-in 160mAh backup battery that triggers a power-disconnect alarm if the main power is cut.
5. Can I remotely stop the vehicle in case of theft?
Yes, by connecting an optional relay, the device supports remote fuel or ignition cut-off via the tracking platform or SMS.
6. How accurate is the GPS positioning?
The device offers high precision with an accuracy of 5m to 15m depending on the GPS signal strength.
