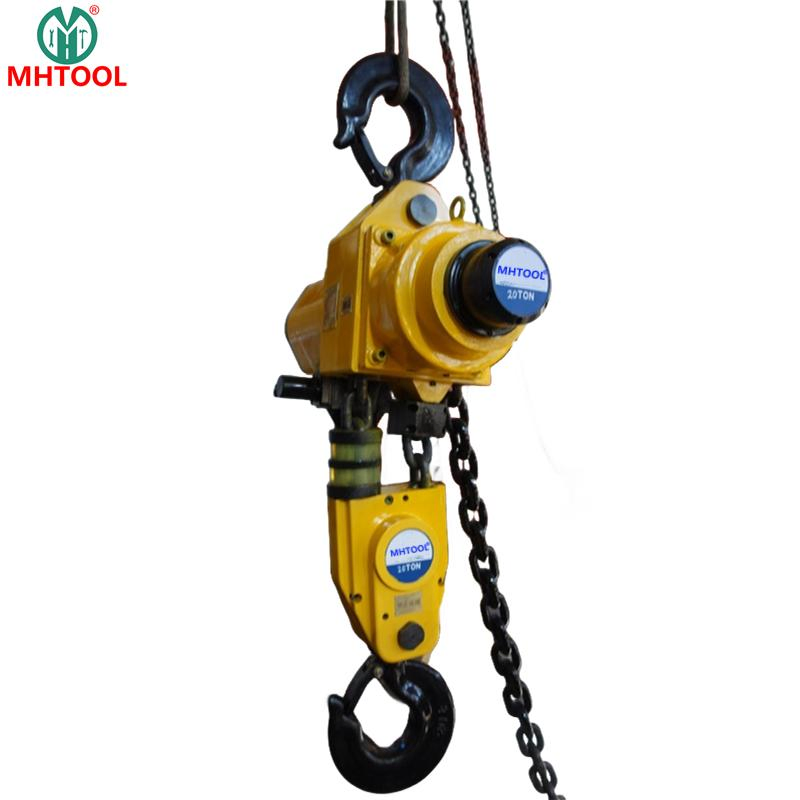

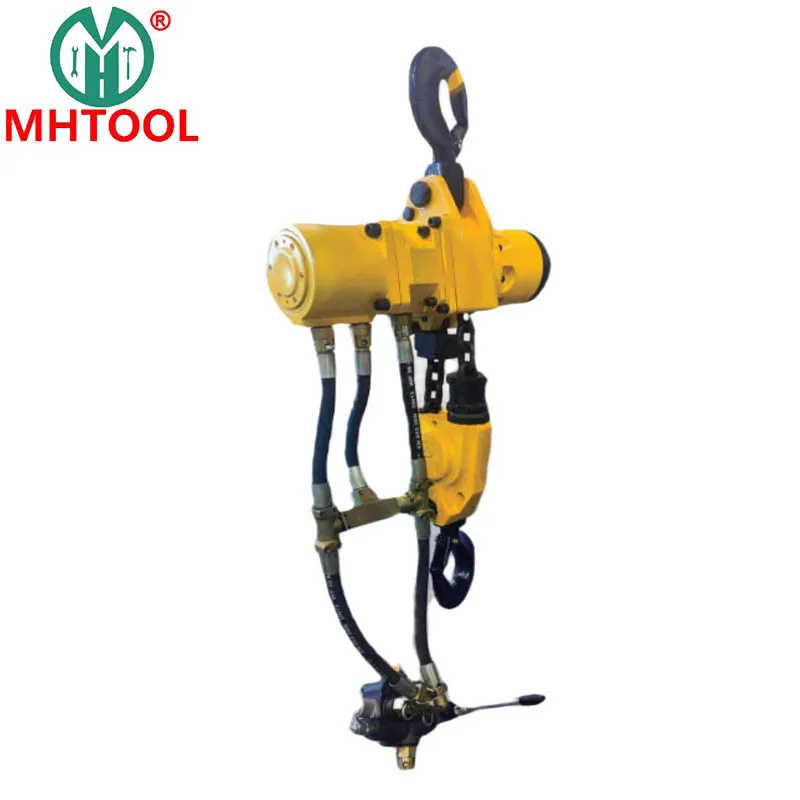

The hydraulic hoist is applicable to special working places such as marine vessels, oil mining platforms and coal mines. It has stable transmission, strong bearing capacity, automatic lubrication to extend the service life of components, and special requirements for stepless speed change and low noise.
| Model Items | HYD3 | HYD6 | HYD10 | HYD16 | HYD20 | HYD25 | HYD37 | HYD50 |
| Capacity (Ton) | 3 | 6 | 10 | 16 | 20 | 25 | 37 | 50 |
| Ascending Speed (m/min) | 4 | 2 | 1.7 | 1.1 | 0.8 | 1.1 | 0.7 | 0.5 |
| Descending Speed (m/min) | 4.5 | 2.3 | 2.1 | 1.5 | 1 | 1.2 | 0.8 | 0.5 |
| Rated Air Pressure (Mpa) | 13 | 13 | 13 | 13 | 13 | 15 | 15 | 15 |
| Air Consumption (L/min) | 48 | 48 | 48 | 48 | 48 | 80 | 80 | 80 |
| Motor Power (kW) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 6 | 6 | 6 |
Lifting Applications:
Key Advantages:
| Capacity (t) | 0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | 6 | 8 | 10 |
| Hook Up (m/min) | 6 | 3 | 5.4 | 4 | 3.3 | 2 | 1.5 | 1.4 | 0.75 | 0.7 | 0.4 | 0.4 |
| Hook Down (m/min) | 8 | 4 | 10 | 7 | 6 | 3.5 | 3 | 3 | 1.5 | 1.4 | 1 | 1 |
| Trolley (m/min) | 10-13 | 10-13 | 8-10 | |||||||||
| Crane (m/min) | 16-20 | 14-18 | 10-14 | |||||||||

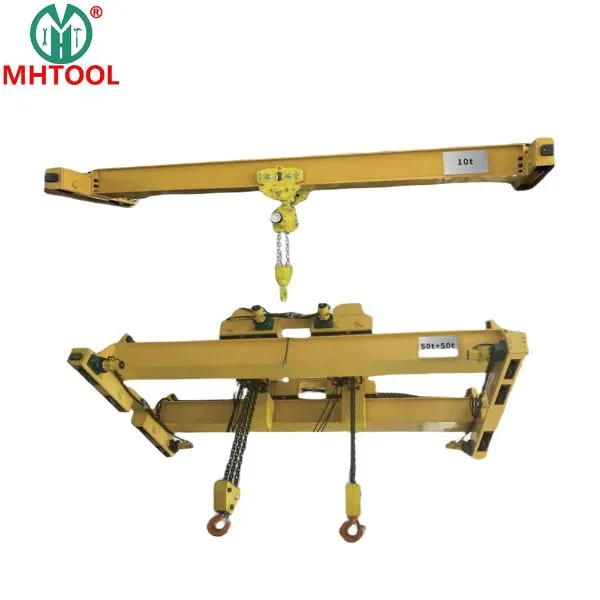

| Capacity (t) | 6+6(12t) | 10+10(20t) | 25+25(50t) | 30+30(60t) |
| Hook Up (m/min) | 1 | 0.8 | 0.5 | 0.36 |
| Hook Down (m/min) | 1.3 | 1.25 | 1 | 0.41 |
| Trolley (m/min) | 8 | 3 | 2.8 | 2.5 |
| Crane (m/min) | 10 | 8 | 6.5 | 6 |
| Model | DQ25 | DQ30 | DQ40 | DQ50 | DQ60 | DQ80 | DQ100 |
| Traction (kN) | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 | ≥80 | ≥100 |
| Rated Air Pressure (MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Traveling Speed (m/min) | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Rated Lifting Capacity (Ton) | ≥10 | ≥12 | ≥16 | ≥16 | ≥20 | ≥25 | ≥25 |
| Weight (kg) | 1000 | 1000 | 1100 | 1500 | 1500 | 3000 | 3000 |
