| Model NO. | CS-RAD-G-5000C | Certification | ISO |
|---|---|---|---|
| Working System | Pulse Doppler | Weight | 5.5kg |

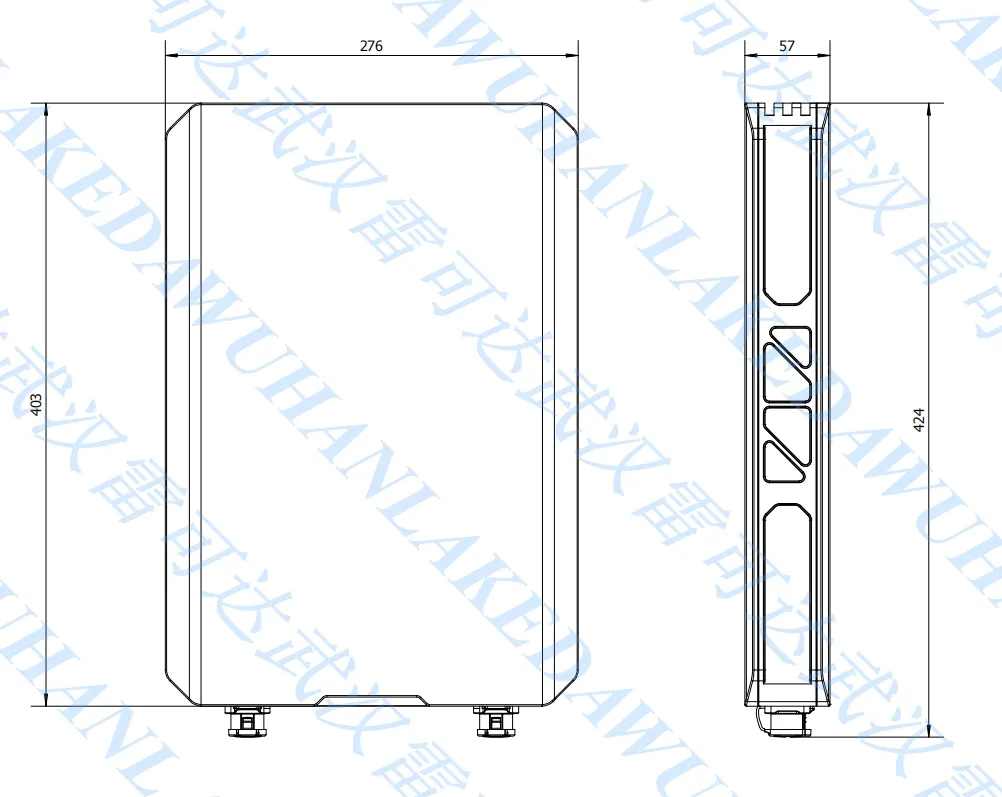

| Specification | 424*276*57 (mm) | Production Capacity | 1000 sets/Month |
| Package Size | 420.00cm * 280.00cm * 60.00cm (Gross Weight: 10.00kg) | ||

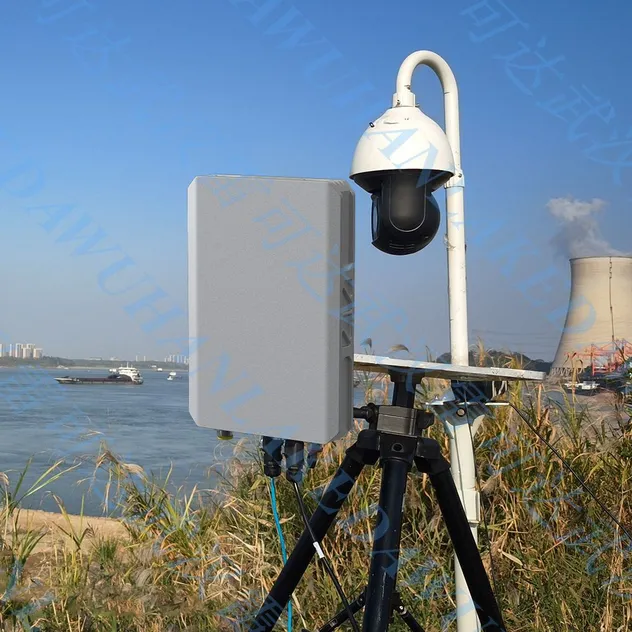

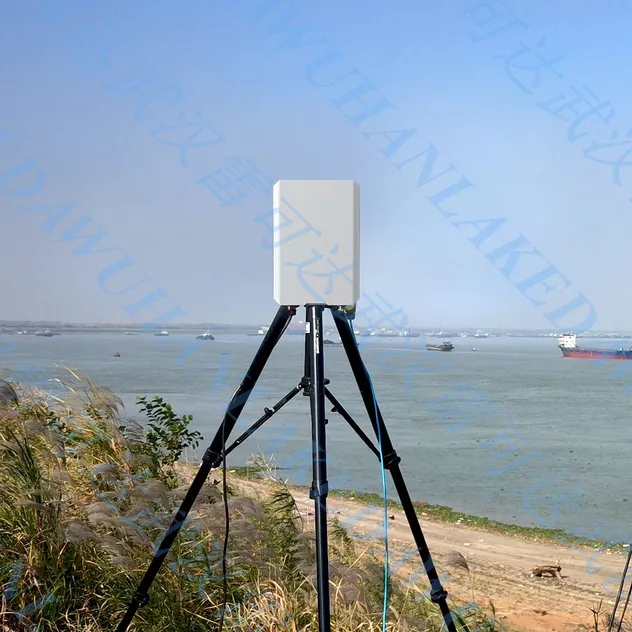

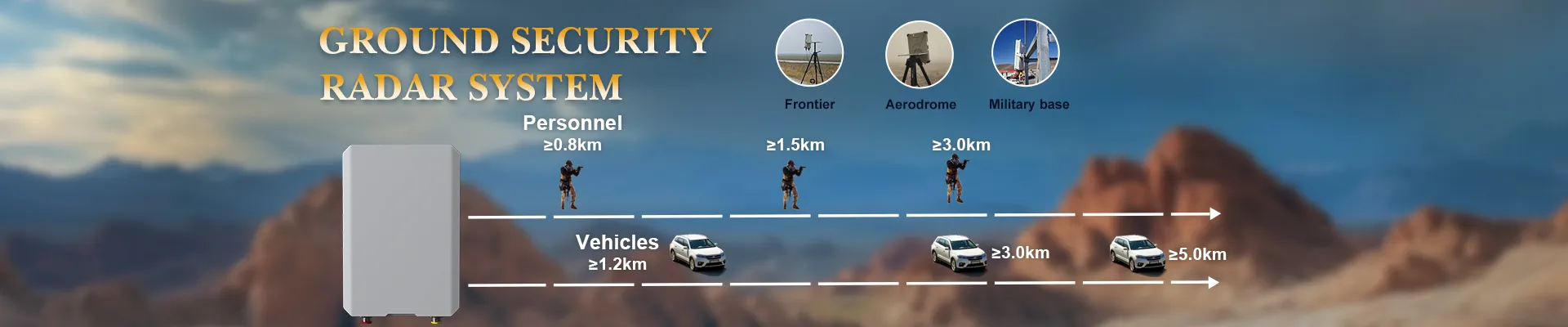

It delivers state-of-the-art protection for airfields and ground areas. As a C-band radar, it is primarily designed to detect and track ground targets, enabling real-time reporting of target positions and coordinate information, as well as rapid development of threat response plans.
| Parameter Category | Specific Parameters |
|---|---|
| Operating System | Phased Array System |
| Operating Mode | Pulse Doppler |
| Operating Frequency | C-band |
| Transmit Peak Power | 4W |
| Coverage Range | Azimuth: 90° | Elevation: ≥18° |
| Detection Speed Range | 0.5m/s - 30m/s |
| Accuracy | Speed: ≤0.2m/s | Distance: ≤8m | Azimuth: ≤1° |
| Data Rate | ≥2 frames/s |
| Max Simultaneous Targets | 200 |
| Interface | RJ45 |
| Power Consumption | ≤45W |
| Environmental Standard | IP65 | -40℃ to +55℃ |
