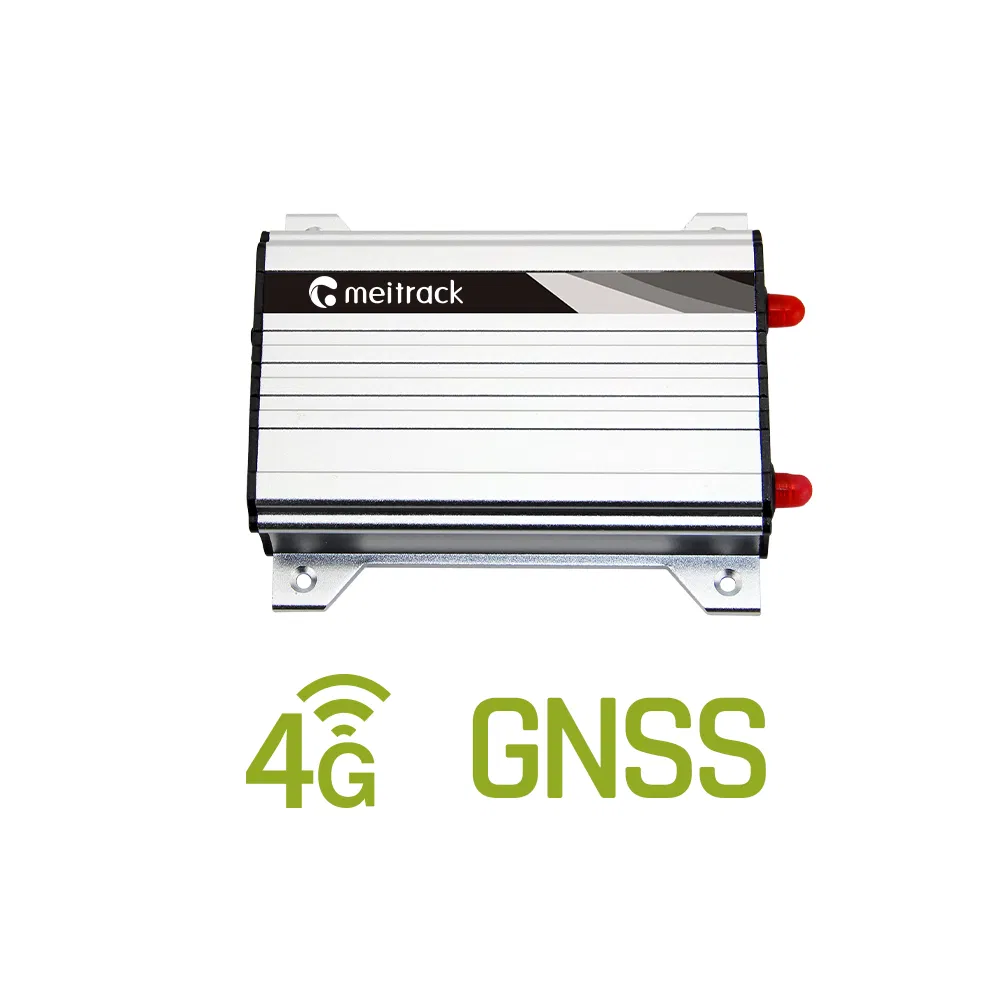

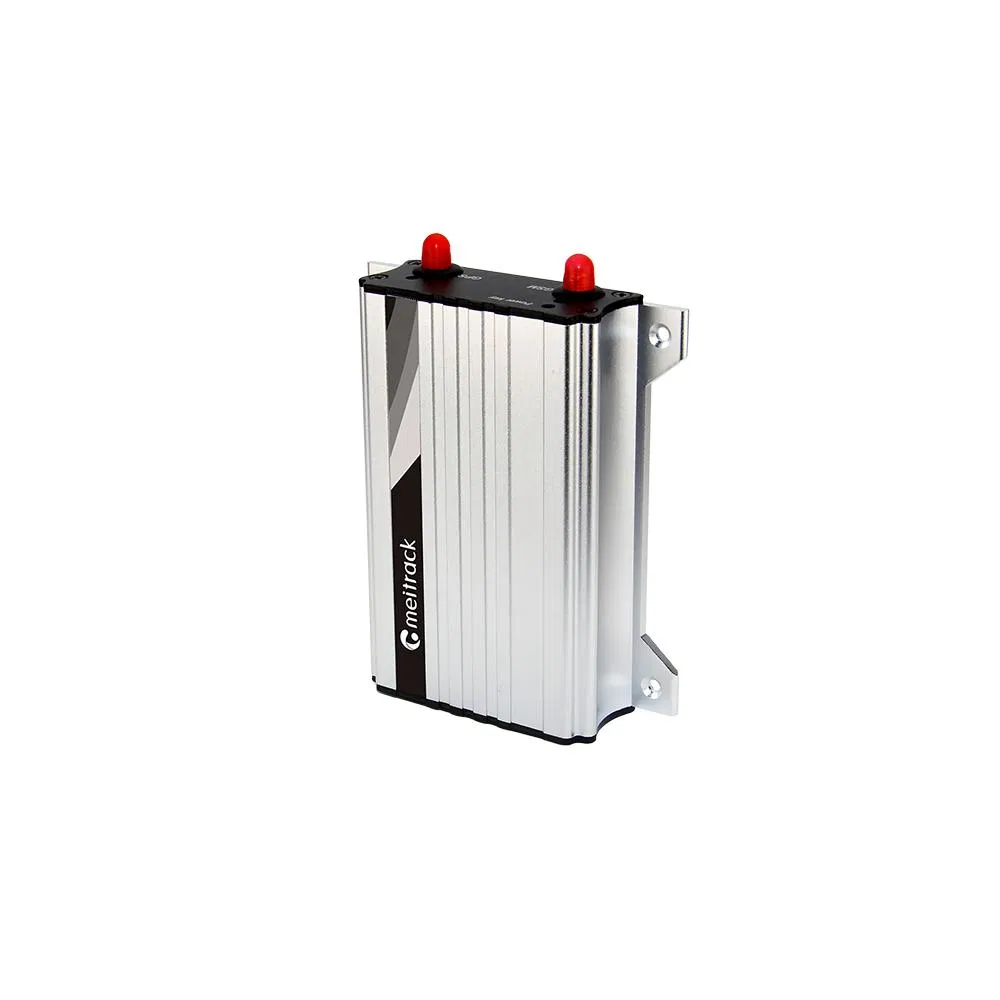

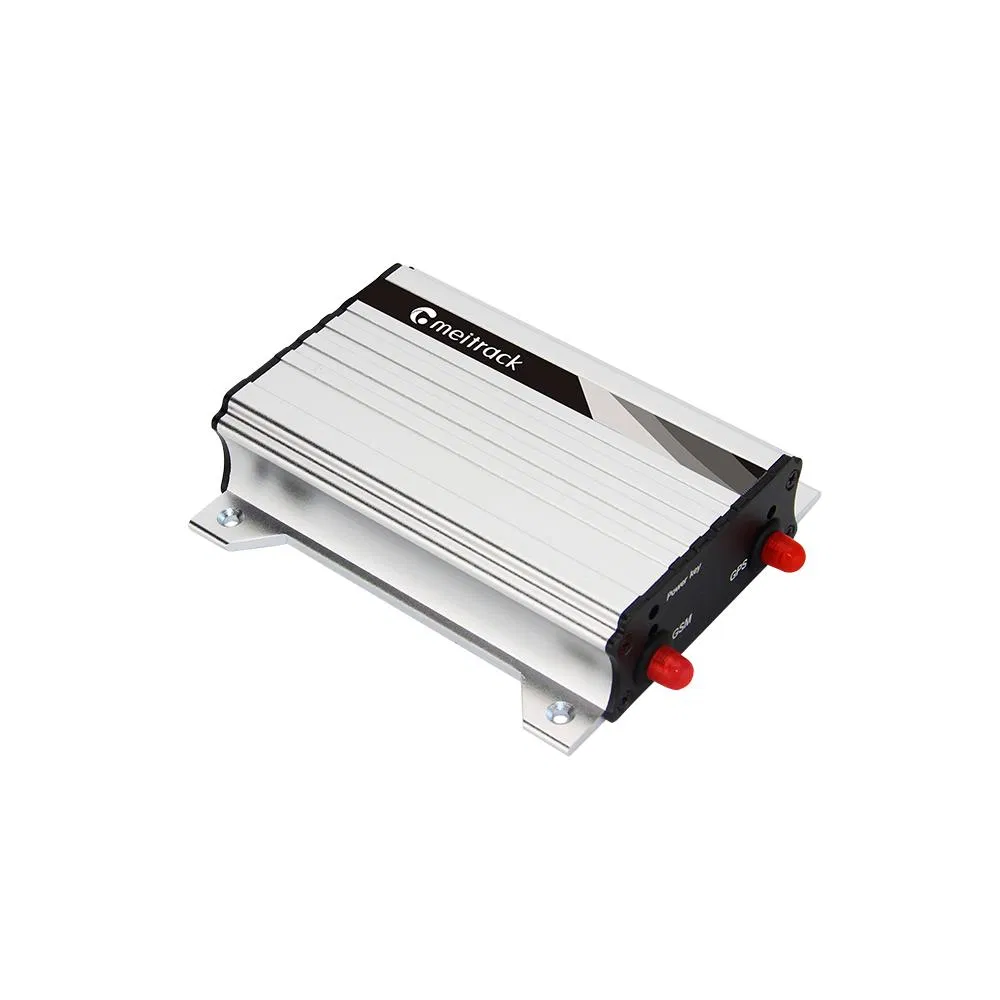

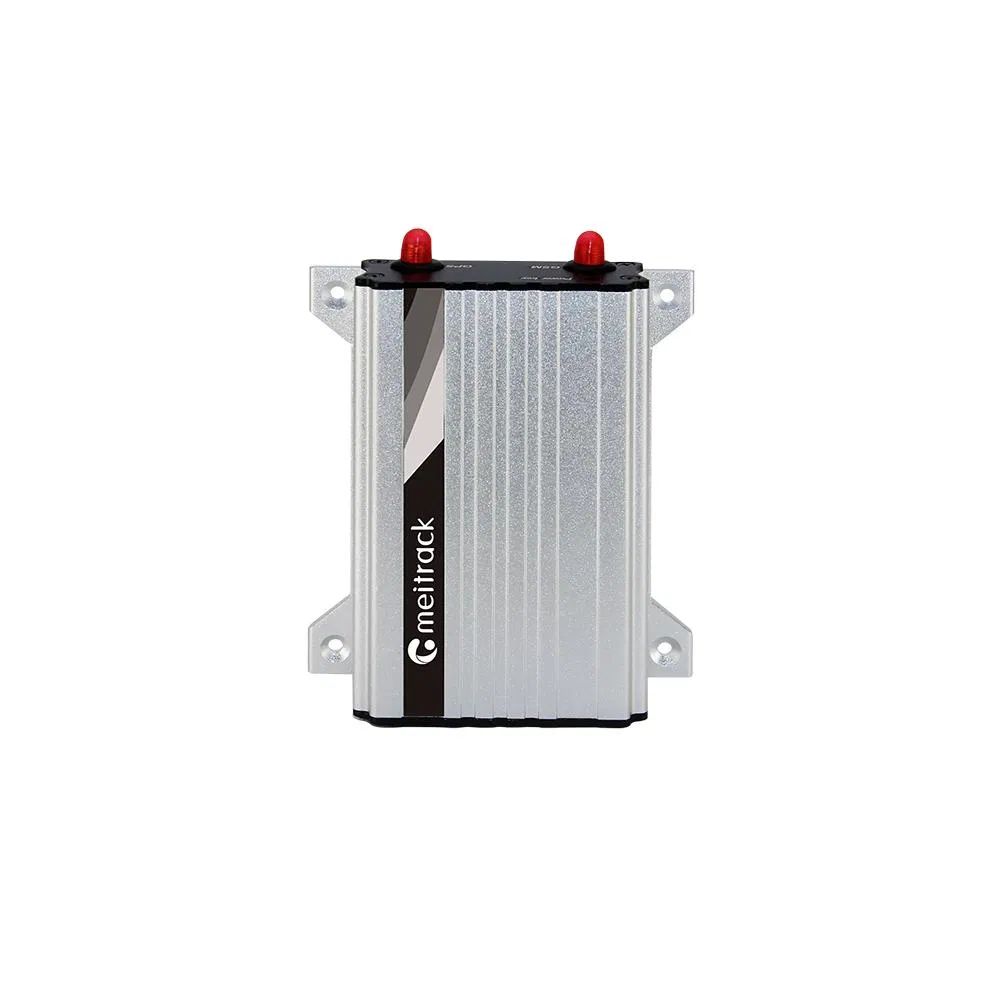

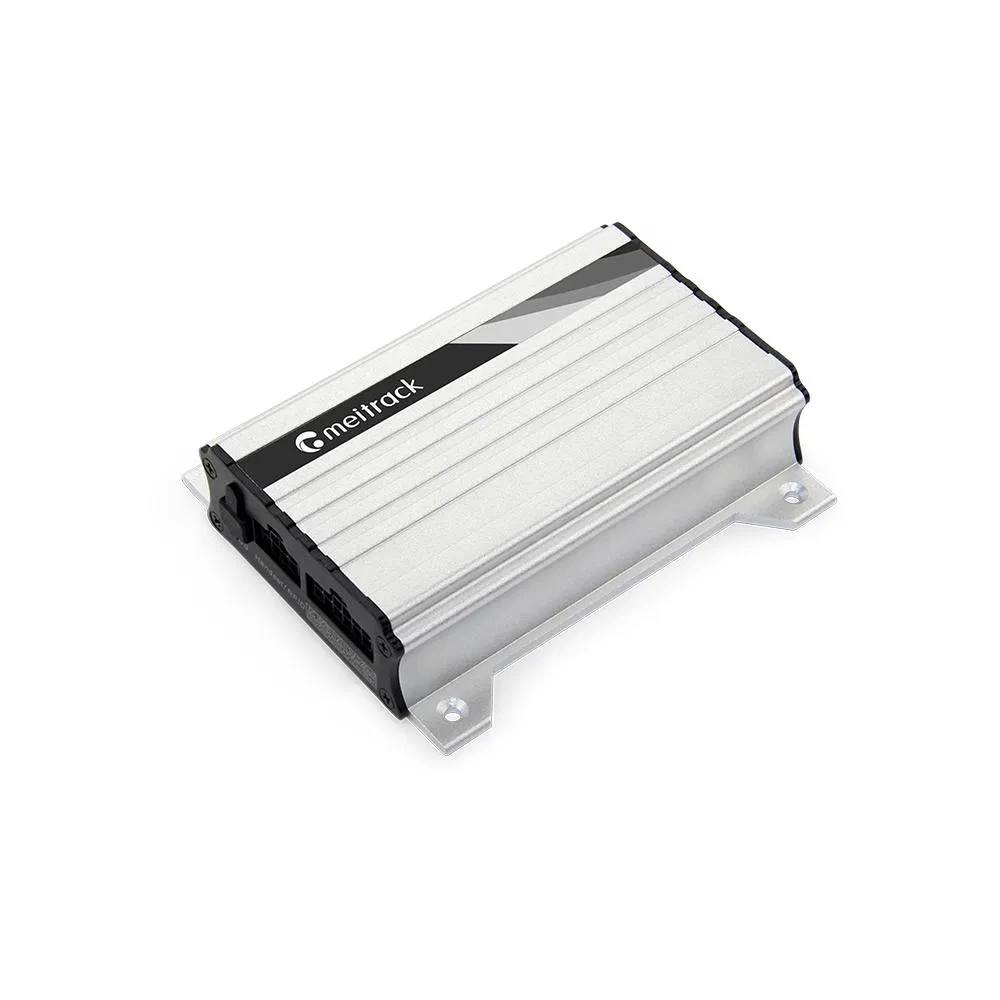

| Model NO. | T333L |
|---|---|
| Warranty | 1 Year |
| Dimension | 105 mm X 65 mm X 26 mm |
| Weight | 190g |
| Power Supply | DC 11-36 V/1.5 a |
| Backup Battery | 400 mAh/3.7 V |
| Button/Switch | 1 SOS Button, 1 Power Button |
| Sensor | 3-Axis Accelerometer |
| GPS Accuracy | 2.5 Meters |
| Memory | 8 MB Buffer |
| Working Hour | 47 Hours in Power-Saving Mode |
| Power Consumption | Standby: 5mA | Normal: 65mA |
|---|---|
| Operating Temp | -20°C to 55°C (Standard) / -5°C to 75°C (High-temp battery) |
| Humidity | 5% to 95% |
| LED Indicators | Green (GSM signal), Blue (GPS signal) |
| Frequency Bands | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
| I/O Ports | 3 Digital Inputs, 2 Analog Inputs, 2 Outputs, 1 RS232, 1 USB, 1-Wire® iButton/Temp Sensor |
| Standard | Built-in battery, External GPS antenna, External 4G antenna, I/O cable + SOS button |
|---|---|
| Optional | Fuel level sensors (A53/Ultrasonic), Speaker/Microphone, Camera, LED Display, Tire pressure sensor, RFID reader |

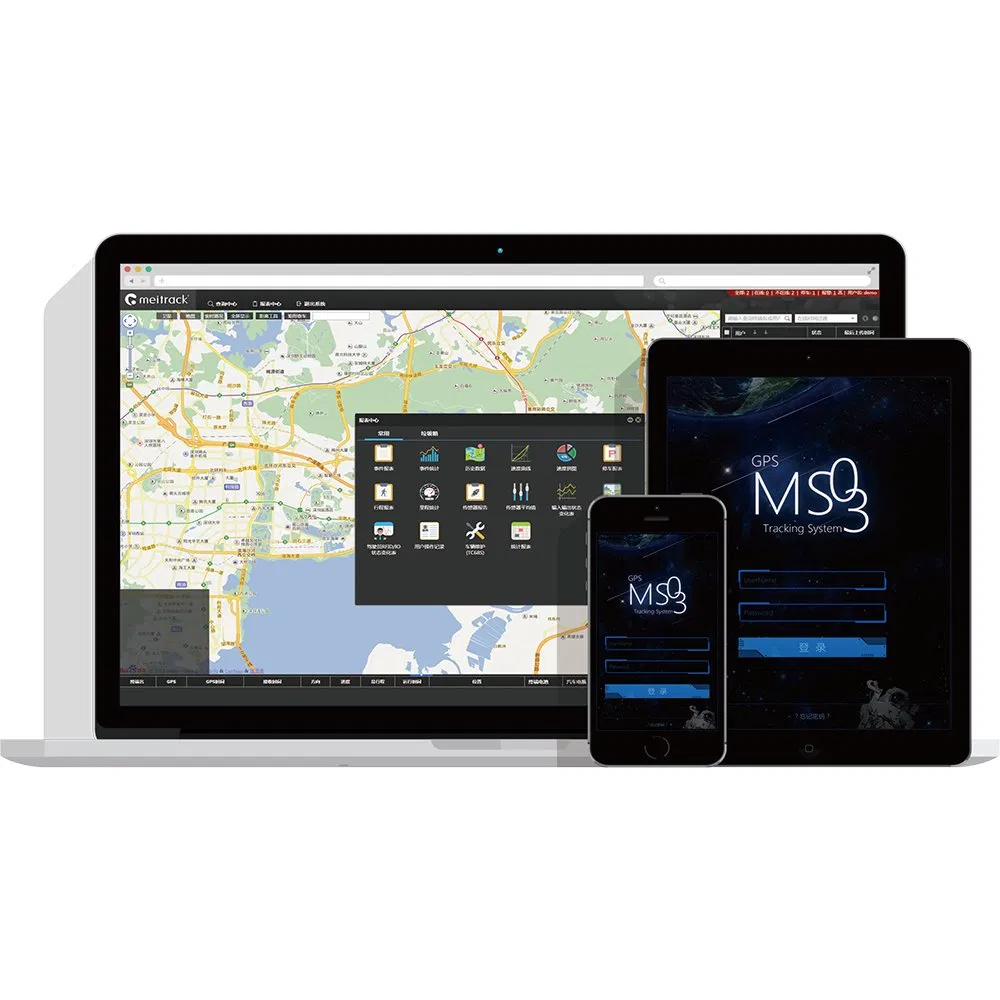

A professional centralized software designed to support businesses and sustainable platforms. Key features include GPS Tracking, Video Surveillance, and integrated Alarm Systems, making it ideal for large-scale developers and fleet operators.
Implementation of GPS tracking to enhance driver and passenger safety. Systems equipped with magnetic card readers, taximeters, and cameras ensure only authorized drivers operate the vehicles and provide rapid location pinpointing during emergencies.
Applied to record the status of service vehicles: movement patterns, travel routes, and destination arrival times. This data helps analyze operational costs and optimize logistics efficiency.
