Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
1 / 5
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management
Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management

Ceramic RFID UHF Antenna 915MHz 5.5dBi Circular Polarization Used for Warehouse Management

Customization: Available
Chip: Other
Material: PVC
Send Inquiry

Product Description

📋

Basic Information

Customized
Non-Customized
Certification
FCC, CCC, CE, ISO, RoHS
RFID Animal ID
RFID Animal ID
RFID Chip
RFID Chip
RFID Glass Tag
RFID Glass Tag
Smart Card Chip
Smart Card Chip
NFC Smart Card
NFC Smart Card
RFID Tags
RFID Tags
Transport Package
Carton
Specification
0.6KG
Origin
China
HS Code
8523521000
📦

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 12.00cm
Gross Weight
0.600kg
🔍

Product Description

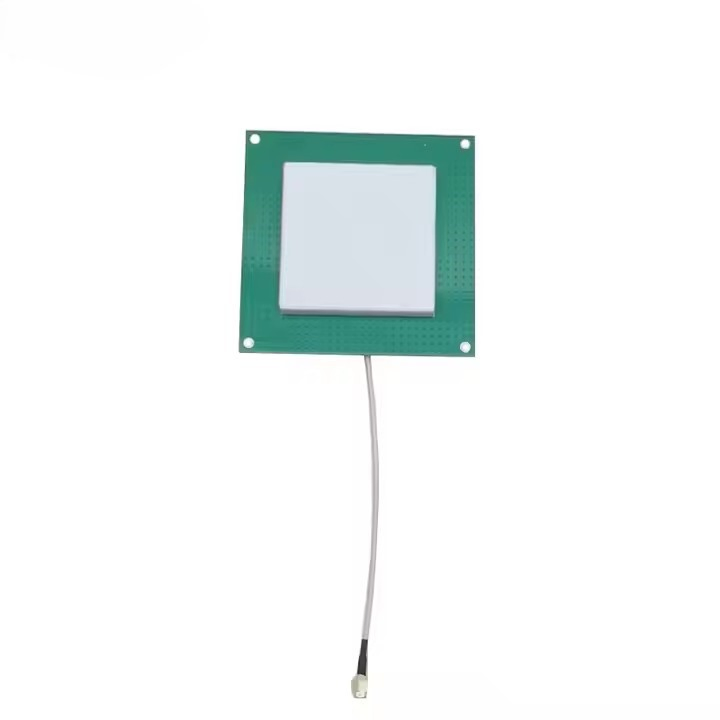

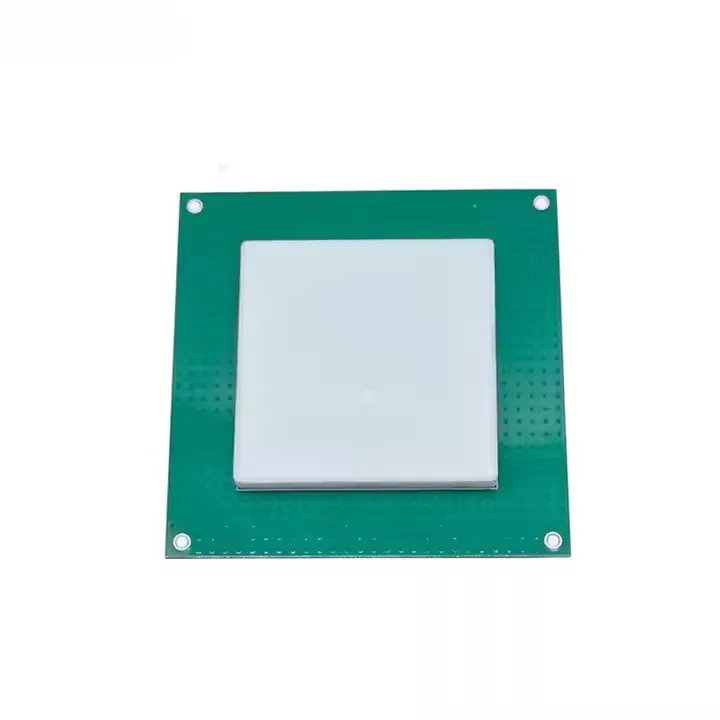

Ceramic RFID UHF Antenna
Ceramic RFID UHF Antenna
Ceramic RFID UHF Antenna
Antenna modelFA-305A
Gain5.5dbi
Frequency865-868mhz(EU), 902-928mhz(US)
Band Width@10dB15MHz MIN
Impendence50Ω
Lobe width>16
V.S.W.R<1.5
Axis ratio<2
FeederSingle point feeder
PolarizationCircular polarization
Antenna materialPCB + Ceramic
RF ConnectorSMA male(Default), SMA Female, IPEX, TNC, MMCX
Antenna size80*80*5mm
PCB size120*120*0.8mm
Working Temp-40ºC~+85ºC, 10%~95% RH
Storage Temp-55ºC~+100ºC, 10%~95% RH
Frequency Temp Coefficient20(ppm/deg.ºC)
VibrationSine sweep @1.5mmAM 10~55Hz each Axis
Product Details 1
Product Details 2
❓

Frequently Asked Questions

What is the gain and frequency range of this antenna?
The antenna provides a 5.5dBi gain and supports frequency ranges of 865-868MHz (EU) and 902-928MHz (US).
What materials are used in the construction of the RFID antenna?
The antenna is constructed using high-quality PCB and Ceramic materials for optimal performance.
What types of RF connectors are available?
The default connector is SMA male, but options including SMA Female, IPEX, TNC, and MMCX are also available.
What are the operating and storage temperature limits?
The working temperature range is -40ºC to +85ºC, and it can be safely stored between -55ºC and +100ºC.
What is the polarization type of this ceramic antenna?
This model features circular polarization, which is ideal for various warehouse management and tracking applications.
Which certifications does this product carry?
The product is fully certified with FCC, CCC, CE, ISO, and RoHS standards.
