Inlay is a specialized term in the RFID industry, referring to a pre-laminated product composed of multi-layer PVC or other materials containing chips and coils. RFID Dry inlay does not contain adhesive backing. Its structure consists of antenna + chip + chip package. Frequency requirements cover 869-915MHz (UHF), 13.56MHz (ISO14443), and 13.56MHz (ISO 15693). Custom antenna design services are available to meet specific requirements.

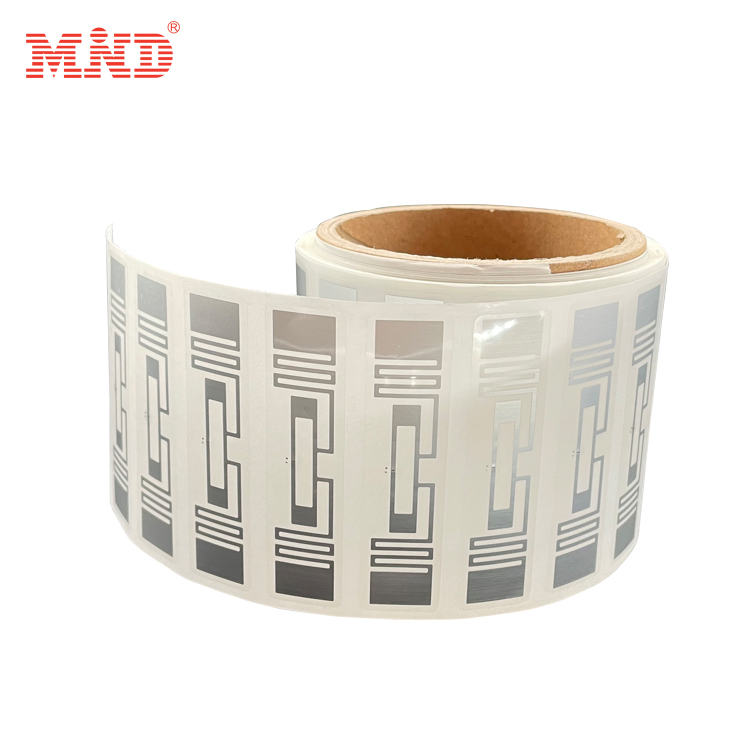

RFID Wet inlays include adhesive backing for direct attachment to objects. The structure includes antenna + chip + chip package + adhesive + release paper. For cost efficiency, these can be used directly without additional printing. Frequency options: 869-915MHz (UHF) or 13.56MHz (HF) standards.

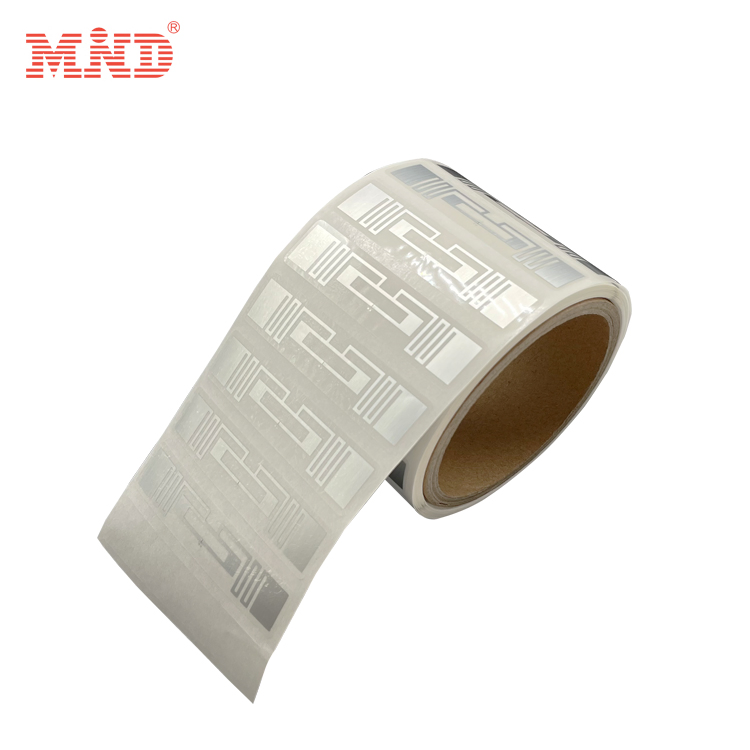

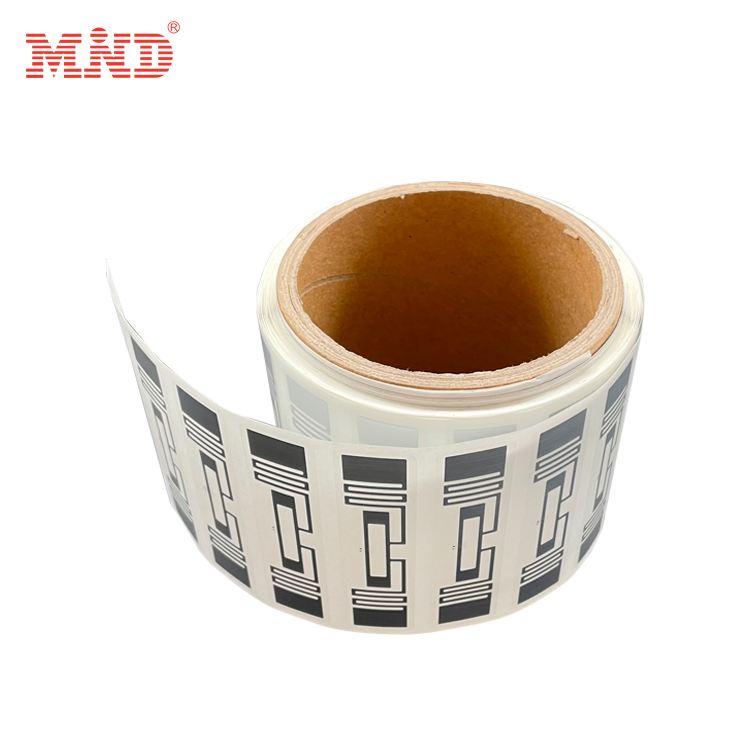

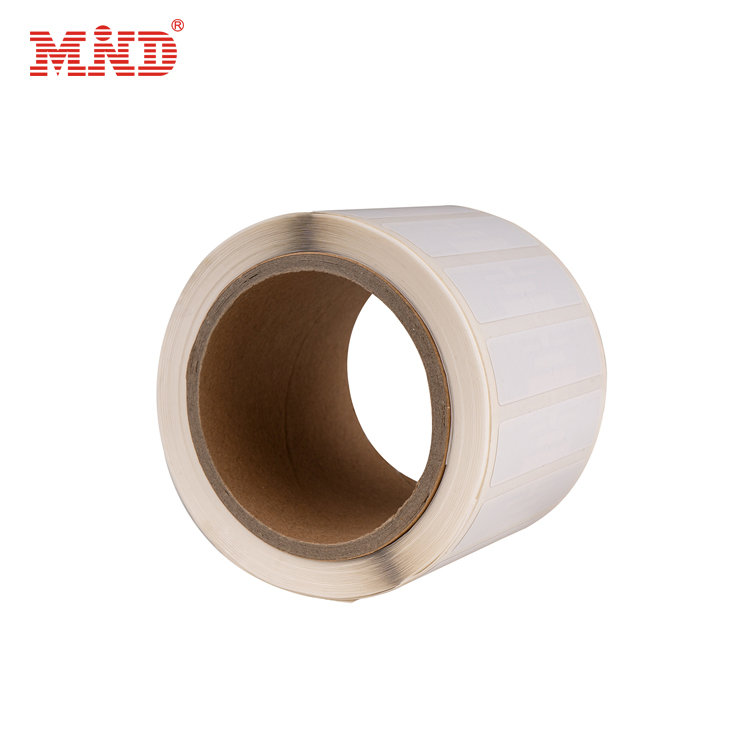

These labels contain adhesive backing with a top coated paper or PET face stock. The structure is Coated paper/PET + antenna + chip + chip package + adhesive + release paper. Packaging options include fold, roll, or single units. They support thermal or heat transfer printing and offer services like encryption and personalized coding.

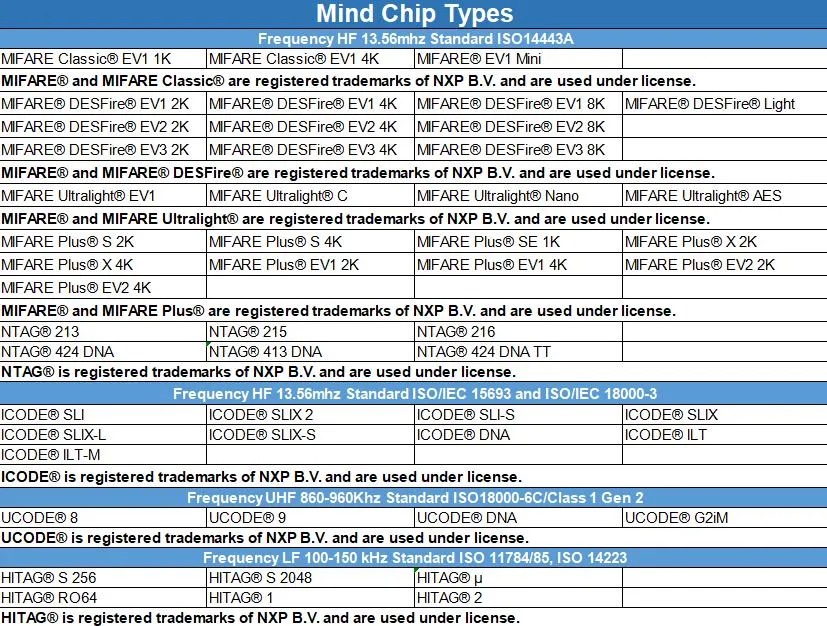

| Chip | UCODE® 9 |
|---|---|
| Frequency | 860 ~ 960MHz |
| Material | Coated Paper/ PET/ Synthetic paper/ Thermal paper |
| Working Mode | Passive |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Temperature/Humidity | -25~50ºC / 20%~80% RH |

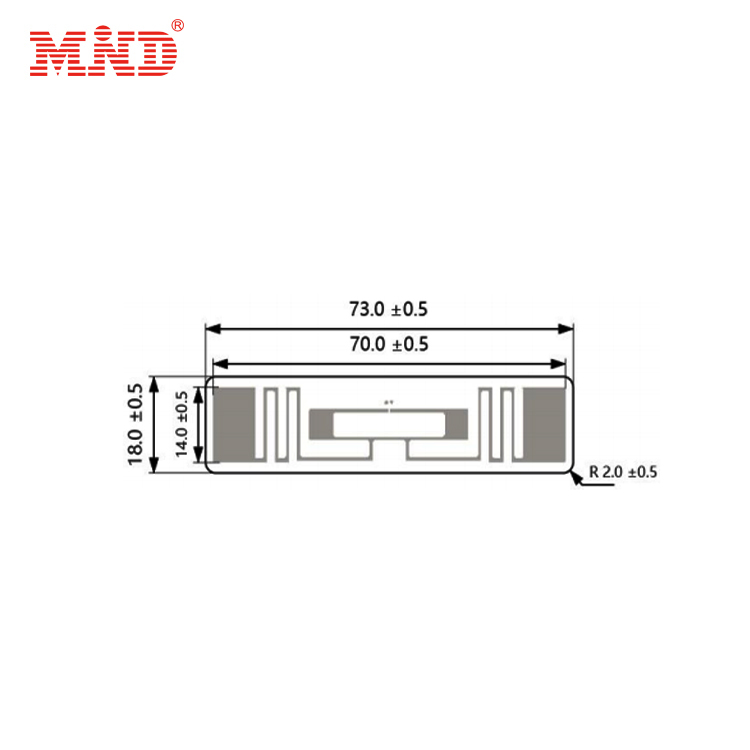

| Antenna | Aluminum Etching, 70*14mm |
| Size | 73*18mm or customization |
| Printing Options | Full Color, Logo, Barcode, QR code, etc |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| Solutions | Access Control, Cashless Payment, Retail, Logistics, Asset Tracking |
