| Model NO. | Hot Cut HD-180 |
| Raw Material | PE |
| Screw | Single-Screw |
| Inverter | Inverter |
| Automation | Non-Automatic |
| Certification | CE, ISO9001:2008 |
| Screw Diameter | 180mm |
| Extrusion Motor Power | 75kw, 6 Poles |
| Screen Changer | Automatic Dual-Station |
| Filtermesh | 60 Mesh Stainless Steel, Thickened |
| Occupied Area | 15 Square Meters |

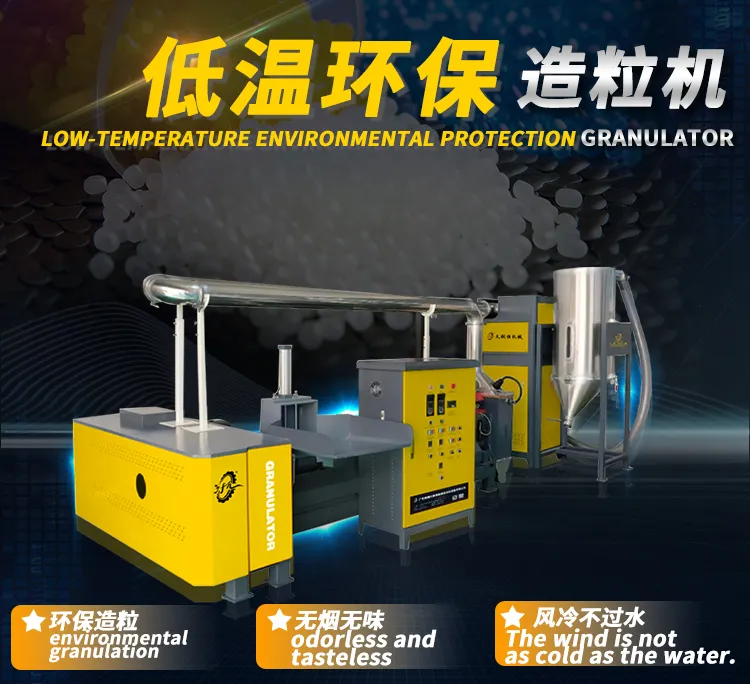

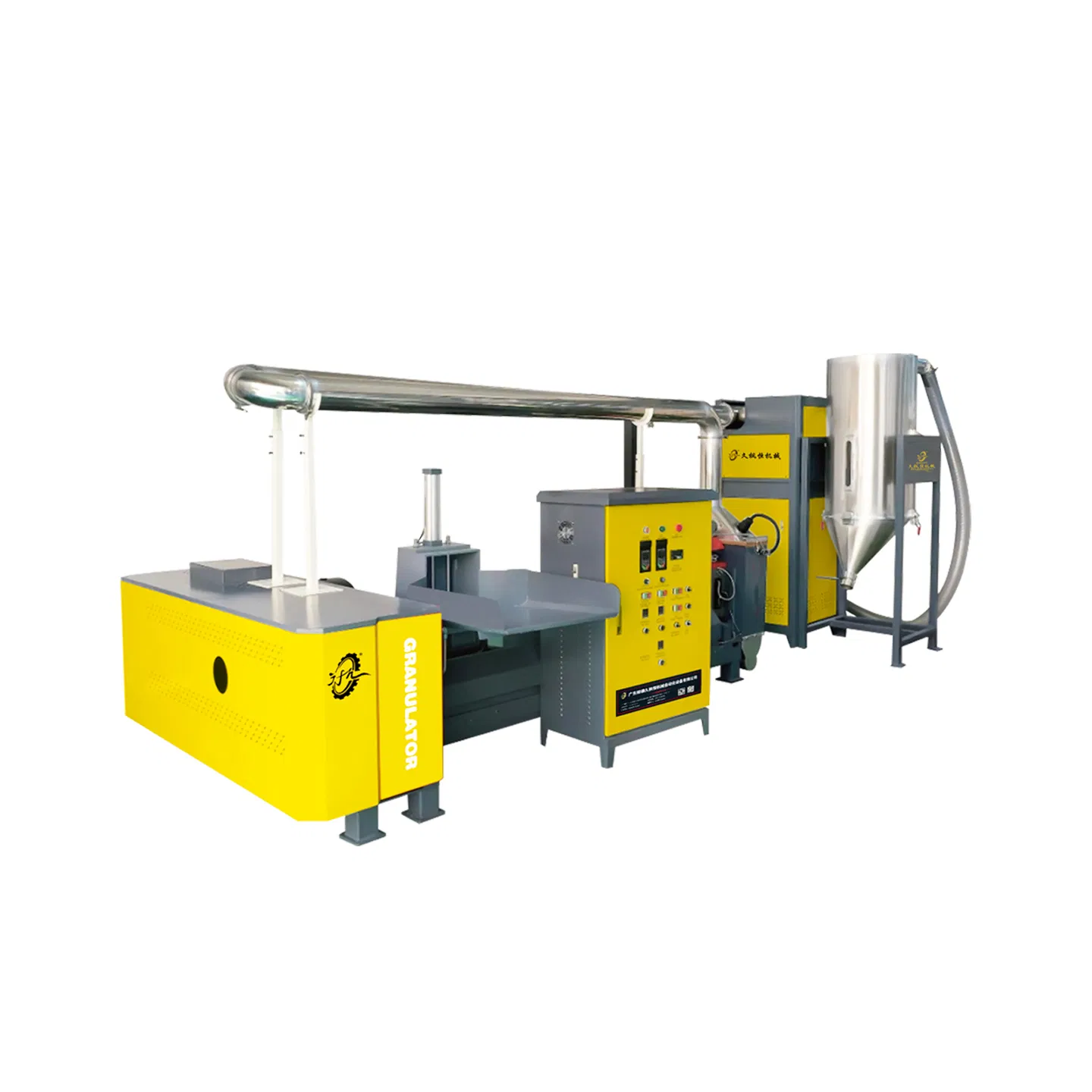

The HD series low-temperature water-free environmental protection granulator is high-performance air-cooled equipment developed based on years of experience in plastic modification and recycling. It features an integrated structural design with low-temperature plasticization and intelligent control.

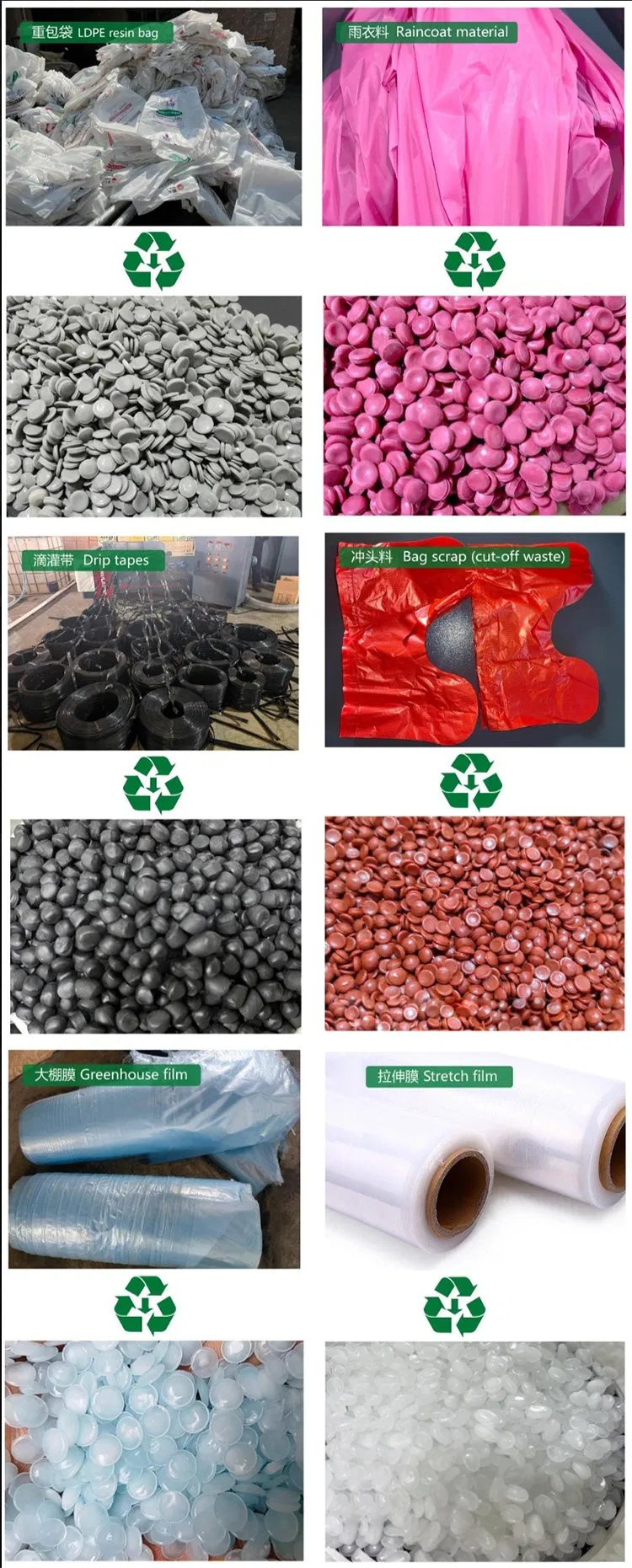

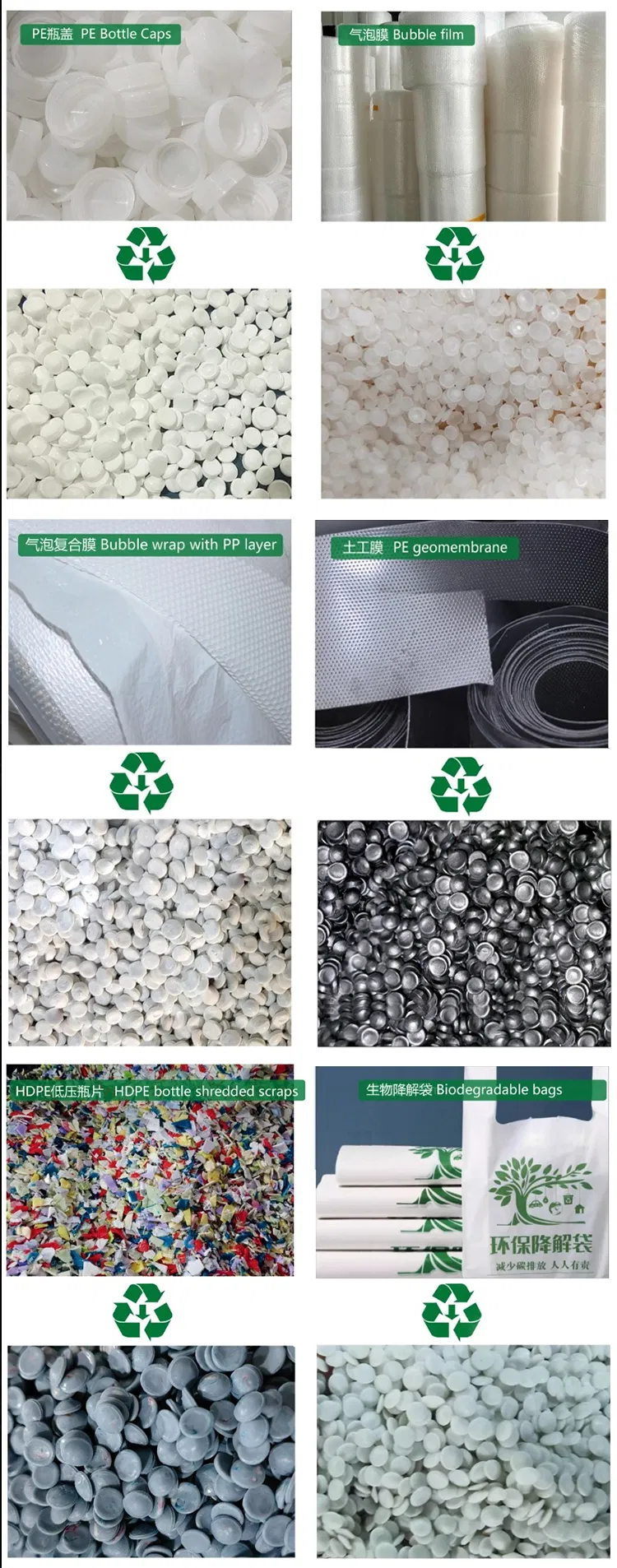

This equipment is widely used for melting, filtering, and pelletizing materials such as PP, PE, ABS, PET, PA, and PVC. By utilizing water-free granulation, it eliminates sewage disposal and water usage issues common in traditional systems.
| Knifo Motor | 1.5kw, 6 poles |
| Frequency Converter | 75kw |
| Speed Reducer | 315 |
| Stainless Steel Tube | 1 Set |
| Fan Power | 0.75kw/1.5kw |
| Storage Bucket | 200kg |
| Dimensions | 5700*2400*2400mm |
The unique design achieves granulation at low temperatures without altering the physicochemical properties of the material. Produced particles are uniform and can be mixed with new materials in large proportions.

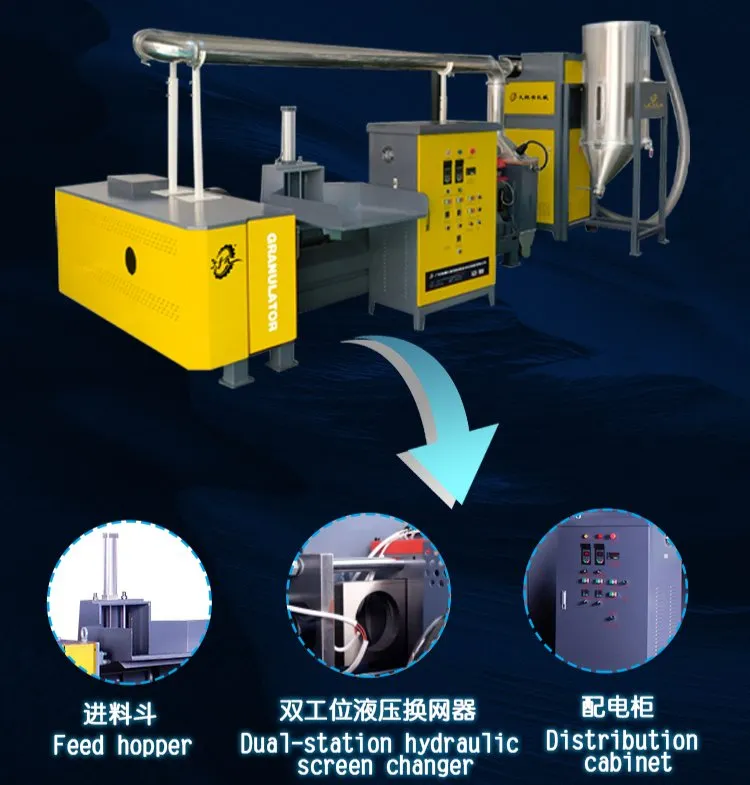

Feeding System: Wear-resistant and deformation-resistant system ensures long-term stable feeding.
Hydraulic Changer: Dual-station hydraulic screen changer achieves continuous production with zero downtime.
Intelligent Control: Precise power regulation and simplified interface increase production efficiency by over 40%.
Widely used in plastic recycling, agricultural fertilizer production, degradable materials, automotive, electronics, and resource recycling industries.
