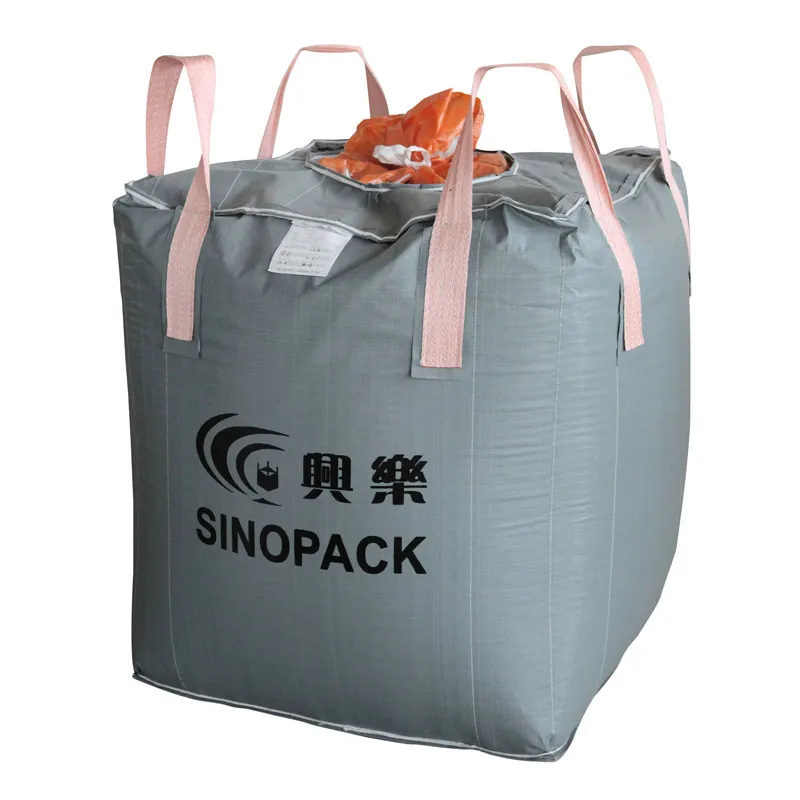

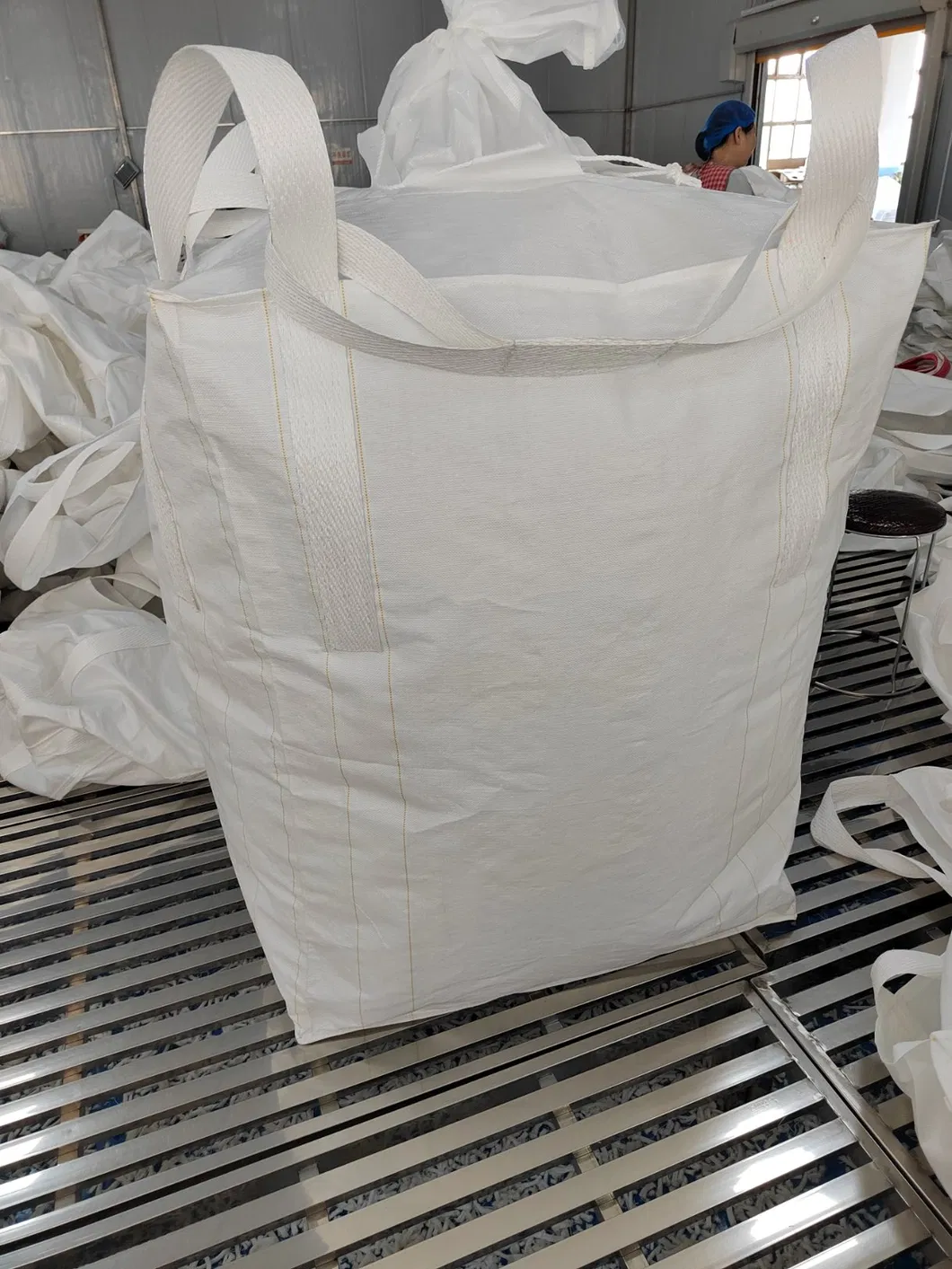

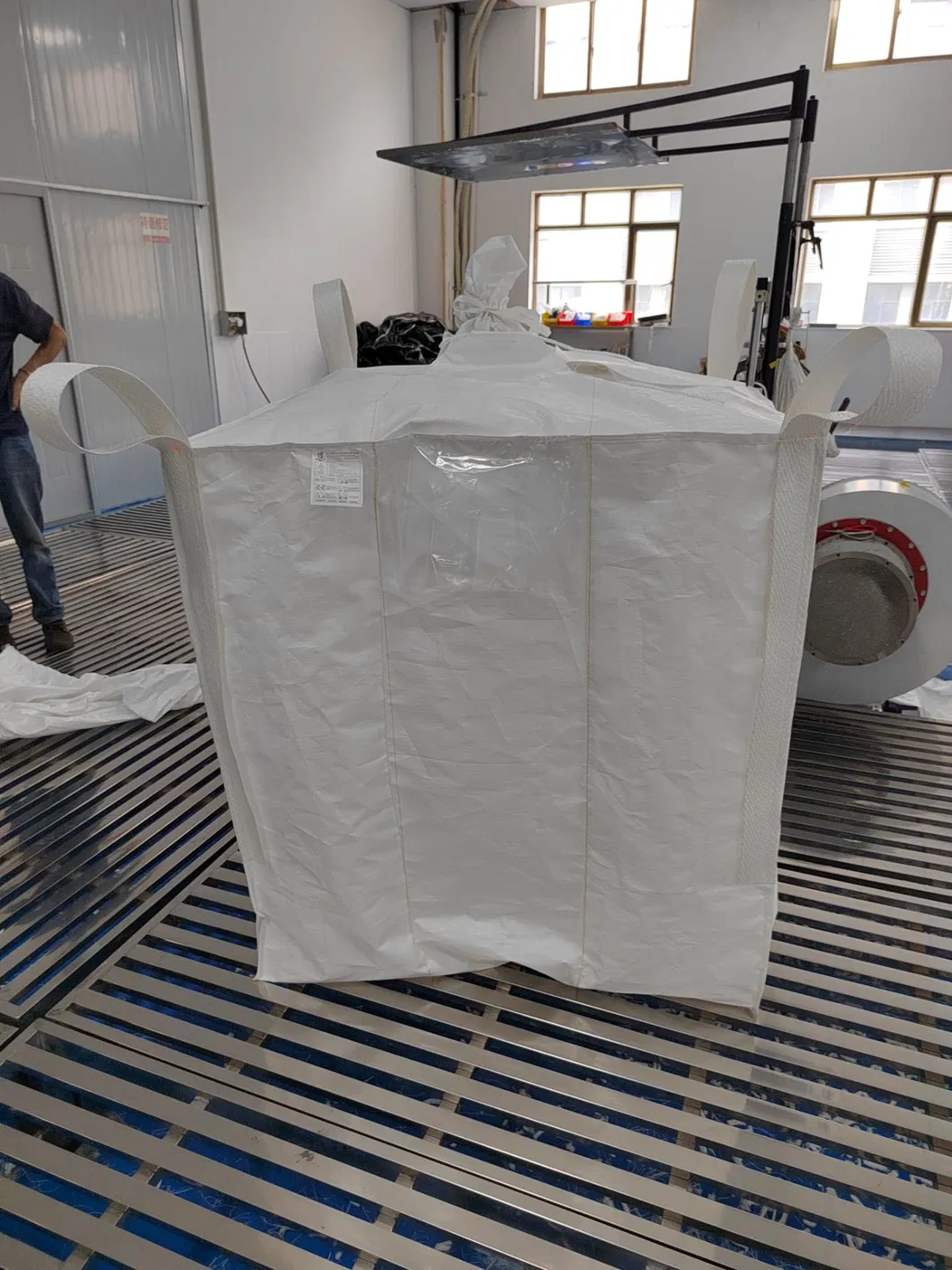

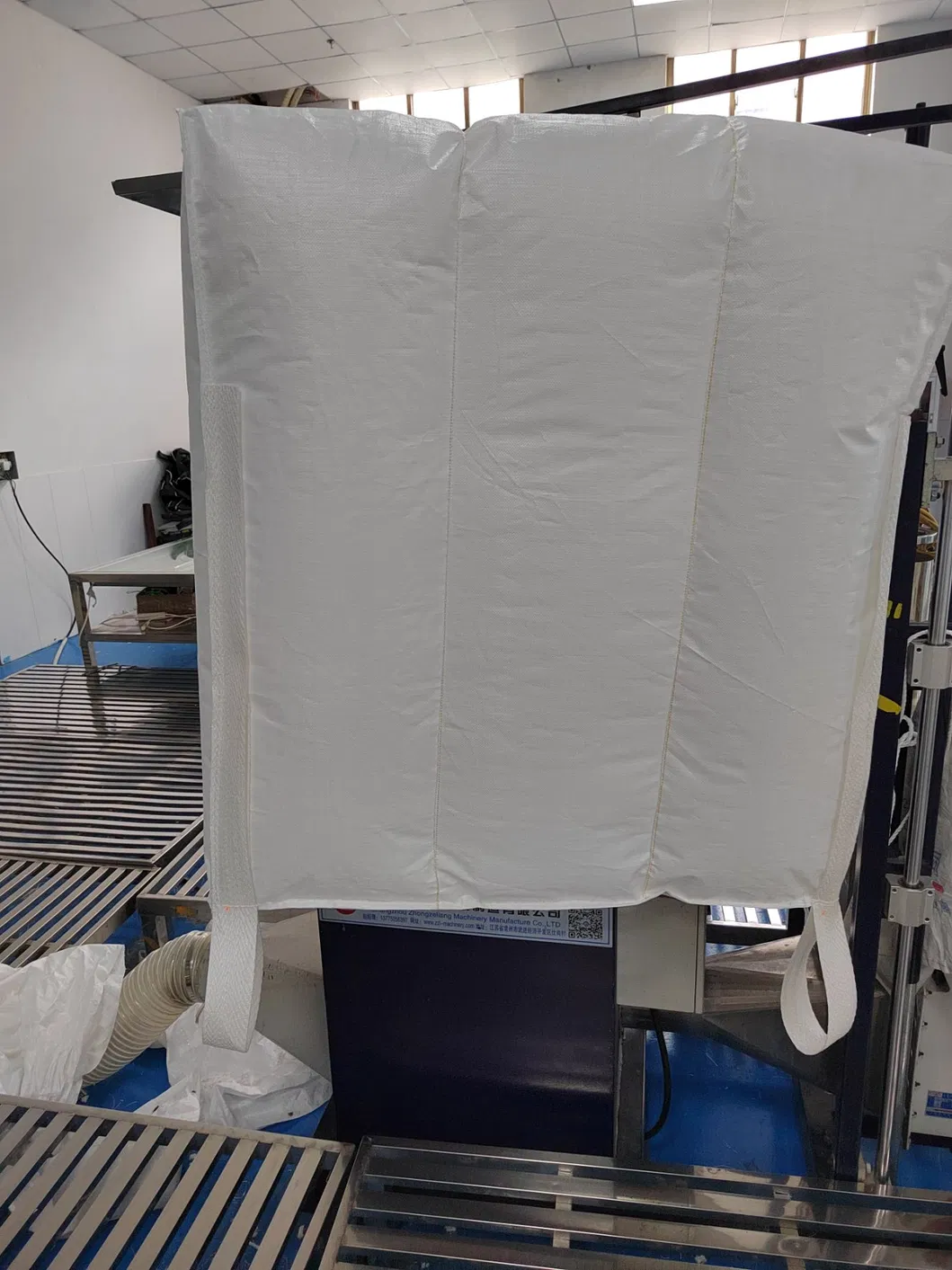

UN Big Bag for Dangerous Goods Packing
UN certified big bags are available in different shapes and sizes which can be customized.
This is a special line of bulk bags dedicated to the transportation of dangerous materials.
They are made in accordance with the United Nations Recommendations on the Transportation of Dangerous Materials (ADR, RID, and IMDG-Code).
Designed for packaging category II and III materials defined in chapter 9 of the Orange Book (typical products: poisons, corrosives).

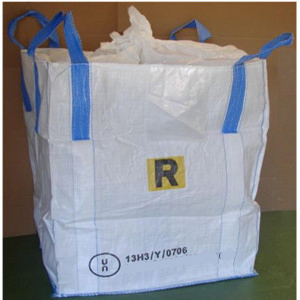

Available Types: 13H1 (Uncoated, no liner), 13H2 (Coated, no liner), 13H3 (Uncoated, with liner), 13H4 (Coated, with liner).
Safe working load (SWL) is up to 3300LBS, with a safety factor of 6:1.
Produced with flat, outlet, or conical bottoms to simplify the emptying process for non-free-flowing materials.
| Item | UN certified Big Bag |

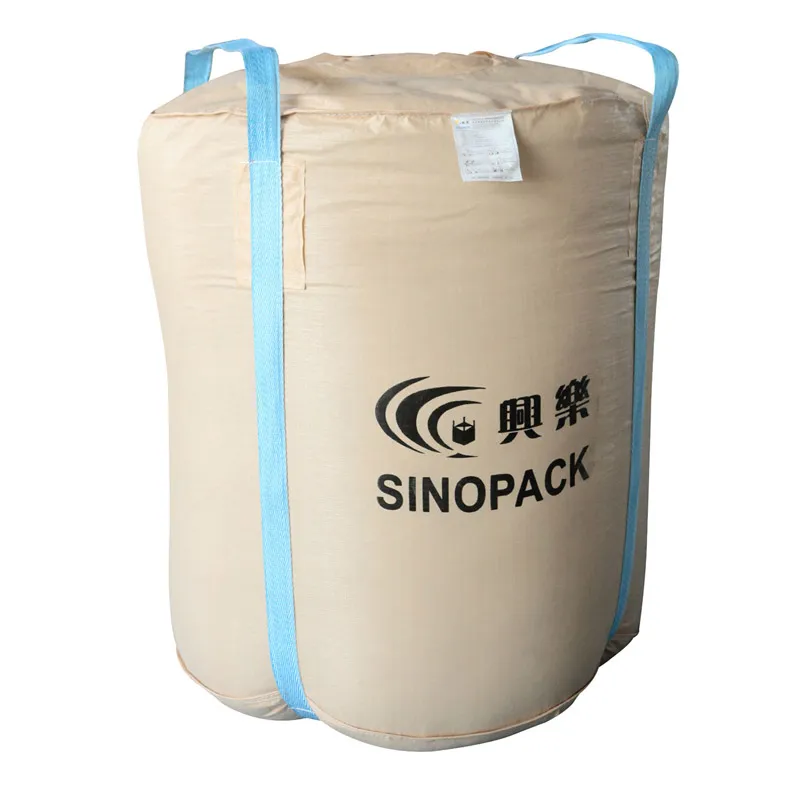

| Shape | U-panel / Four-panel big bag |
| Capacity | Up to 3300LBS |
| Safety factor | 6:1 |
| Base size | 35*35'', 37*37'' |
| Height | As per request |
| Material | 100% virgin polypropylene, 6OZ to 7OZ (Coated/Uncoated/PE liner) |
| Top type | Skirt top, with filling spout: 14''(D)*18'' |
| Bottom type | Flat bottom, conical bottom, discharge spout with star petal or iris spout |
| Lifting loops | Width: 2'' / 3'', 10'' high, side-seam loops (White/Blue/Green/Red) |
| UV stabilized | 1% to 3% UV treated |

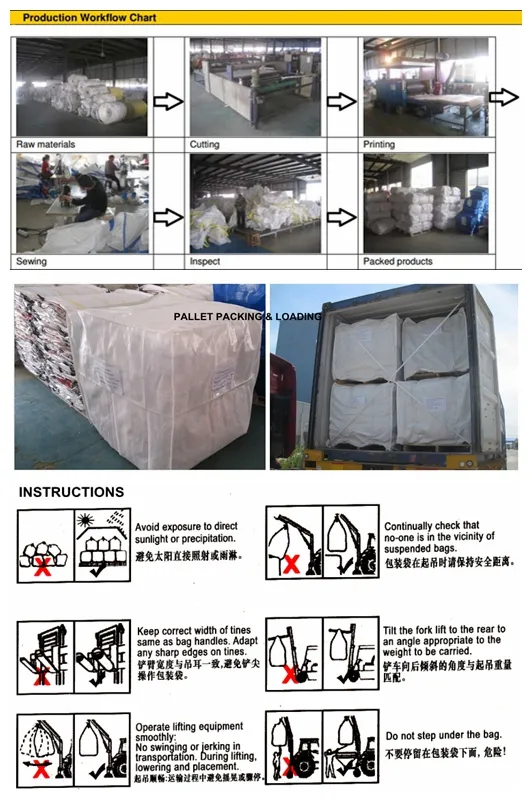

| Packing | Packed on pallets, 20pallets/20'FCL, 44pallets/40'FCL |
FIBC Bags are ideal for reducing costs of packaging and transport for chemical, cement, grains, and minerals. They offer moisture-proof, dust-proof, and radiation resistance properties.
Type A: Common-used bags without special electrostatic safety features.
Type B: Breakdown voltage of 4 kilovolt or less; prevents propagating brush discharges.

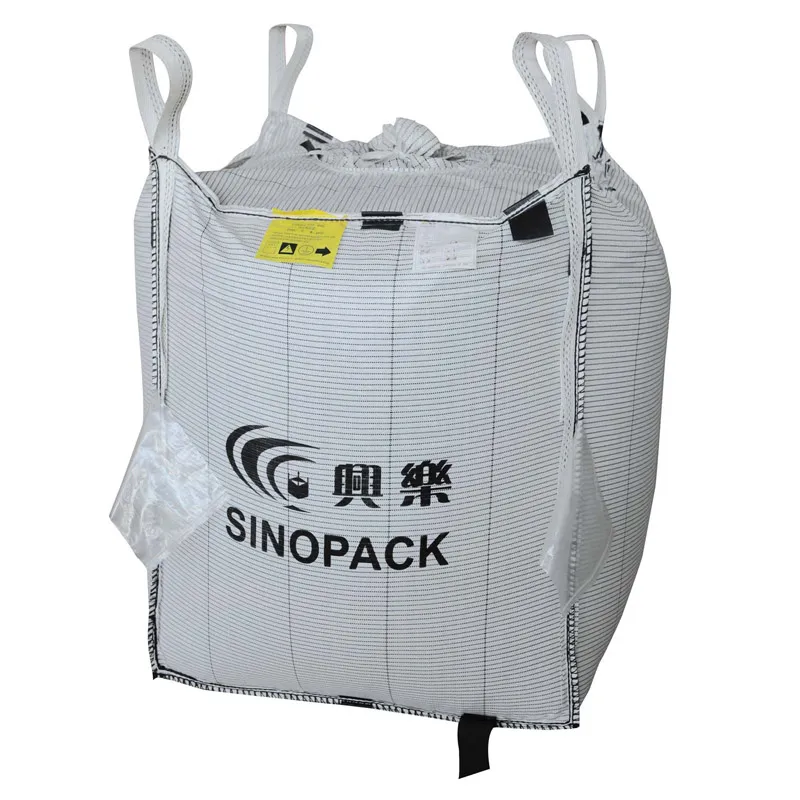

Type C: Conductive FIBC designed to control electrostatic charges by grounding.
Type D: Anti-static or static dissipative properties without grounding requirements.
UN Bag: Specifically for dangerous goods package (SWL 1000kg, SF 6:1).
