Future-Proof Storage: Automated Warehouses for Plate Management

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Usage

Tool Rack, Industrial, Warehouse Rack

Material

Steel

Structure

Drawer

Type

Multi-Level Racking

Mobility

Adjustable

Height

5-15m

Weight

500kg

Closed

Open

Loading Per Layer

3t/5t

Mode of Movement

Linear Guide Rail + Chain

Production Capacity

10000set/Year

HS Code

7308900000

Product Description

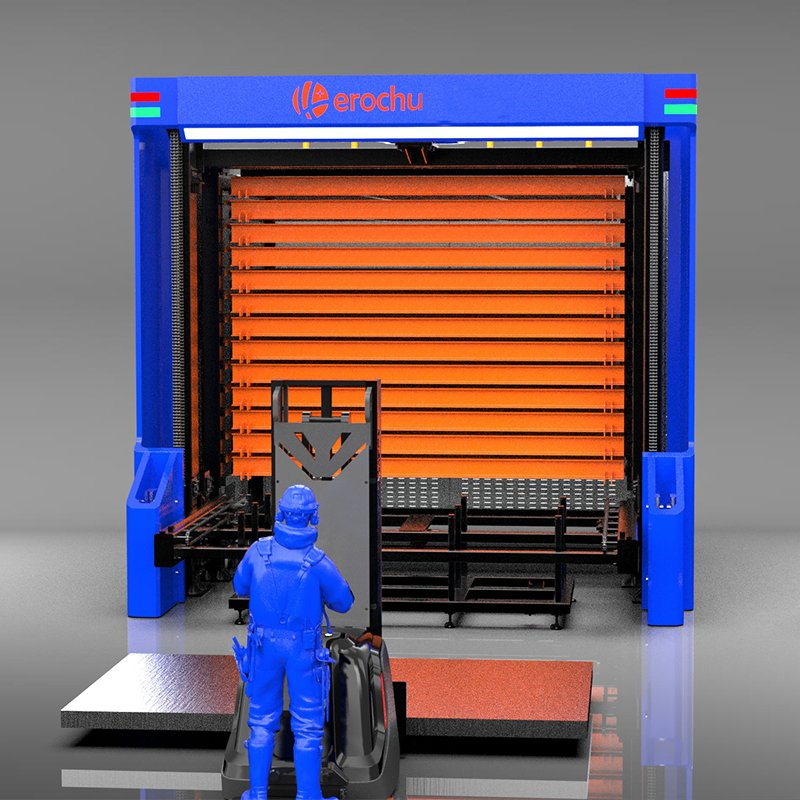

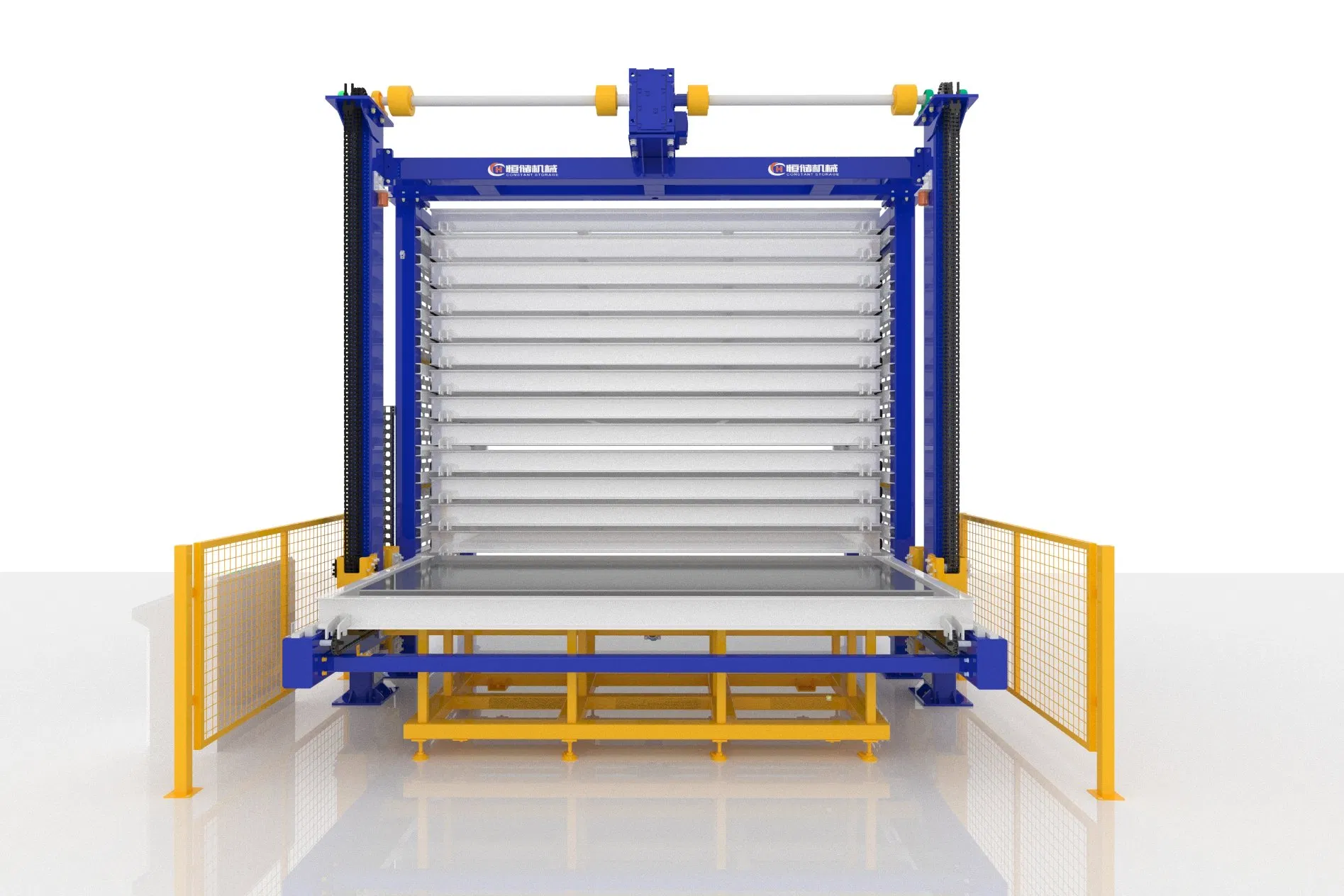

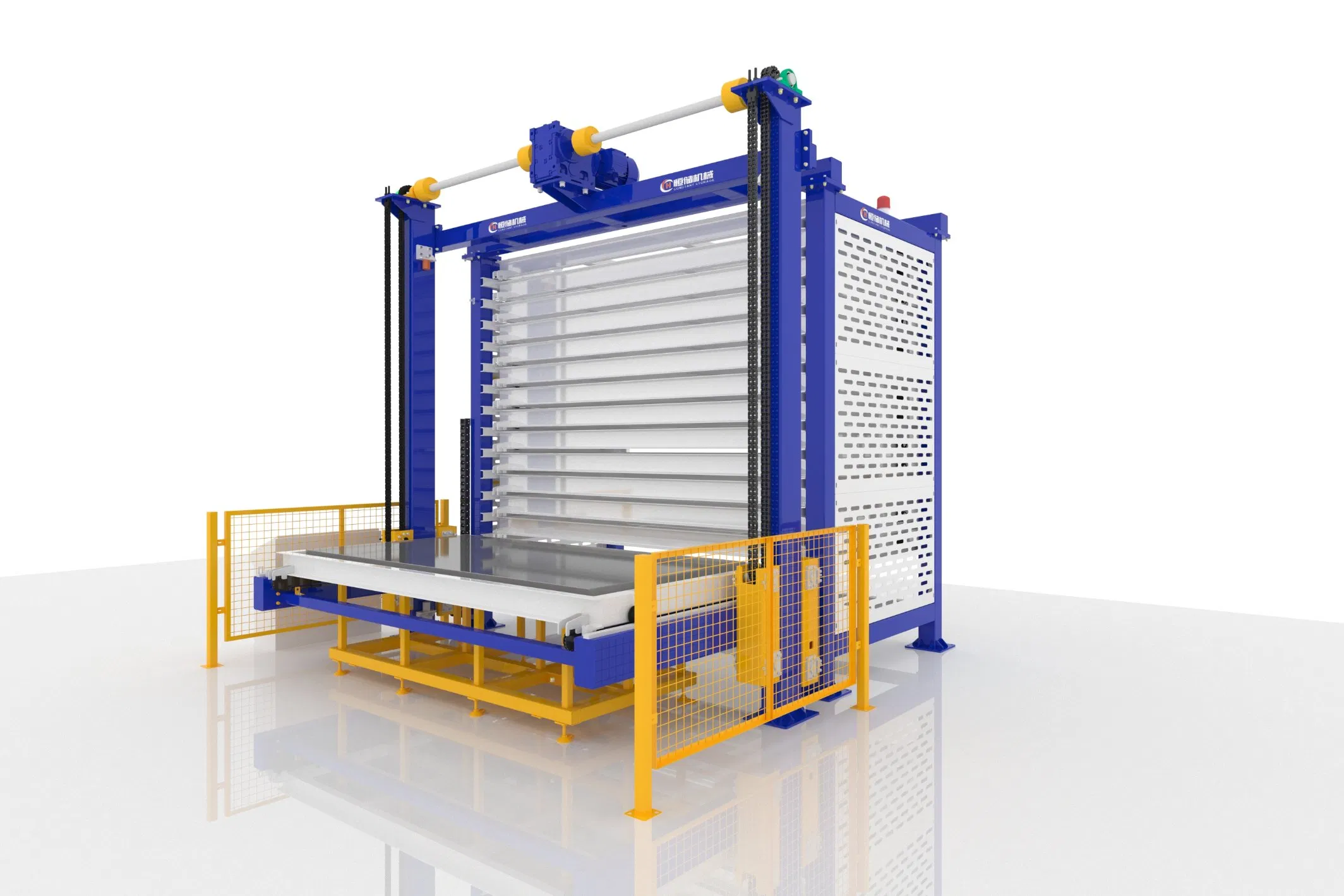

Automated Warehouses for Plate Management

Automatic Sheet Metal Storage Rack

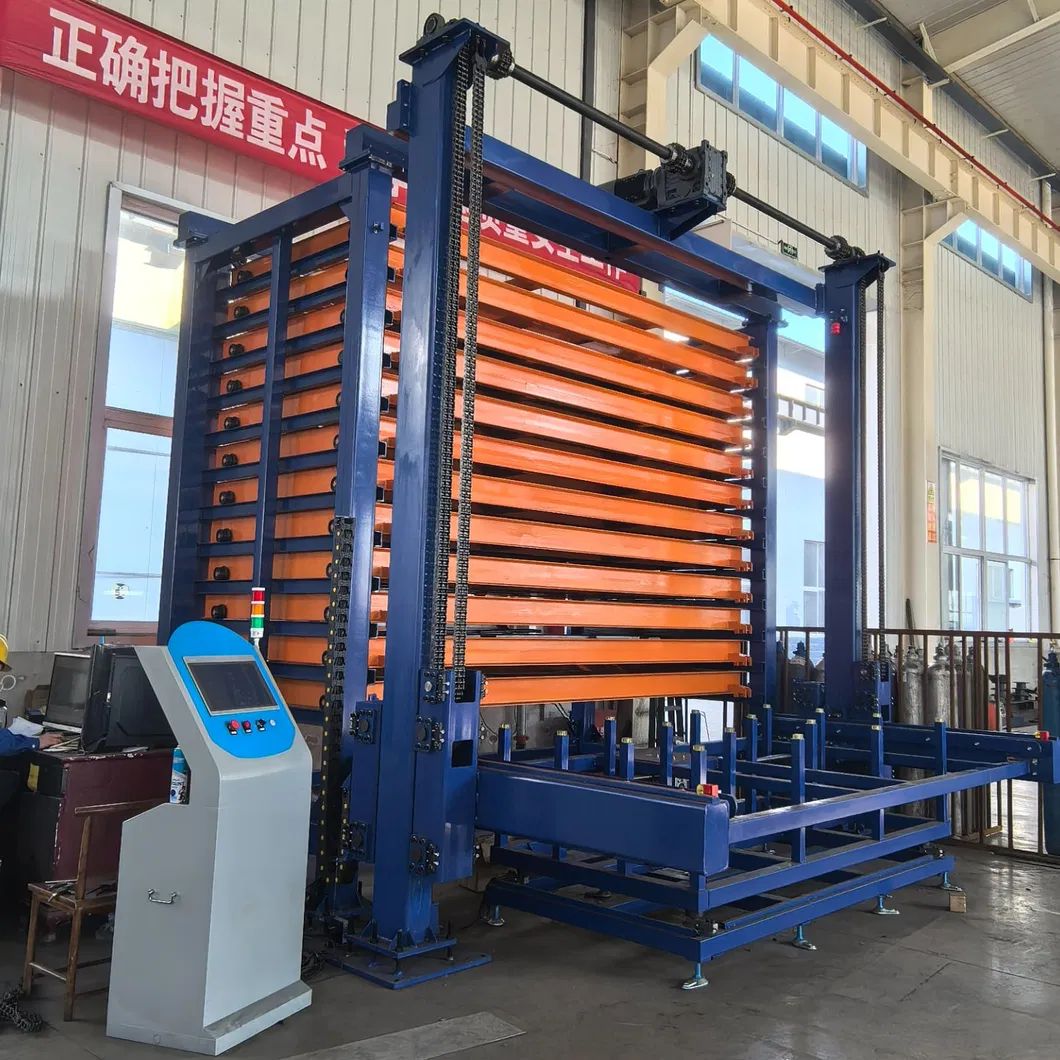

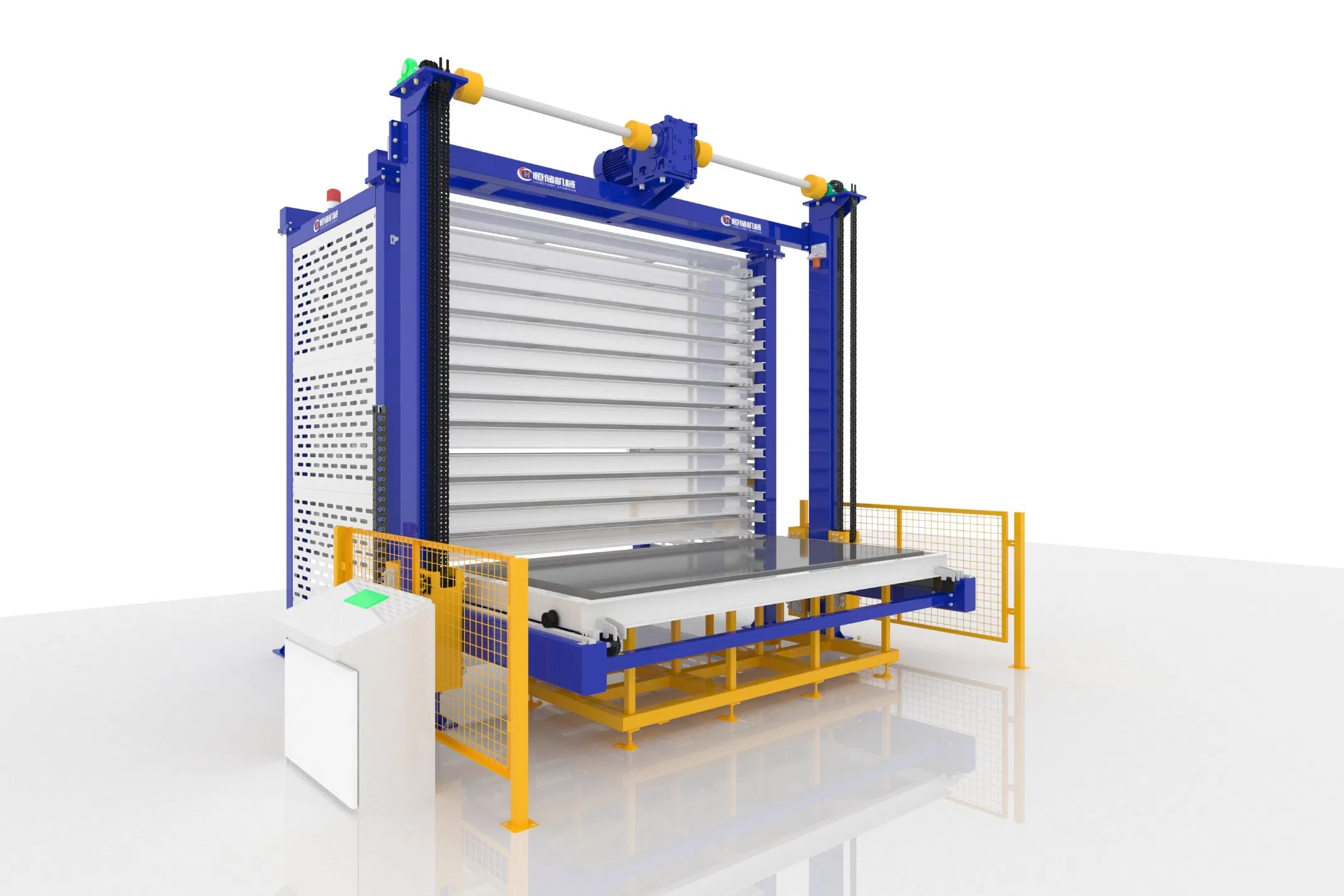

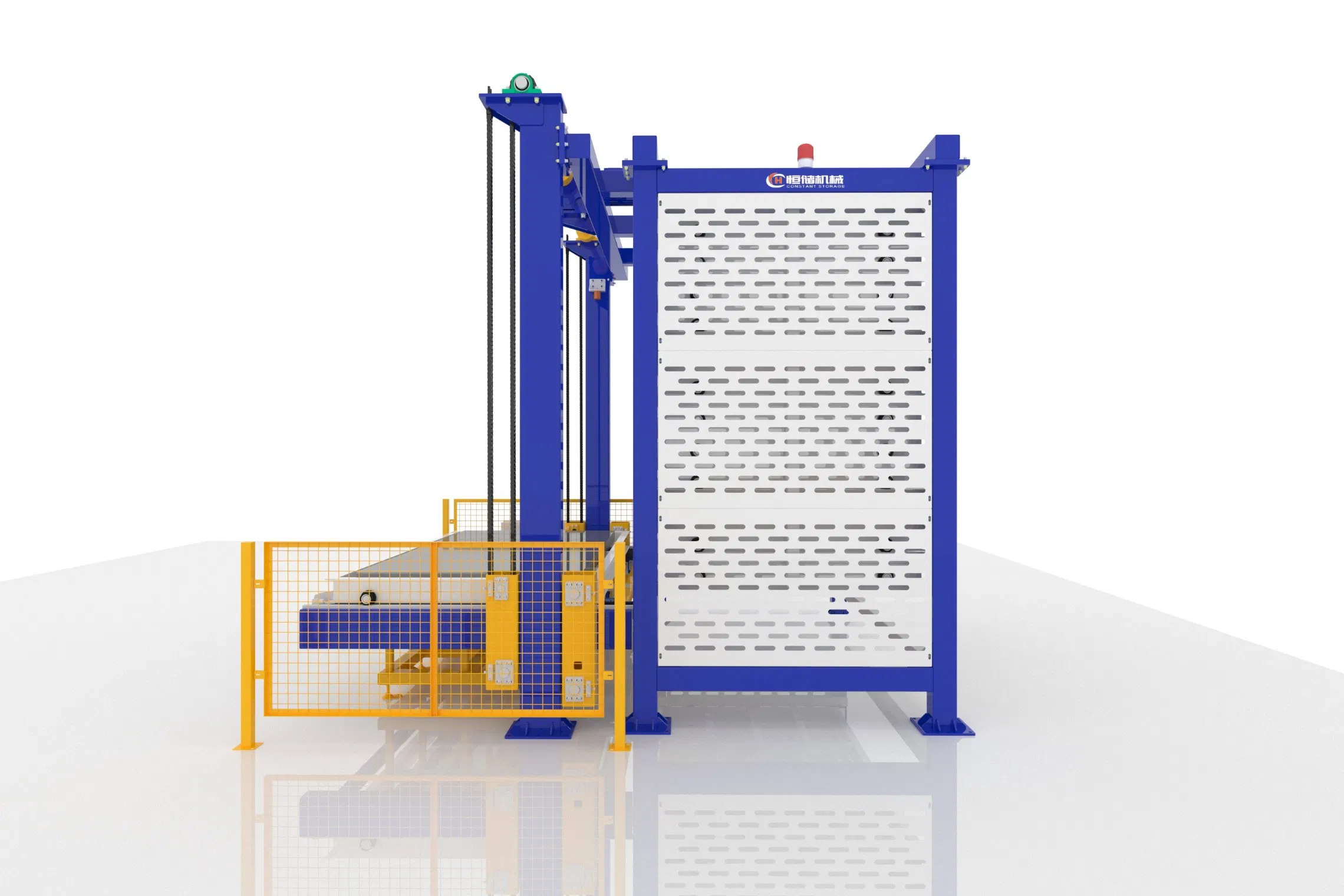

This is an automatic storage and retrieval system for sheet metal. It takes advantage of vertical warehouse space and implements a Goods-to-Operator workflow, working with a lifter to deposit and retrieve drawers. It delivers them directly to the loading/unloading bay at a safe working height. It is a customized system to accommodate a variety of sheets and other flat materials such as moulds, boxes, and components.

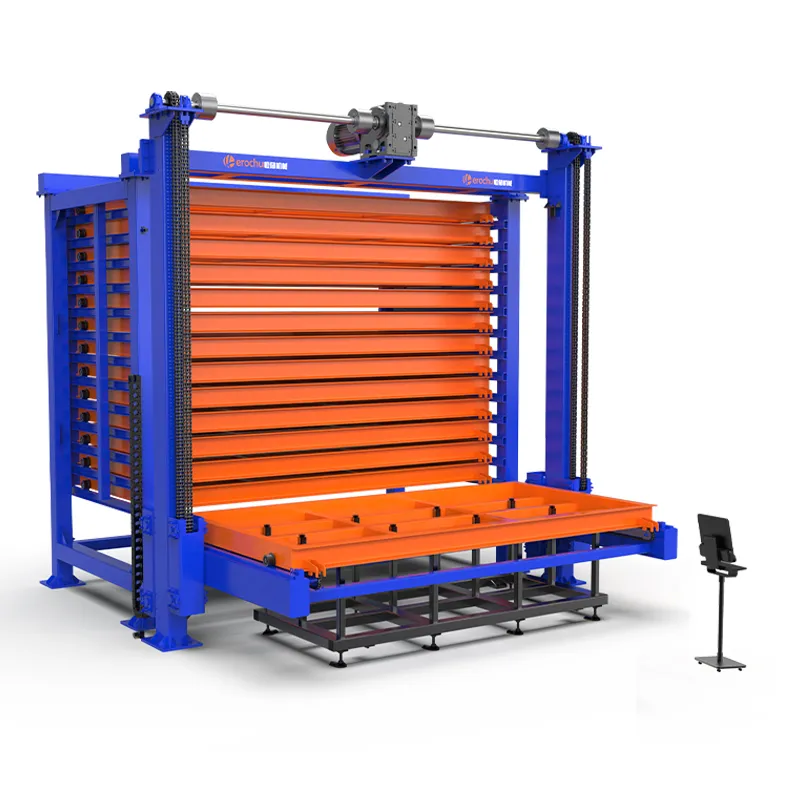

Sheet Metal Automatic Storage Unit

Enables centralized storage of plates, automatic weight detection, automatic warehousing, and automatic retrieval. Controlled by PLC and touch screen, it achieves classified visual management of plates, ensuring safety and efficiency. It effectively ensures product quality, improves production efficiency, and reduces production costs.

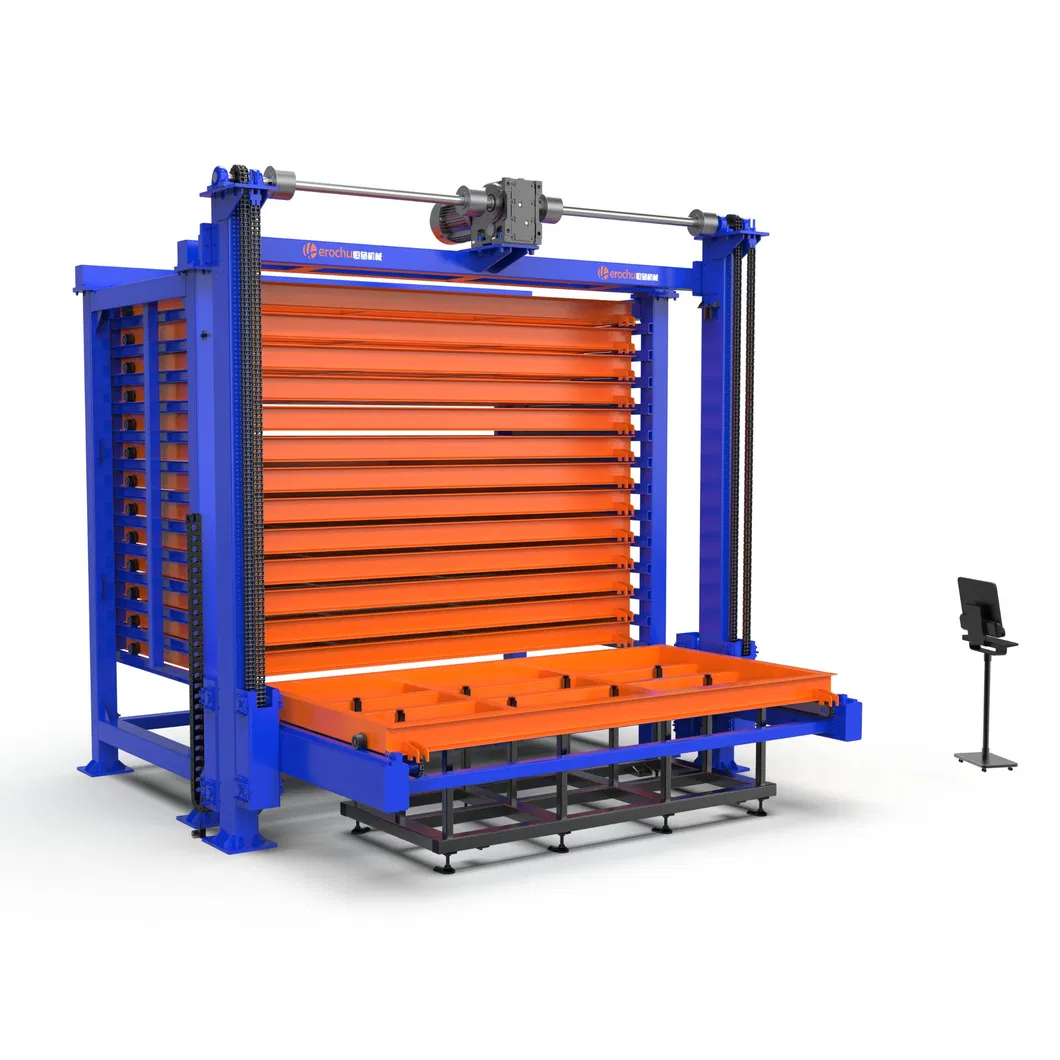

Key Features

Reduce storage floor footprint and increase vertical storage capacity

Lower material handling cost

Efficient material storage and flow

Create a safe environment for workers and avoid material damage

Updated real-time inventory status

Heavy Duty Design (Standard 3 tons, max 5 tons per drawer)

Advanced Touch Screen Control system

Configuration Specifications

Project Model	HC-B3015-63	HC-B4015-63	HC-B4020-65	HC-B6020-66
Load (single layer)	3t	3t	5t	6t
Plate size (mm)	3000x1500	4000x1500	4000x2000	6000x2000
Number of layers	5+1 (Customizable)
Partition Height (mm)	≤ 220
External Dimensions (mm)	3505x2280x2000	4505x2280x2000	4505x2280x2500	6505x2280x2500
Movement Method	Integrated pull-out type

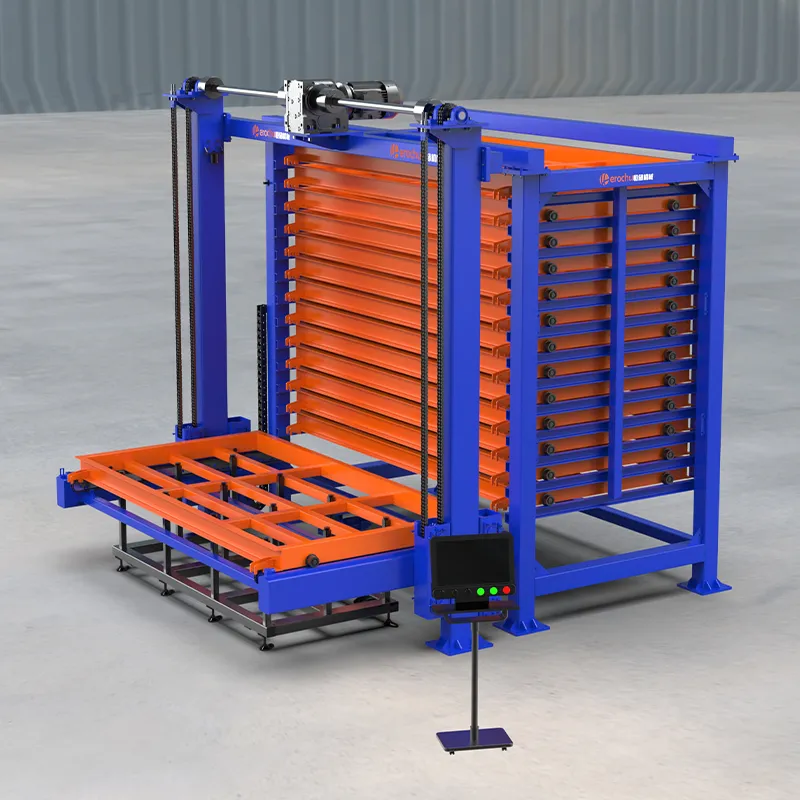

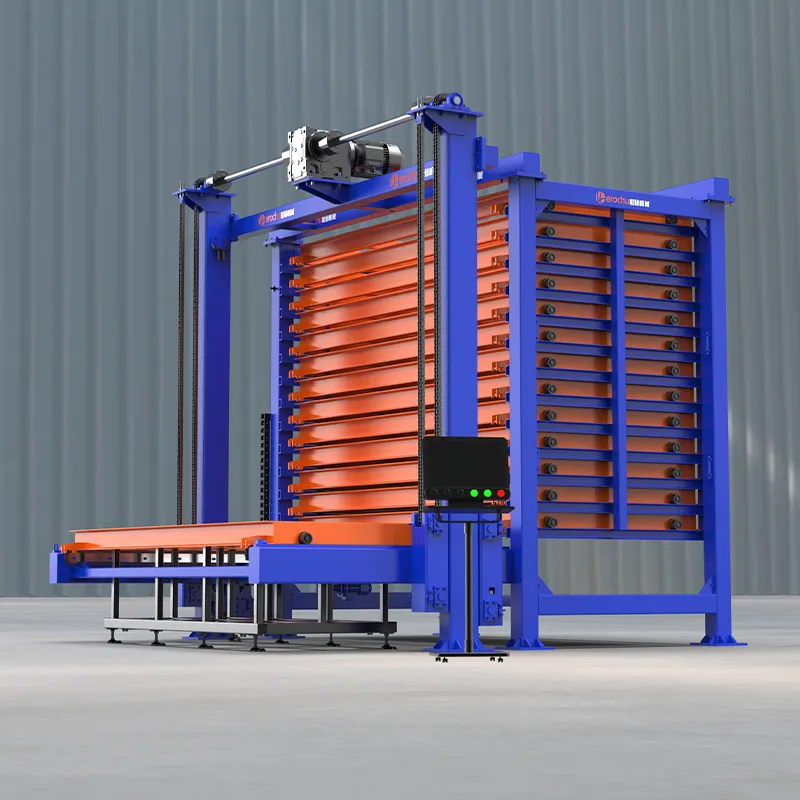

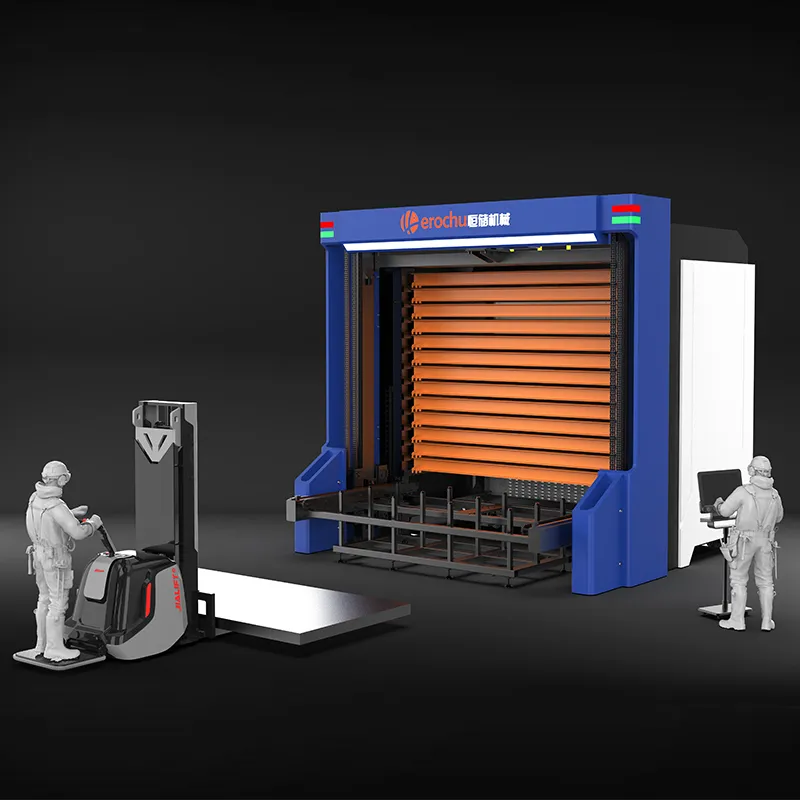

Application Gallery

Frequently Asked Questions

Q1: How can I proceed with procurement?

You can contact our technical personnel, and we will provide you with a suitable technical solution and quotation based on your parameters. A professional sales team will contact you to guide you through the process.

Q2: How do I choose the right shelves for my needs?

Please provide details regarding the material type, dimensions, number of shelves required, and any other specific operational requirements. Our team will then design a professional solution tailored to your facility.

Q3: Can you provide on-site installation and debugging?

Yes, we can send professional personnel to your factory to install and debug the system until successful trial operation. Our team has extensive international experience serving various global regions.

Q4: How do you ensure the quality of the products?

We have a dedicated quality inspection department that strictly implements ISO9001 standards. All equipment undergoes load testing before leaving the factory to ensure structural safety, stability, and compliance with CE certification.

Q5: Do you offer integrated loading and unloading systems?

Yes, we provide solutions for laser cutting machine integration, including board racks and exchange platforms. Specific needs can be addressed by our technical team to match your existing machinery.

Q6: What is the scope of your technical expertise?

Our expertise covers intelligent sheet metal warehouses, drawer-style shelves, telescopic cantilever shelves, servo swing arm manipulators, and fully automatic loading/unloading series for heavy-duty materials.
