GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
1 / 5
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)
GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)

GPS GPRS Vehicle Tracker with Tracking Real Time Position (TK116)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
TK116
Weight
45g
GSM Frequency
850/900/1800/1900MHz
Working Voltage
12VDC/24VDC/36VDC
Dimension
79.5(L) X 38.5(W) X 10.5(H) mm
Certification
CE, CCC
Production Capacity
1,200,000 PCS/Year
Product Key Features
  • Supports quad bands (850/900/1800/1900MHz) for worldwide use
  • Wide Input Voltage range: 6-36V DC
  • Dual Tracking: GPS + GSM (LBS)
  • Precise positioning with A-GPS support
  • Real-time tracking and historical playback
  • Multiple platforms: Web browser, Smart phone app, and SMS query
  • Built-in battery with Power disconnect & Low battery alarms
  • ACC status checking and vehicle status notification
  • Remote vehicle control via relay
  • SOS call functionality via external button
  • Remote voice monitoring via external microphone
  • OTA upgrade program and multiple protocol support
⚠️ Security Alarm Functions
Vibration Alarm (Optional) | Collision / Falling Alarm (Optional) | Over-speed Alarm | Geo-fence Alarm | Power Disconnect Alarm | SOS Alarm
Functionality & Platform

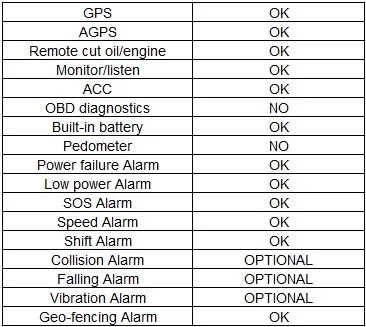

Function Table

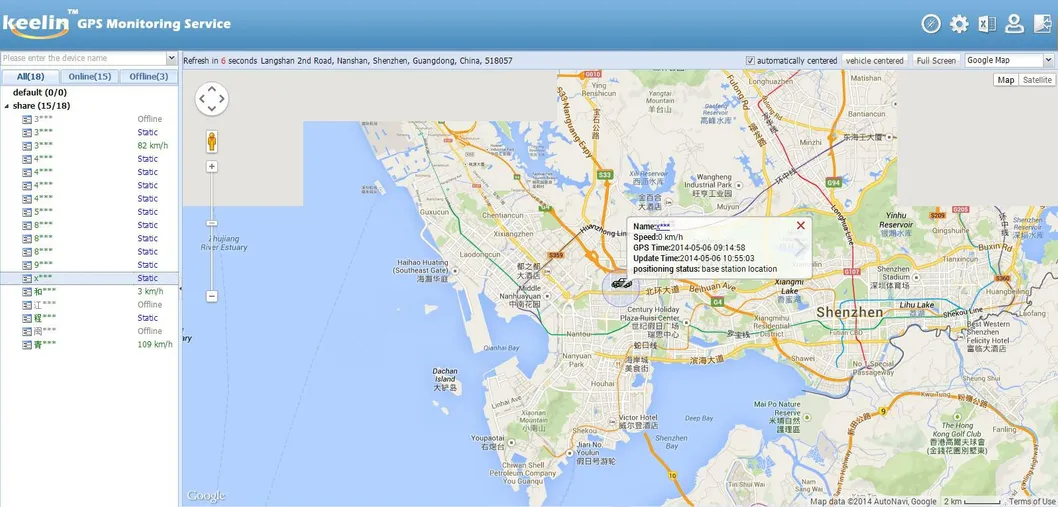

Monitoring Platform
Detailed Specifications
Working Voltage12VDC/24VDC/36VDC
Work Current<30mA @ 12V
Standby Current<10mA @ 12V
GPS Positioning Accuracy15m
GSM Positioning Accuracy100m
GPS Frequency1575MHz
Hot/Warm/Cold Start<3s, <15s, <60s
Battery Capacity200mAh
Operating Temperature-20ºC ~ 70ºC
Operating Humidity20% ~ 80% RH
Net Weight45g
🔌 Interface & Extensions
  • Default: Microphone input for remote monitoring
  • ADC Port: For temperature and fuel detection
  • External Battery Port: For extended operation life
  • Expansion Port: UART (TTL level) / RS232 serial support
Device Accessories
Frequently Asked Questions
Q1: What is the input voltage range for the TK116?
The device supports a wide input voltage range from 6V to 36V DC, making it compatible with various vehicles including cars, trucks, and motorcycles.
Q2: How does the real-time tracking work?
The TK116 uses GPS for precise positioning and GPRS to upload data to the platform. You can monitor the location in real-time via a web browser or a dedicated smartphone app.
Q3: Does the device have a backup battery?
Yes, it features a built-in 200mAh battery. This allows the device to send a "power disconnect alarm" if the main vehicle power is cut.
Q4: Can I remotely shut down the vehicle engine?
Yes, by connecting an optional relay, you can remotely control the vehicle's circuit to cut off fuel or power via the tracking platform or SMS.
Q5: What kind of alarms can this tracker provide?
It supports multiple alarms including vibration, collision, over-speed, geo-fence entry/exit, power disconnection, and SOS emergency alarms.
Q6: Is it possible to monitor the audio inside the vehicle?
Yes, the TK116 includes a microphone input port. With an external microphone connected, you can remotely monitor the environment through a voice call.
