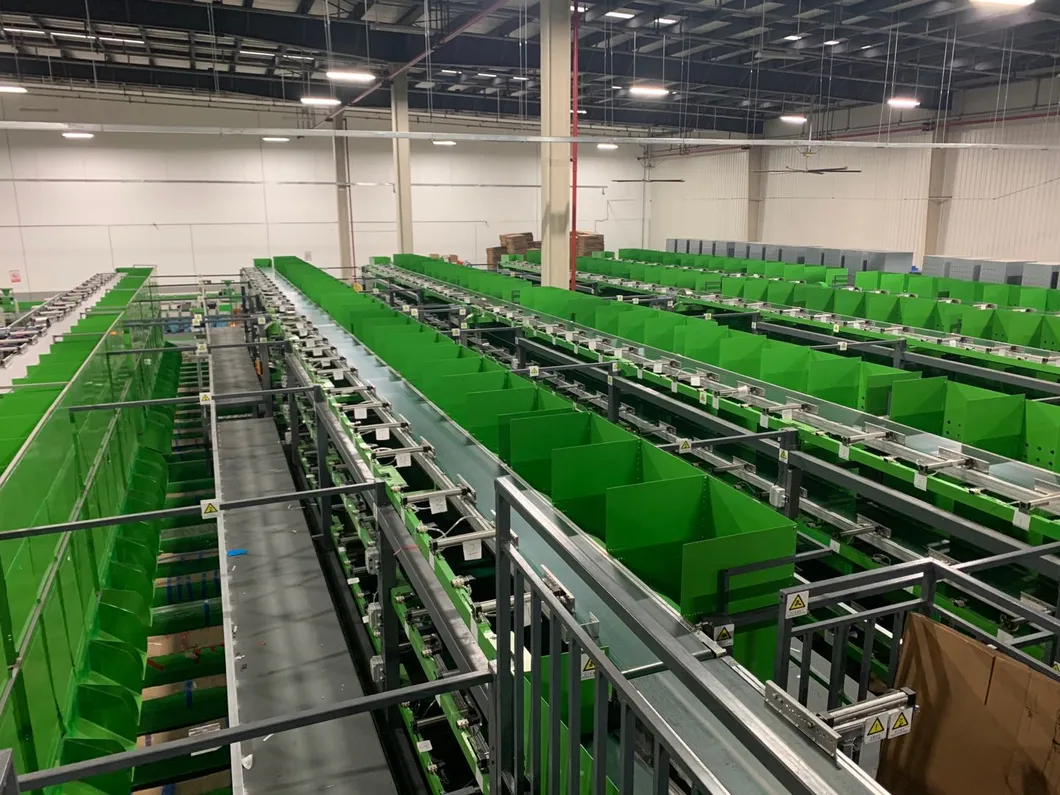

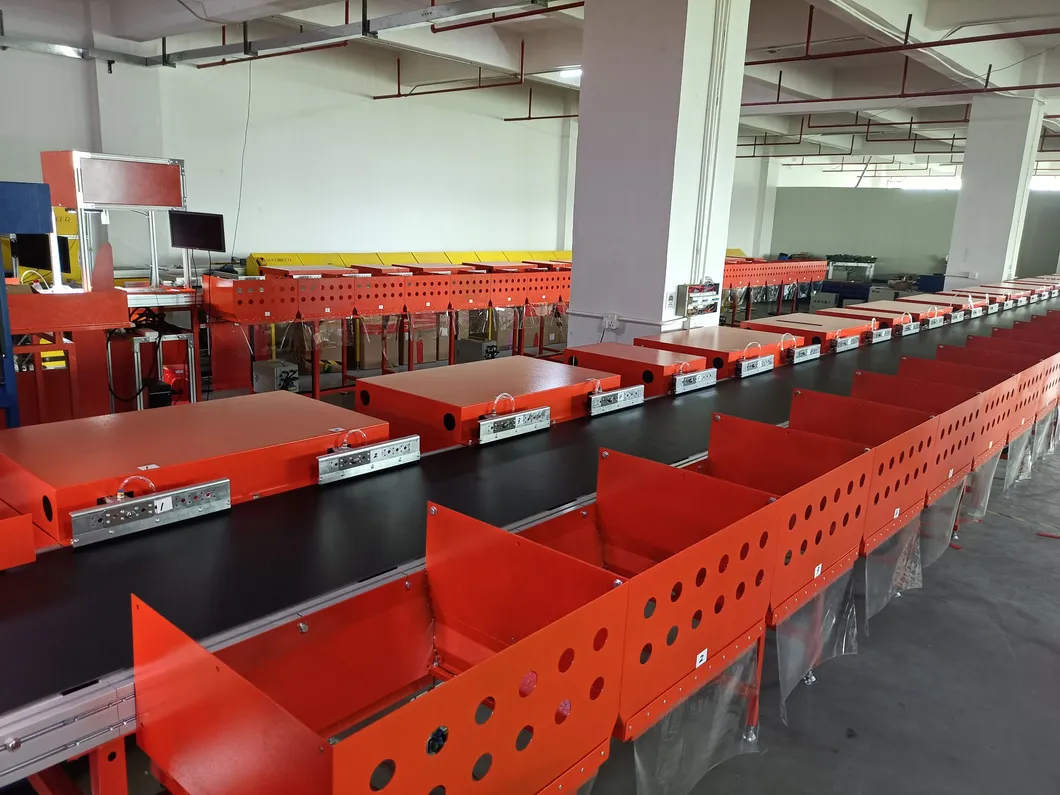

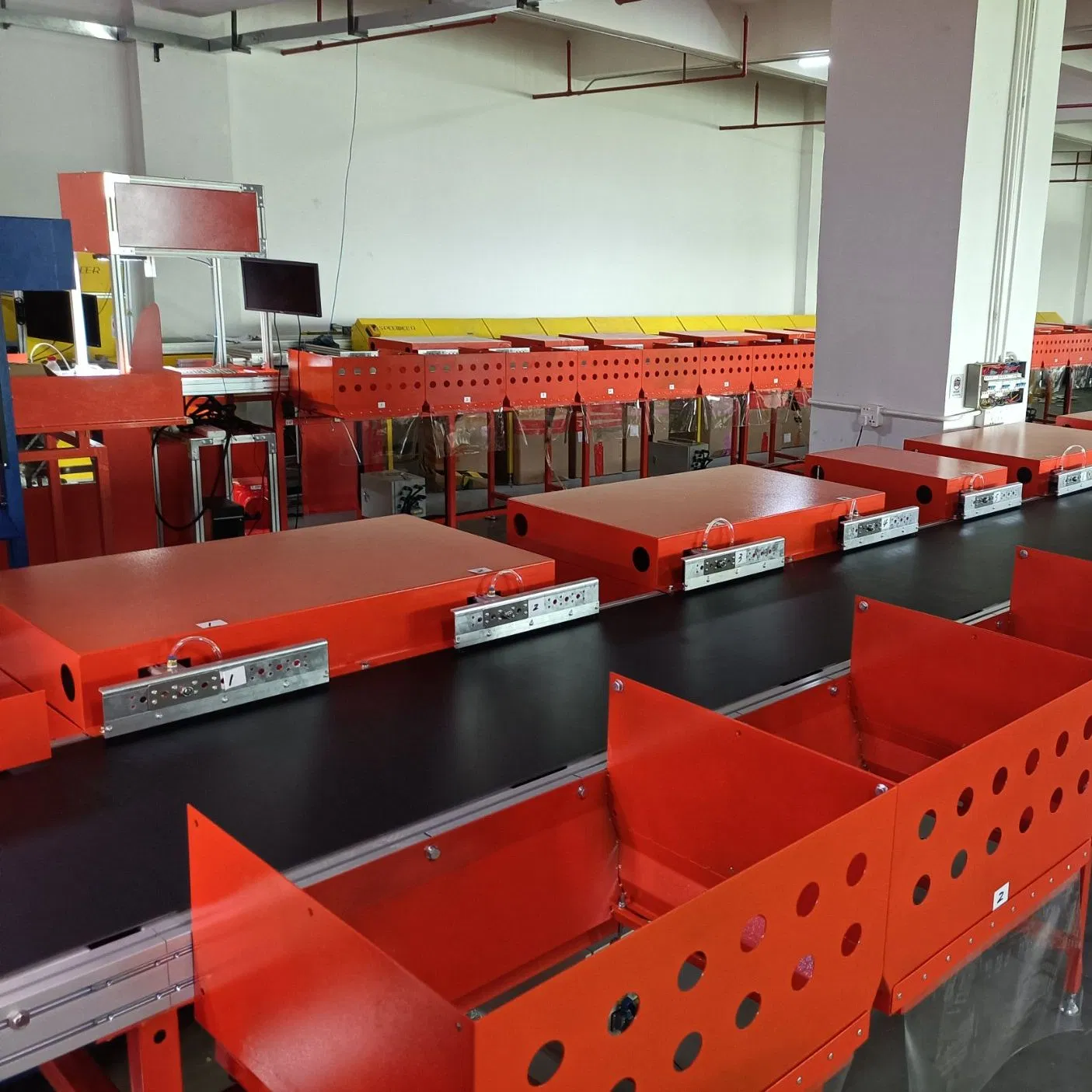

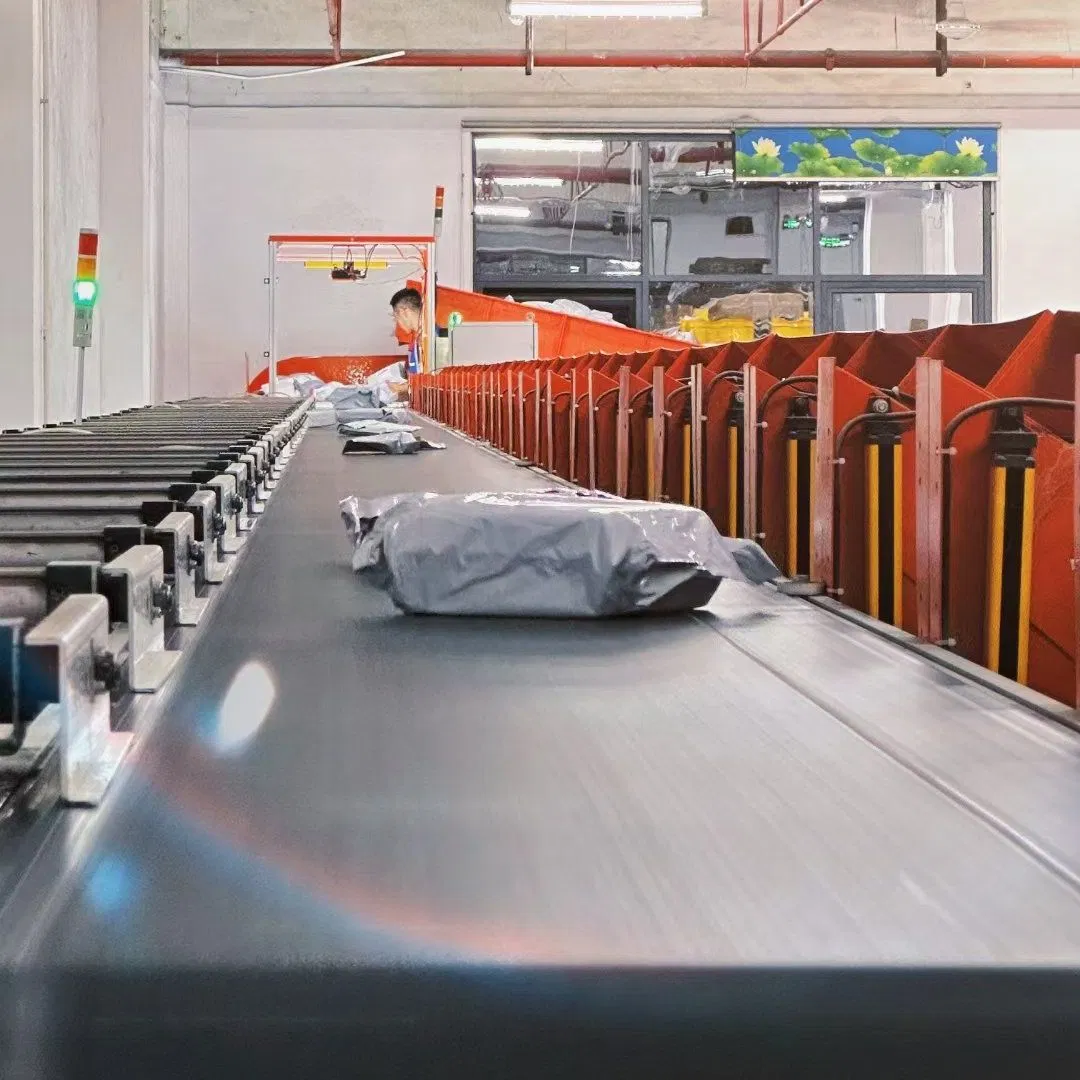

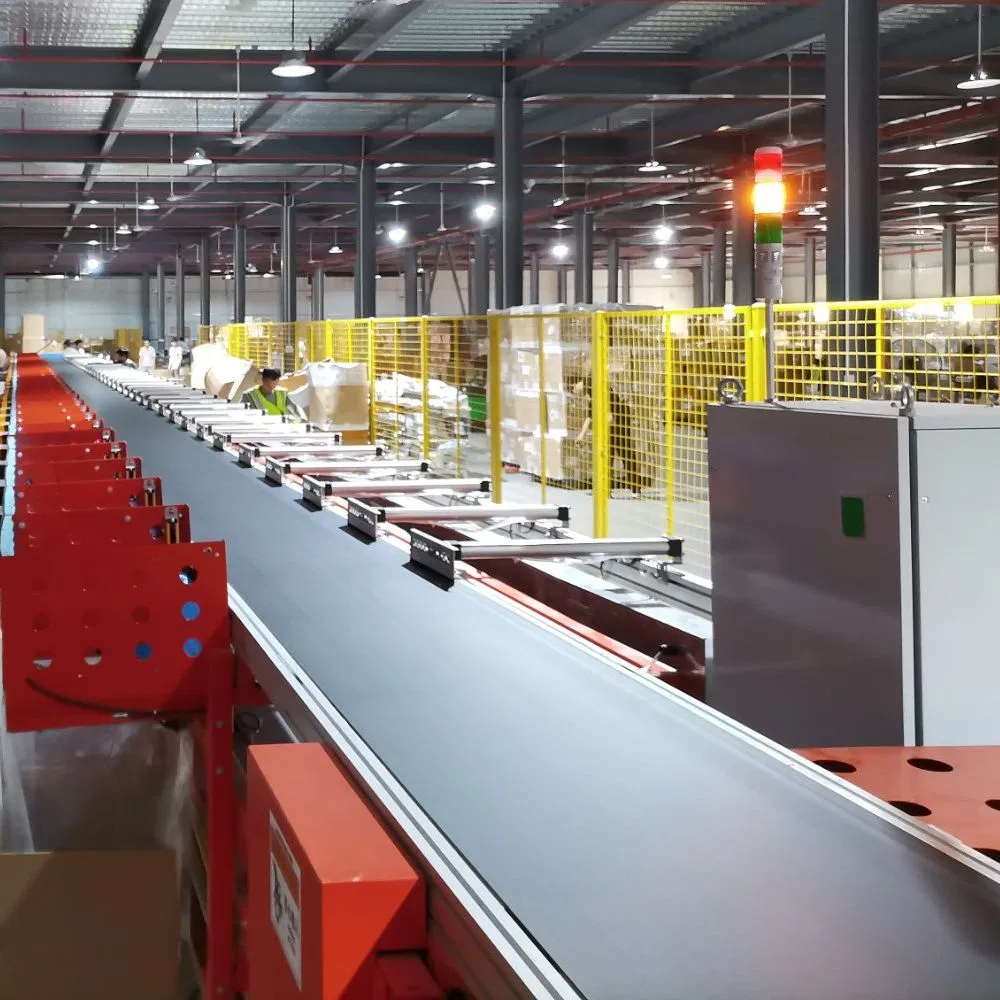

The intelligent push-board sorting machine is an advanced sorting system designed for handling and sorting various items, such as parcels, packages, and small goods. It is a crucial piece of equipment in logistics and e-commerce operations due to its efficiency and accuracy.

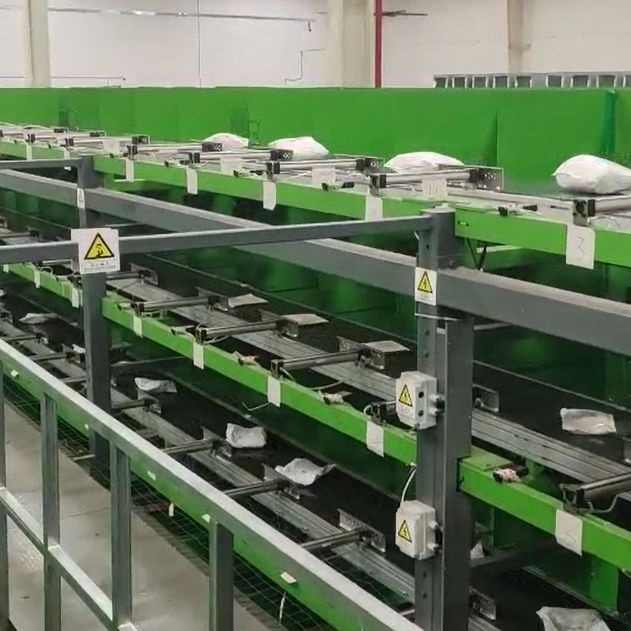

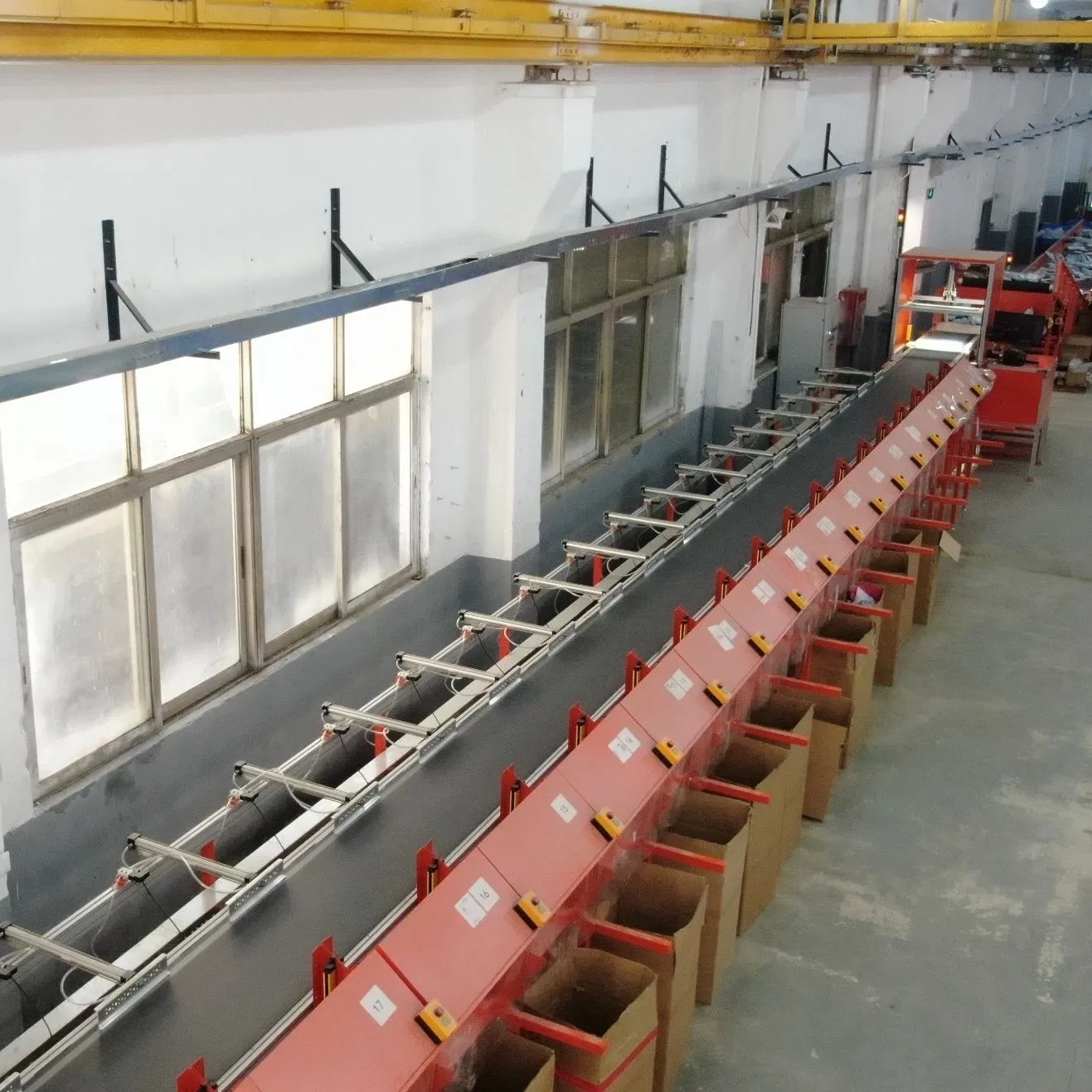

The sorting system is composed of several parts: a feeding device, a main unit, a barcode scanning device, sorting bins, a steel frame, a sorting conveyor device, and a pushing device. The system is controlled by an electronic control system. Its main functions are as follows: Items are manually placed and synchronized on the sorting main unit, where they are automatically scanned and the barcode information is read by the barcode scanning device. The system then interacts with the WCS (Warehouse Control System) to determine the sorting destination, and the sorting machine conveys and sorts the items to the corresponding bin.
| Specification | Details |
|---|---|
| Model | SP-SORTER |
| Type | Single-Column, Single-Arm |
| Maximum Dimensions | 400L x 400W x 400H mm |
| Minimum Dimensions | 50L x 50W x 10H mm |
| Item Weight | 0.02 - 6 kg |
| Drive Type | Asynchronous gear motor |
| Operating Speed | 0.5 m/s - 1.2 m/s (adjustable) |
| Mechanical Efficiency | 3600 pcs/h (at 0.6 m/s) |
| Operating Noise | ≤72 dB |

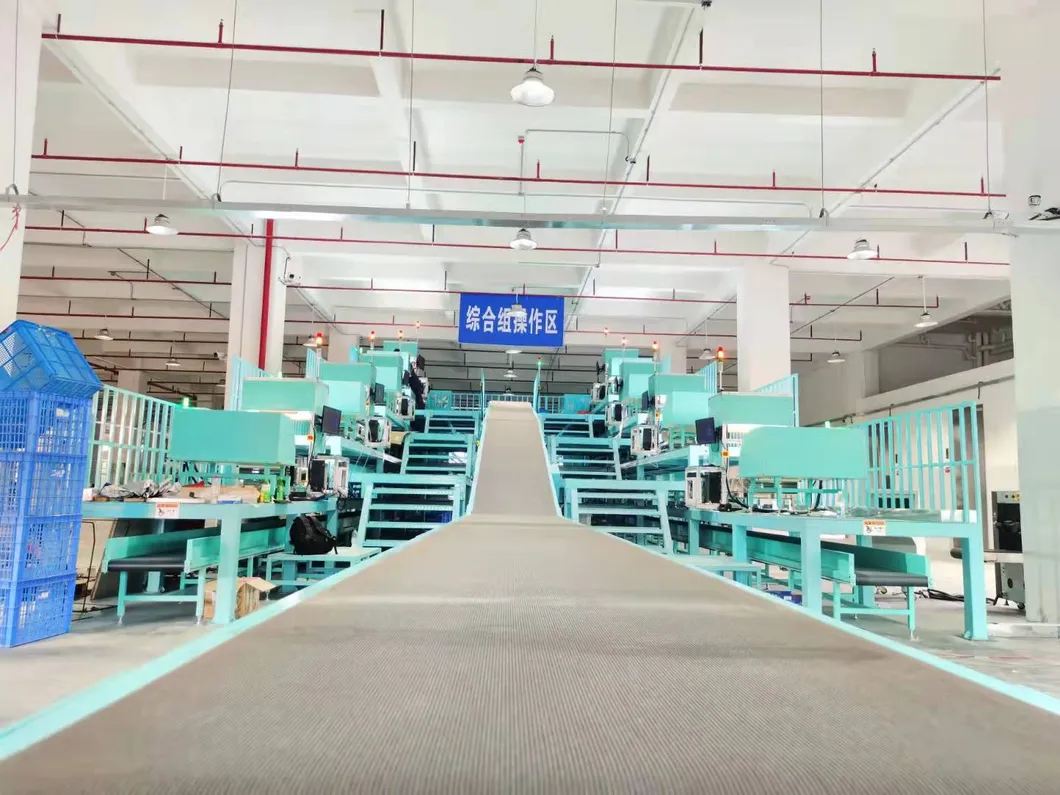

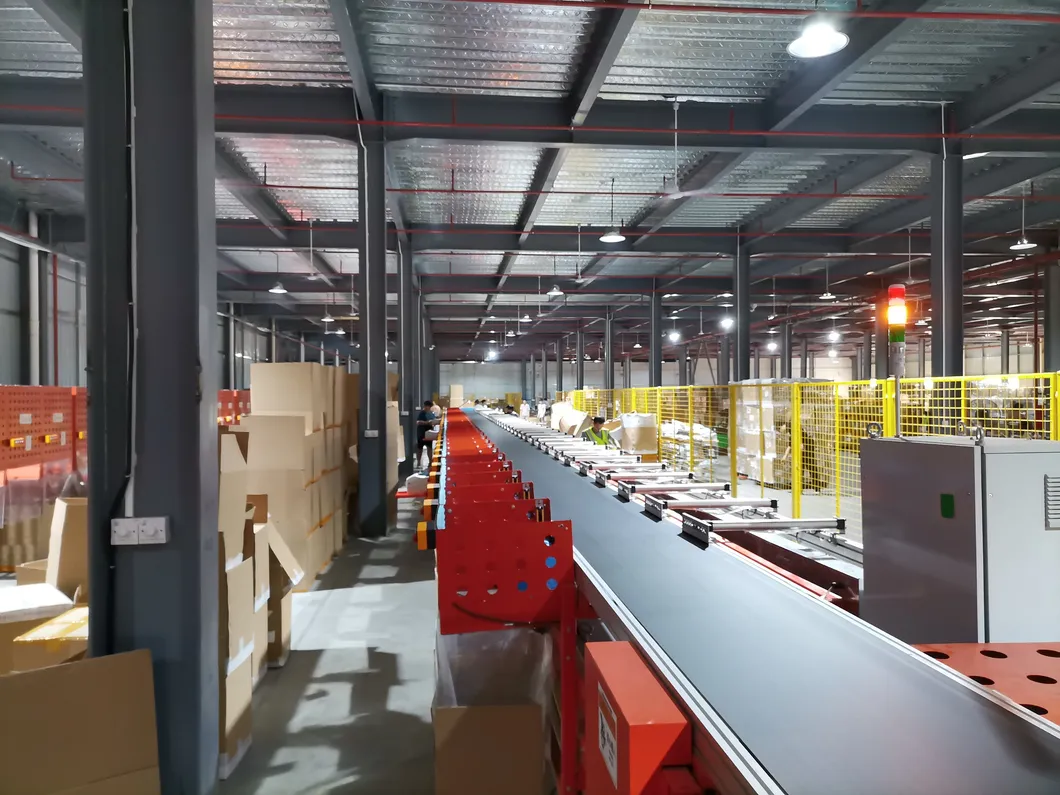

Mainly used in e-commerce and CEP courier express postal industries to optimize throughput and accuracy.
