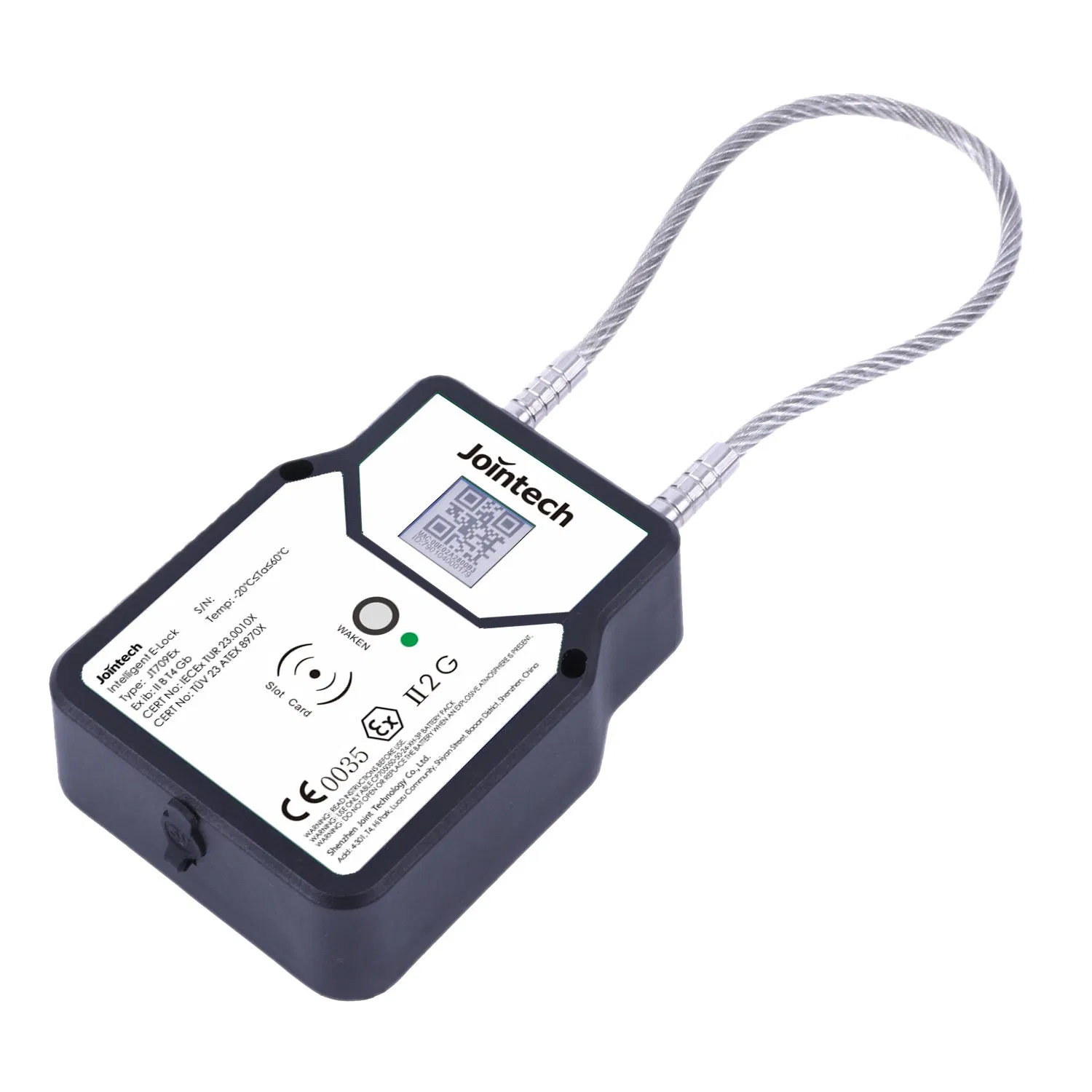

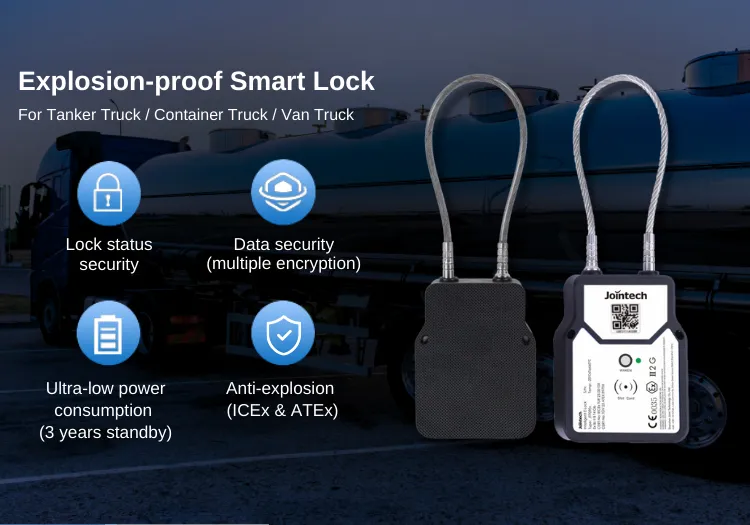

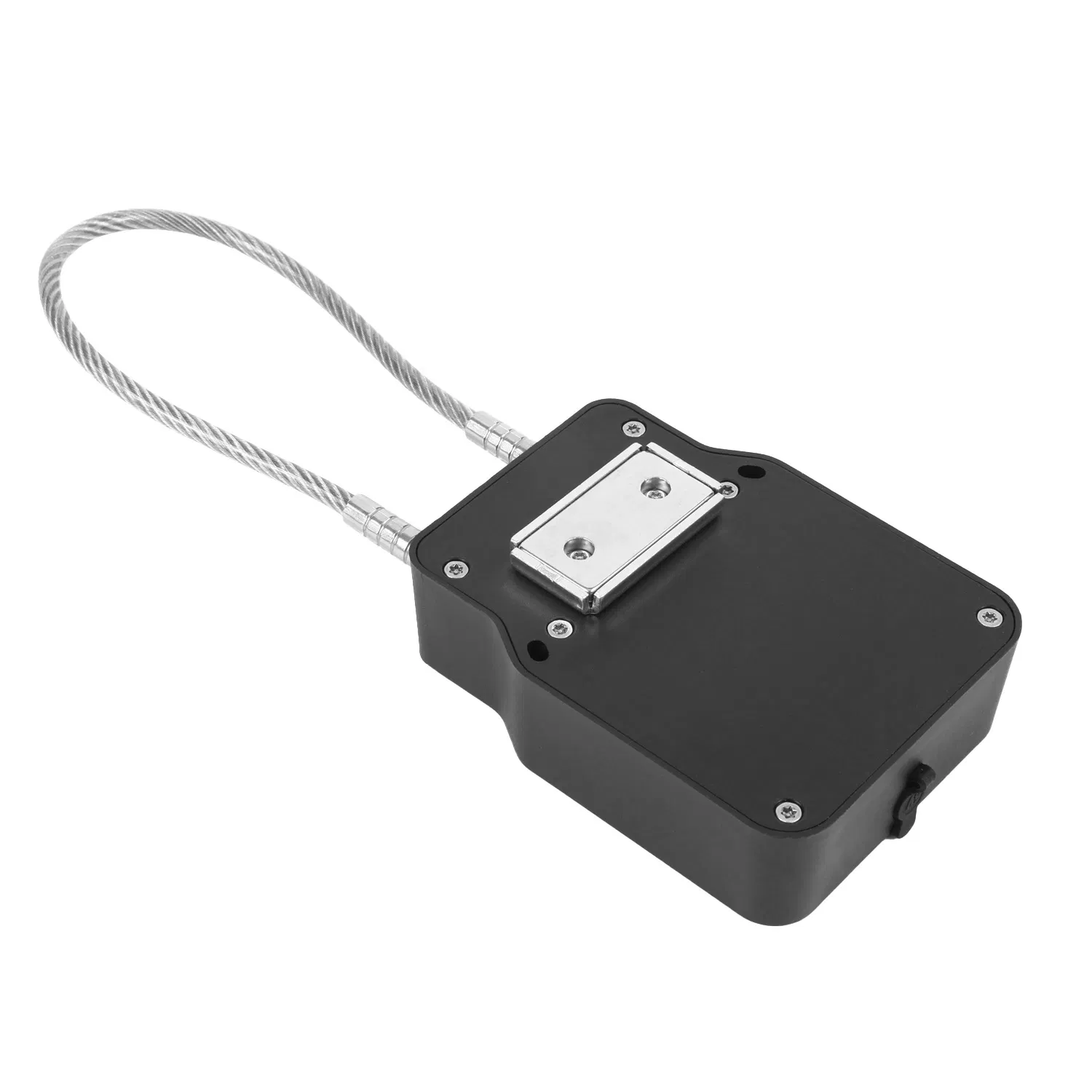

IEC ATEX Safety Certificated Intelligent Oil Tanker Truck Real Time GPS Tracking Hatches Valves Control Electronic Seal Lock

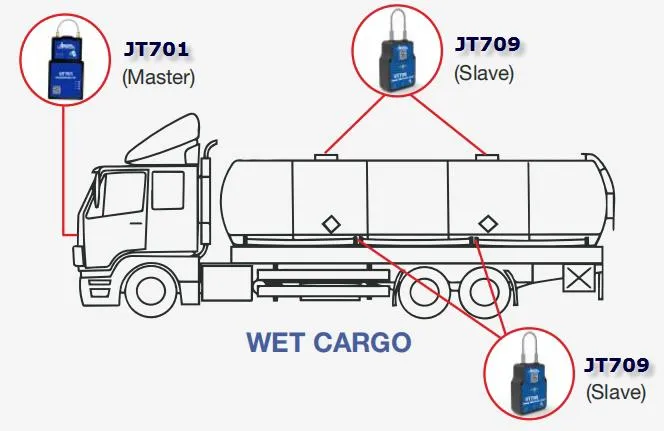

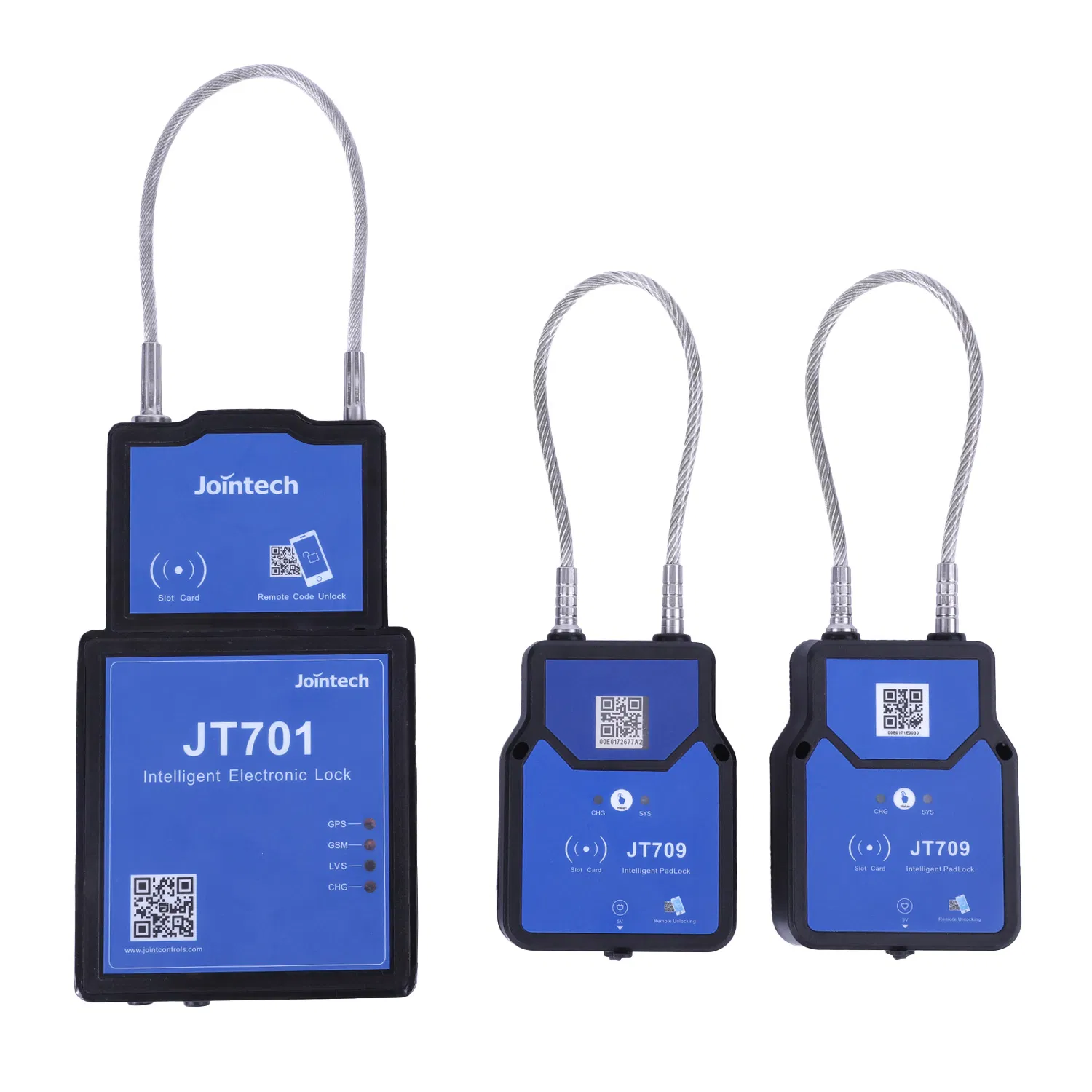

JT709Ex smart BLE RFID Lora seal is a slave E-seal developed for Oil Tanker Truck Monitoring Solution. It can be applied to oil tank truck customers in a one-master multi-slave mode (multiple Box door / multi-valve). Support remote change of product configuration parameters and can be used repeatedly.
BLE / Remote / APP Authorization
Replaceable, 4000mAh Capacity
IP67 Waterproof Class
Over 1000 Unlock Records
| Project | Description |
|---|---|
| Explosion-proof standard | Ex ib IIB T4 Gb (including international IEC Ex, EU ATEX, domestic GB3836.1, GB3836.4) |
| RFID | 125kHz RFID card swiping to unlock. Default sleep mode can be configured. |

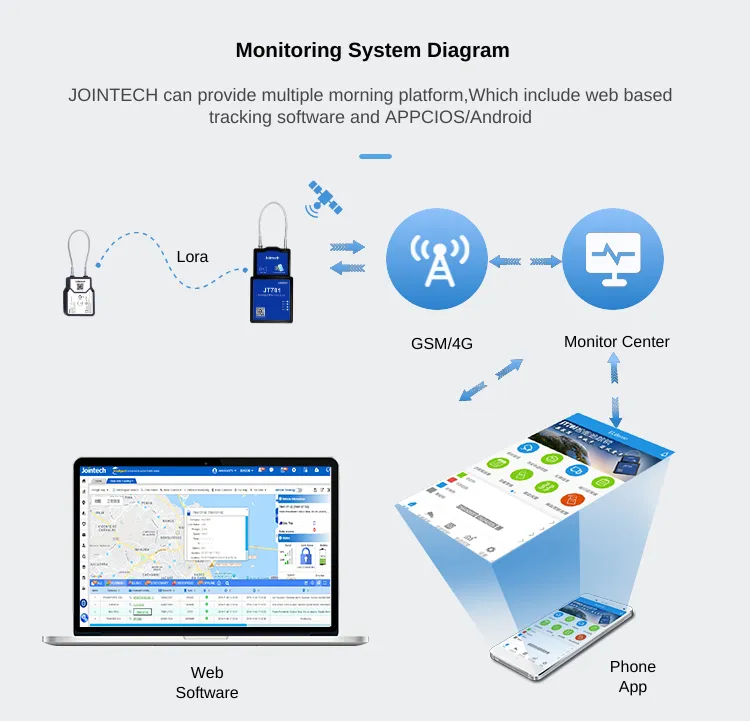

| Lora | Communicates with master lock/gateway. Awakened by events or button press. |
| Bluetooth | BLE communication with APP. Configurable sleep mode settings. |
| Battery Life | Estimated 3 years (based on 1 report/day and 10 unlock cycles/day). |
| Wake up method | Button, RTC timed, lock rope plugging, cover opening. |
