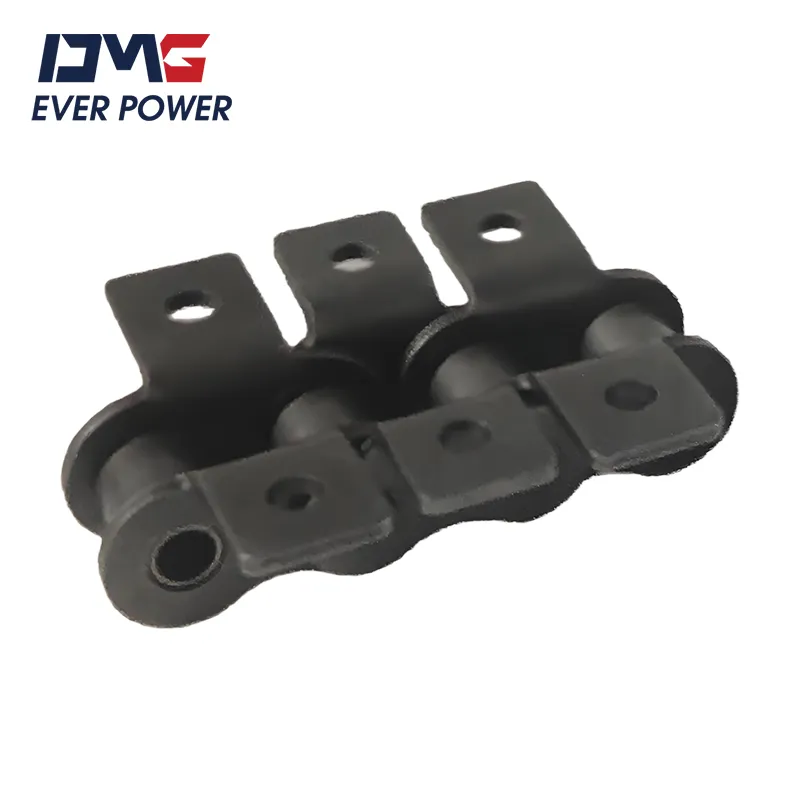

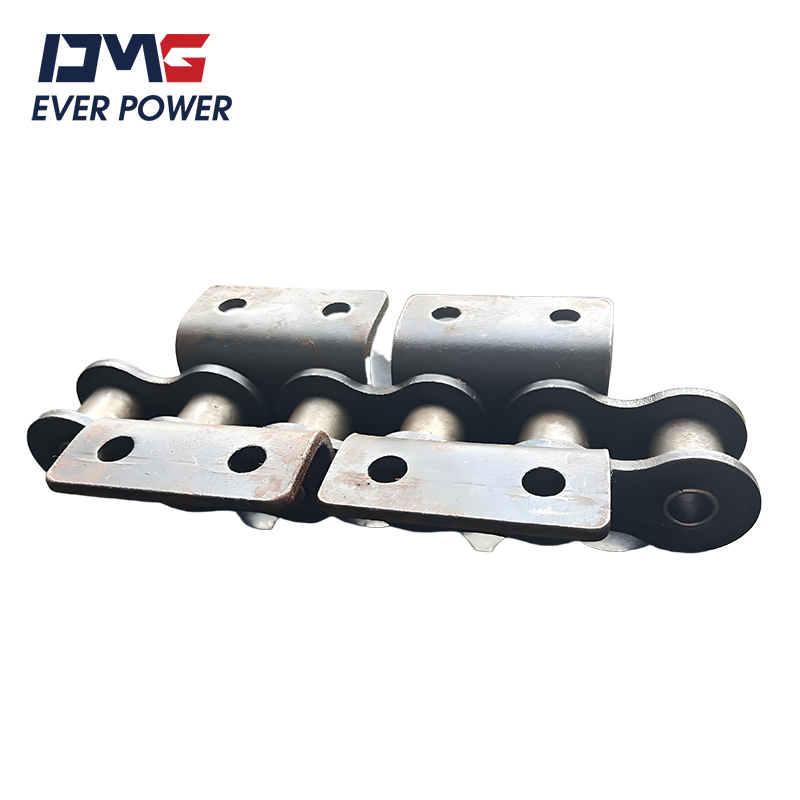

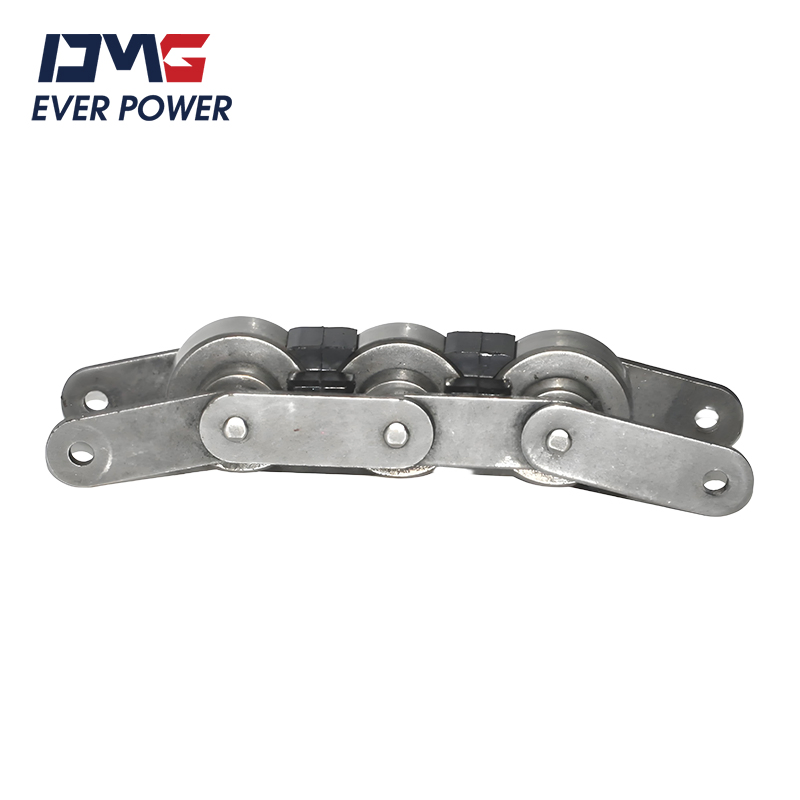

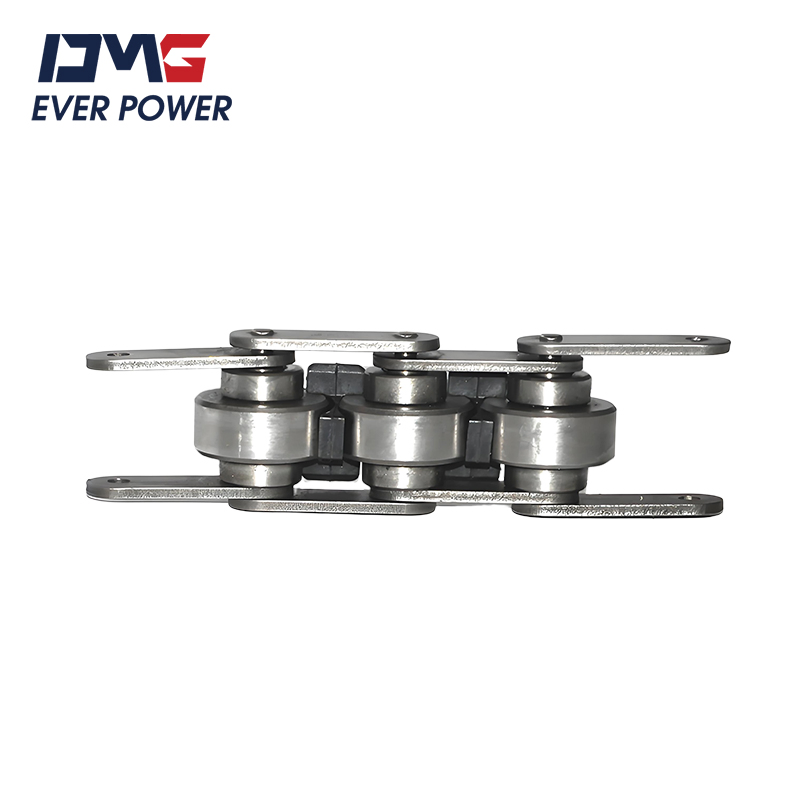

Short-pitch conveyor chain accessories are special structures used to install functional components on short-pitch precision roller chains (such as A series and B series), making them suitable for conveying equipment.

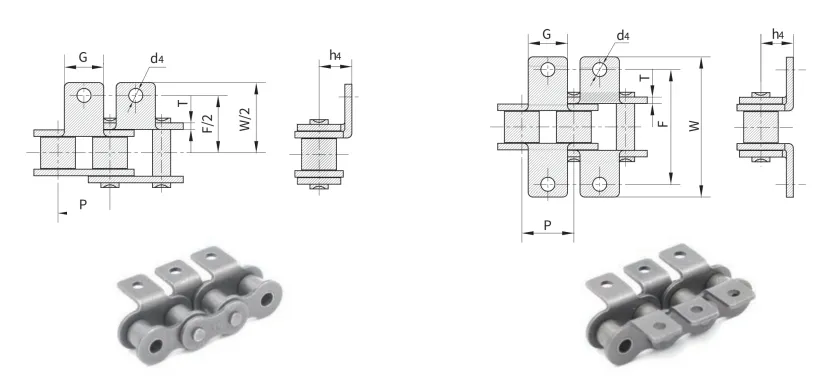

| DIN/ISO No. | ANSI No. | P (mm) | G (mm) | F (mm) | W (mm) | T (mm) | h4 (mm) | d4 (mm) |
|---|---|---|---|---|---|---|---|---|
| 04C | 25 | 6.350 | 5.6 | 13.80 | 23.2 | 0.80 | 4.30 | 3.4 |
| 06C | 35 | 9.525 | 7.9 | 19.00 | 28.6 | 1.30 | 6.35 | 3.4 |
| 08A | 40 | 12.700 | 9.5 | 25.40 | 35.2 | 1.50 | 7.90 | 3.4 |
| 10A | 50 | 15.875 | 12.7 | 31.75 | 46.2 | 2.03 | 10.30 | 5.5 |
| 12A | 60 | 19.050 | 15.9 | 38.10 | 55.6 | 2.42 | 11.90 | 5.5 |
| 16A | 80 | 25.400 | 19.1 | 50.80 | 64.8 | 3.25 | 15.90 | 6.8 |

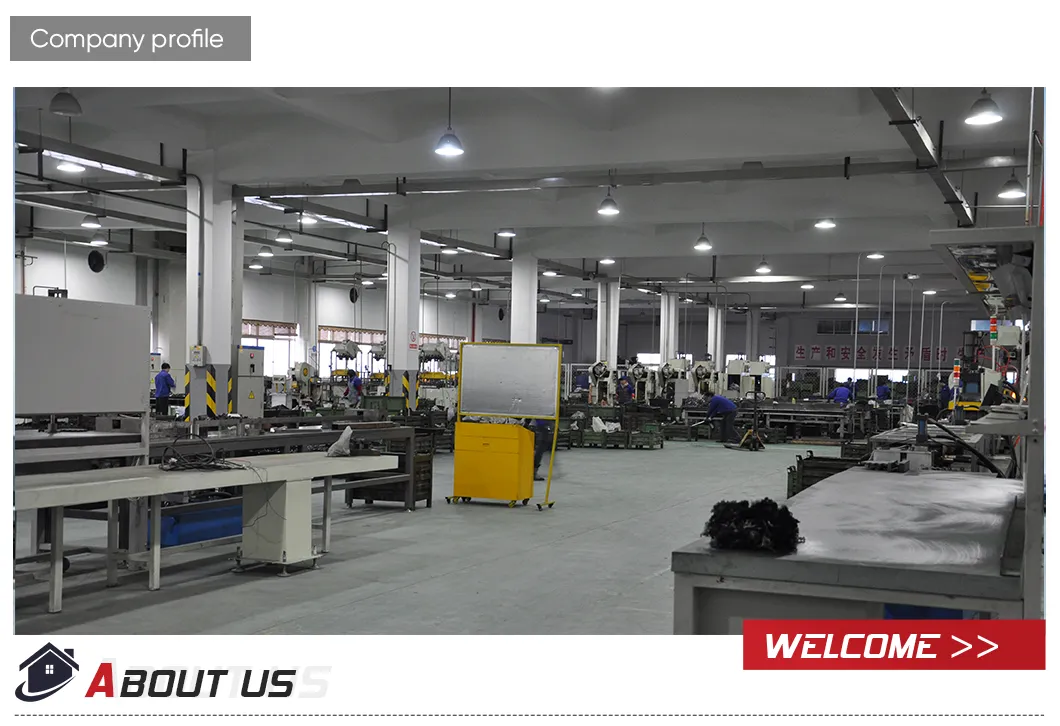

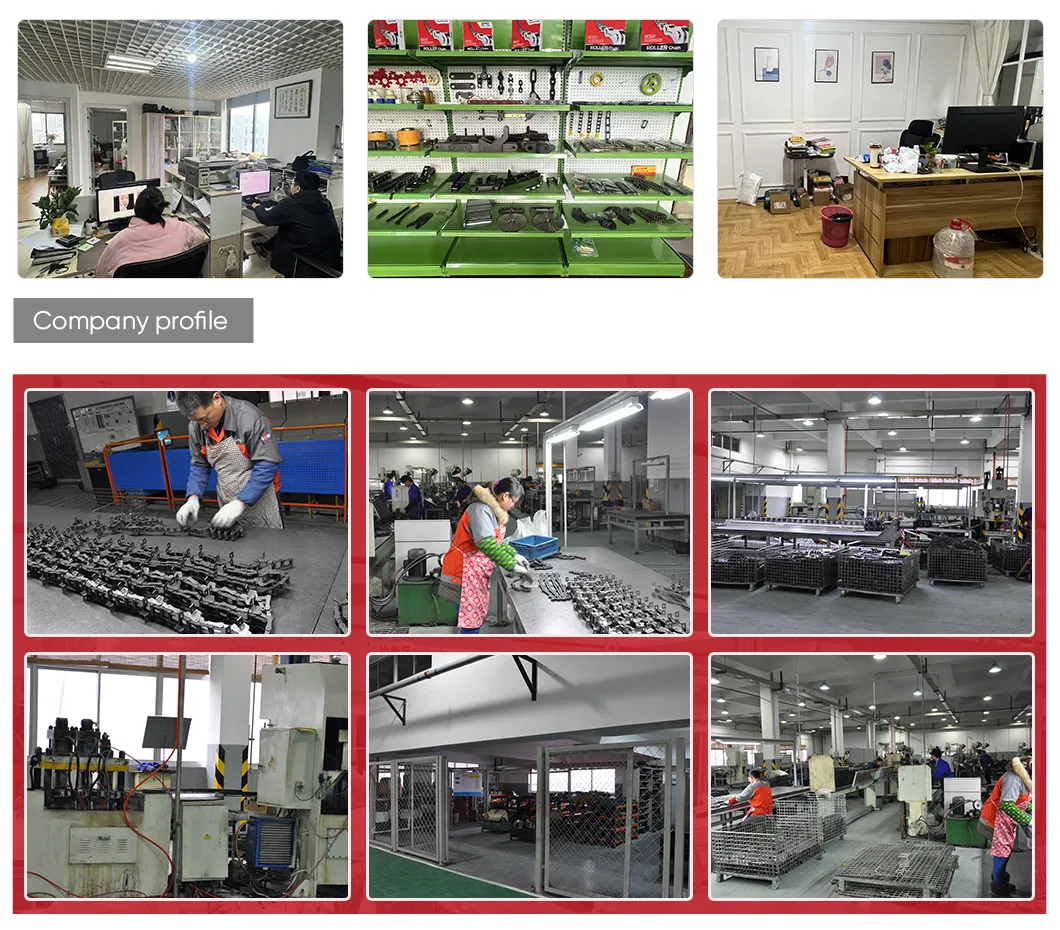

Founded in 1984, we are specialized in the development, manufacture, and sales of mechanical products. The factory features more than 33,000 square meters of workshop space, equipped with over 100 sets of advanced processing machines and testing equipment.
Our main products include roller chains, sprockets, pulleys, and agricultural spare parts, all ISO 9001 certified. These are sold to more than 50 countries worldwide, serving food industries, engineering machinery, printing, woodworking, textile, and chemical machinery sectors.
