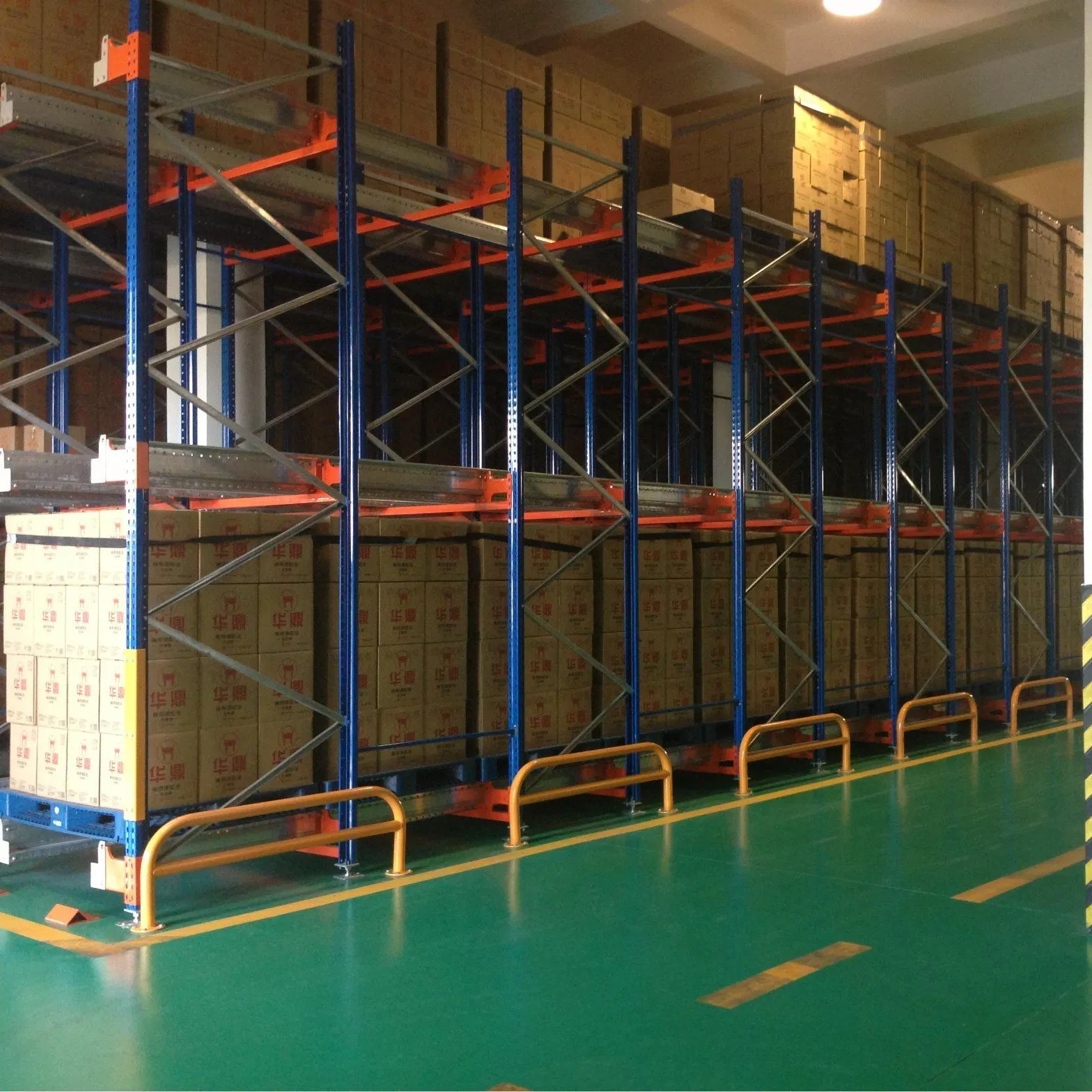

Radio Shuttle for Wine & Liquor Warehouse, Automated Inventory Management

1 / 5

Radio Shuttle for Wine & Liquor Warehouse, Automated Inventory Management

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

NDCS101012

Type

Shuttle Robot

Material

Steel

Height

5m - 15m

Load Capacity

Max 1500kg

Full Load Speed

45m/Min

Working Hour

Operation

Unmanned Operation

Product Description

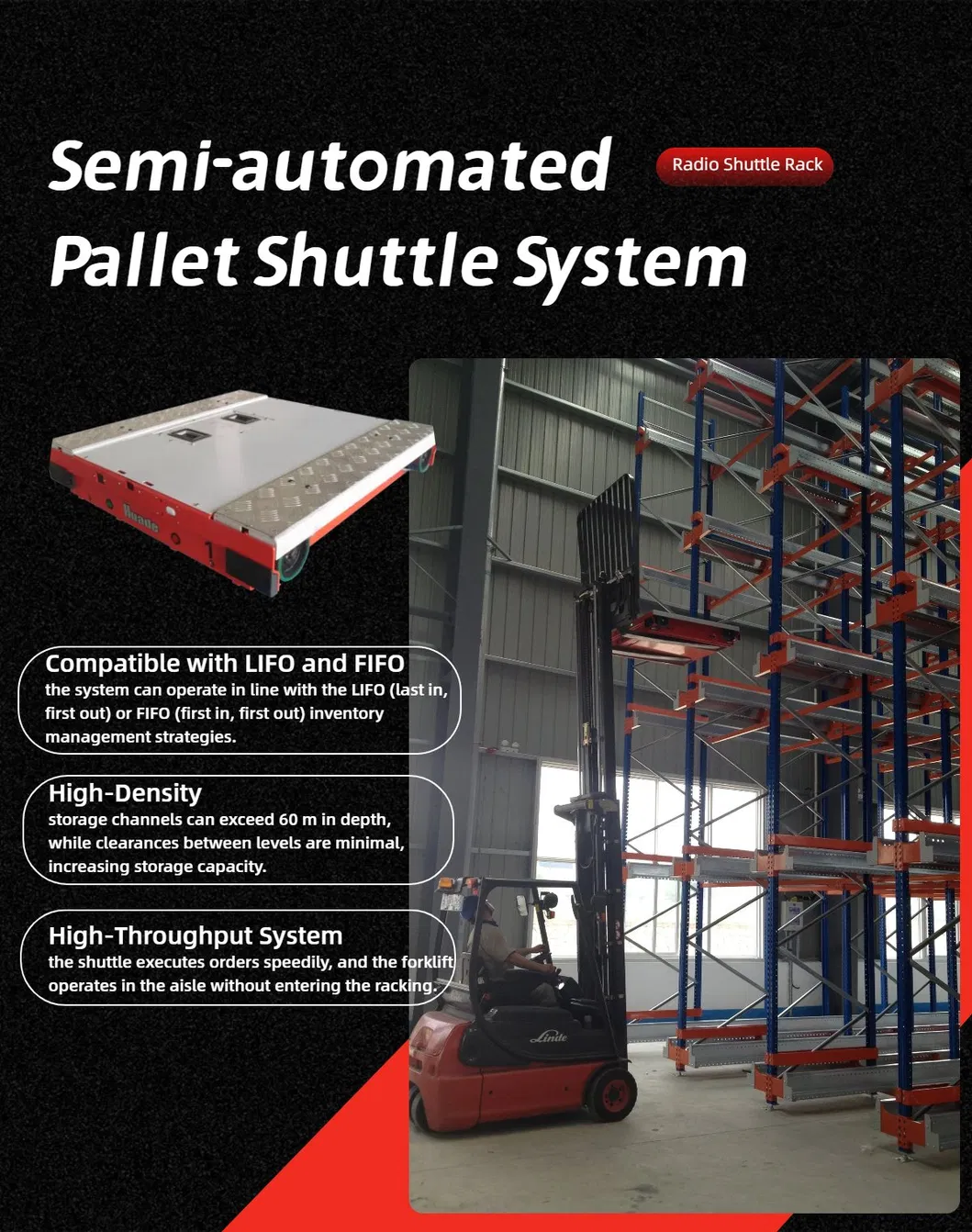

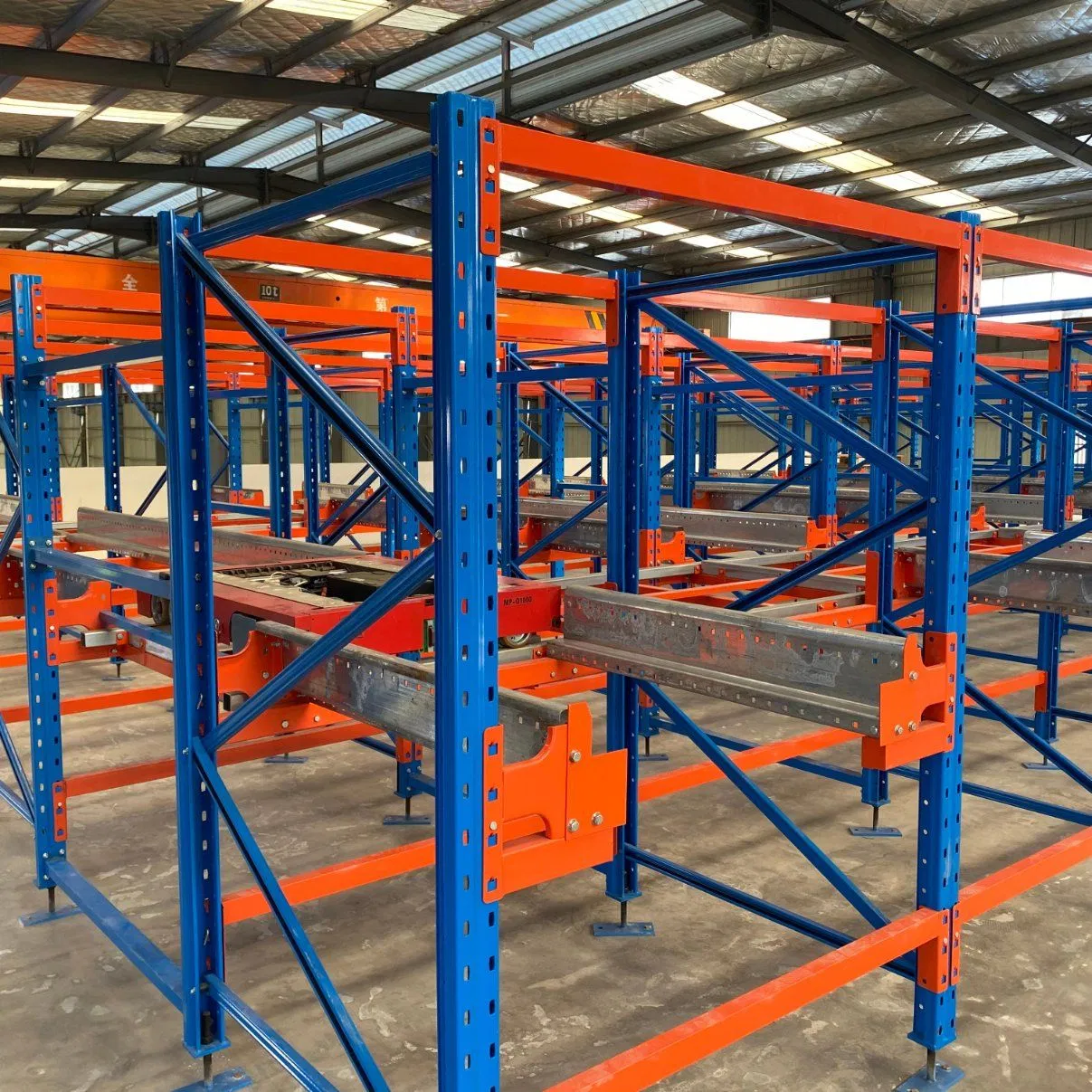

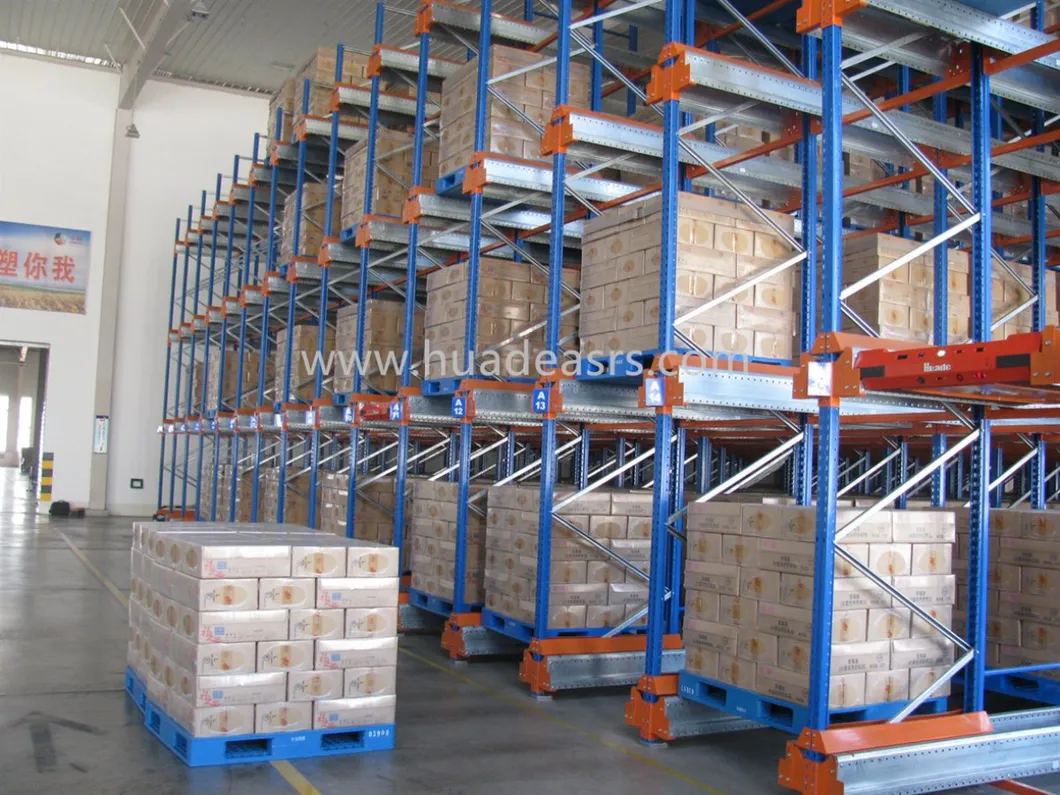

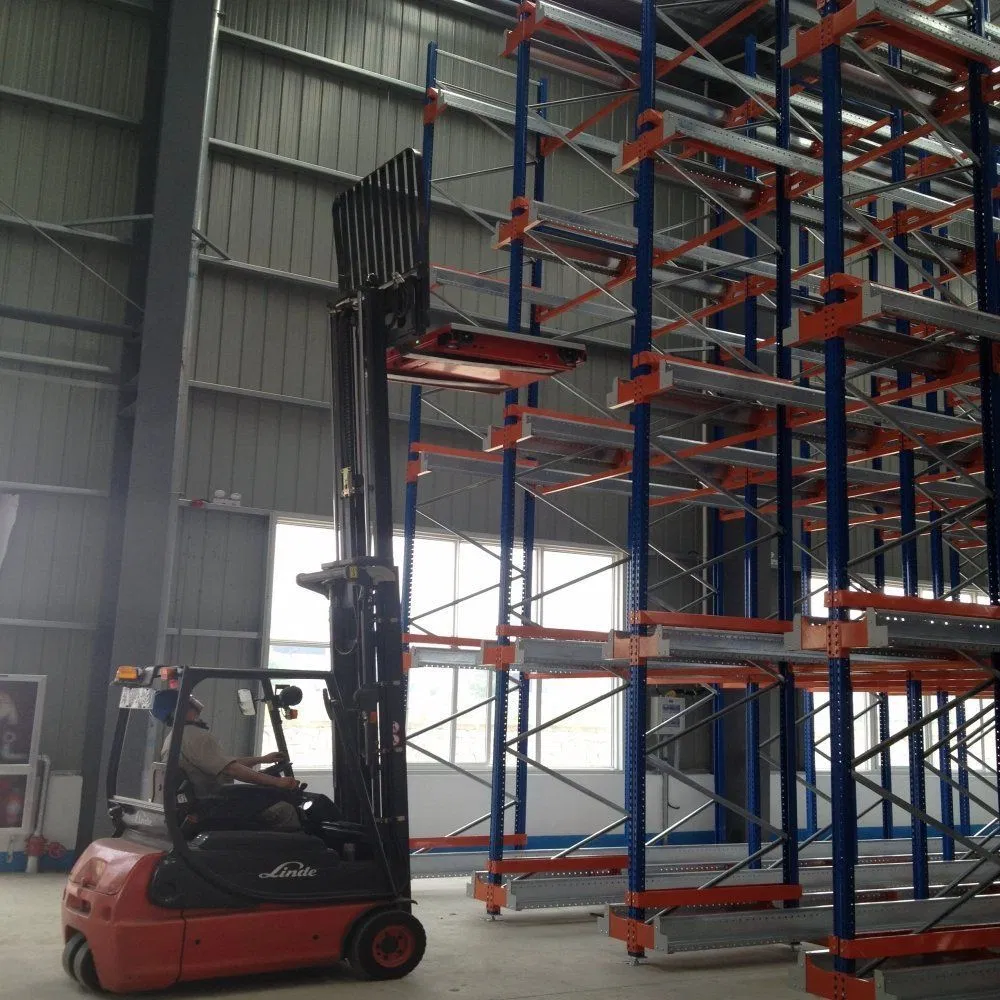

The Radio Shuttle Pallet Rack System is a semi-automated storage solution that works in conjunction with forklift trucks. It is designed for the high-density storage of goods with low variety but high volumes per SKU. This system is highly recommended for manufacturing businesses, especially in fast-moving consumer goods (FMCG), food, beverage, and cold chain industries.

System Features & Advantages

✔

High Efficiency: Space efficiency up to 80%. Lane lengths can reach 50m or more.

✔

Speed: Load/unload operations are up to 60% faster than traditional drive-in racking.

✔

Safety: No forklift needs to enter the storage lanes, minimizing the risk of accidents and rack damage.

✔

LIFO & FIFO: Fully compatible with both Last-In-First-Out and First-In-First-Out inventory management.

✔

Cost Effective: Optimal use of space reduces land costs and energy consumption in cold storage.

Technical Specifications

Item	Parameter Details
Applicable Pallet Size	1×1.2m, 1.1×1.2m, 1.2×1.2m
Loading Capacity	1000kg / 1500kg
Driving Speed	Empty: 50m/min \| Full Load: 40m/min
Motor Type	Brush servo motor 24VDC 650W
Battery	Lithium iron phosphate (24V, 55A), 8H usage, 4h charge
Remote Controller	Multi-function, Multi-language, Resistant to -30ºC

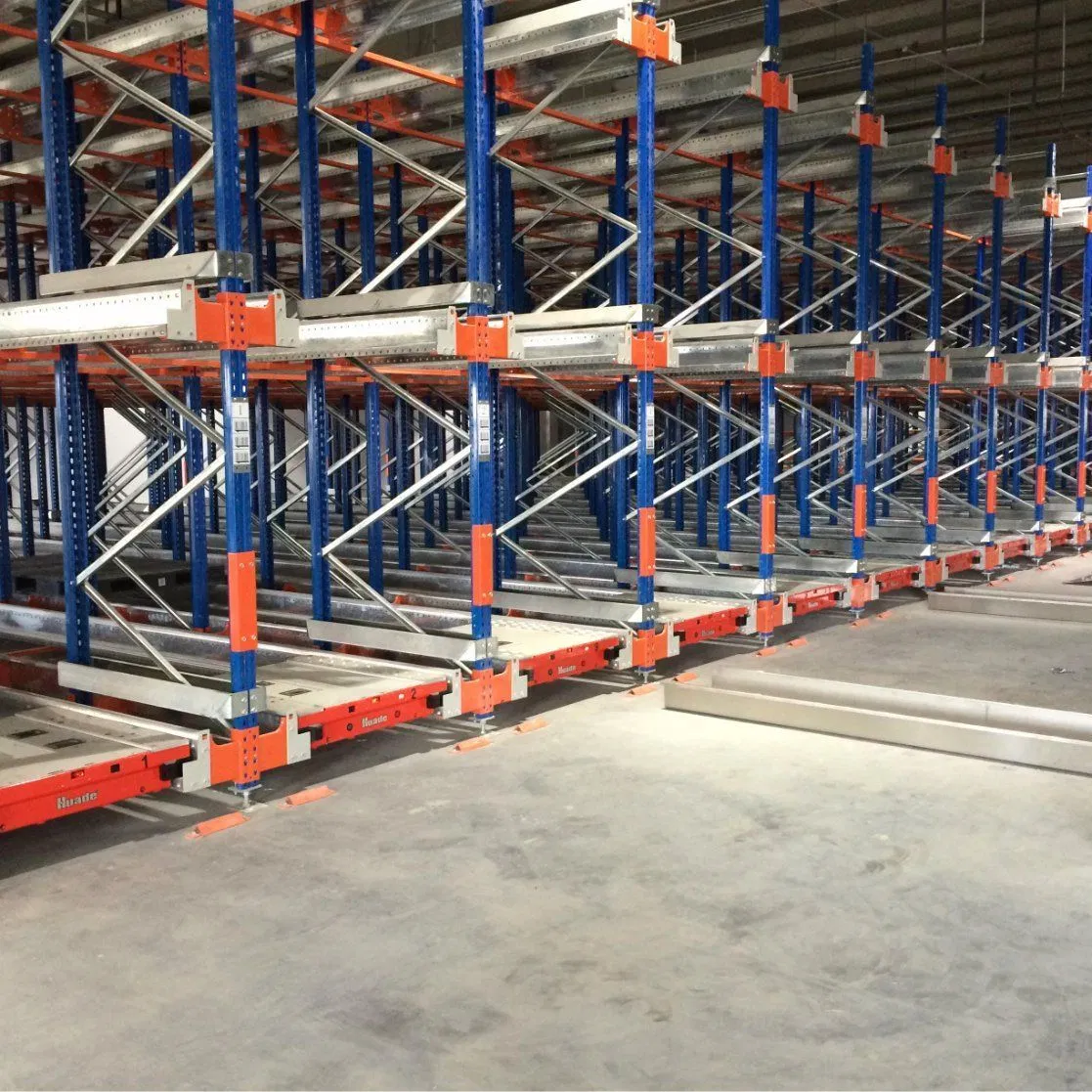

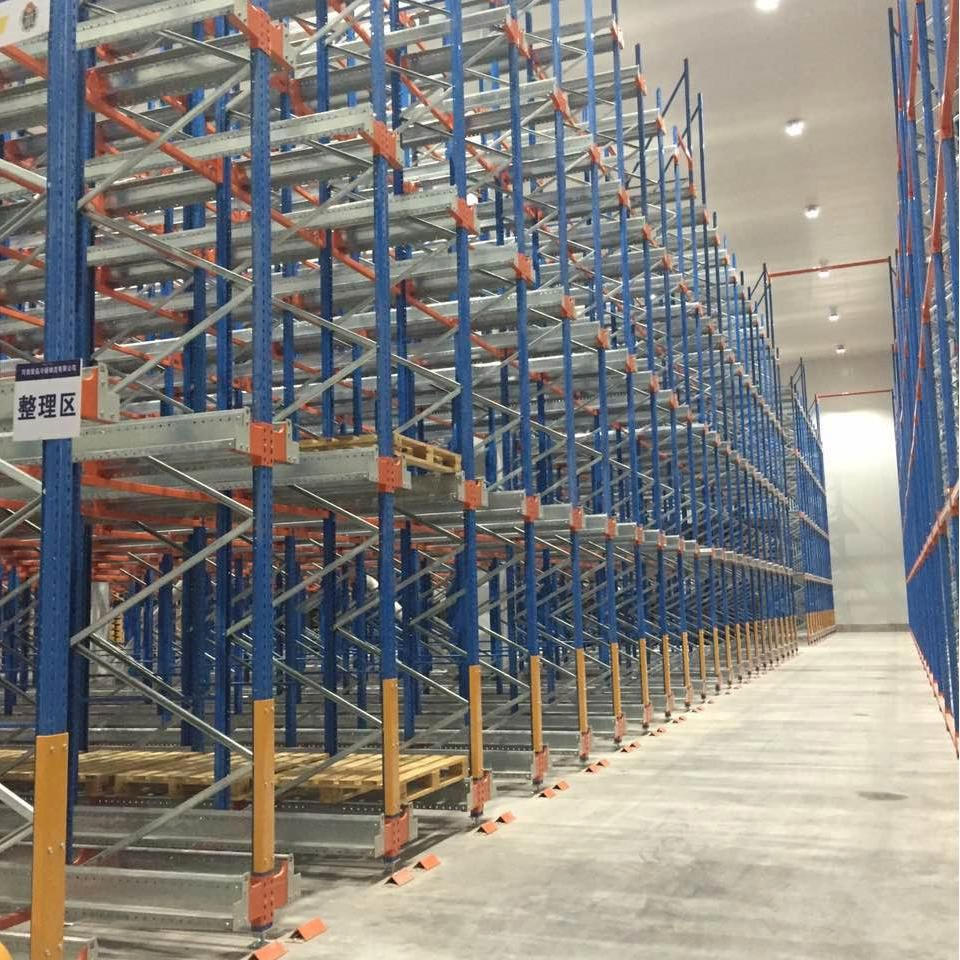

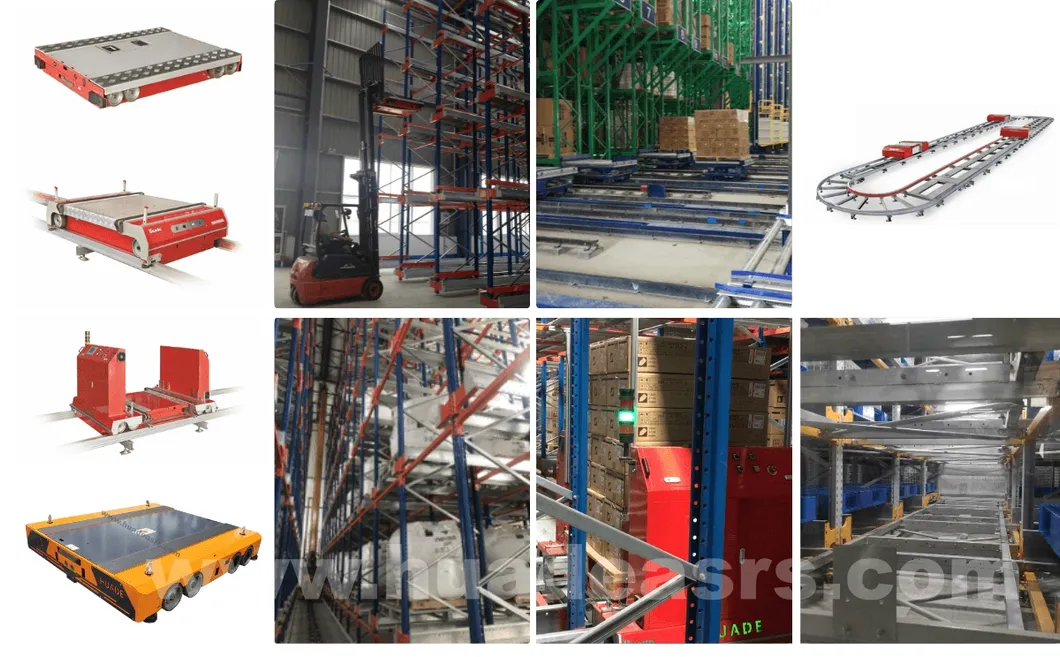

Main Product Gallery

Frequently Asked Questions

1. What is the primary benefit of a Radio Shuttle System?

The system maximizes storage density by utilizing up to 80% of warehouse space and significantly speeds up the loading and unloading process compared to traditional methods.

2. Can the system operate in cold storage environments?

Yes, the system and its remote controller are designed to be resistant to temperatures as low as -30ºC, making it ideal for cold chain industries.

3. What is the maximum weight the shuttle can carry?

The shuttle robot is capable of handling a maximum load capacity of 1500kg per pallet.

4. How long does the battery last on a single charge?

The Lithium iron phosphate power battery provides approximately 8 hours of effective working time and requires about 4 hours for a full charge.

5. Is the system compatible with FIFO or LIFO?

The Radio Shuttle system is versatile and can be configured to support both Last-In-First-Out (LIFO) and First-In-First-Out (FIFO) inventory strategies.

6. How does the system improve warehouse safety?

Since forklifts do not need to drive into the racking lanes, the risk of structural damage and operator accidents is significantly reduced.
