Inlay is a special term for the RFID industry, referring to a pre-laminated product composed of multi-layer PVC or other materials containing chips and coils. RFID Dry inlay does not contain back glue; its structure consists of antenna + chip + chip package. Frequency requirements: 869-915MHz-UHF / 13.56MHz-ISO14443 / 13.56MHz-ISO 15693.
RFID Wet inlay and stickers contain back glue for direct attachment to objects. The structure includes antenna + chip + chip package + glue + release paper. If no logo is printed, customers can use the wet inlay directly for cost savings. Frequency requirements: 869-915MHz-UHF / 13.56MHz-ISO14443 / 13.56MHz-ISO 15693.

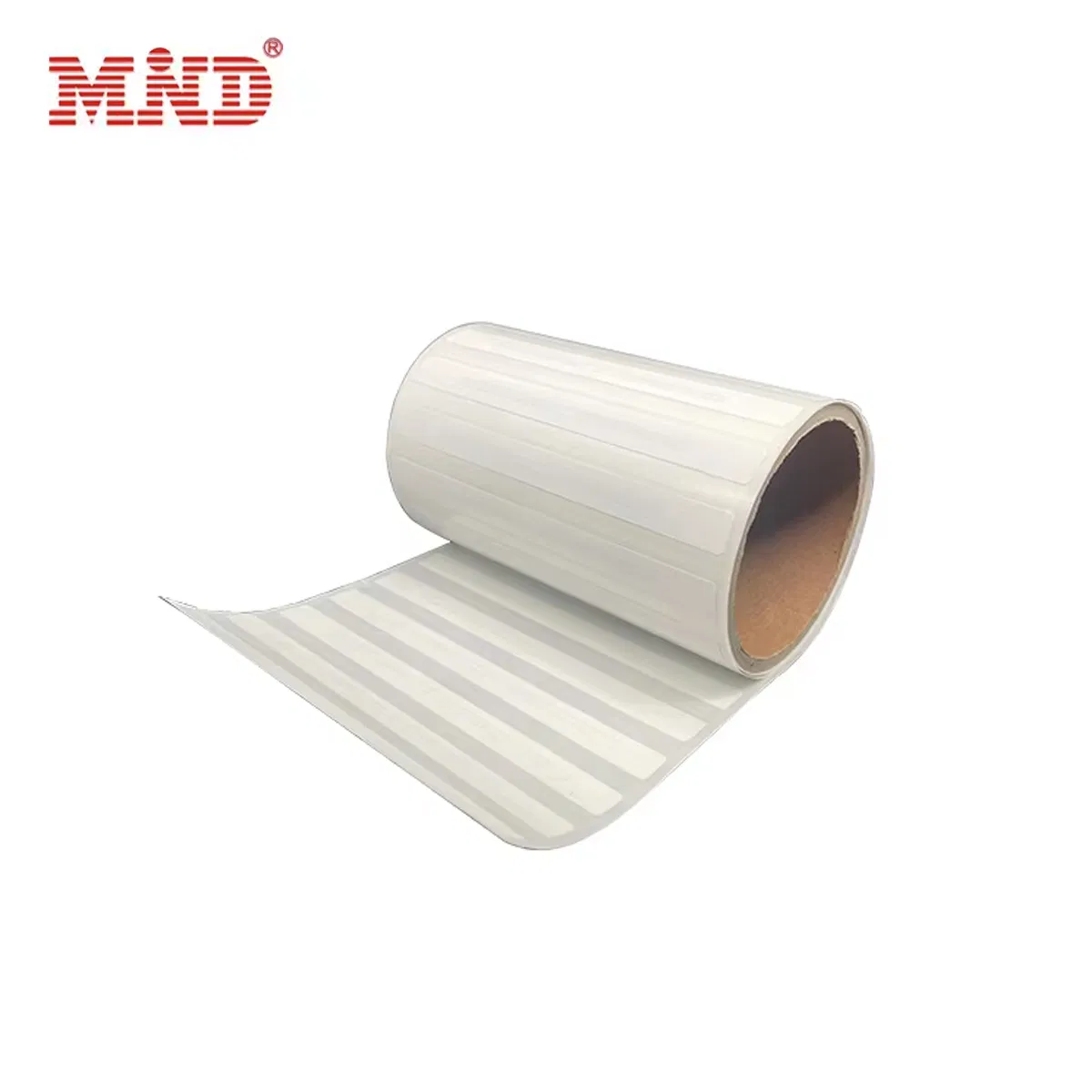

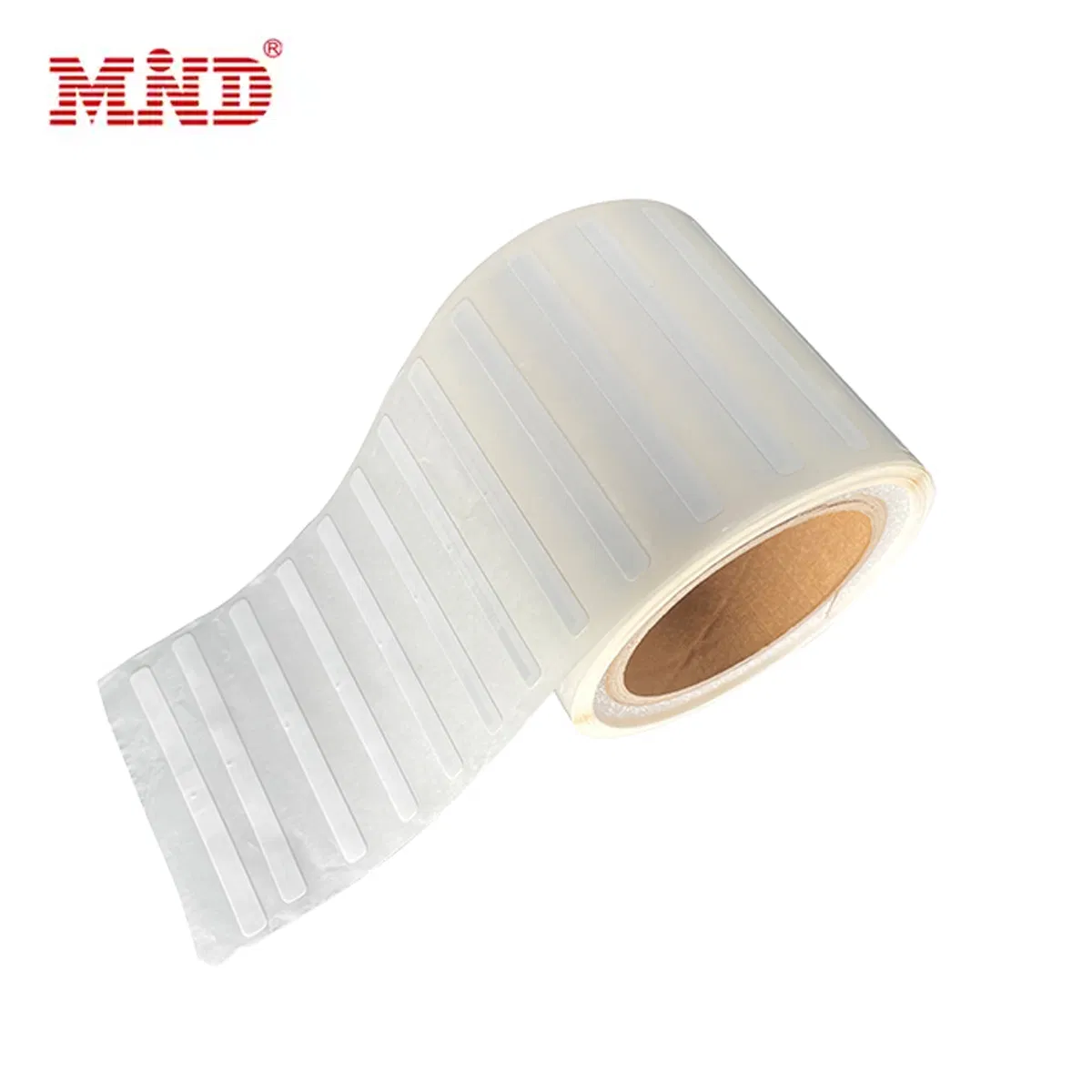

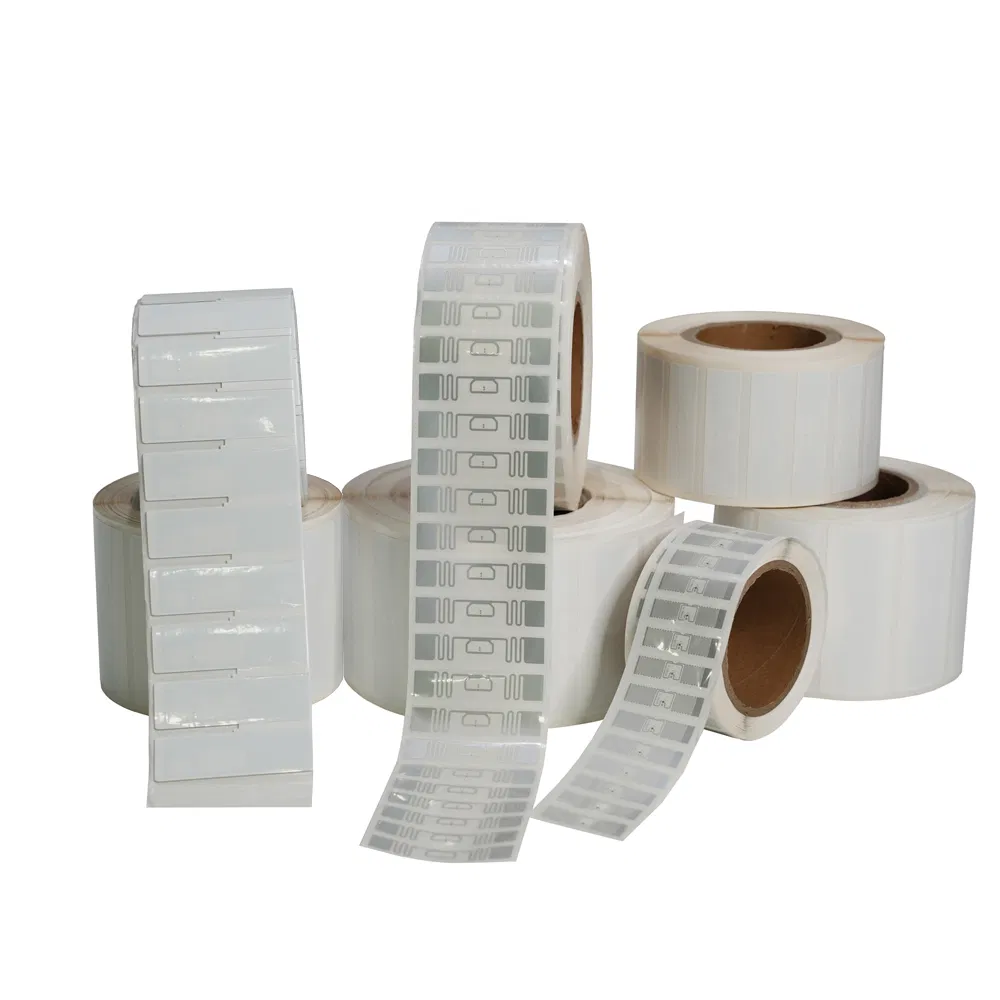

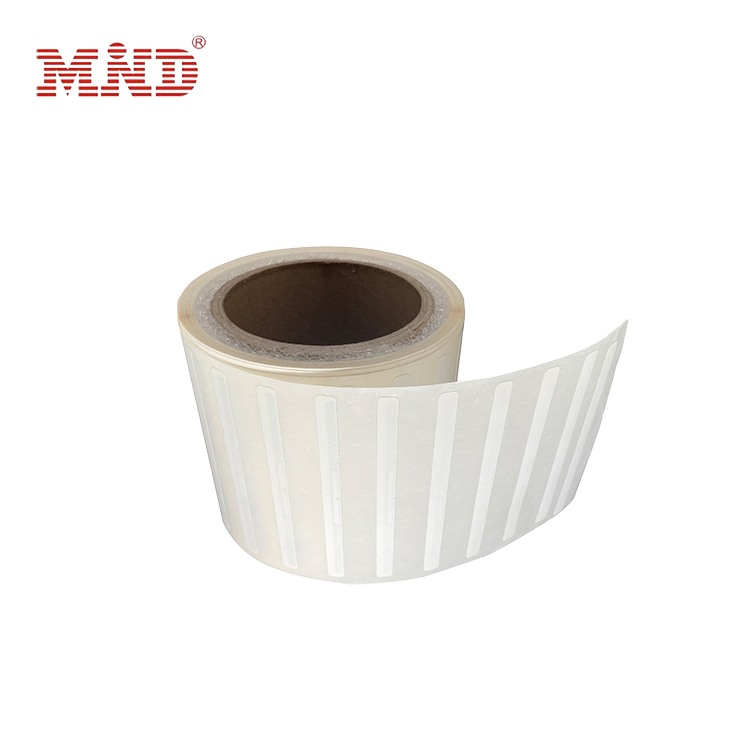

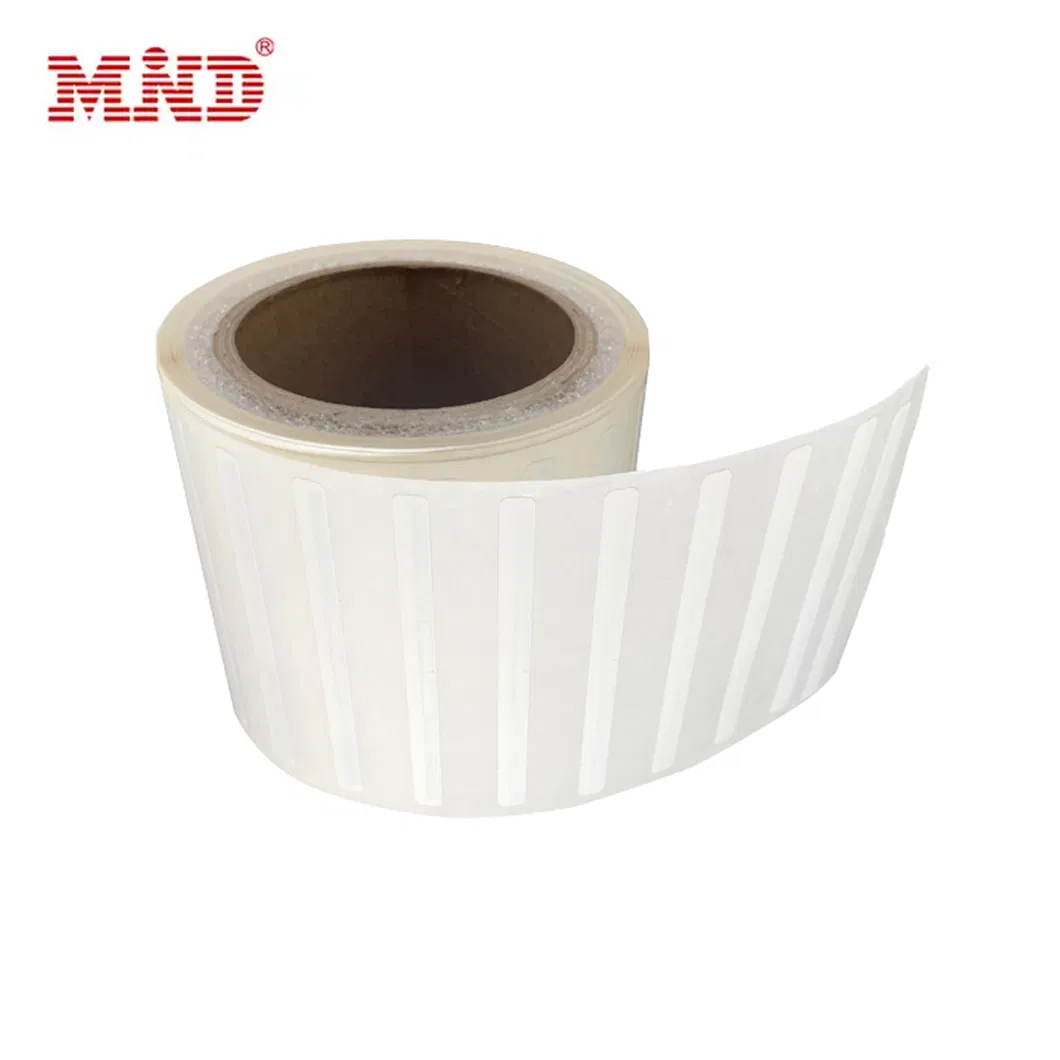

RFID white labels contain both back glue and top coated paper or PET. The structure is Coated paper/PET + antenna + chip + chip package + glue + release paper. Packaging options include fold, roll, and single product. Materials available include paper, waterproof materials, PVC, or PET. Supports thermal printing and heat transfer printing.
| Chip | UCODE 9 |
| Frequency | 860 ~ 960MHz |
| Material | Coated Paper / PET / Synthetic paper / Thermal paper / Customization |
| Working Mode | Passive |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temp/Humidity | -25~50ºC / 20%~80% RH |
| Storage Temp/Humidity | +23°C±5°C / 50%±10% RH (Without condensation) |
| Antenna Size | 85x3mm |
| Label Size | 90x7mm or custom |
| Printing | Full Color Printing, Logo, Barcode, QR code, etc |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| Application | Access Control, Cashless Payment, Retail, Logistics, Asset Tracking, Events |
