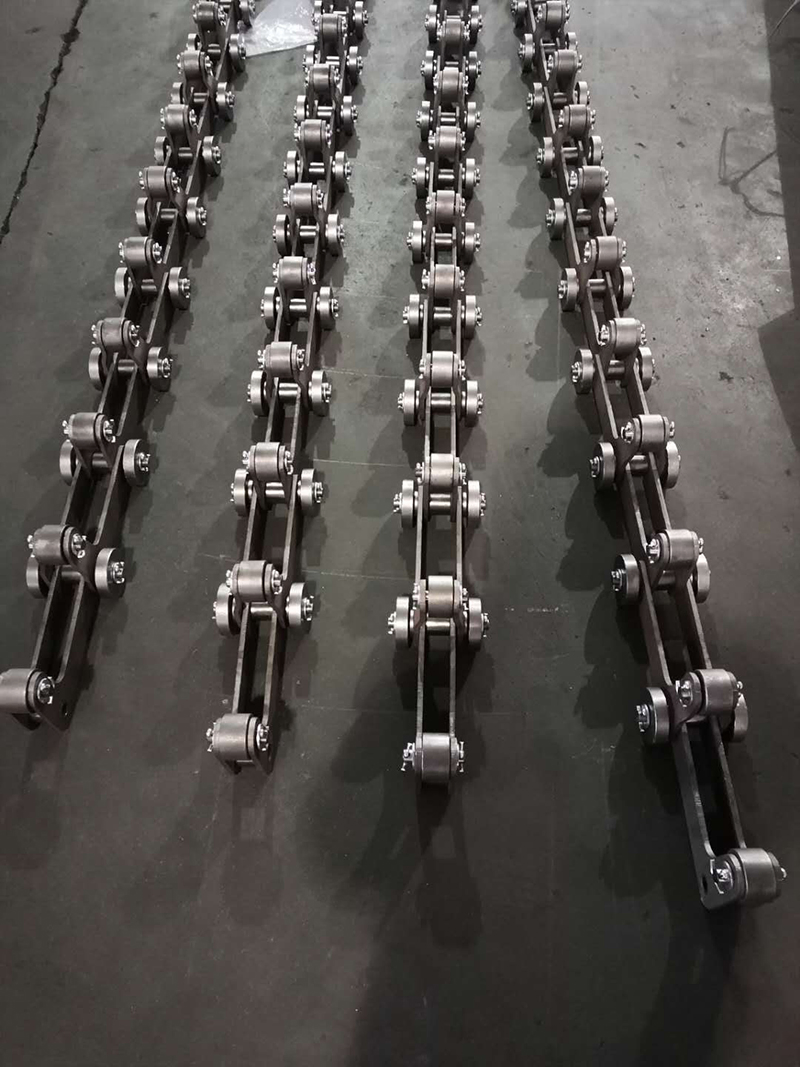

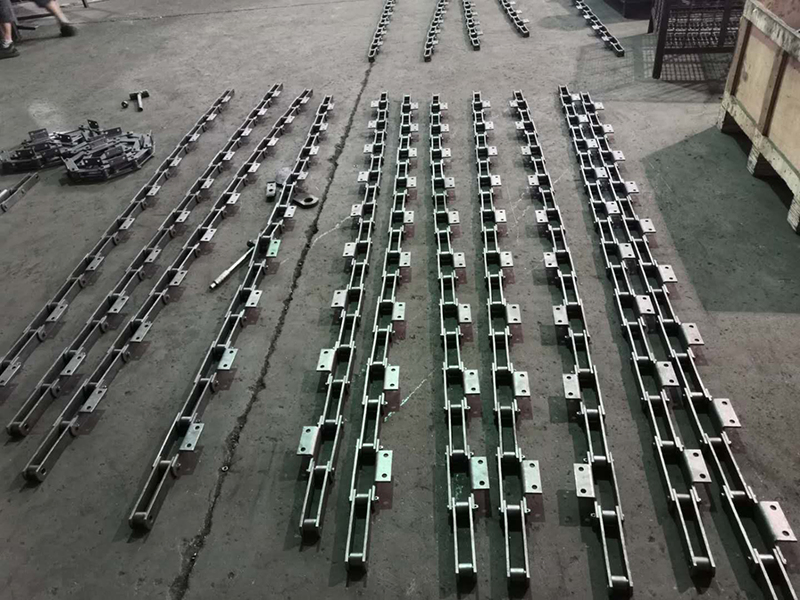

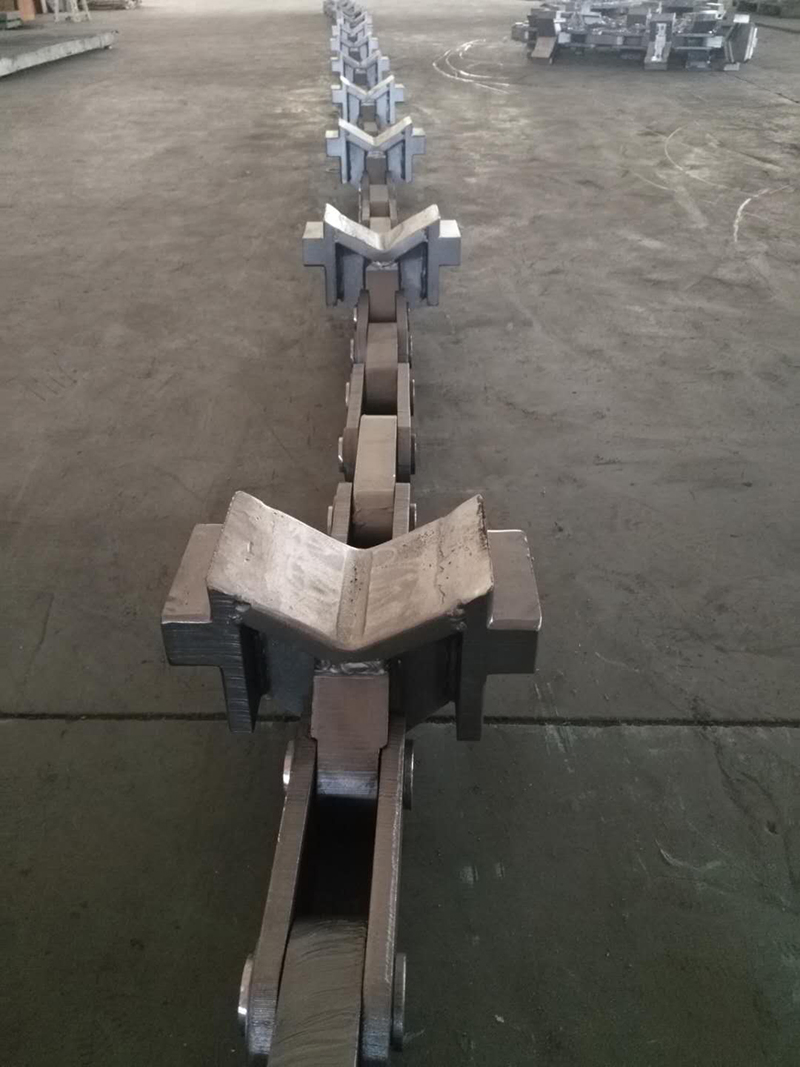

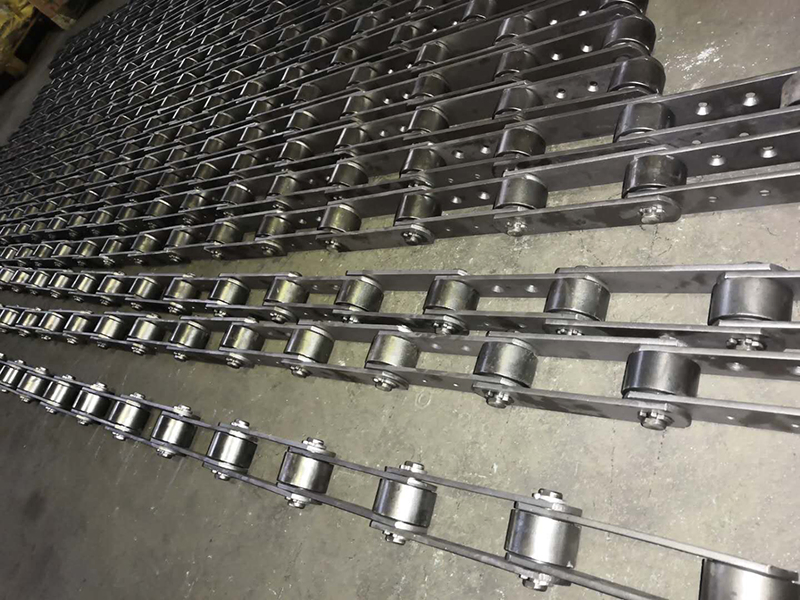

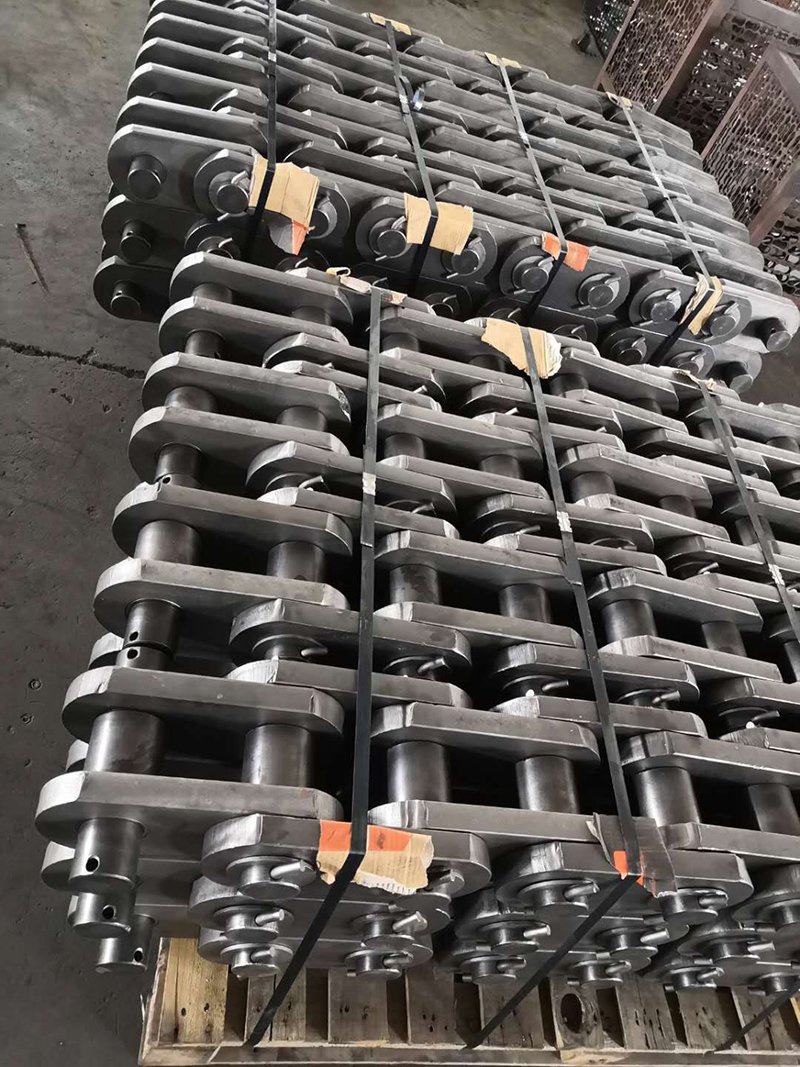

Our range includes cold bed chains, Fu Style chains for architectural equipment, welded steel mill chains, welded steel drag chains, cast fixed pin chains, conveyor chains for the metallurgy industry, drop forged link chains, and Engineer Class Driving Chains. Material selections include alloy steel and stainless steel to meet your specific requirements.

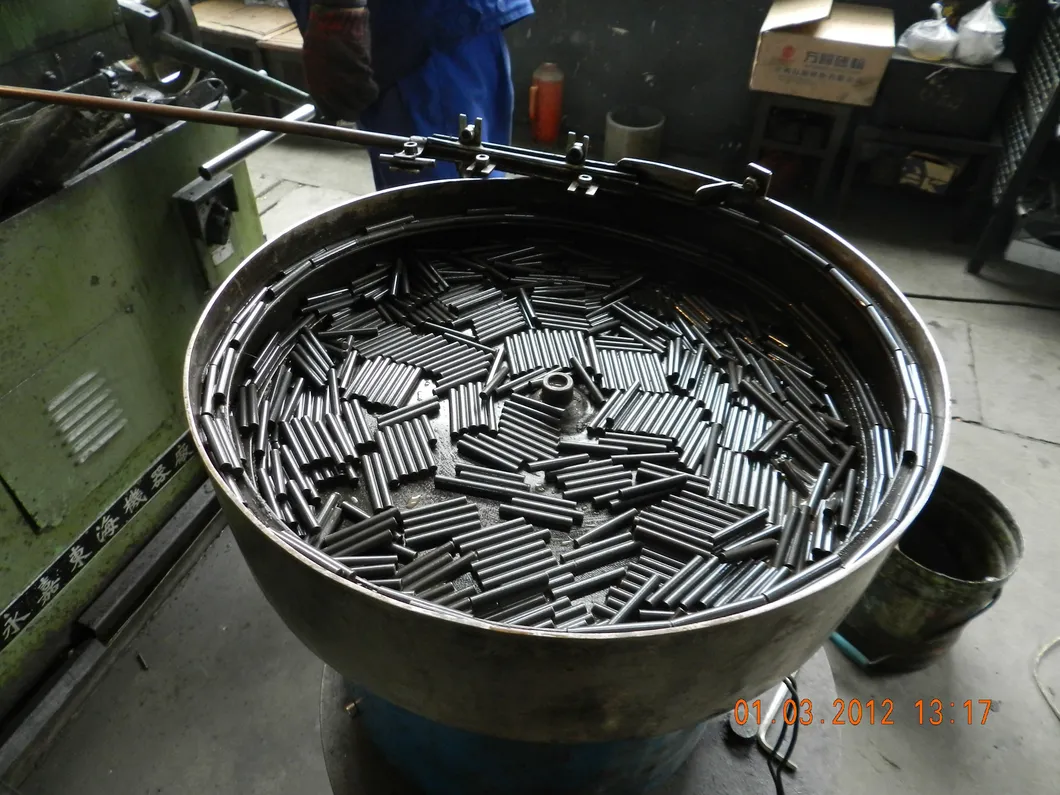

Plates: 40Mn, 40Cr, 45Mn alloy steel or SUS304. Pins & Rollers: 10#, 20#, 20CrMnMo, 30CrMnTi.

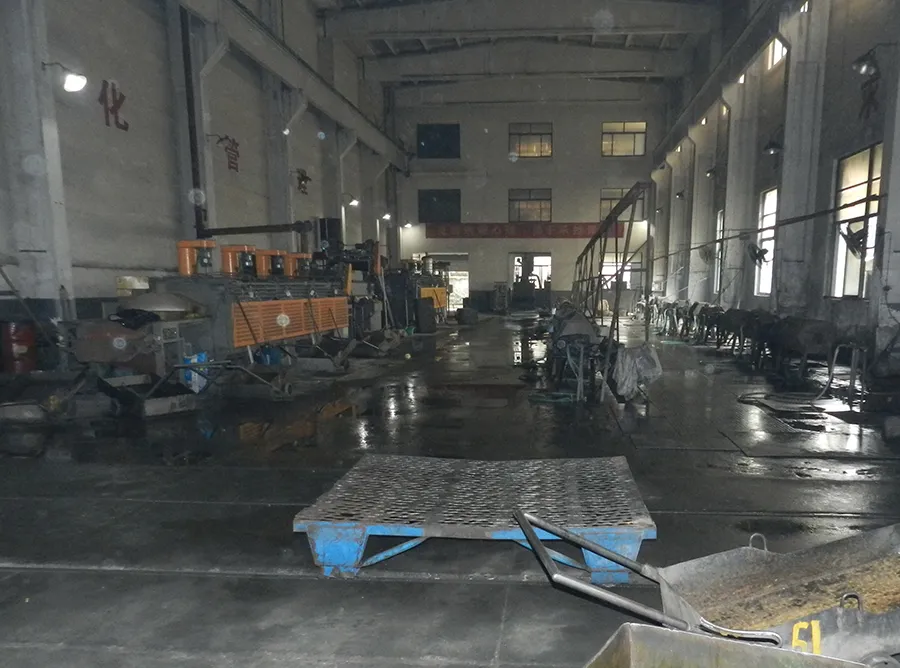

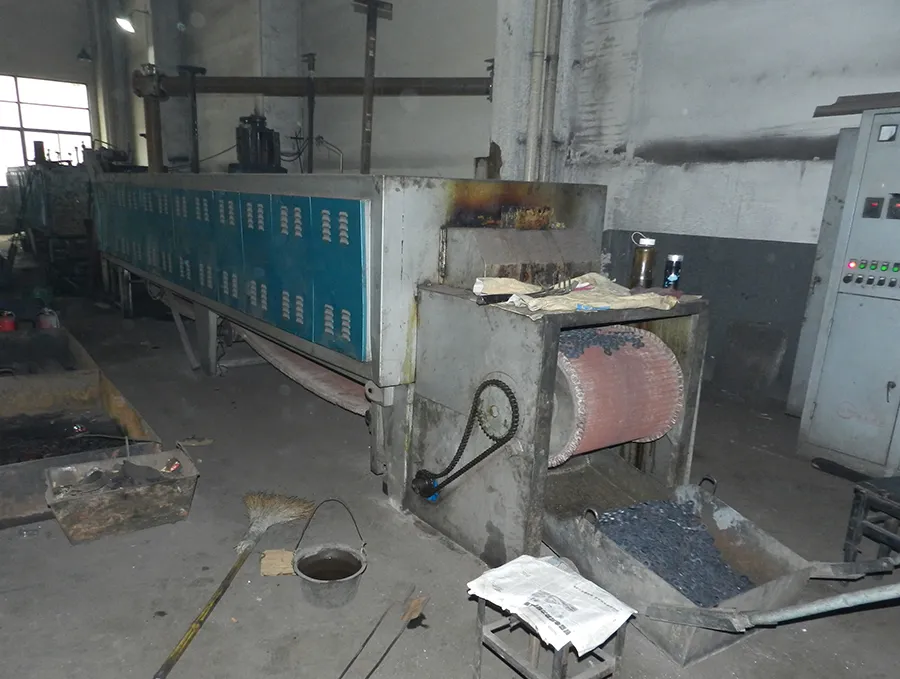

Heat Treatment: Carburizing, Austemper Stressing, Nitro-carburizing hardening. Surface: Shot peening, black, blue, or original finish.

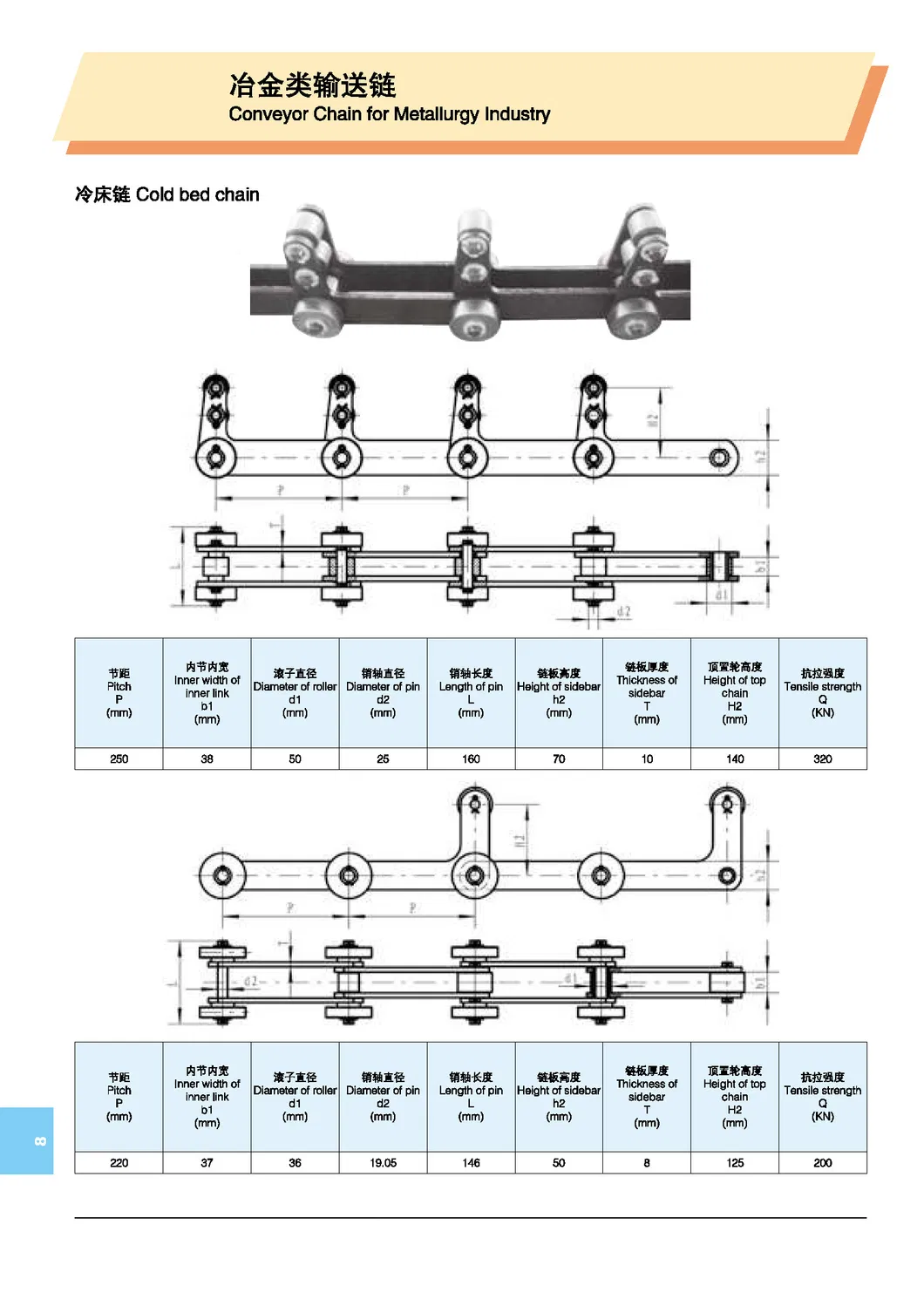

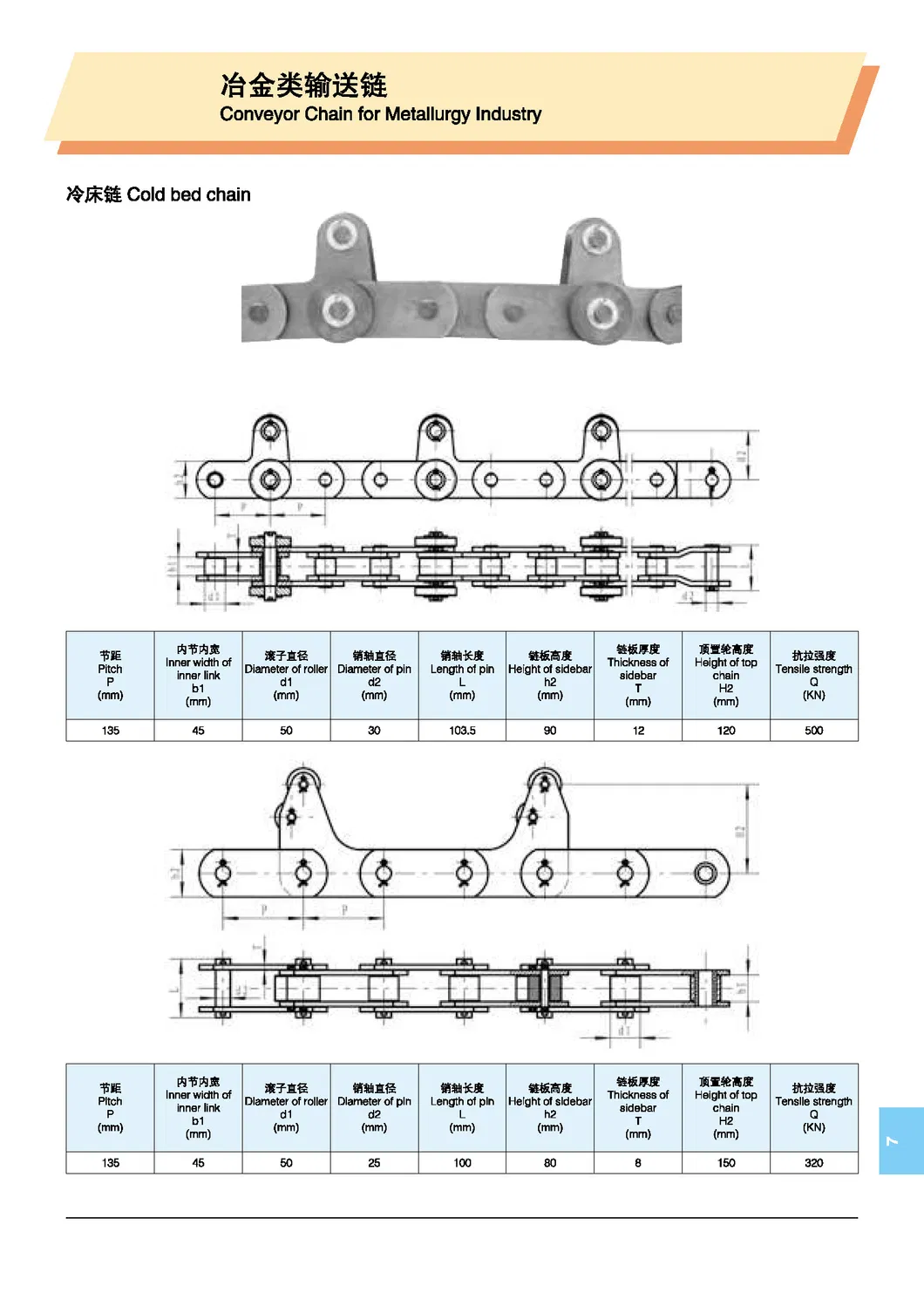

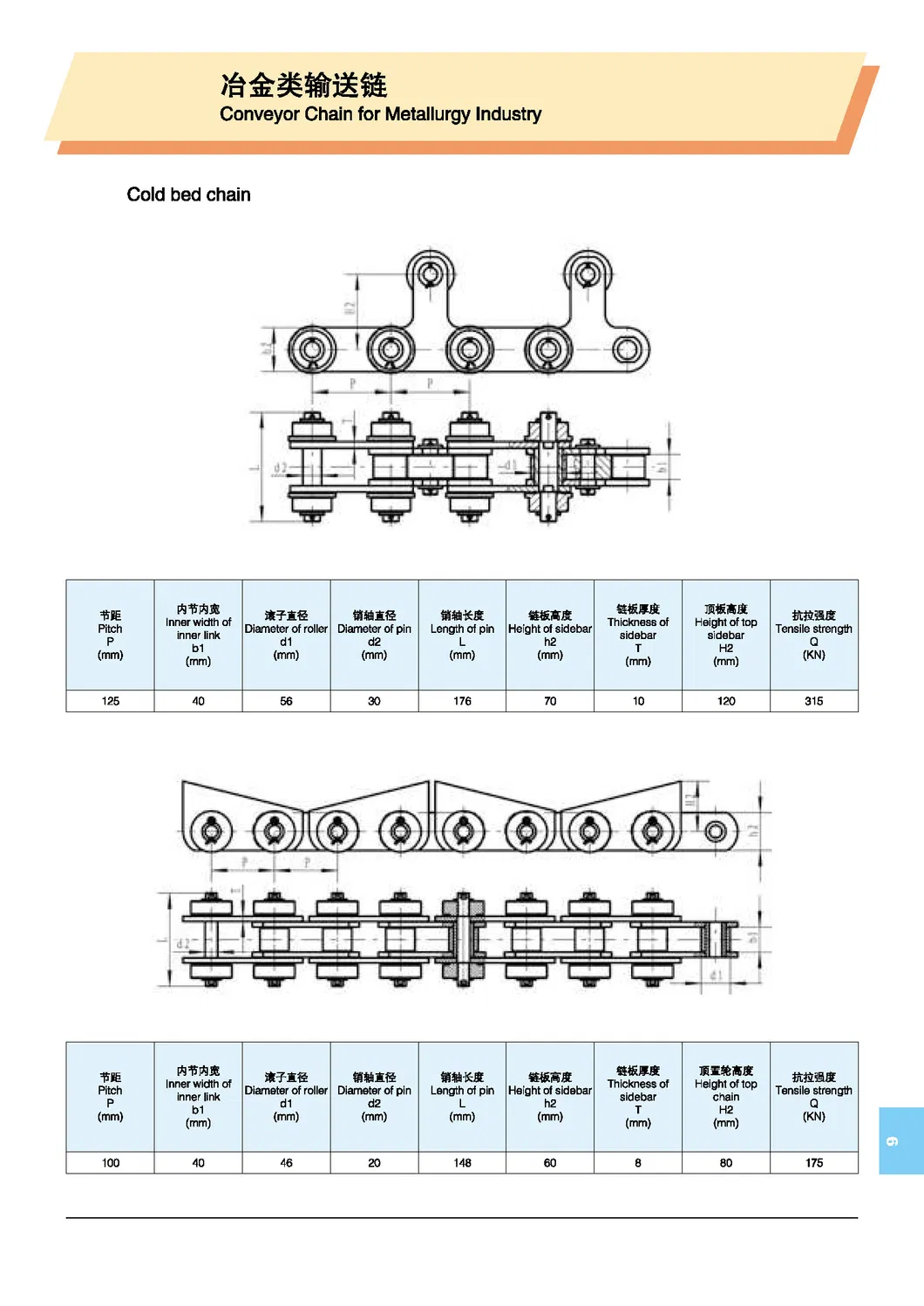

| Pitch (P) | Inner Width (b1) | Roller Dia (d1) | Pin Dia (d2) | Pin Length (L) | Sidebar Height (h2) | Thickness (T) | Top Height (H2) | Tensile Strength (kN) |
|---|---|---|---|---|---|---|---|---|
| 135mm | 45mm | 50mm | 30mm | 103.5mm | 90mm | 12mm | 120mm | 500kN |
| 135mm | 45mm | 50mm | 25mm | 100mm | 80mm | 8mm | 150mm | 320kN |
| 125mm | 40mm | 56mm | 30mm | 176mm | 70mm | 10mm | 120mm | 315kN |
| 100mm | 40mm | 46mm | 20mm | 148mm | 60mm | 8mm | 80mm | 175kN |
Our products are fabricated to meet ISO, ASME, and DIN standards, ensuring superior quality for global markets.
We stand behind our quality. Products can be repaired or parts replaced at no cost within a six-month warranty period.
