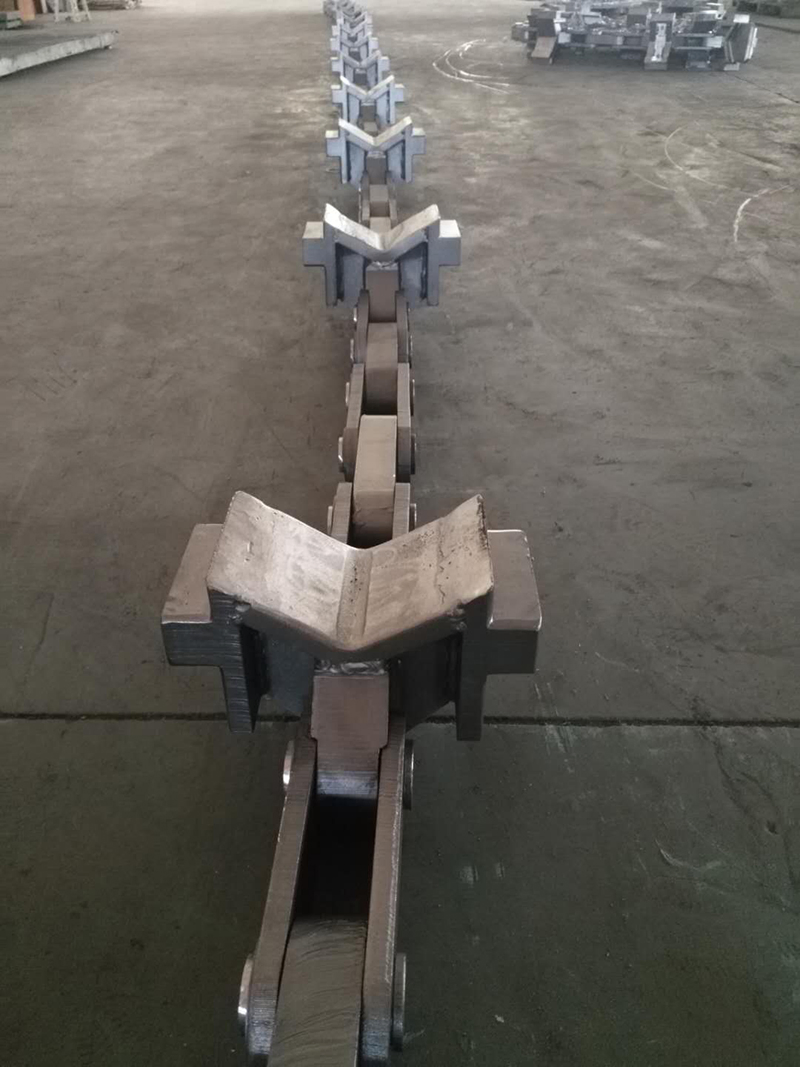

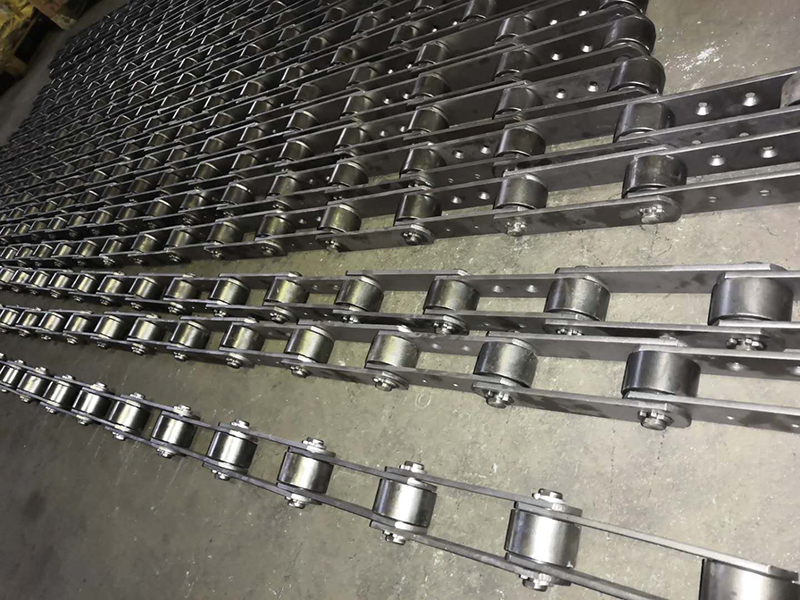

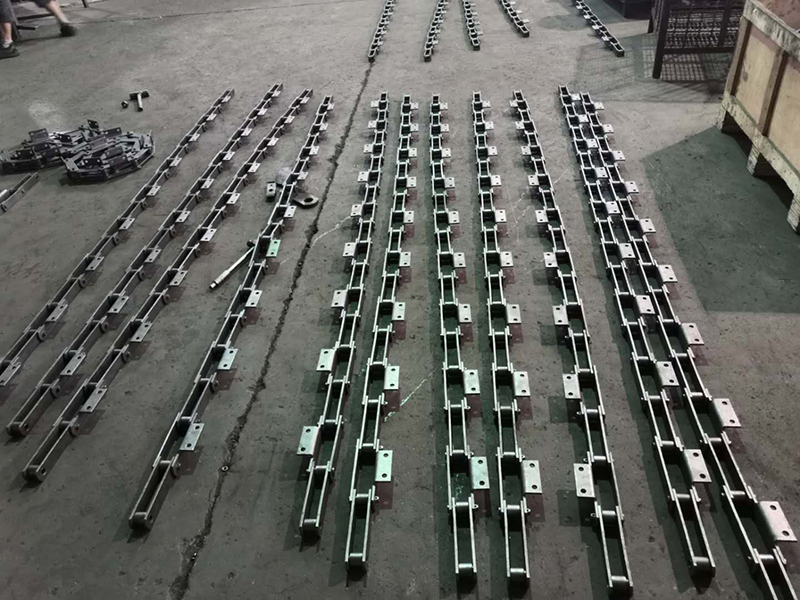

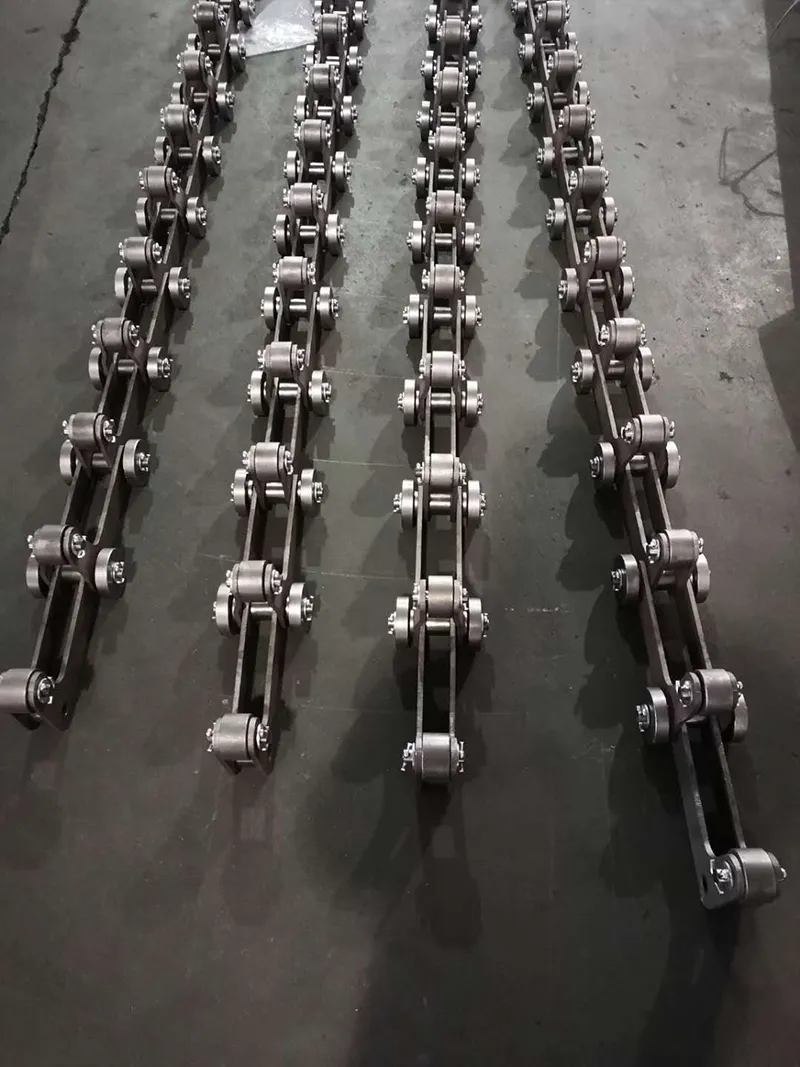

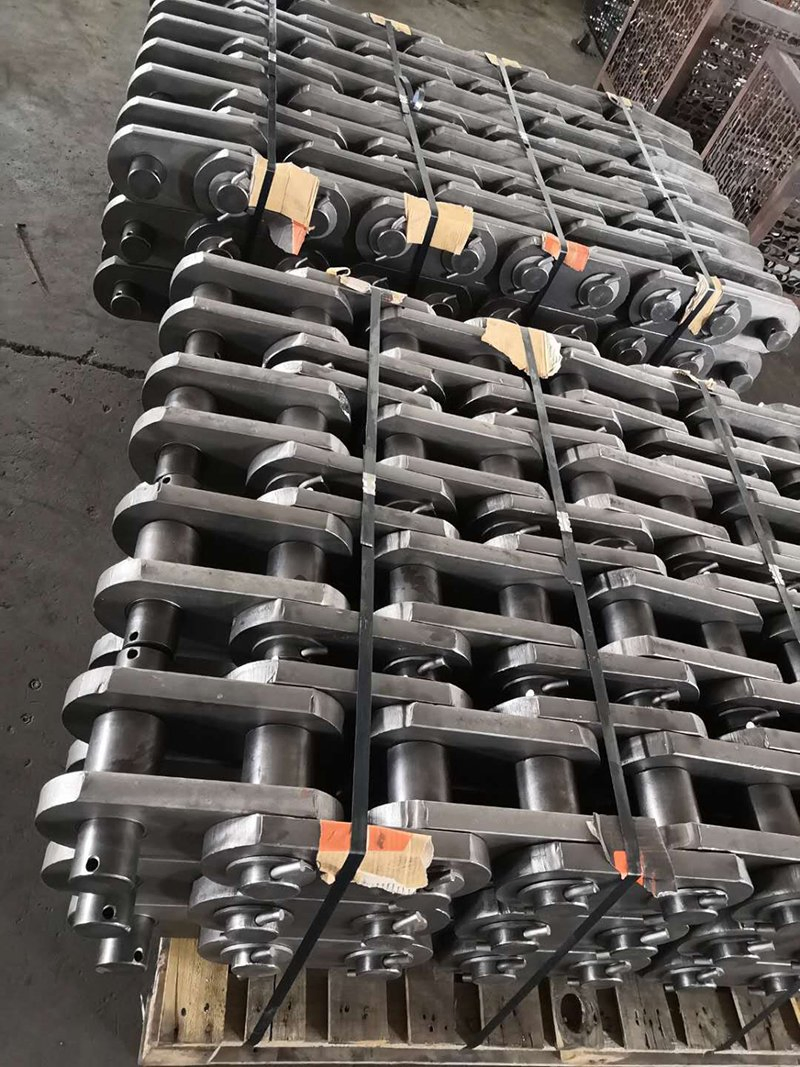

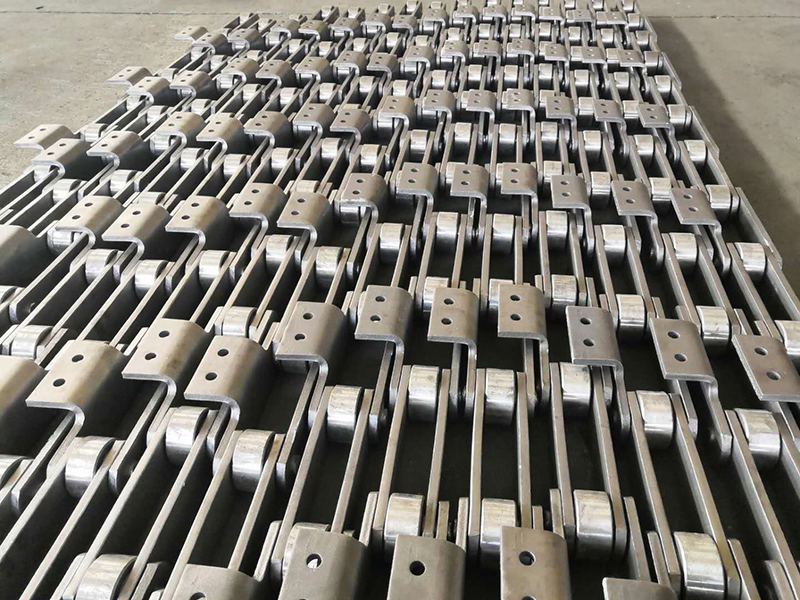

Cold bed chain, Fu Style Chain for Architectural Machine Equipment, welded steel mill chain, welded steel drag chain, cast fixed pin chain, conveyor chain for metallurgy industry, drop forged link chain and Engineer Class Driving Chain, with alloy steel and stainless steel selection according to your requirement.
Drop forged rivetless chain, Roller Chain, conveyor chain, agricultural chain, sugar industry chain, palm oil industry chain, asphalt industry chain, elevator conveyor industry chain, double flex chain, pintle chain, weld steel drag chains, malleable chain etc.
Main Materials & Treatment:

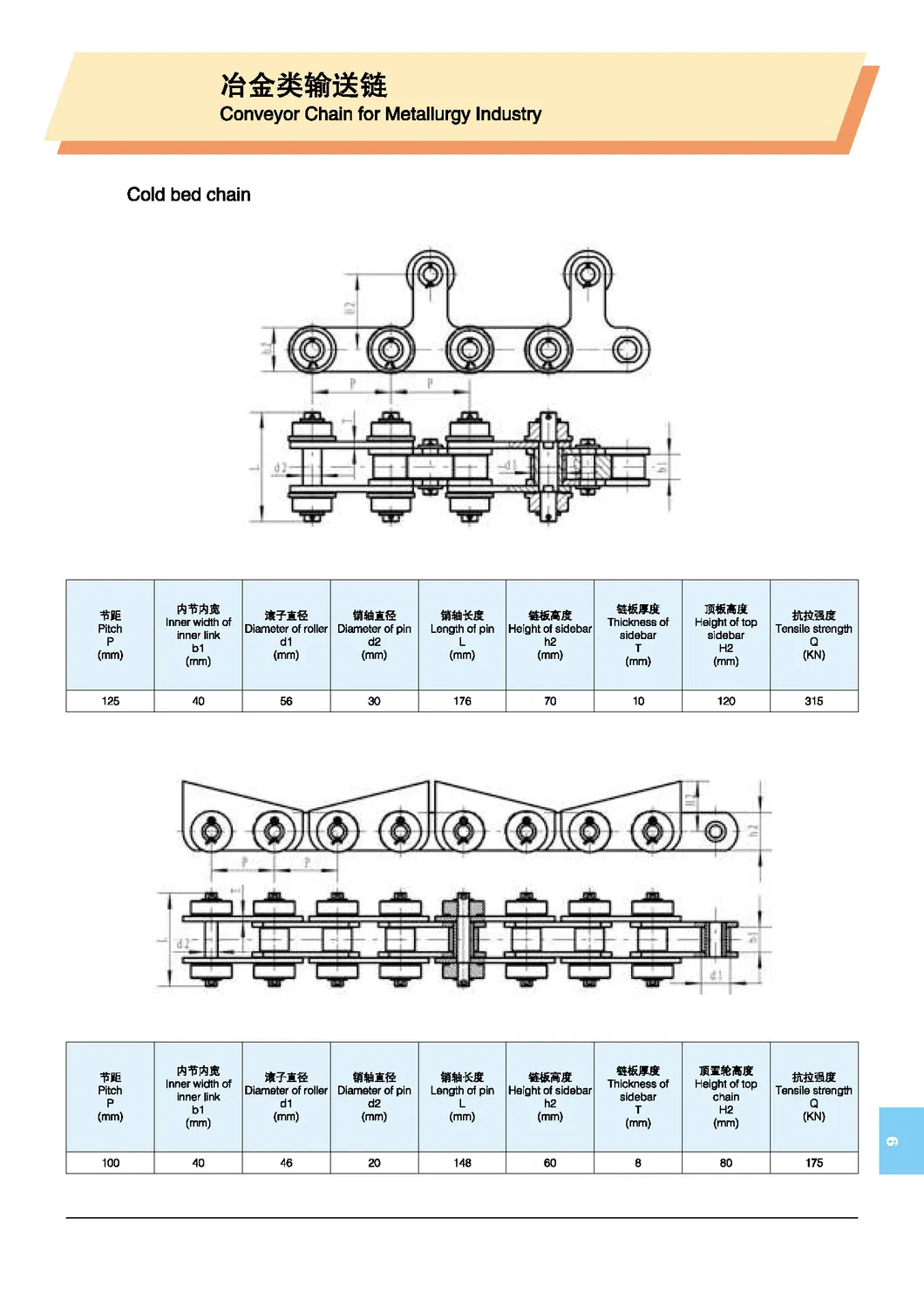

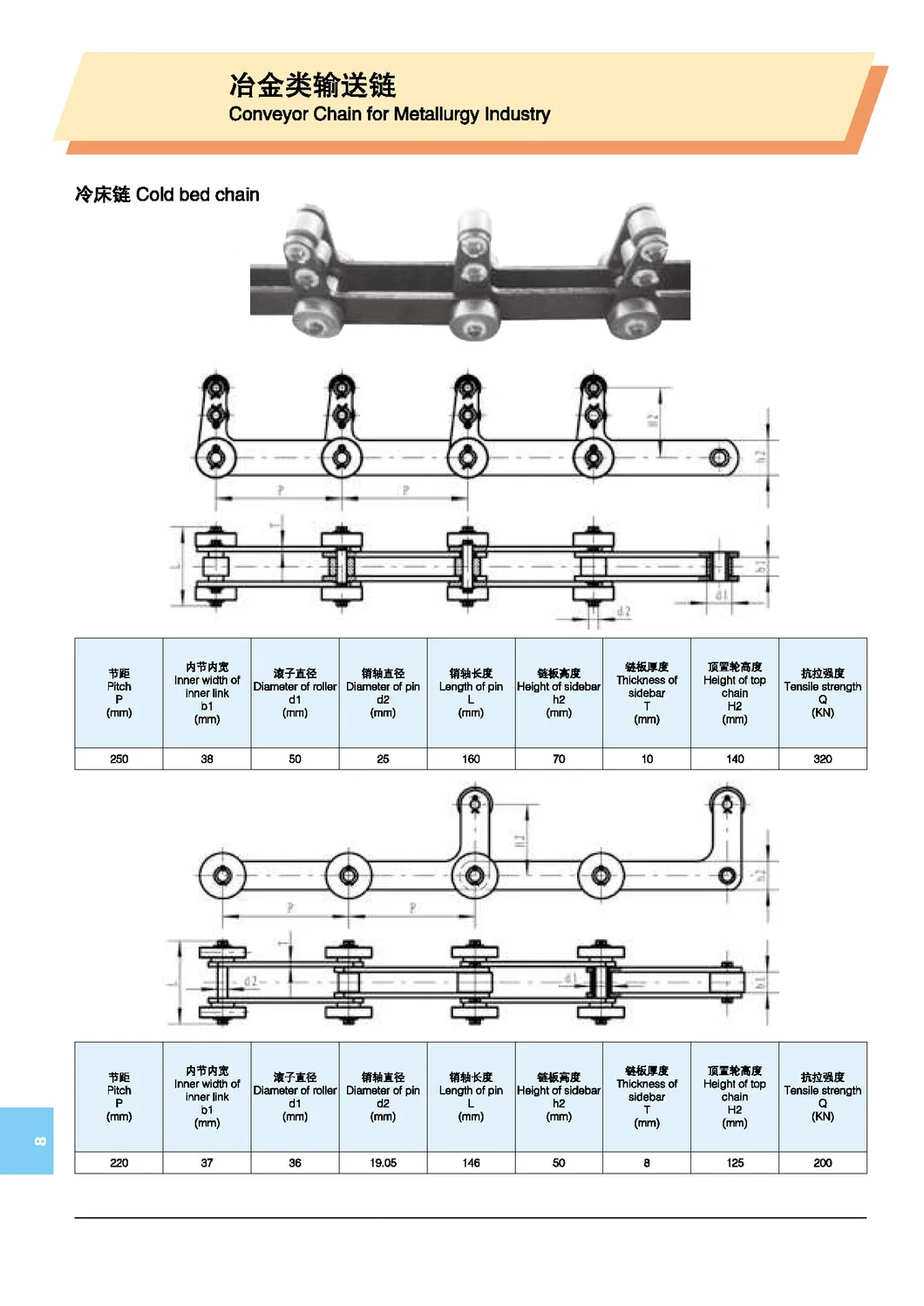

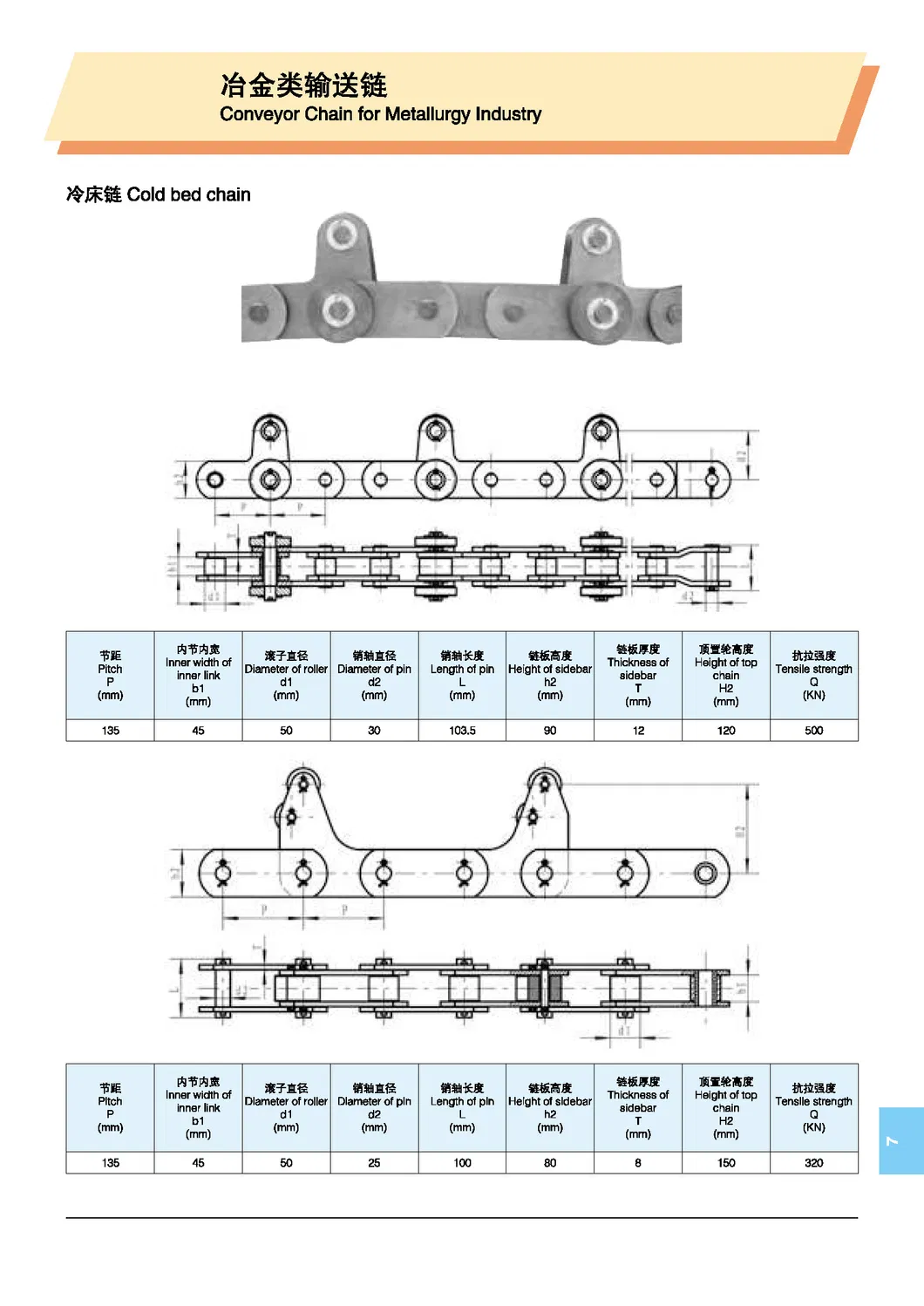

| Pitch (P) | Inner Width (b1) | Roller Dia (d1) | Pin Dia (d2) | Pin Length (L) | Sidebar Height (h2) | Thickness (T) | Top Height (H2) | Tensile Strength (kN) |
|---|---|---|---|---|---|---|---|---|
| 135mm | 45mm | 50mm | 30mm | 103.5mm | 90mm | 12mm | 120mm | 500 |
| 135mm | 45mm | 50mm | 25mm | 100mm | 80mm | 8mm | 150mm | 320 |
| 125mm | 40mm | 56mm | 30mm | 176mm | 70mm | 10mm | 120mm | 315 |
| 100mm | 40mm | 46mm | 20mm | 148mm | 60mm | 8mm | 80mm | 175 |
1. Inner packing: Poly bag, air bubble bag, carton according to request.
2. Outer packing: OSB case or pallet.
3. Please ensure correct delivery information is provided.

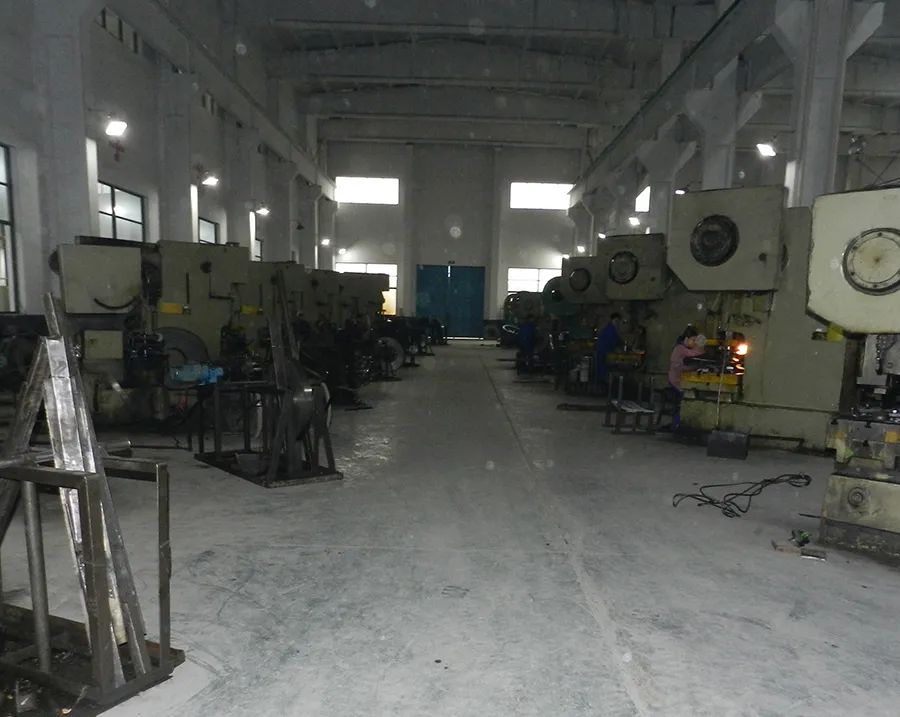

(1) Plate Punching
(2) Shot Peening Workshop

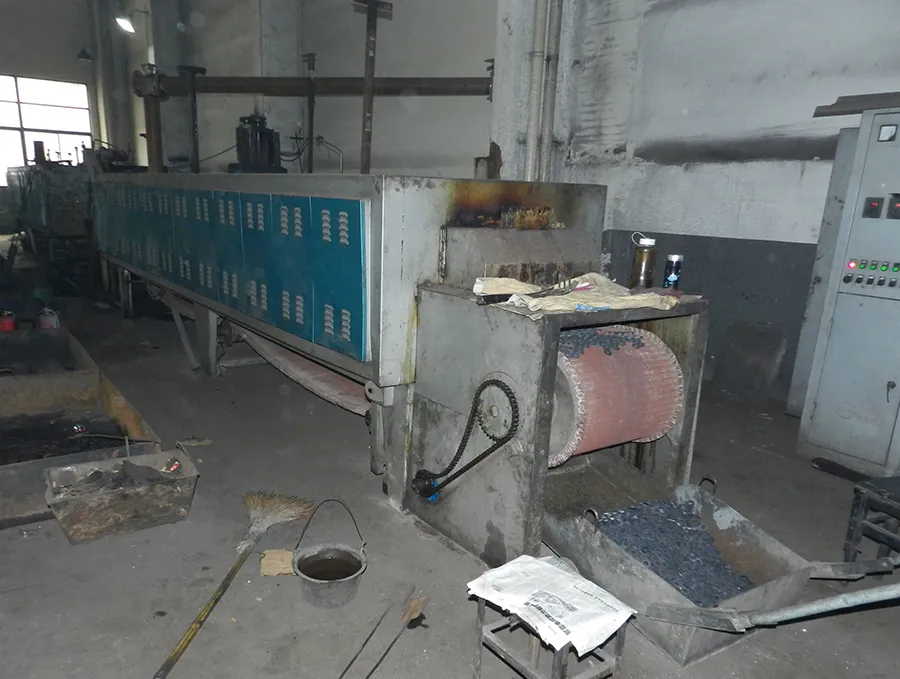

(3) Heat Treatment

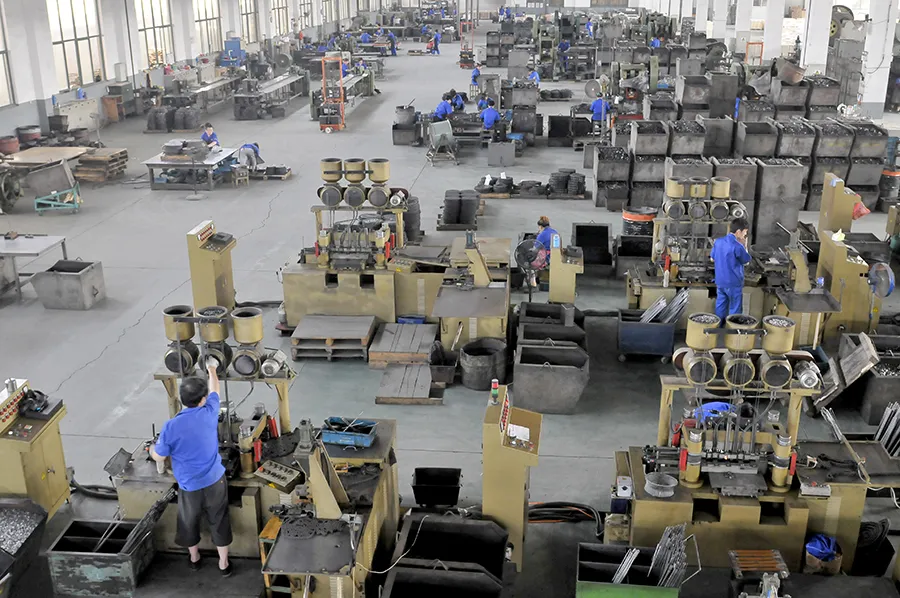

(4) Assembly Preparation

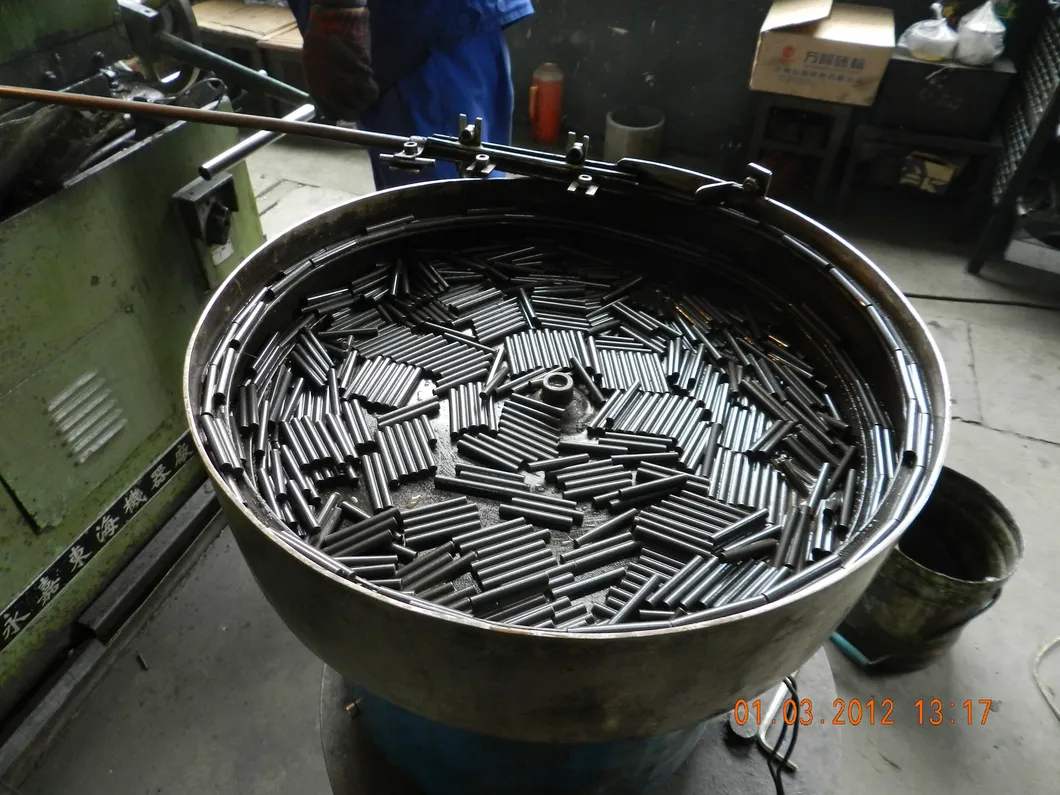

(5) Pins Processing

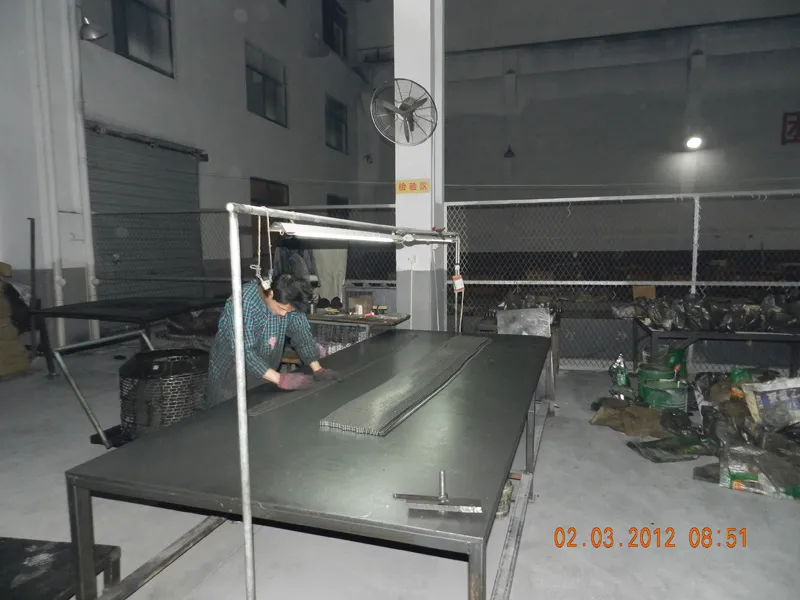

(6) Tensile Properties Test
