Basic Information
Product Description

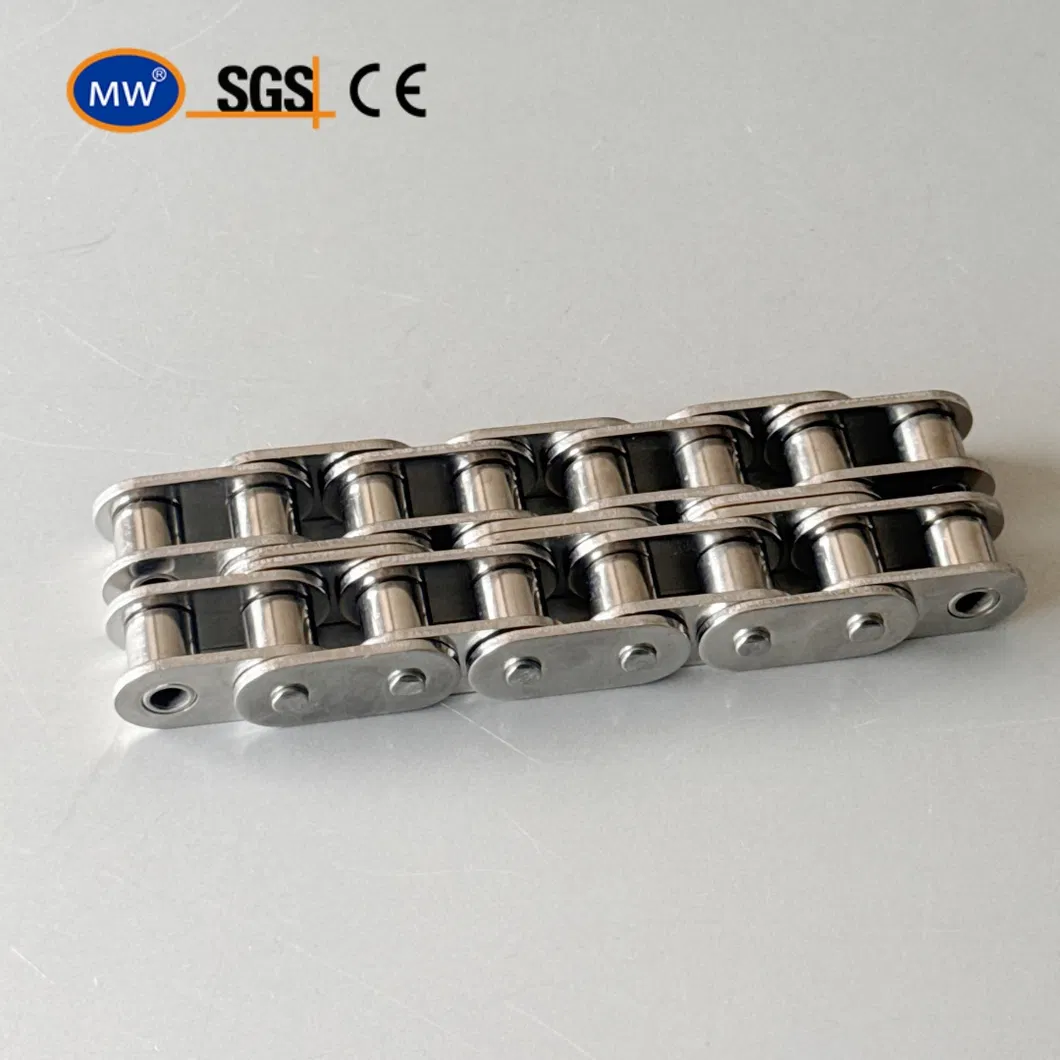

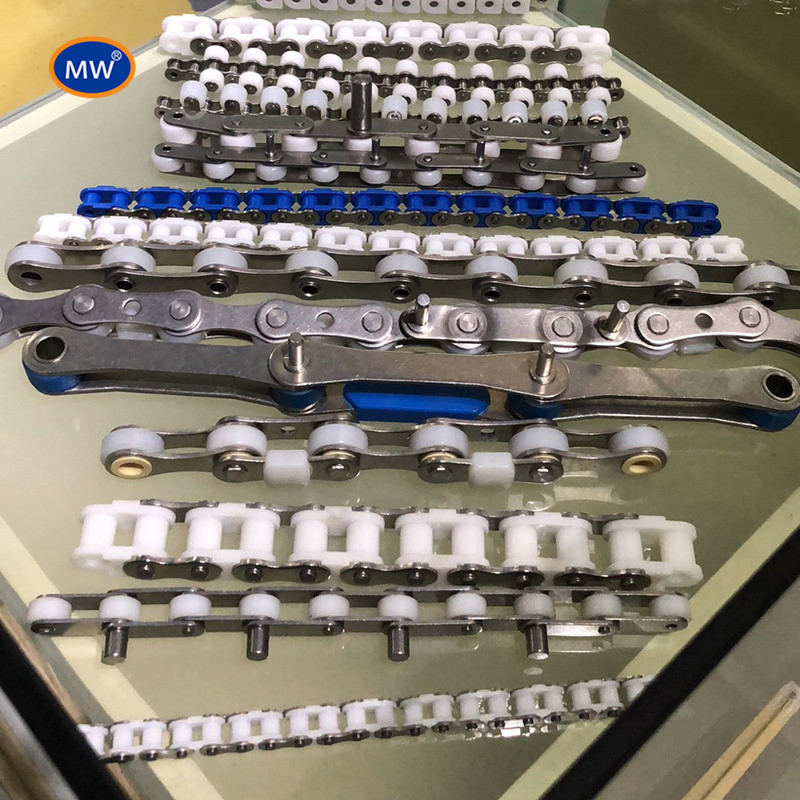

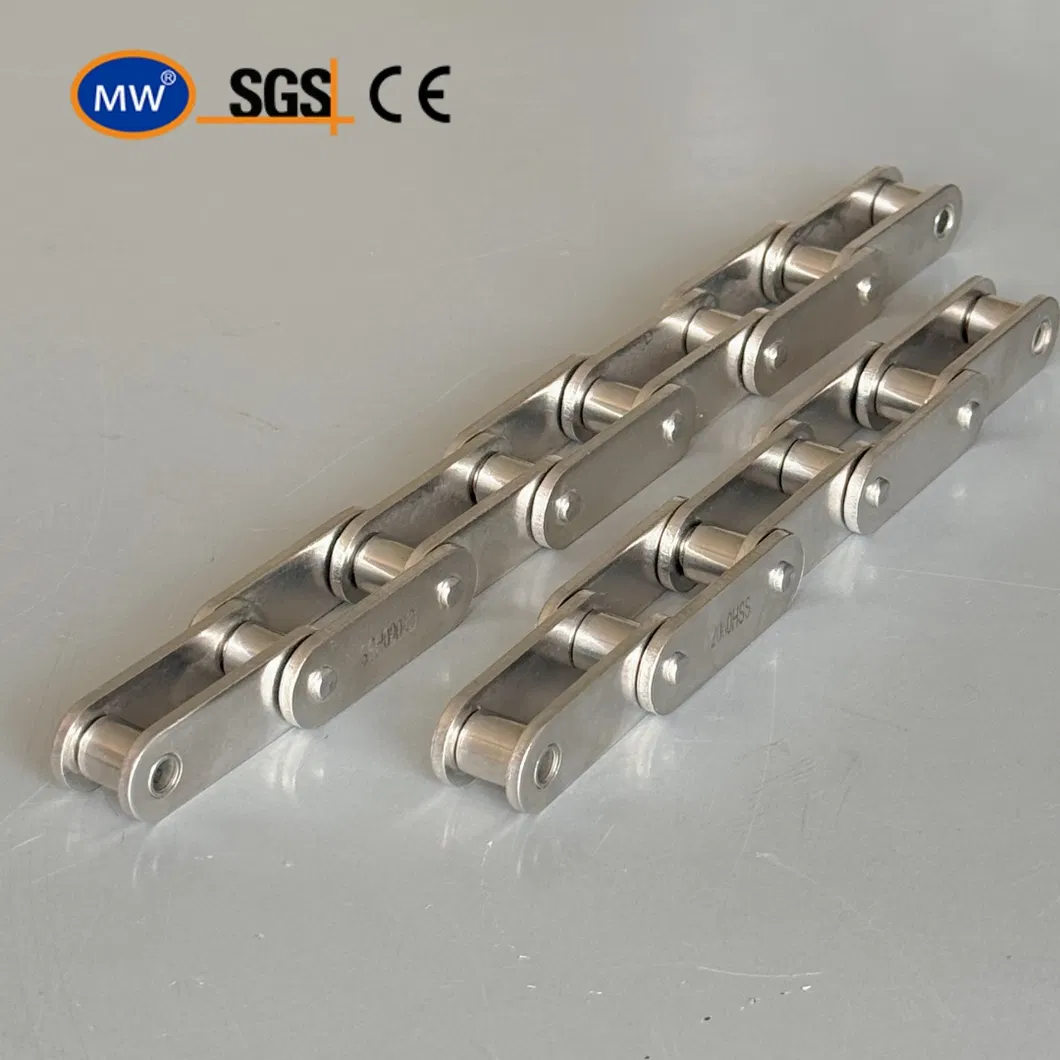

ANSI DIN Standard Hollow Pin Straight Plate Lifting Stainless Steel Ice Cream Conveyor Roller Chain is designed for cold production environments. Manufactured using modern computerized machinery, these chains ensure the highest level of precision and durability, meeting international advanced standard criteria for exceptional performance.

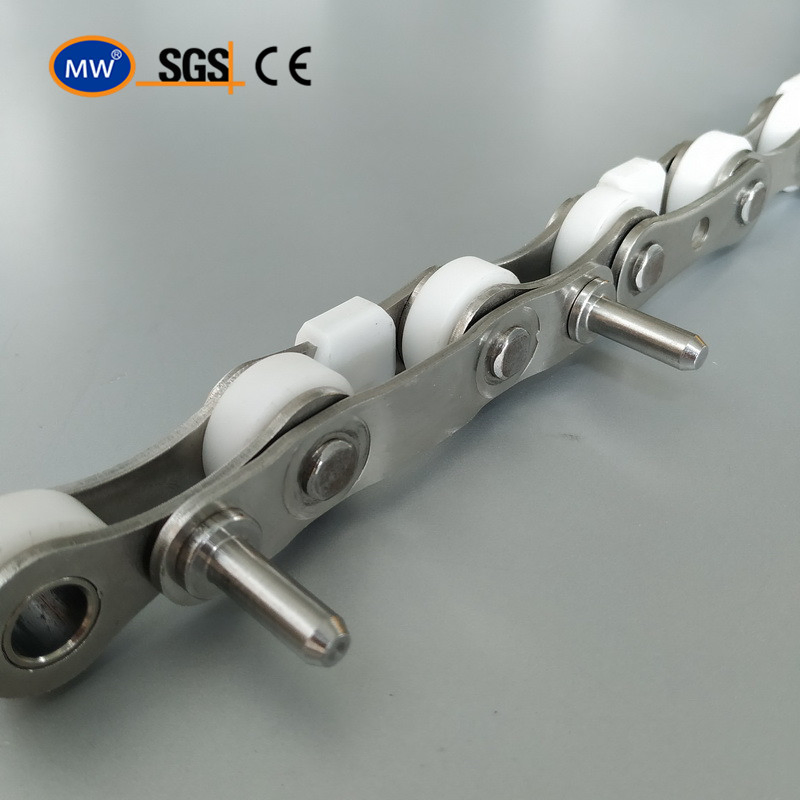

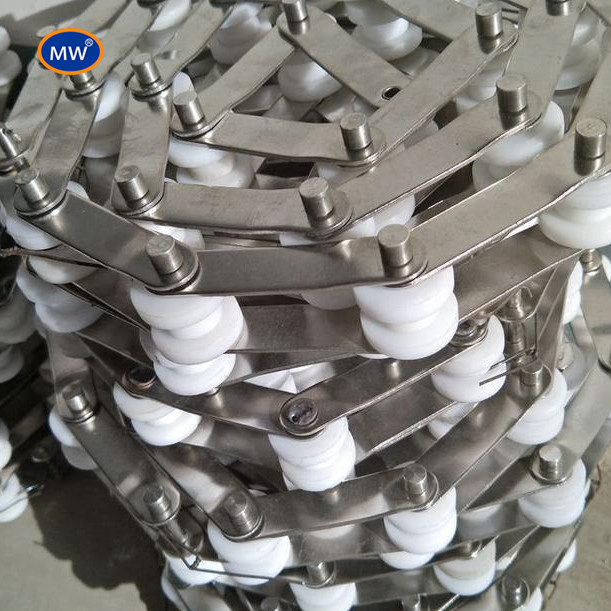

The C216ALSS-I type chain is a transmission chain specialized for ice cream production and conveying machinery. With a pitch of 50.8mm, it features rollers made of reinforced nylon (machined, not injection molded) for superior wear resistance and low-temperature durability. The chain pieces are crafted from Stainless Steel 304 or SS316, ensuring high hardness and resistance to breaking in cold conditions. Complies with ISO, ANSI, DIN, BS, and JIS standards.

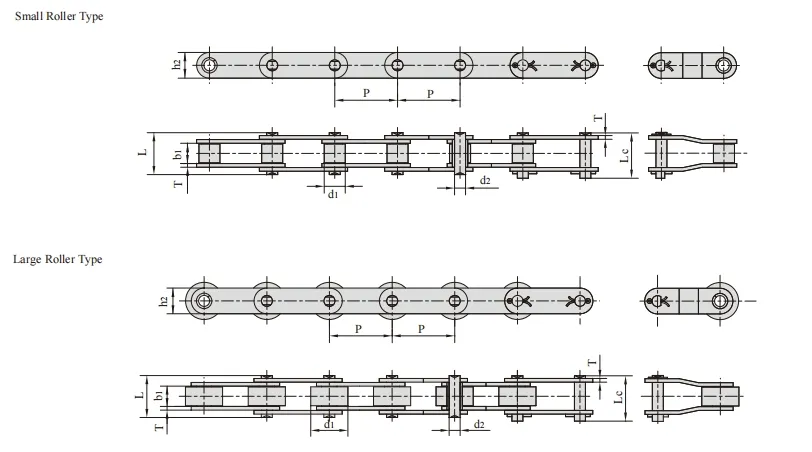

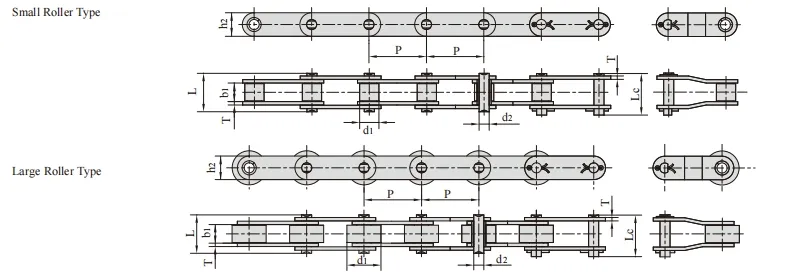

Product Parameters
| ISO Chain No. | ANSI Chain No. | Pitch (mm) | Roller Diameter (mm) | Inner Width (mm) | Pin Diameter (mm) | Plate Thickness (mm) | Tensile Strength (kN) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| C208A | C2040 | 25.40 | 7.95 | 7.85 | 3.96 | 1.50 | 14.1 | 0.50 |
| C210A | C2050 | 31.75 | 10.16 | 9.40 | 5.08 | 2.03 | 22.2 | 0.78 |
| C212A | C2060 | 38.10 | 11.91 | 12.57 | 5.94 | 2.42 | 31.8 | 1.12 |
| C216A | C2080 | 50.80 | 15.88 | 15.75 | 7.92 | 3.25 | 56.7 | 2.08 |
| C220A | C2100 | 63.50 | 19.05 | 18.90 | 9.53 | 4.00 | 88.5 | 3.01 |
Technical Specifications & Material
| Standard | European/American/Japan Standard or As Per Drawing/Sample |
| Material | Carbon steel/stainless steel (SS304, SS316) |

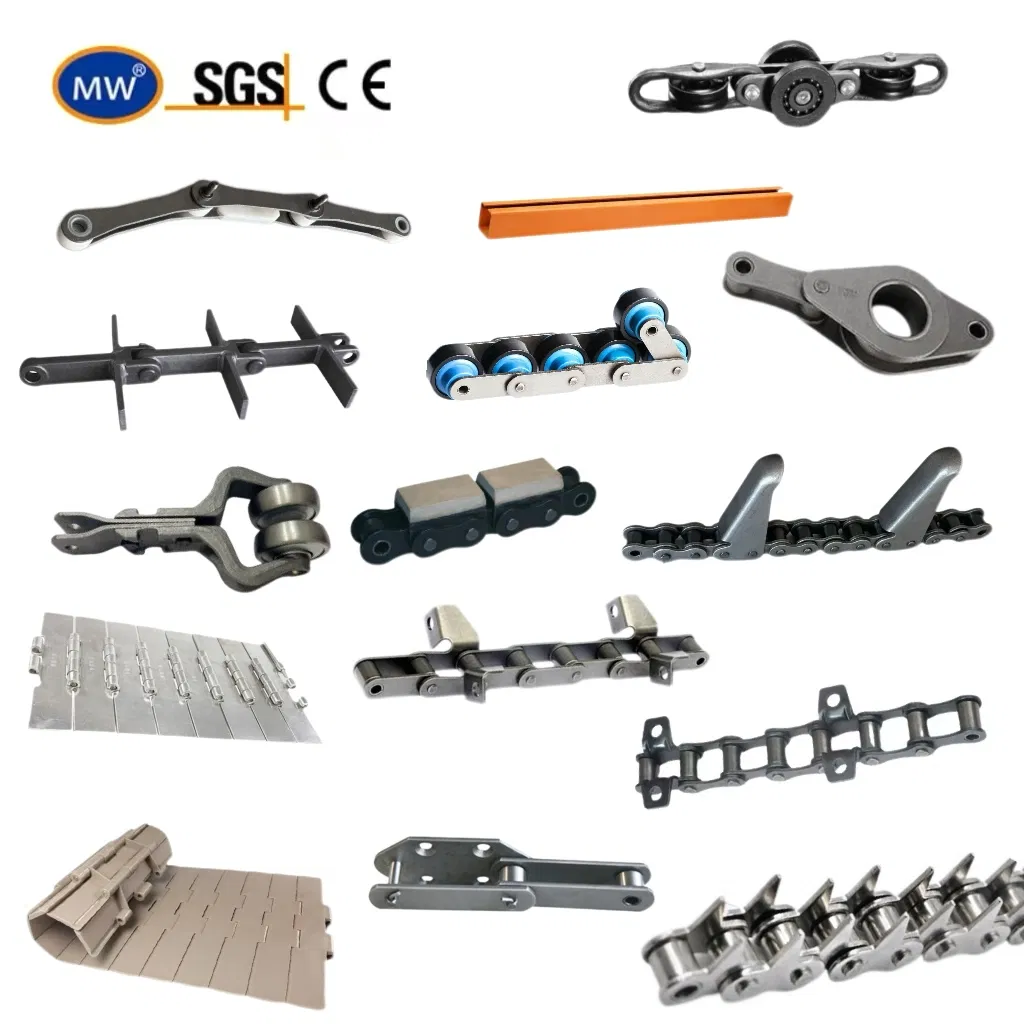

| Chain Types | Drive, Conveyor, Engineering, Traction, Agricultural, Escalator |

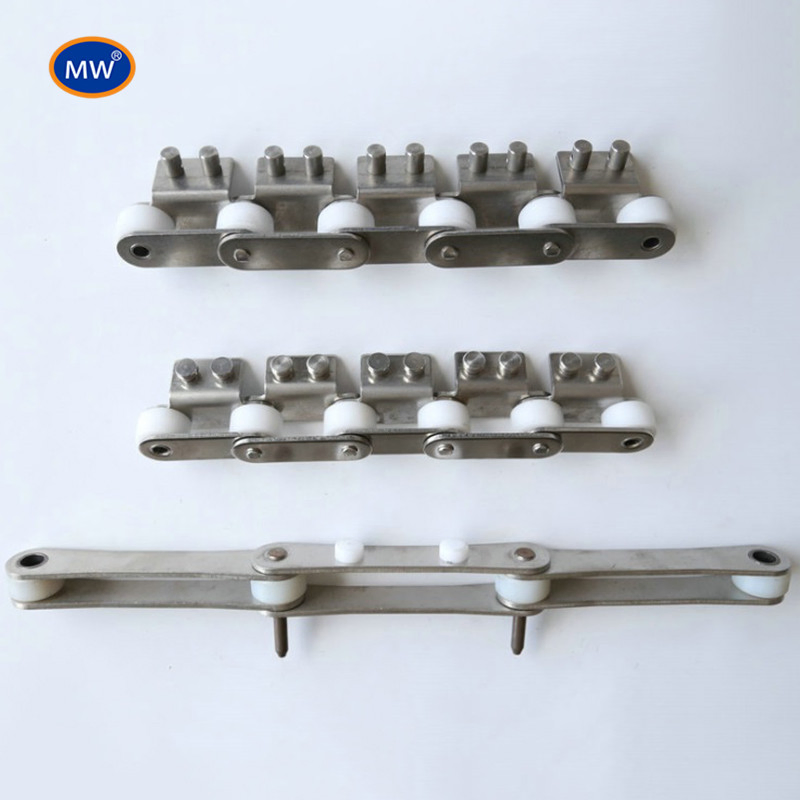

| Conveyor Chain | Rubber attached plate, Double hinged, M type, Free flow, Hollow pin |

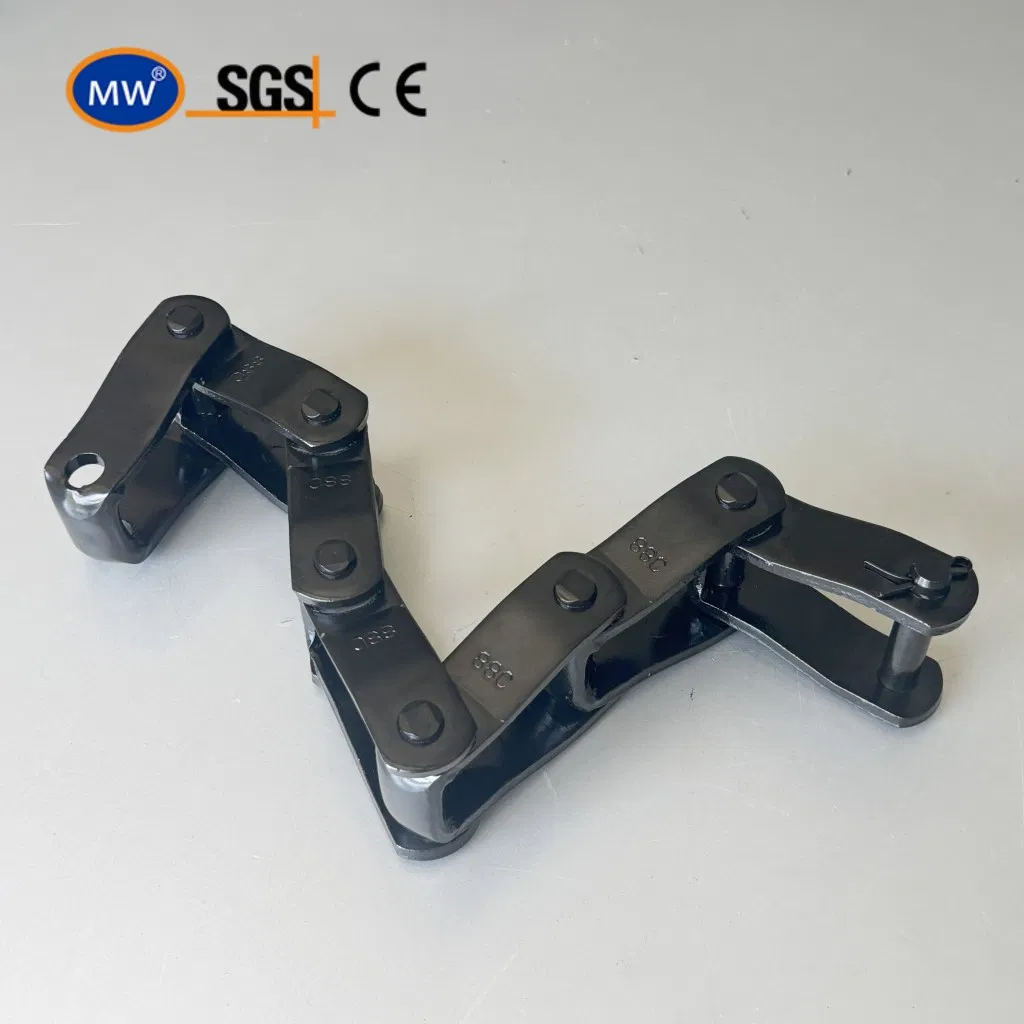

| Agricultural | Steel pintle chains, Harvester chains, S type/C type roller chains |
Recommend Products
Packaging & Shipping

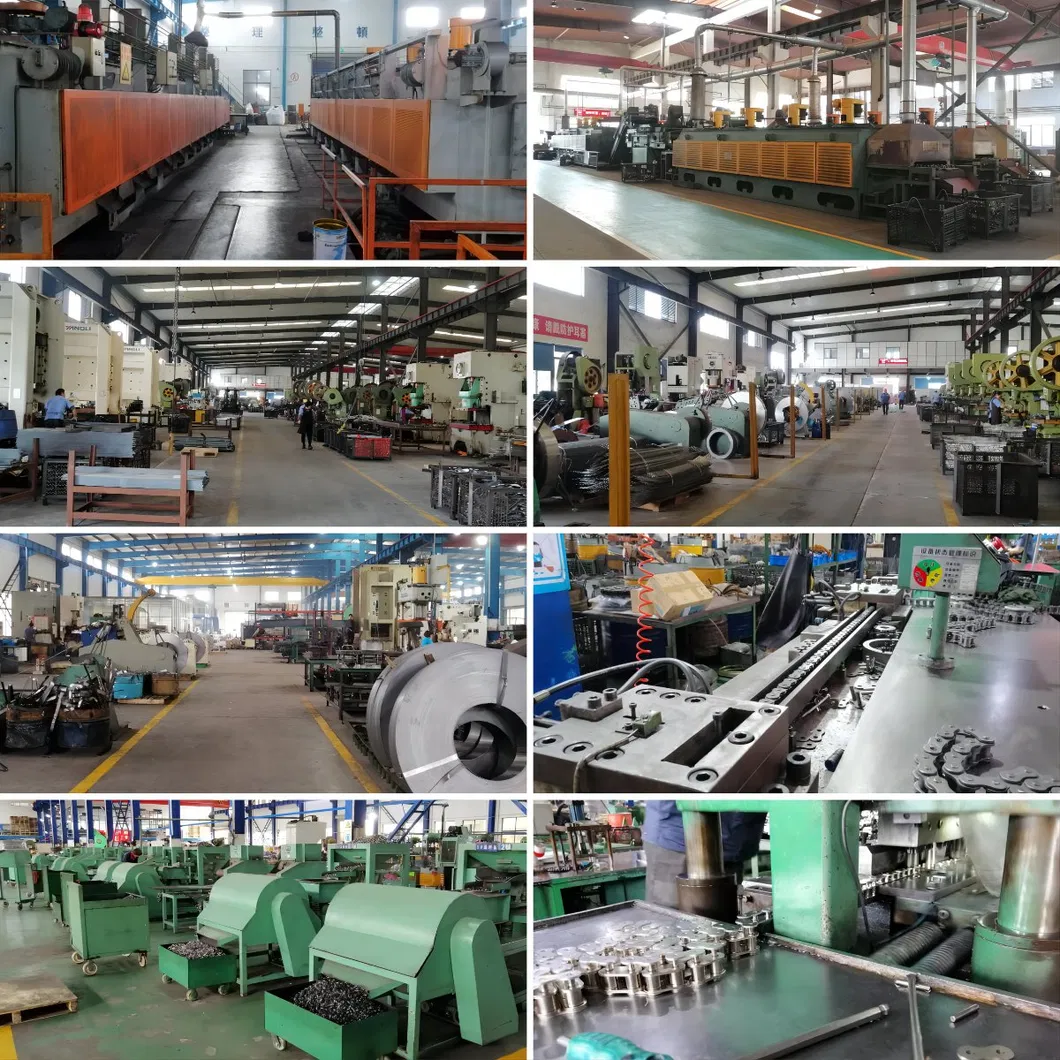

Manufacturing Excellence
Production procedures are in strict compliance with ISO9001 standards. We specialize in designing and manufacturing non-standard products based on individual drawings or samples to meet specific industrial requirements. Quality and credibility are at the core of our operations.
