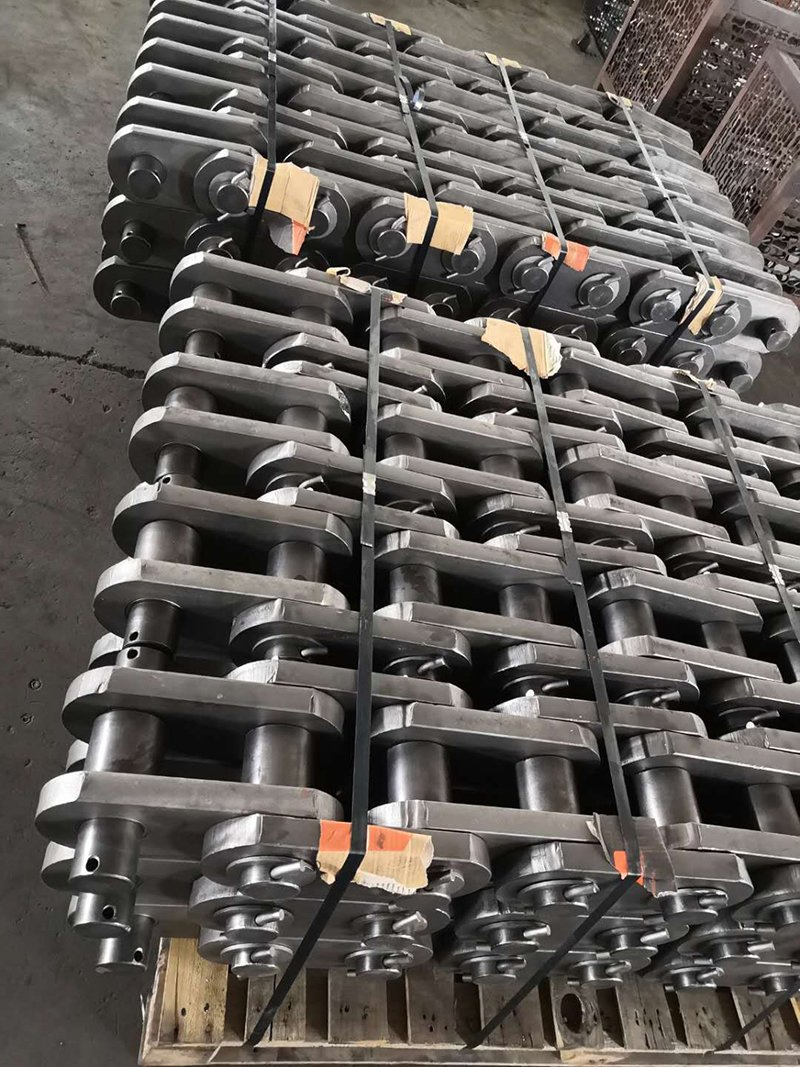

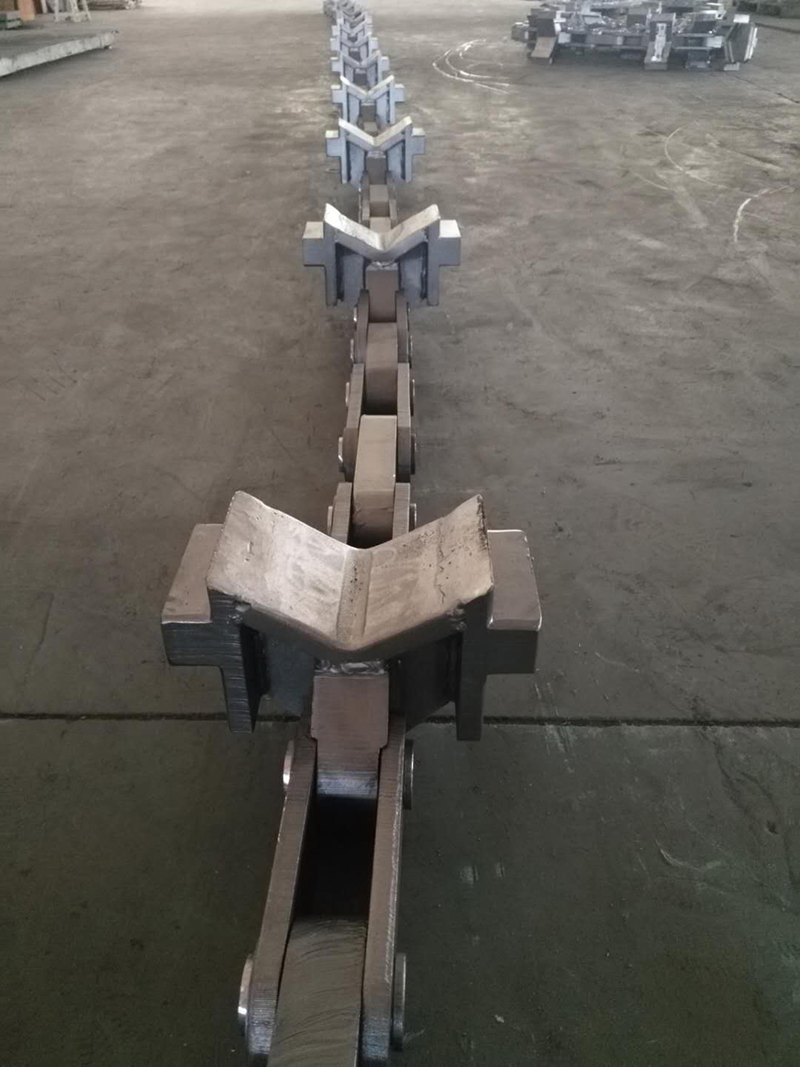

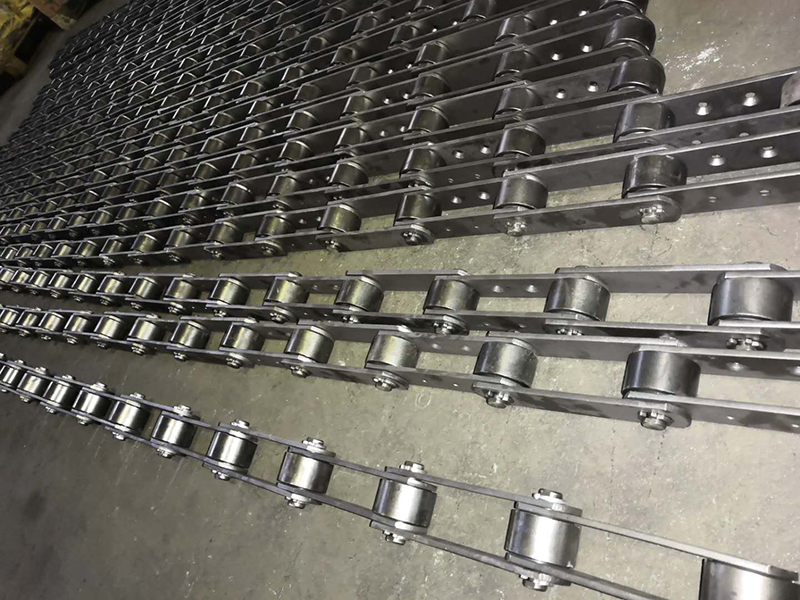

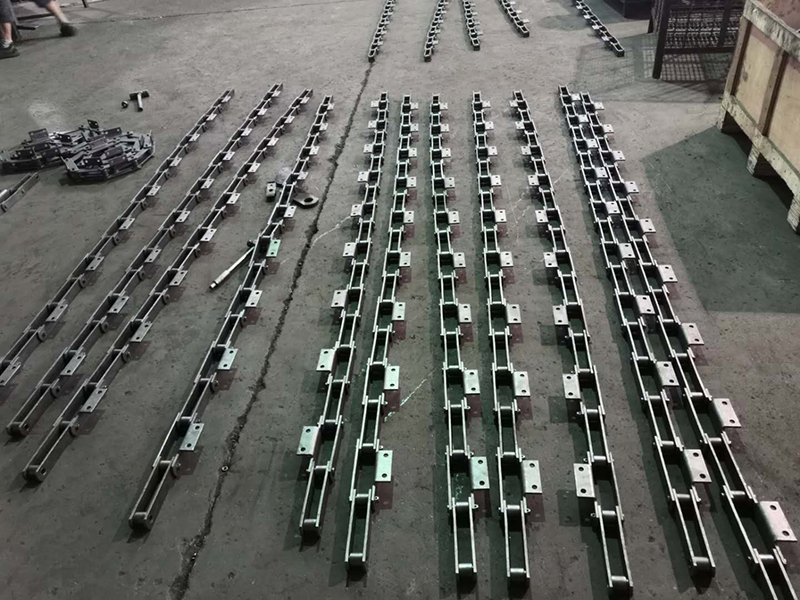

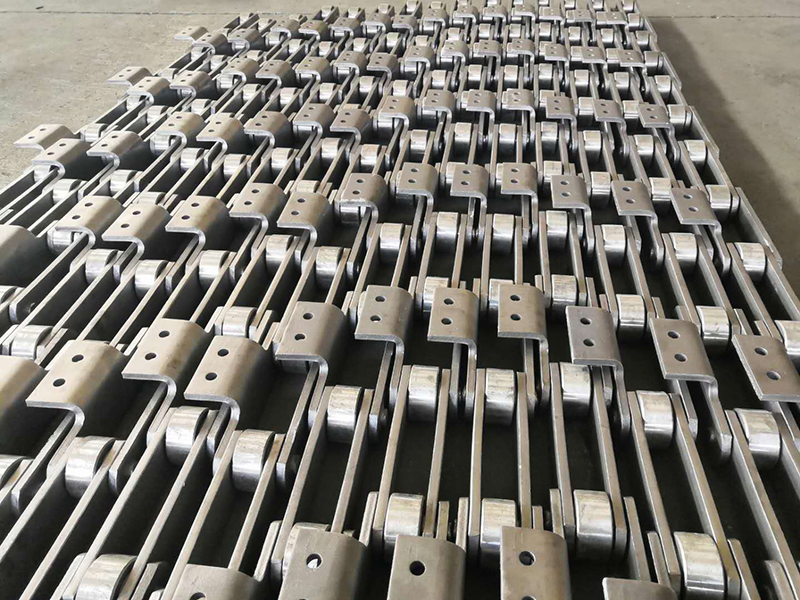

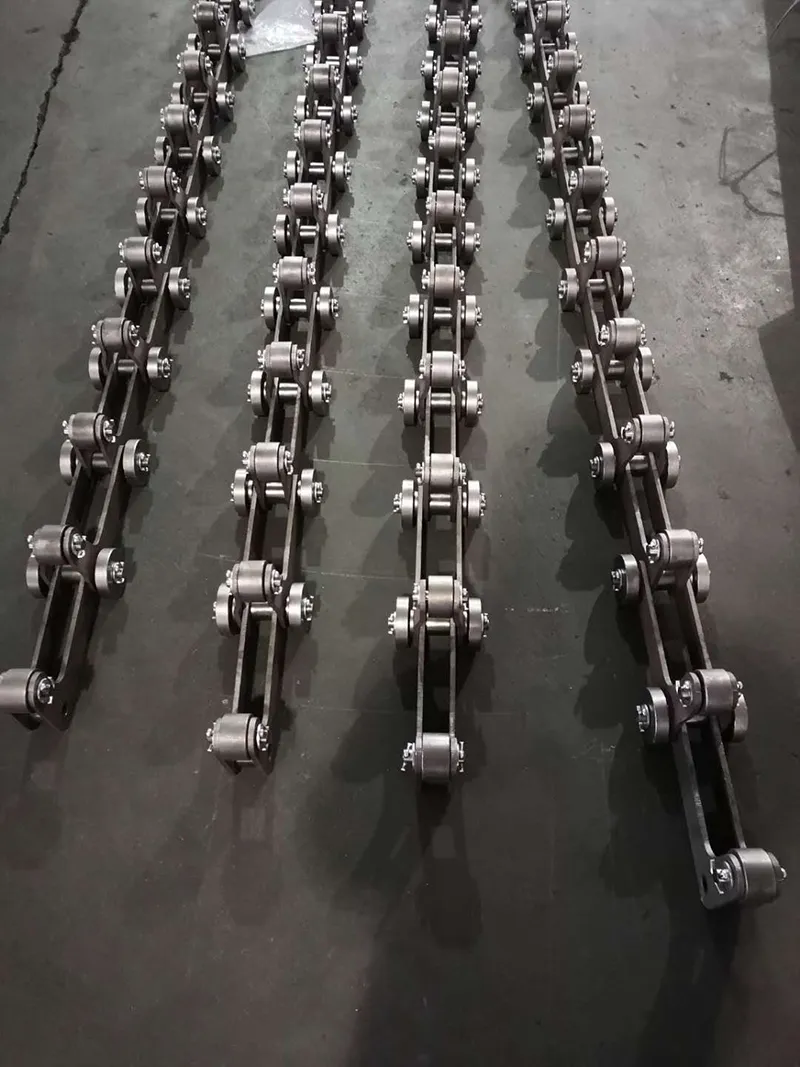

Our range includes cold bed chain, Fu Style Chain for Architectural Machine Equipment, welded steel mill chain, welded steel drag chain, cast fixed pin chain, conveyor chain for metallurgy industry, drop forged link chain and Engineer Class Driving Chain. Options are available in alloy steel and stainless steel based on specific requirements.
Available Chain Types: Drop forged rivetless chain, Roller Chain, conveyor chain, agricultural chain, sugar industry chain, palm oil industry chain, asphalt industry chain, elevator conveyor industry chain, double flex chain, pintle chain, weld steel drag chains, malleable chain etc.
Main Materials: High-quality 40Mn, 40Cr, 45Mn alloy steel or SUS304 for plates; 10#, 20#, 20CrMnMo, 30CrMnTi for pins and rollers.
Heat Treatment & Surface: Carburizing, Austemper Stressing, nitro-carburizing harden. Surface finishes include shot peening, black, blue, or original finish.

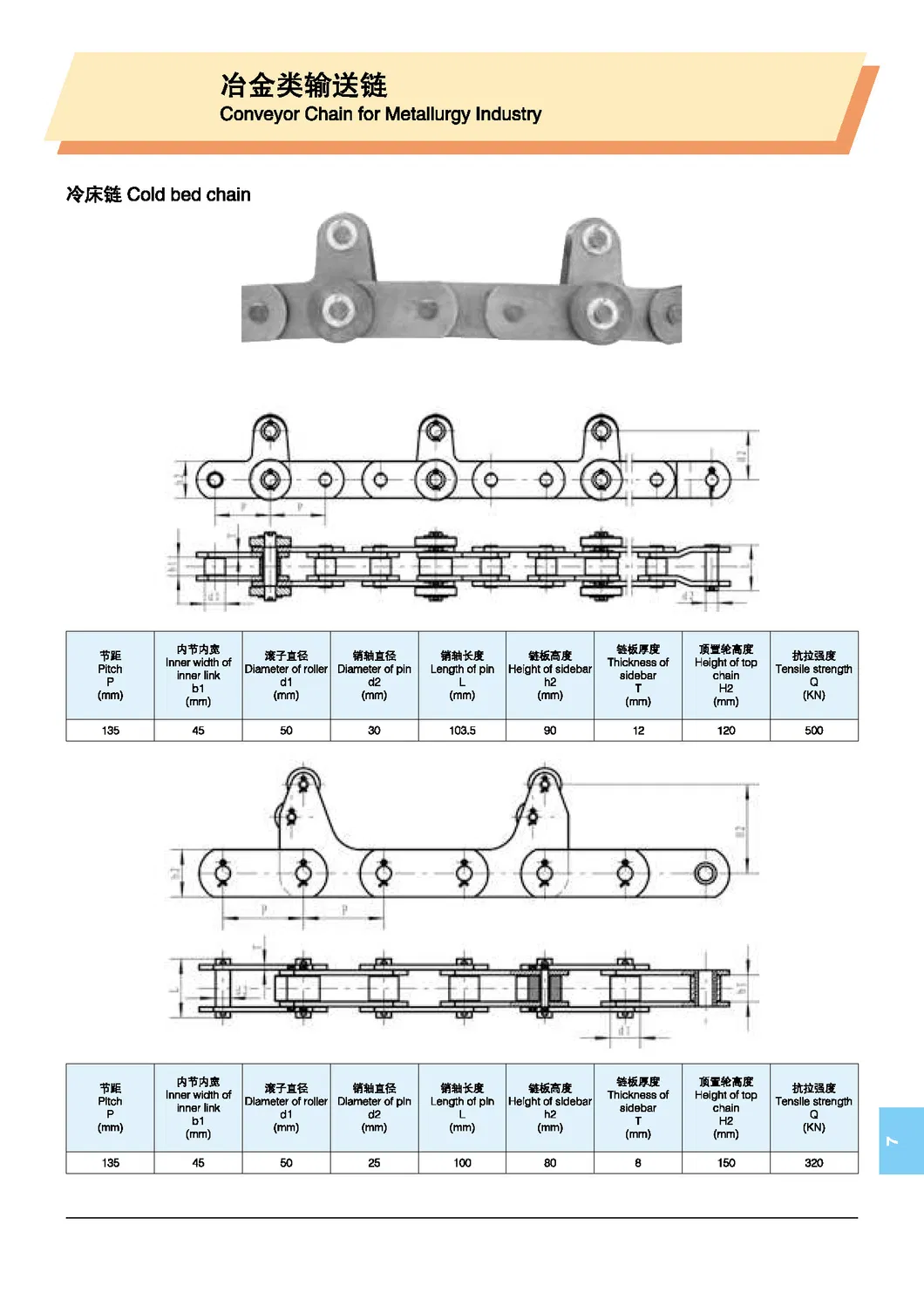

| Pitch (P) | Inner Width (b1) | Roller Dia (d1) | Pin Dia (d2) | Pin Length (L) | Sidebar Height (h2) | Sidebar Thickness (T) | Top Chain Height (H2) | Tensile Strength (Q) |
|---|---|---|---|---|---|---|---|---|
| 135 mm | 45 mm | 50 mm | 30 mm | 103.5 mm | 90 mm | 12 mm | 120 mm | 500 kN |
| 135 mm | 45 mm | 50 mm | 25 mm | 100 mm | 80 mm | 8 mm | 150 mm | 320 kN |
| 125 mm | 40 mm | 56 mm | 30 mm | 176 mm | 70 mm | 10 mm | 120 mm | 315 kN |
| 100 mm | 40 mm | 46 mm | 20 mm | 148 mm | 60 mm | 8 mm | 80 mm | 175 kN |
1. Inner Packing: Poly bag, air bubble bag, or carton according to specific requirements.
2. Outer Packing: OSB case or pallet for maximum protection during transit.
3. Standardized plywood cases are used for international shipping to ensure product integrity.
Our superior products are fabricated according to ISO, ASME, and DIN standards. Below are the key steps in our production process:

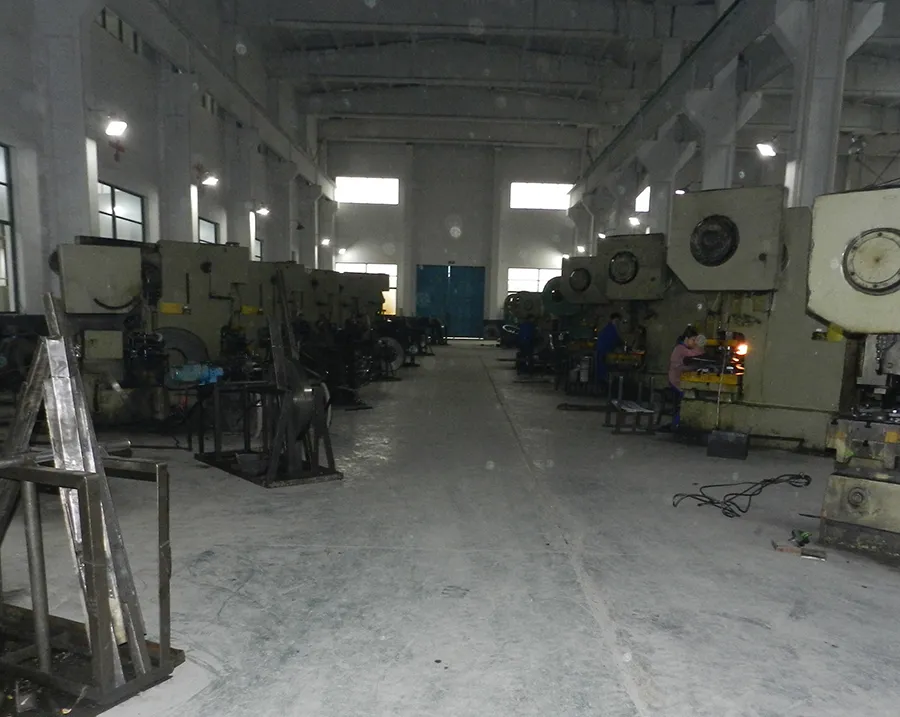

(1) Plate Punching

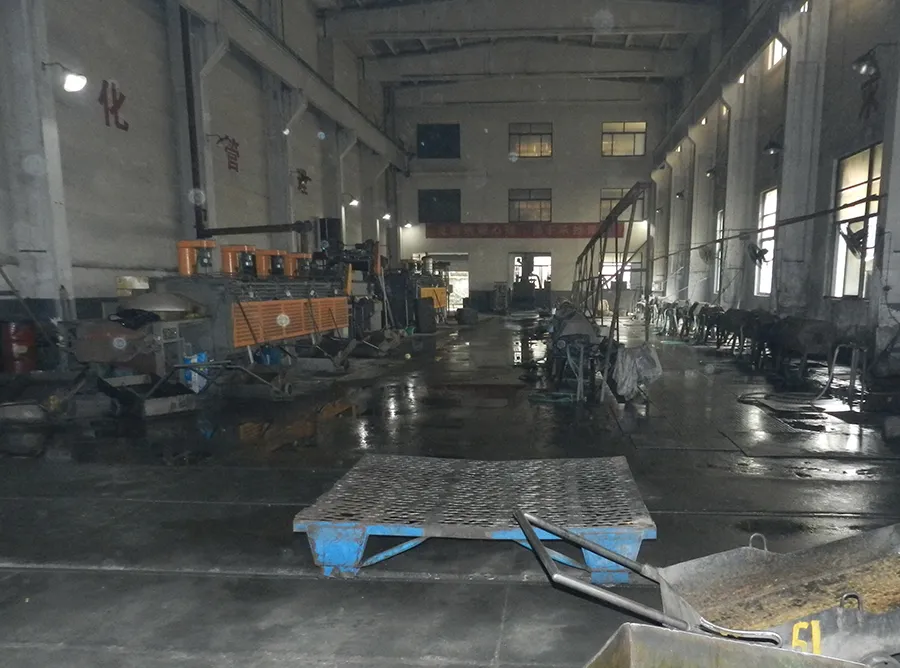

(2) Shot Peening

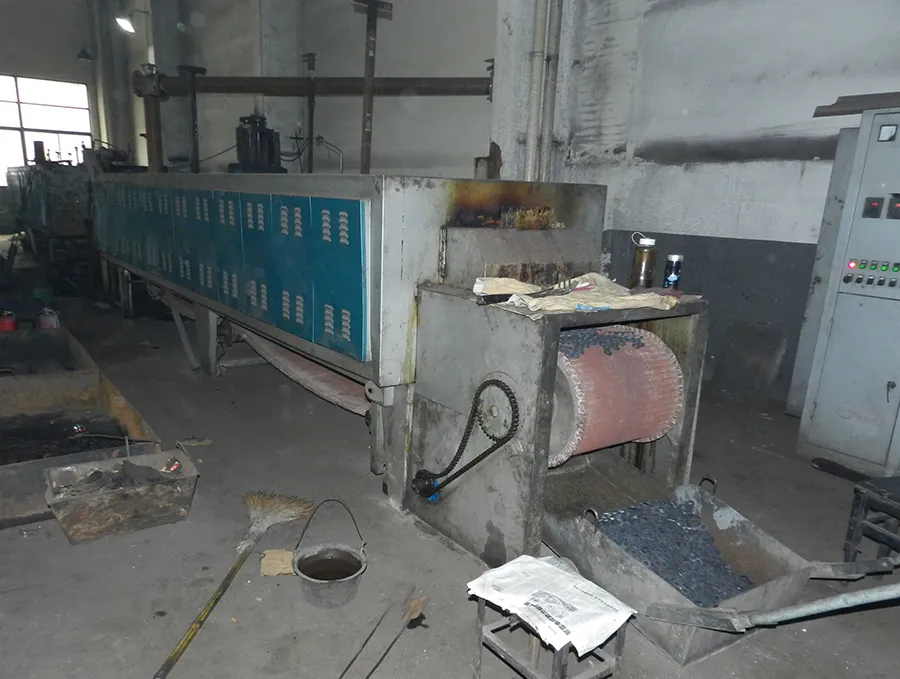

(3) Heat Treatment

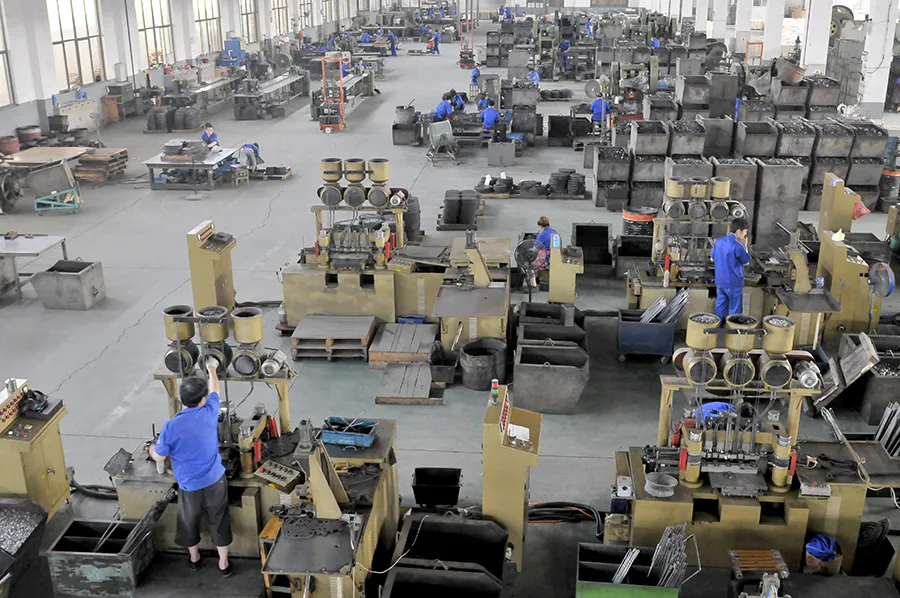

(4) Assembly Prep

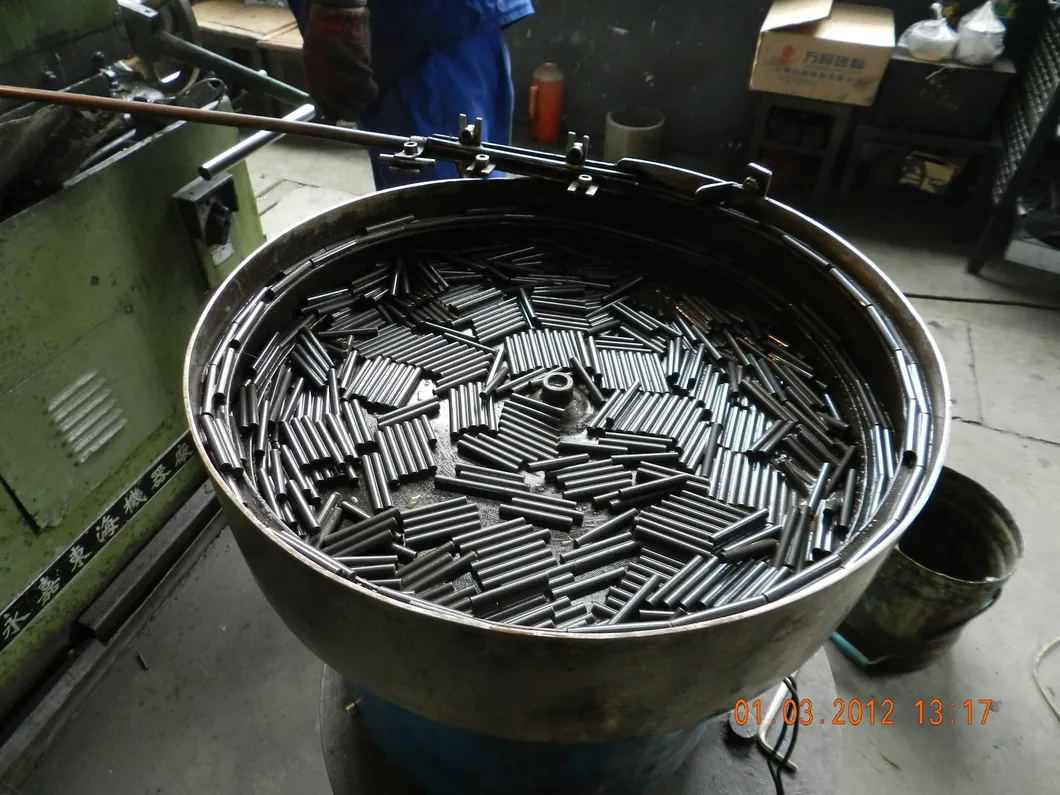

(5) Pins Process
(6) Tensile Testing
We stand by our quality. Products can be repaired or new parts replaced at no cost within a six-month period.
