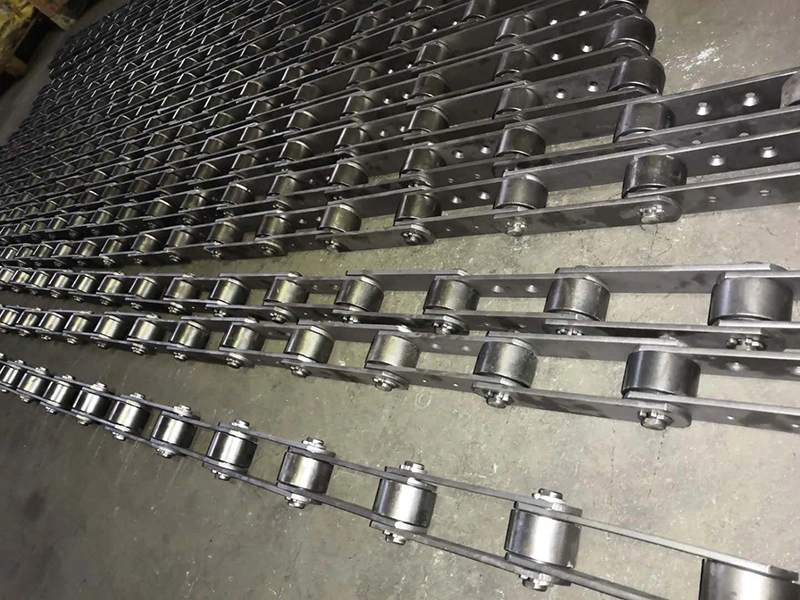

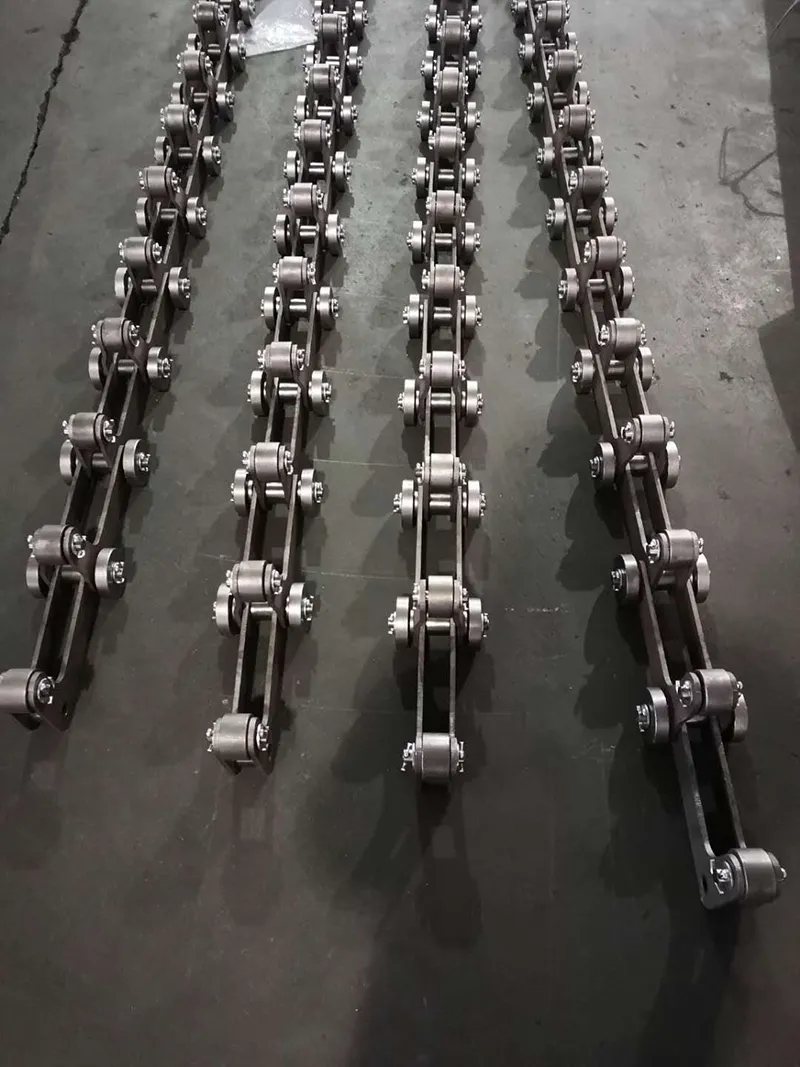

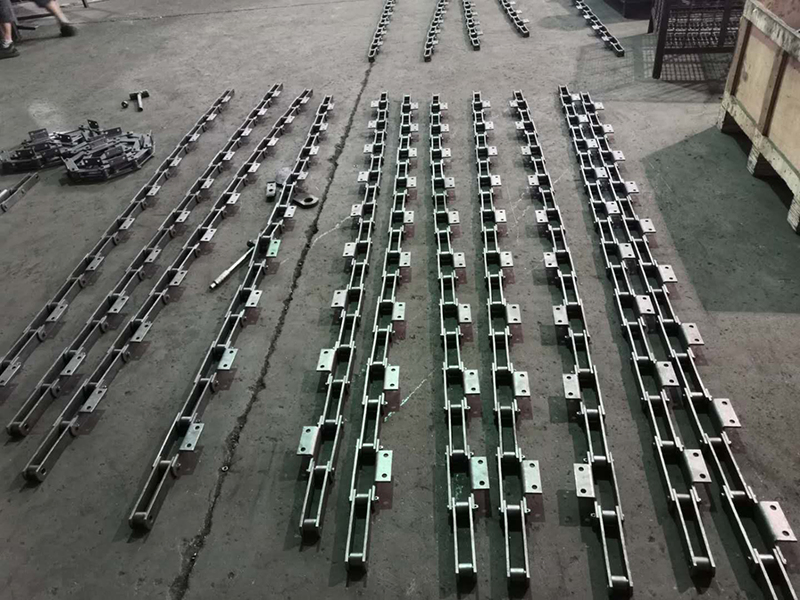

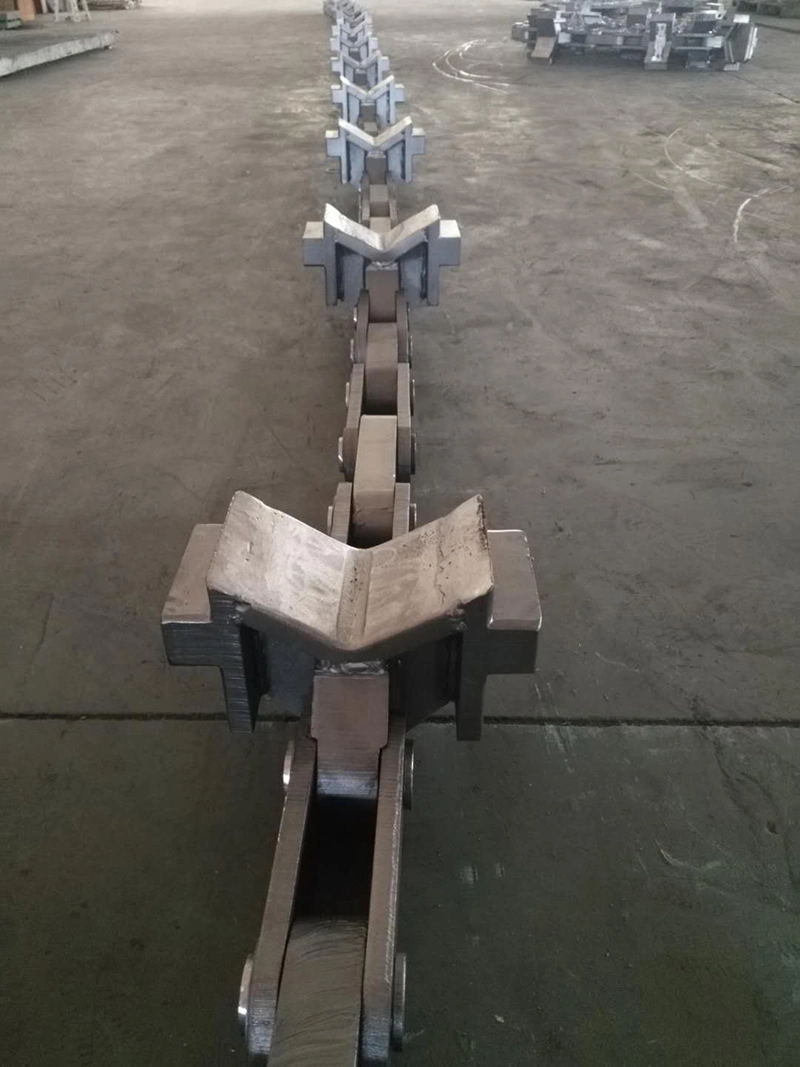

Our range includes cold bed chains, Fu Style Chains for Architectural Machine Equipment, welded steel mill chains, welded steel drag chains, cast fixed pin chains, conveyor chains for the metallurgy industry, drop forged link chains, and Engineer Class Driving Chains. We offer selections in alloy steel and stainless steel according to your specific requirements.
Technical Specifications:
1. Materials: Plates (40Mn, 40Cr, 45Mn alloy steel or SUS304); Pins/Rollers (10#, 20#, 20CrMnMo, 30CrMnTi).
2. Heat Treatment: Carburizing, Austemper Stressing, nitro-carburizing hardening, etc.
3. Surface: Shot peening, black, blue, or original finish.
4. Packaging: Plastic bag + Carton box + Plywood case.

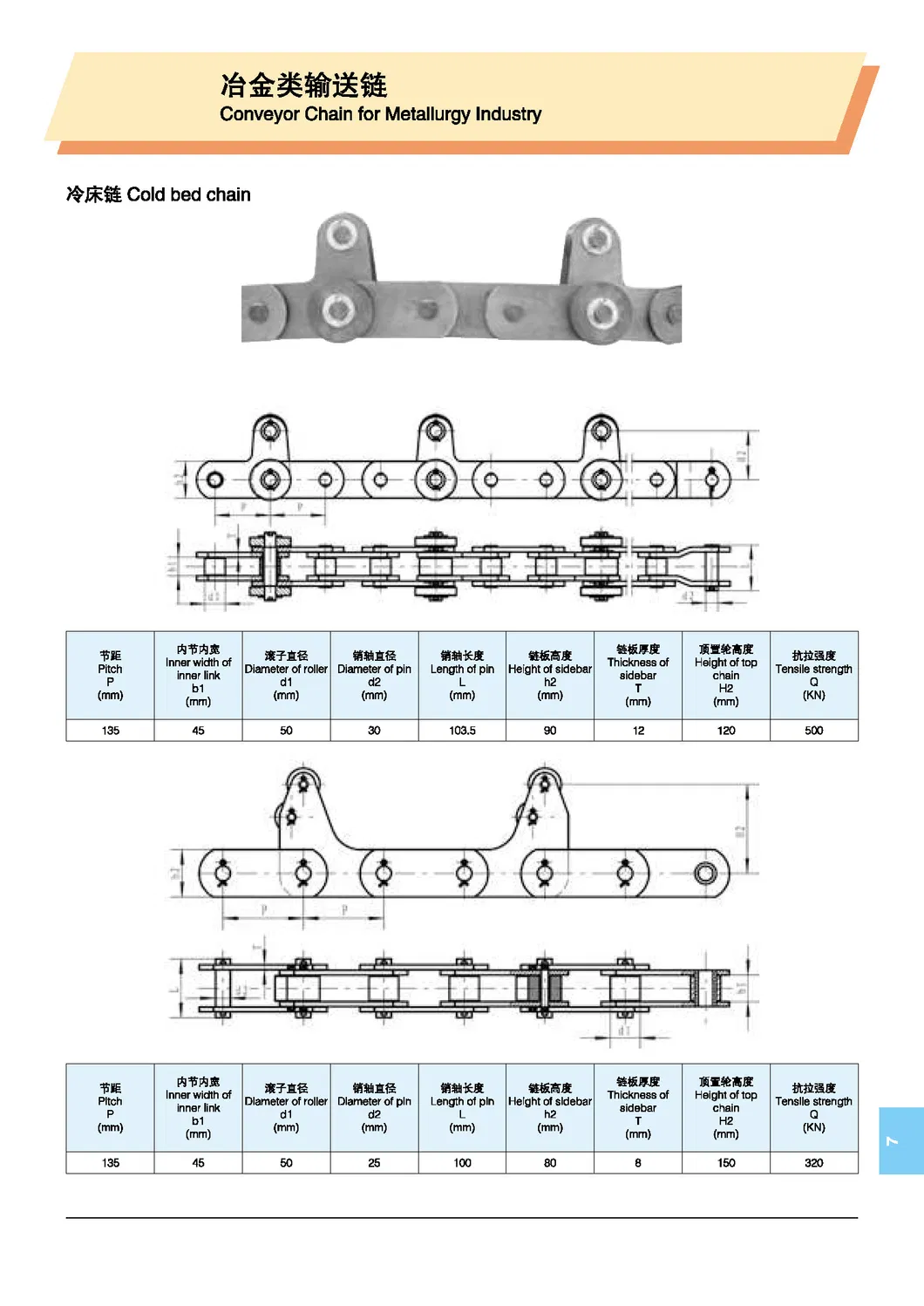

| Pitch (P) | Inner Width (b1) | Roller Dia (d1) | Pin Dia (d2) | Pin Length (L) | Sidebar Height (h2) | Sidebar Thick (T) | Top Height (H2) | Tensile Strength (kN) |
|---|---|---|---|---|---|---|---|---|
| 135 mm | 45 mm | 50 mm | 30 mm | 103.5 mm | 90 mm | 12 mm | 120 mm | 500 kN |
| 135 mm | 45 mm | 50 mm | 25 mm | 100 mm | 80 mm | 8 mm | 150 mm | 320 kN |

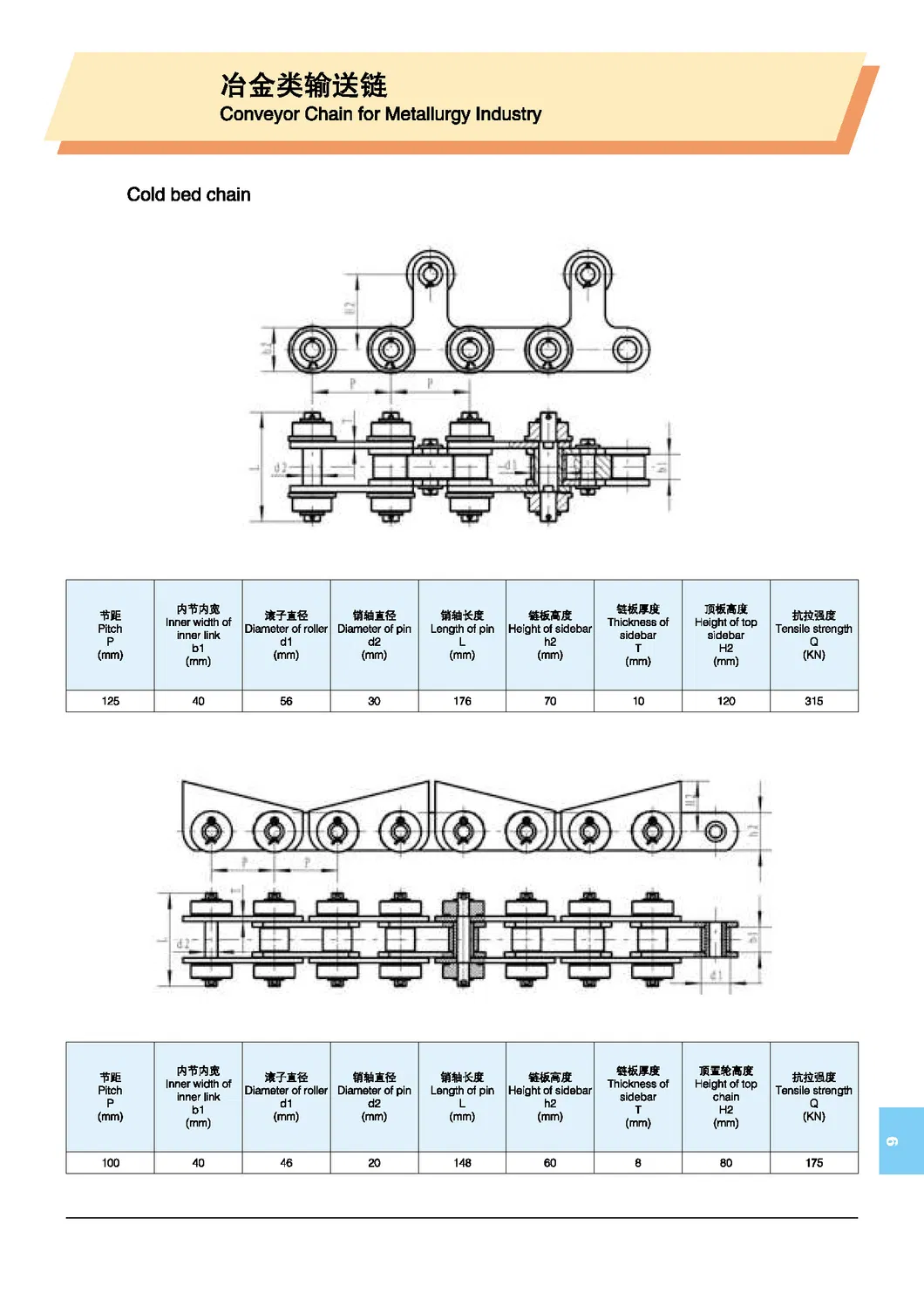

| 125 mm | 40 mm | 56 mm | 30 mm | 176 mm | 70 mm | 10 mm | 120 mm | 315 kN |
| 100 mm | 40 mm | 46 mm | 20 mm | 148 mm | 60 mm | 8 mm | 80 mm | 175 kN |
Our superior products are fabricated according to international standards including ISO, ASME, and DIN. Below are our core processing steps:

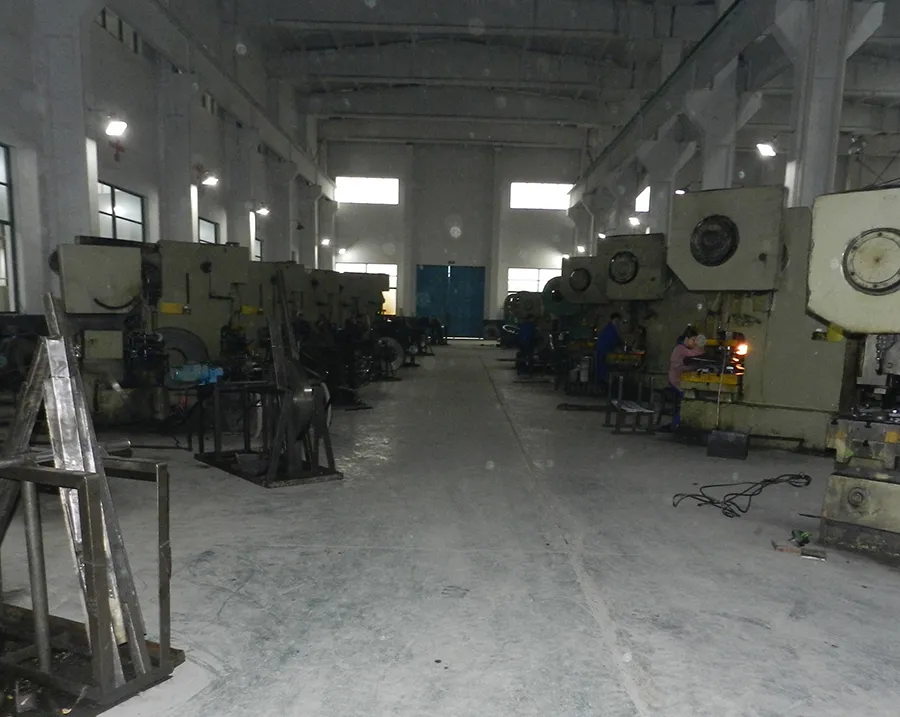

(1) Plate Punching
(2) Shot Peening

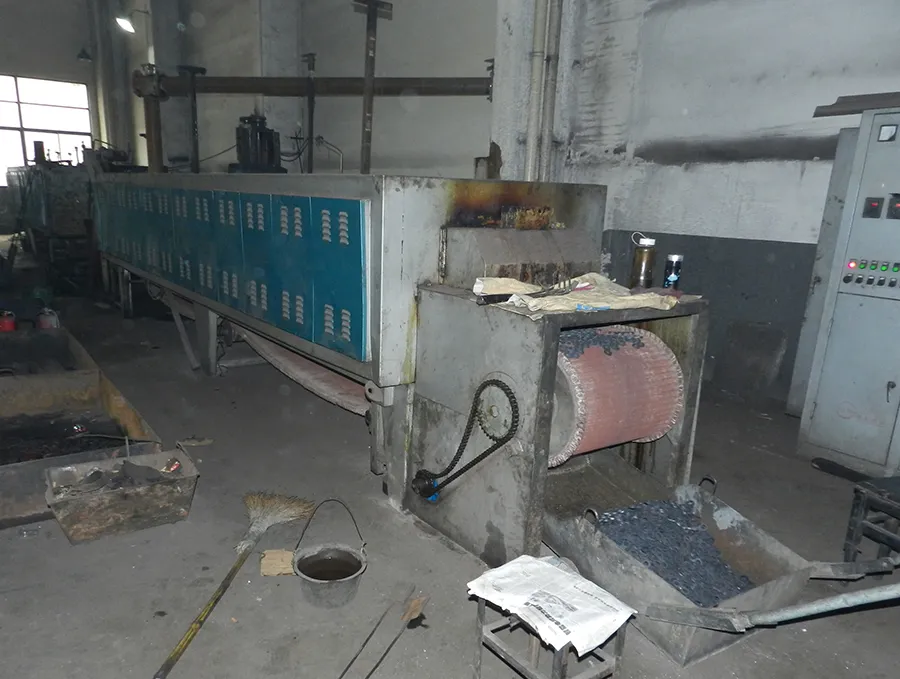

(3) Heat Treatment

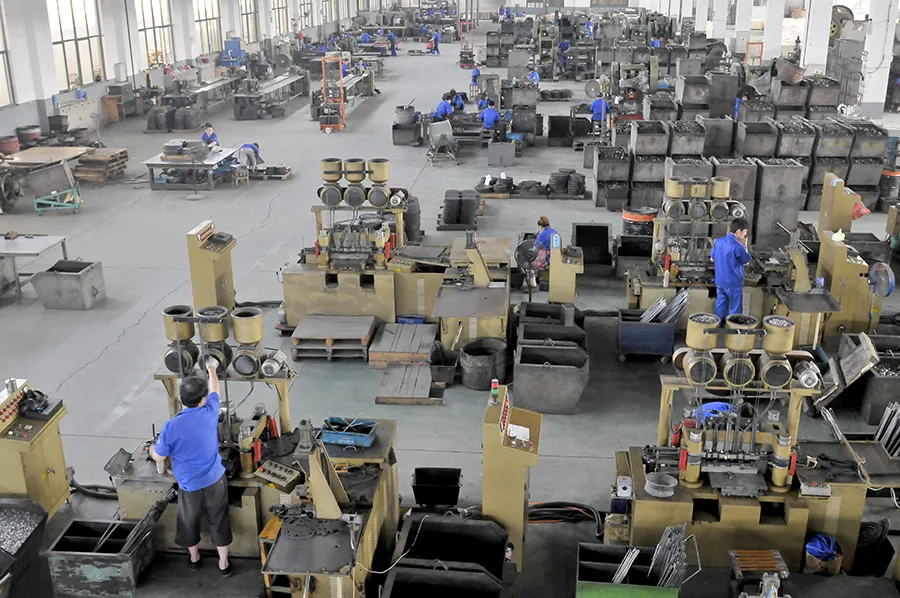

(4) Assembly Prep

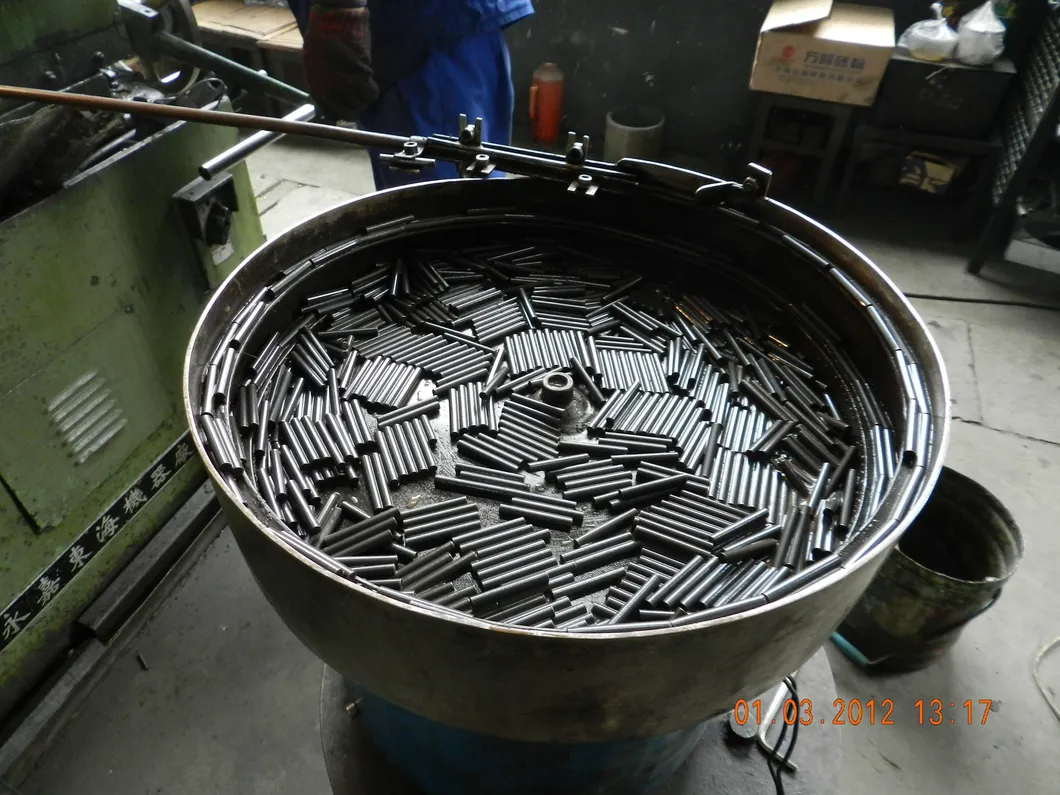

(5) Pins Processing

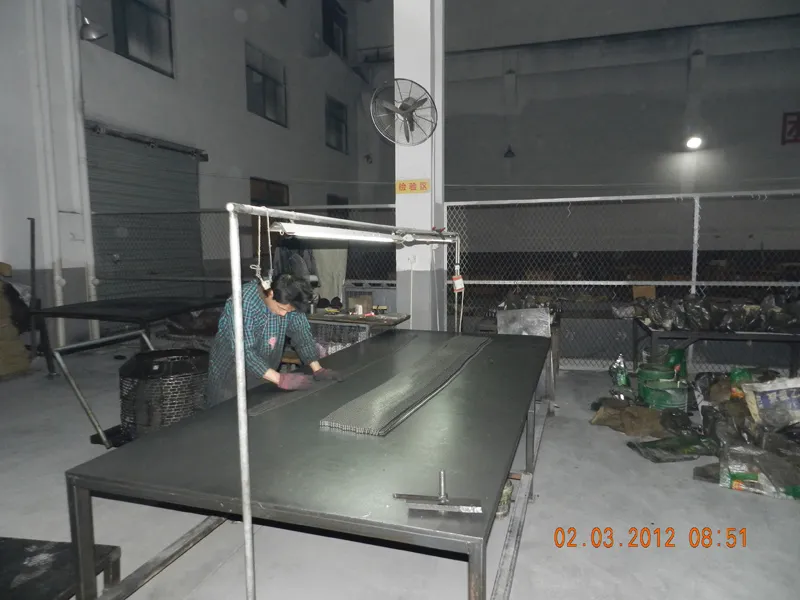

(6) Tensile Testing

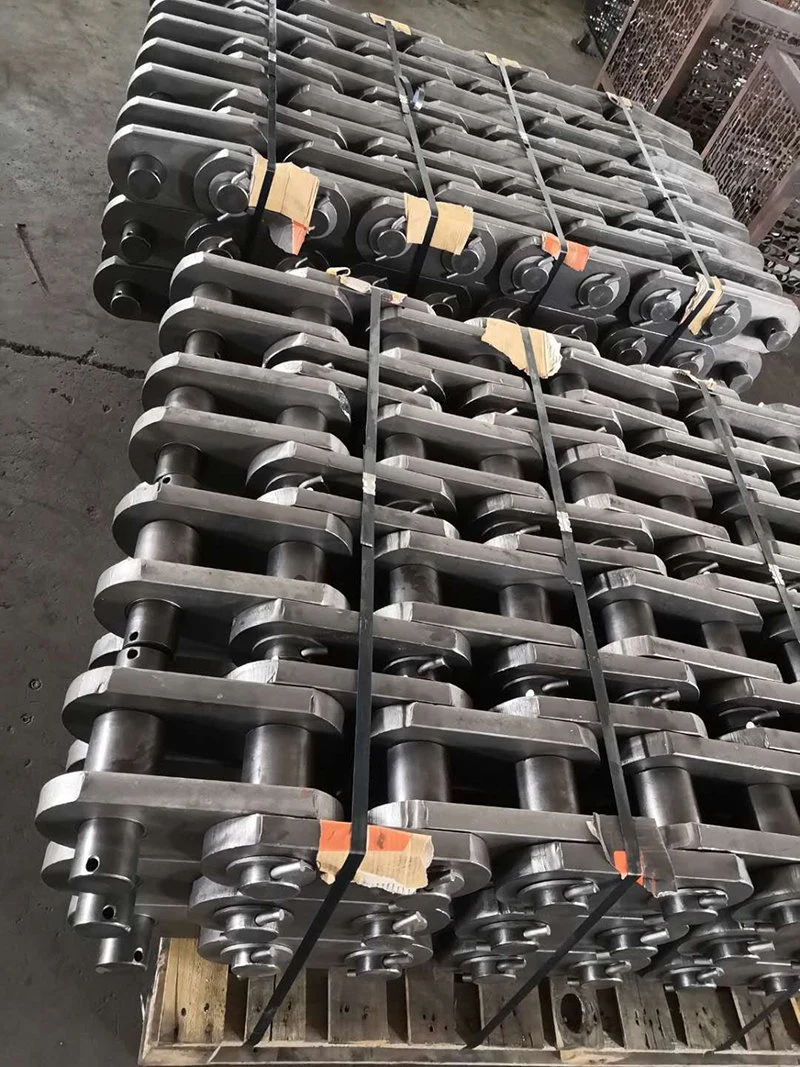

Packaging: Inner packing includes poly bags, air bubble bags, or cartons. Outer packing utilizes OSB cases or pallets for maximum protection during transit.
Service Guarantee: We provide a 6-month warranty period during which products can be repaired or parts replaced at no additional cost.
