| Pitch (P) | Inner Width (b1) | Roller Dia (d1) | Pin Dia (d2) | Pin Length (L) | Sidebar Height (h2) | Sidebar Thickness (T) | Top Chain Height (H2) | Tensile Strength (Q) |
|---|---|---|---|---|---|---|---|---|

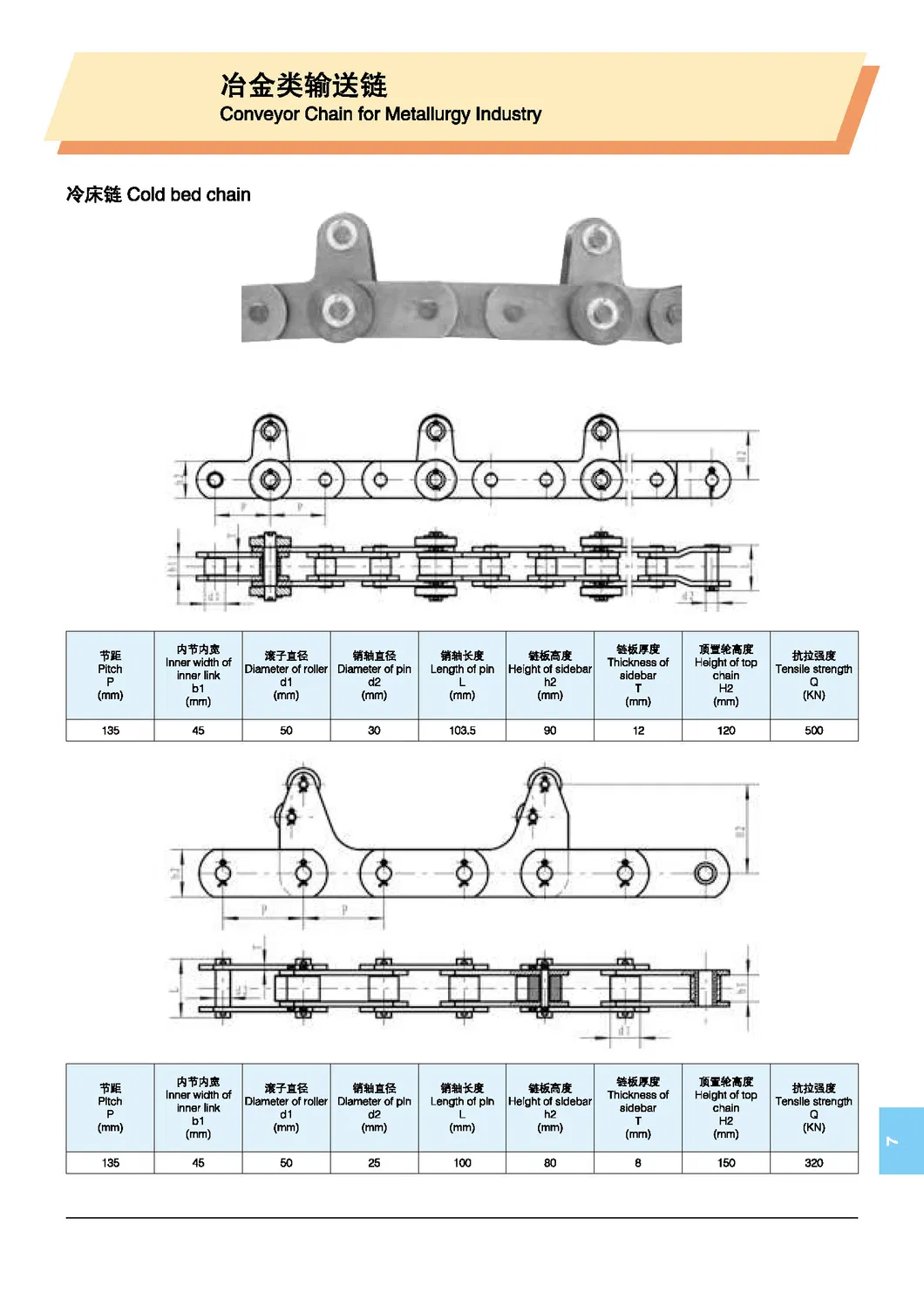

| 135 mm | 45 mm | 50 mm | 30 mm | 103.5 mm | 90 mm | 12 mm | 120 mm | 500 kN |
| 135 mm | 45 mm | 50 mm | 25 mm | 100 mm | 80 mm | 8 mm | 150 mm | 320 kN |

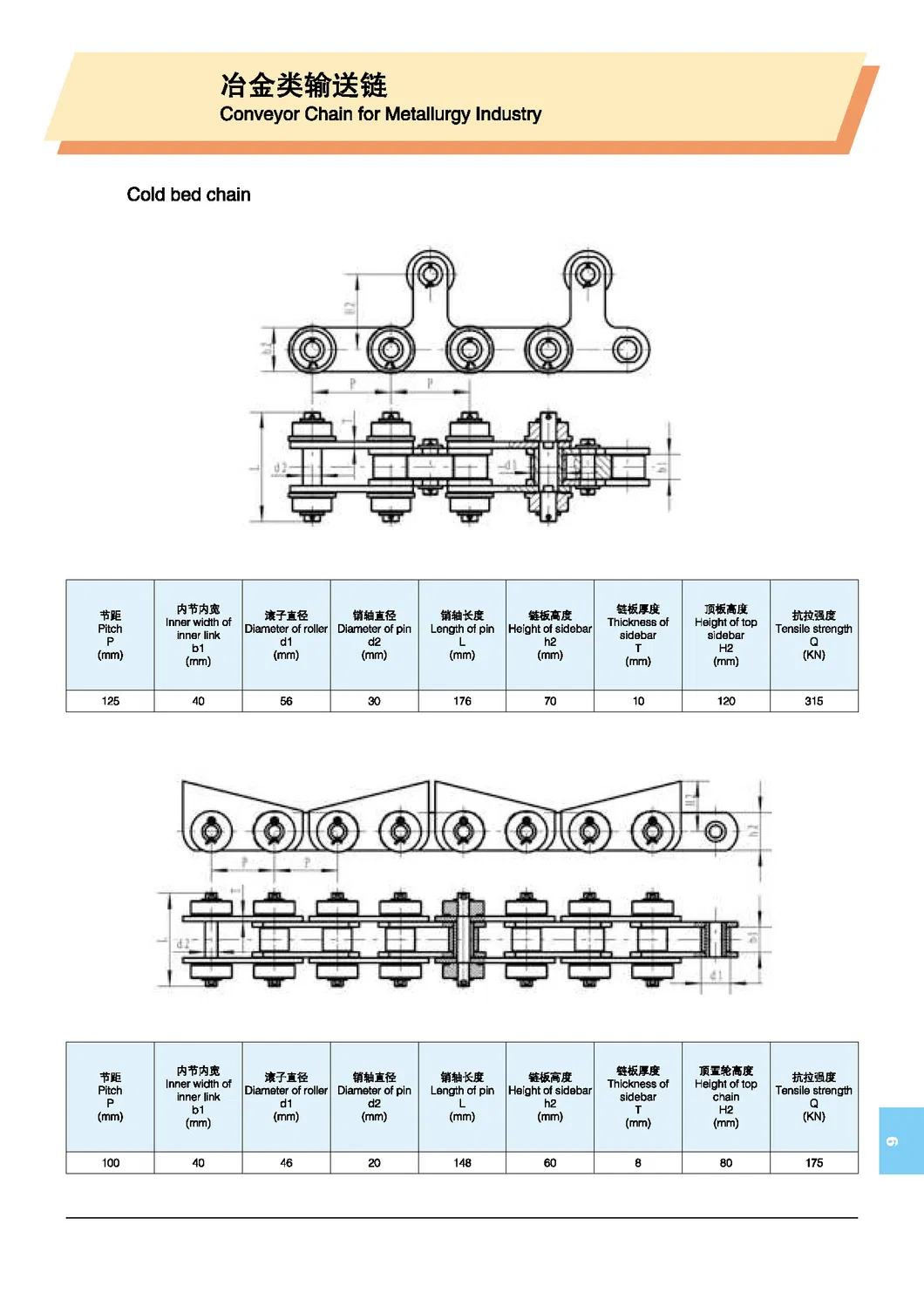

| 125 mm | 40 mm | 56 mm | 30 mm | 176 mm | 70 mm | 10 mm | 120 mm | 315 kN |
| 100 mm | 40 mm | 46 mm | 20 mm | 148 mm | 60 mm | 8 mm | 80 mm | 175 kN |
