| Model NO. | LH0888 | Standard | Nonstandard / Standard |
|---|---|---|---|
| Transport Package | Standard Sea Worthy Package | Trademark | MW |
| Origin | Zhejiang, China | Production Capacity | 10,000 Meters Per Day |

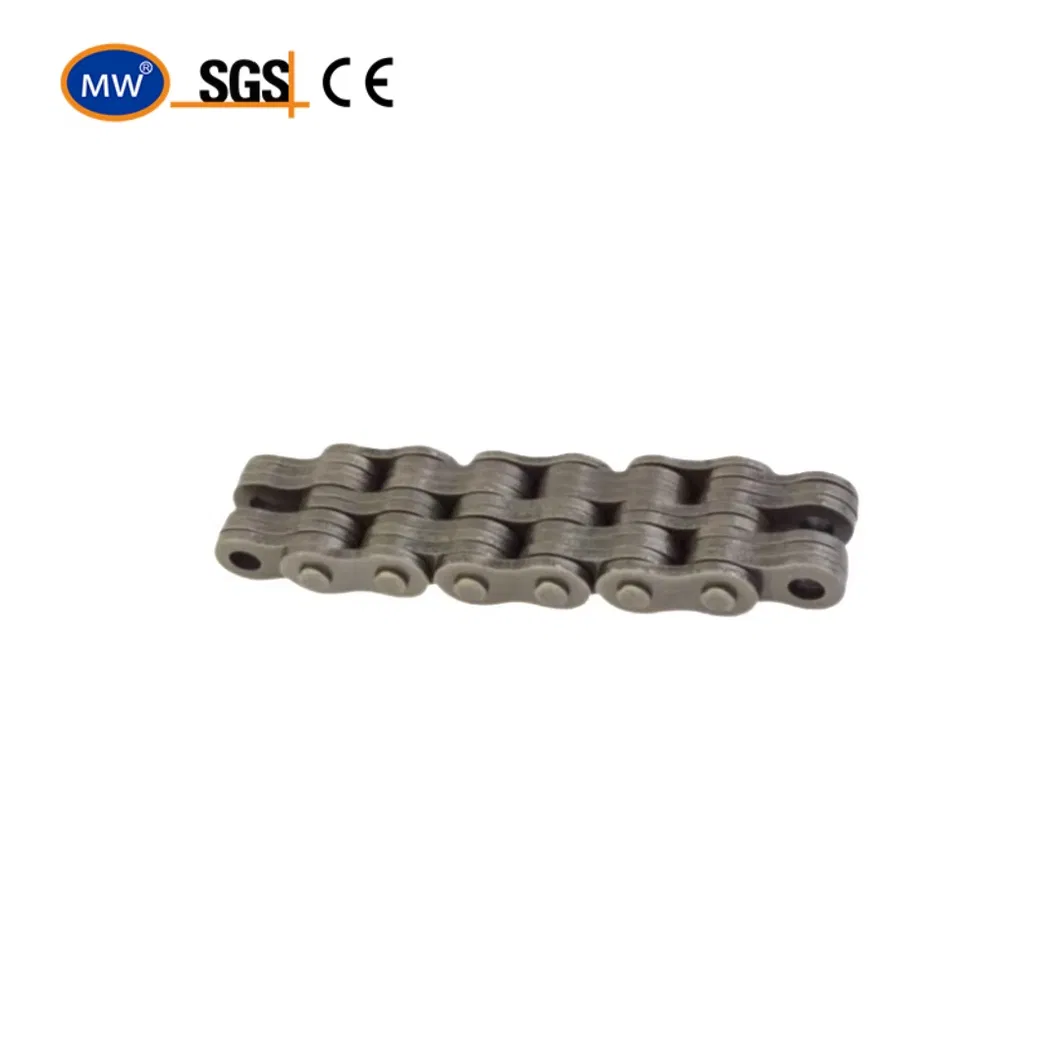

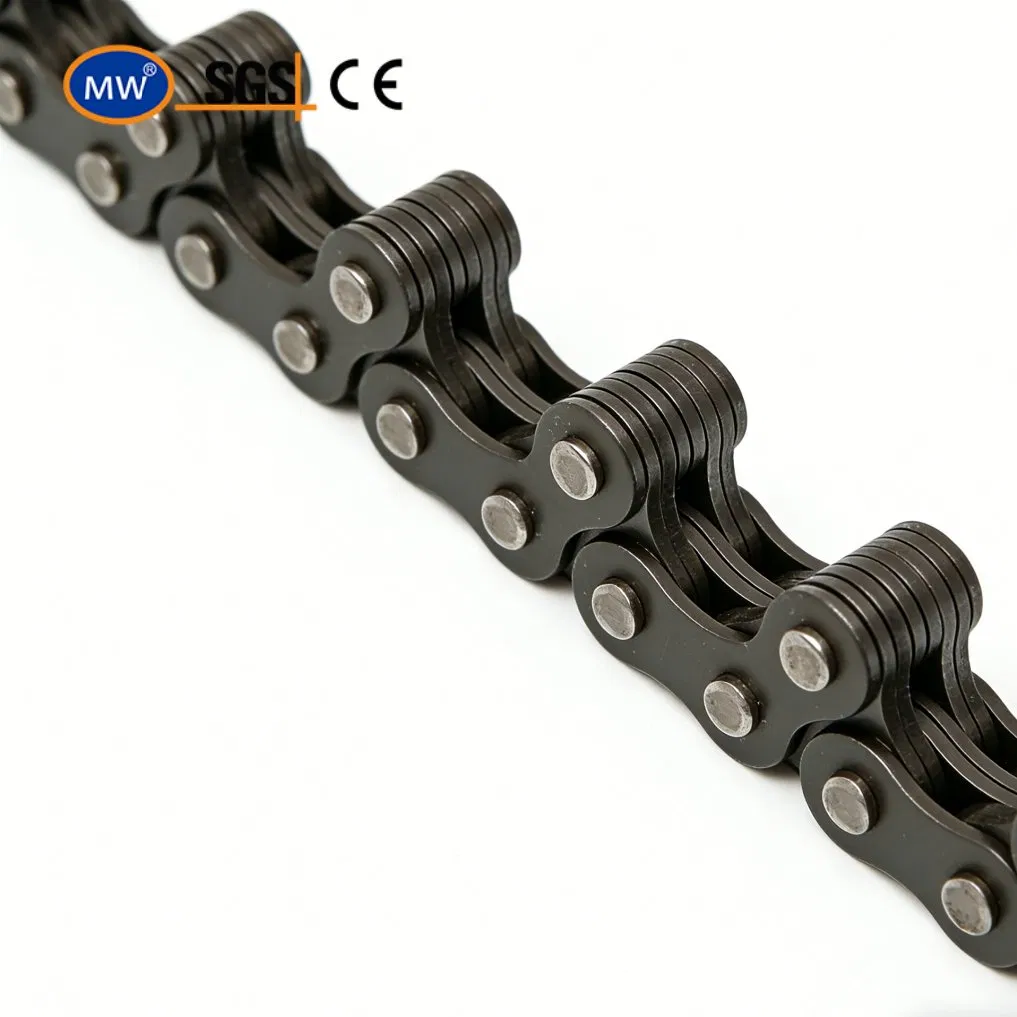

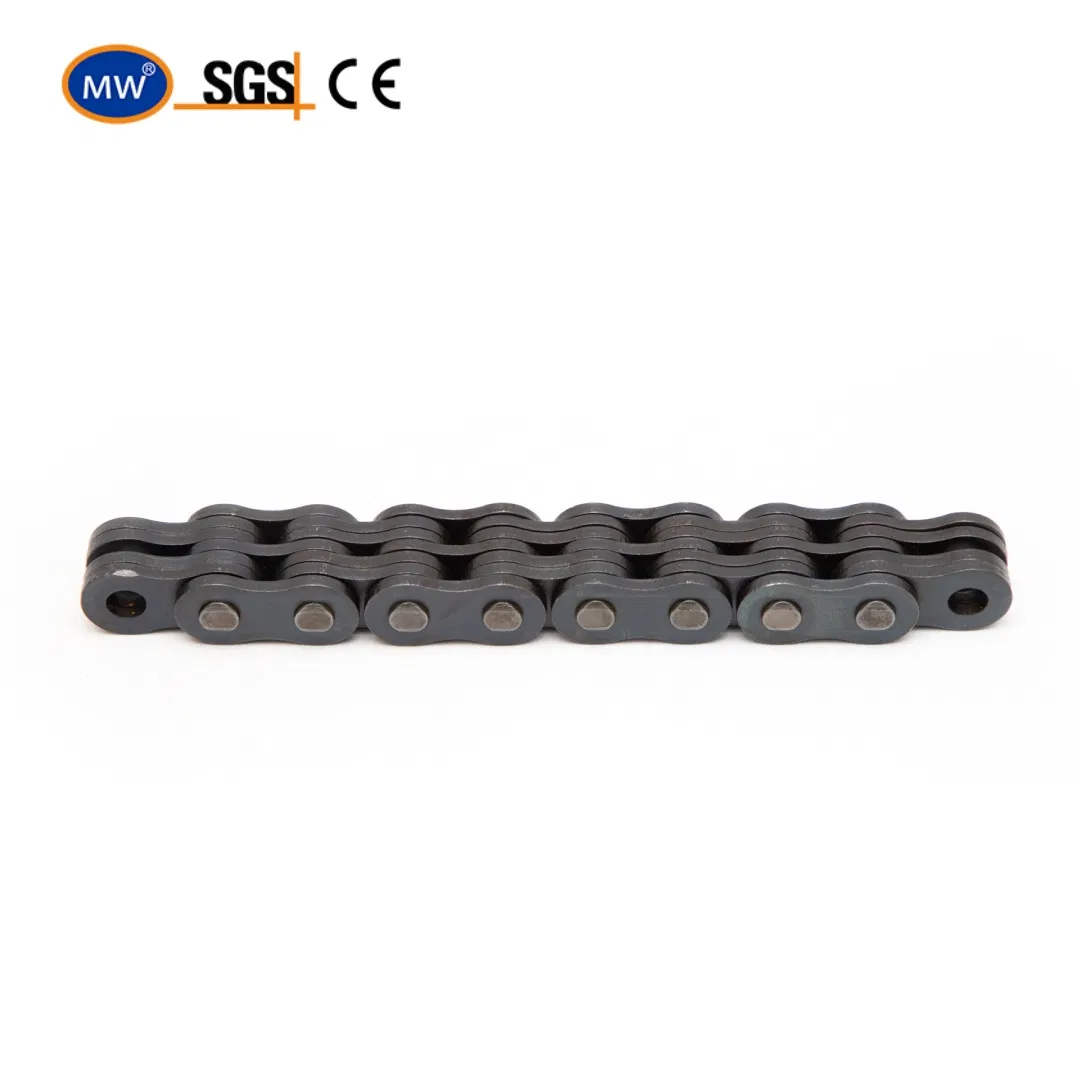

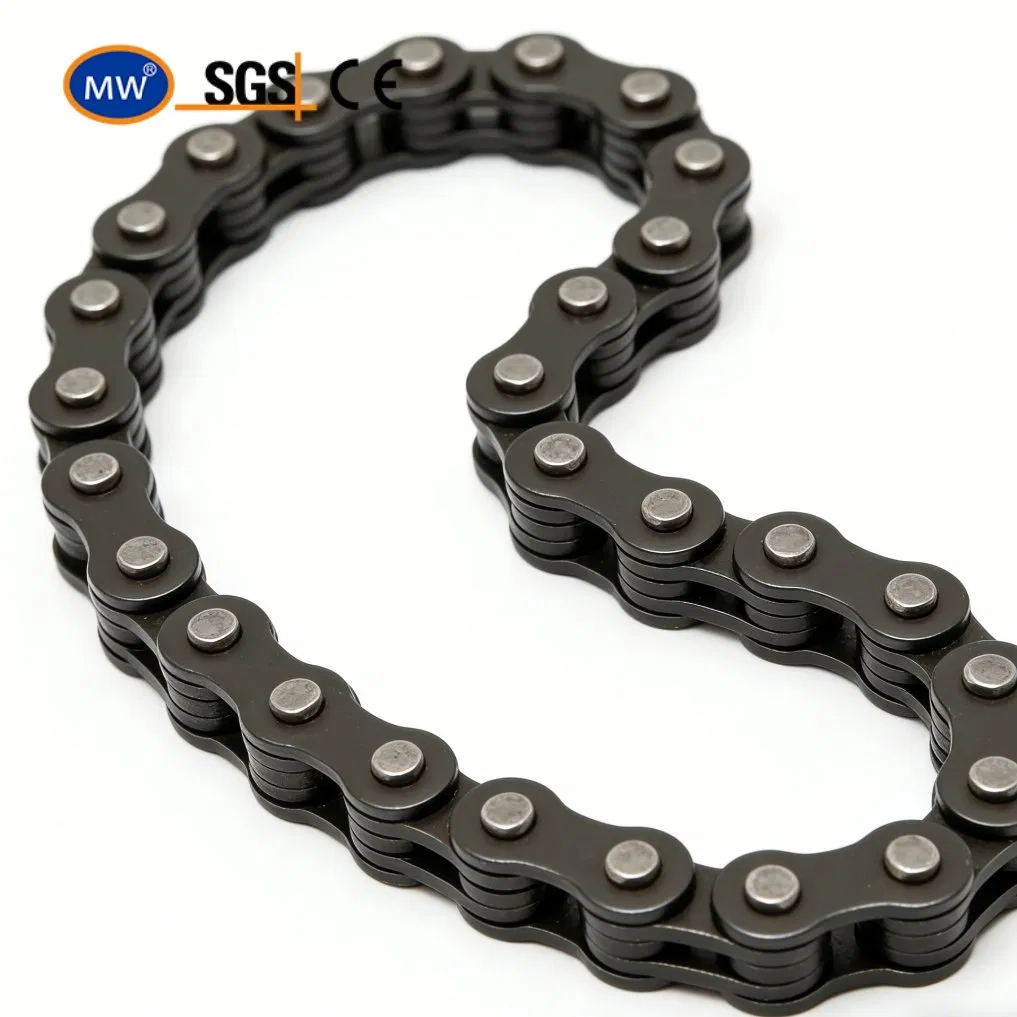

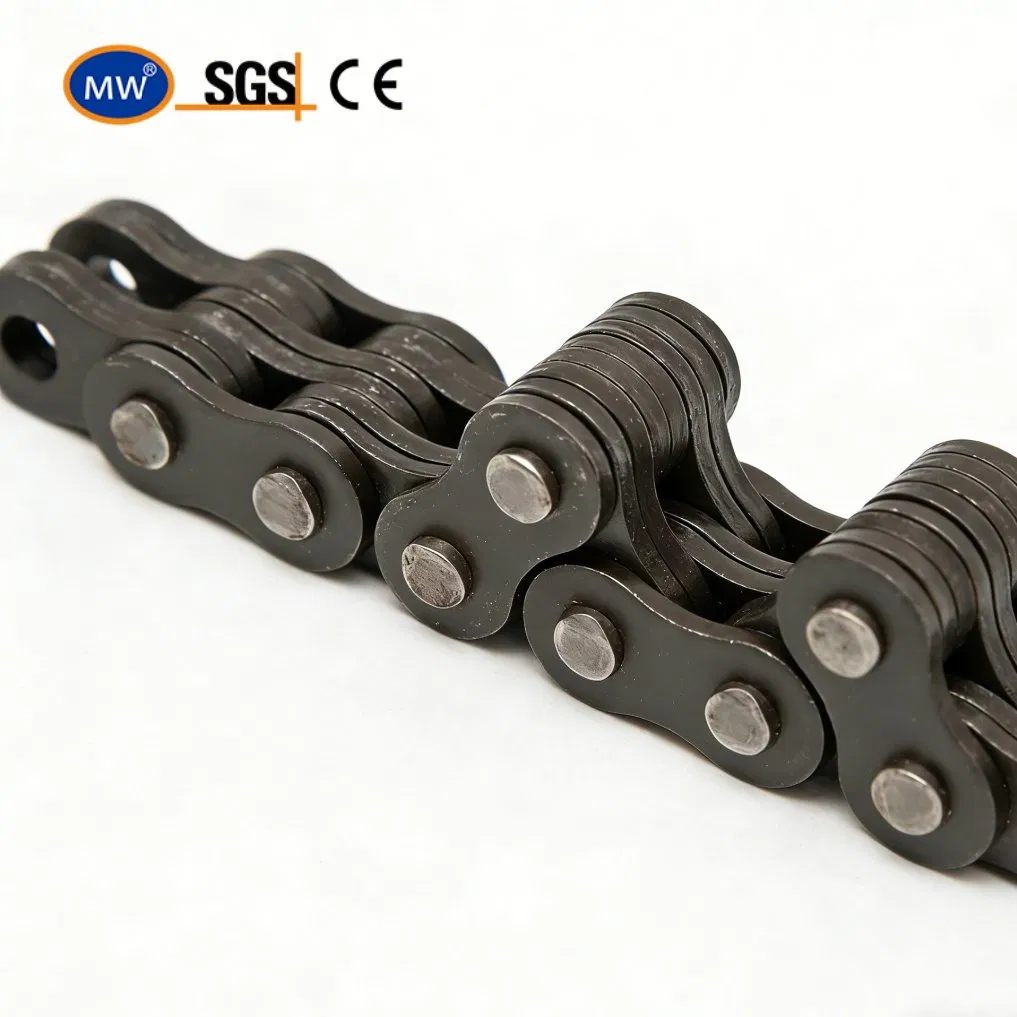

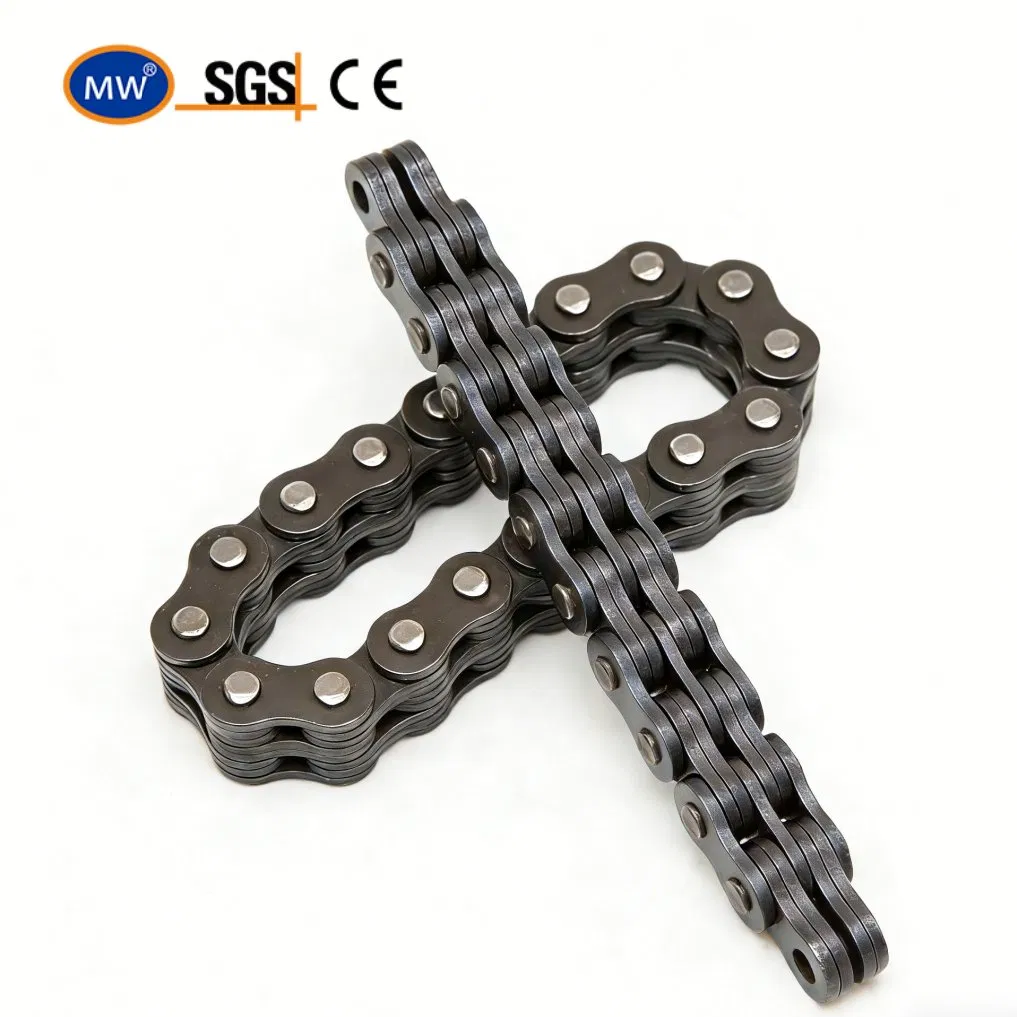

Our Leaf Chain serves as a universal, high-tensile lifting and balancing solution designed to operate seamlessly across the entire spectrum of modern material handling and heavy machinery. From the critical mast assemblies of forklifts, reach trucks, and telehandlers to the synchronized boom extensions of excavators, concrete pumps, and cranes, these chains provide unmatched stability and safety.
Their versatility extends further into specialized sectors, powering counterbalance mechanisms in press brakes, machine tools, elevator systems, agricultural harvesters, and marine cargo handlers. We maintain structural integrity in extreme temperatures and corrosive environments, making our chains the single-source backbone for reliable lifting and balancing from logistics to heavy industry.
High-strength carbon steel & 40Cr/50Mn alloy steel with professional heat treatment and shot peening for exceptional wear resistance.
Integrated multi-plate laminated structure designed for pure tension loading with precision-engineered plate spacing.
Excellent breaking load strictly following ANSI B29.9 / DIN 8152 / ISO 4347 standards for uninterrupted performance.
Strictly controlled pitch tolerance and pin diameter guarantee smooth, jitter-free movement within mast channels.

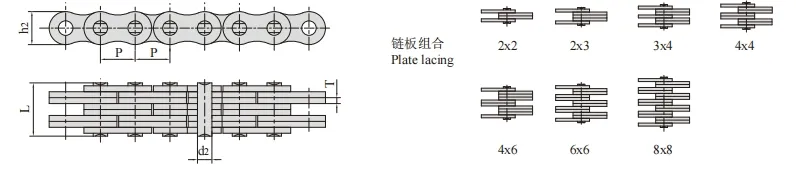

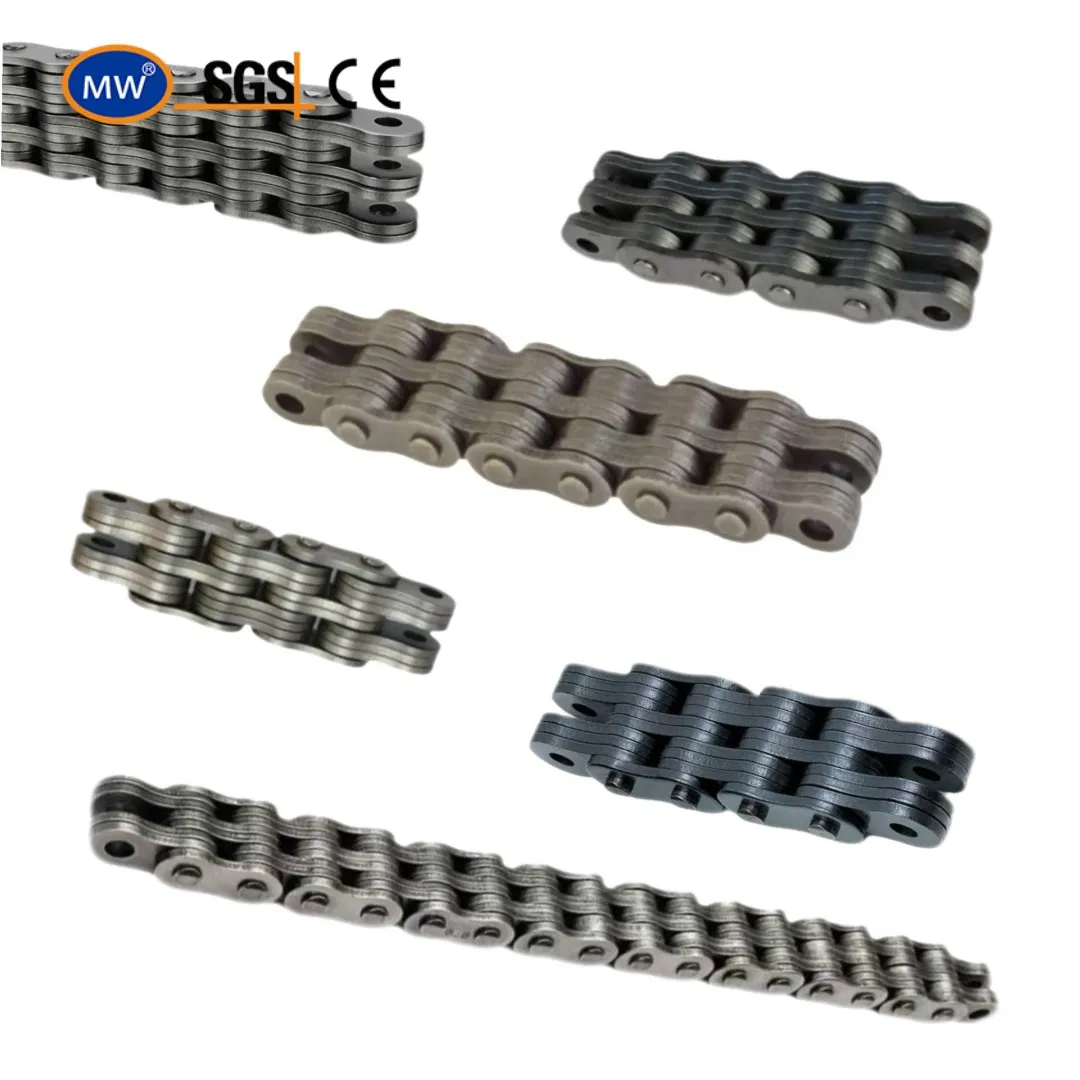

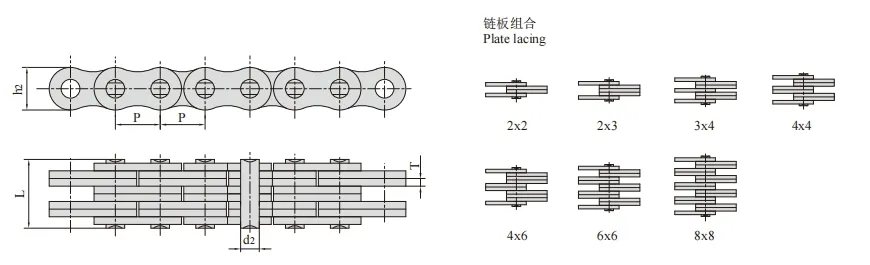

| ISO Chain No. | ANSI Chain No. | Pitch (mm) | Plate Lacing | Pin Length (mm) | Tensile Strength (kN) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| LH0822 | BL422 | 12.700 | 2×2 | 11.05 | 22.2 | 0.60 |
| LH0844 | BL444 | 12.700 | 4×4 | 19.51 | 44.5 | 1.20 |
| LH0888 | BL488 | 12.700 | 8×8 | 36.45 | 89.0 | 2.32 |
| LH1044 | BL544 | 15.875 | 4×4 | 22.78 | 66.7 | 1.80 |
| LH1244 | BL644 | 19.050 | 4×4 | 30.78 | 97.9 | 2.90 |
| LH1644 | BL844 | 25.400 | 4×4 | 37.90 | 169.0 | 4.80 |
Production based on technical drawings with precise dimensional tolerances and breaking load specifications.
Carbon Steel, Alloy Steel (40Cr/50Mn), and Stainless Steel (SS304/SS316) for corrosive environments.
Custom end fittings, anchors, and clevis mounts to match unique mast configurations.
Our production procedures are in strict compliance with ISO9001 standards. We utilize modern computerized machinery to ensure products meet international quality standards and are designed for optimal performance. Each leaf chain undergoes rigorous dimensional inspection, breaking load testing, and fatigue resistance detection before shipment.
